SLTX 1054 VT (13VR92AK009) - Cub Cadet 54" Lawn Tractor Engine 44P777-0765-B1 5 Parts Diagram

54" Lawn Tractor

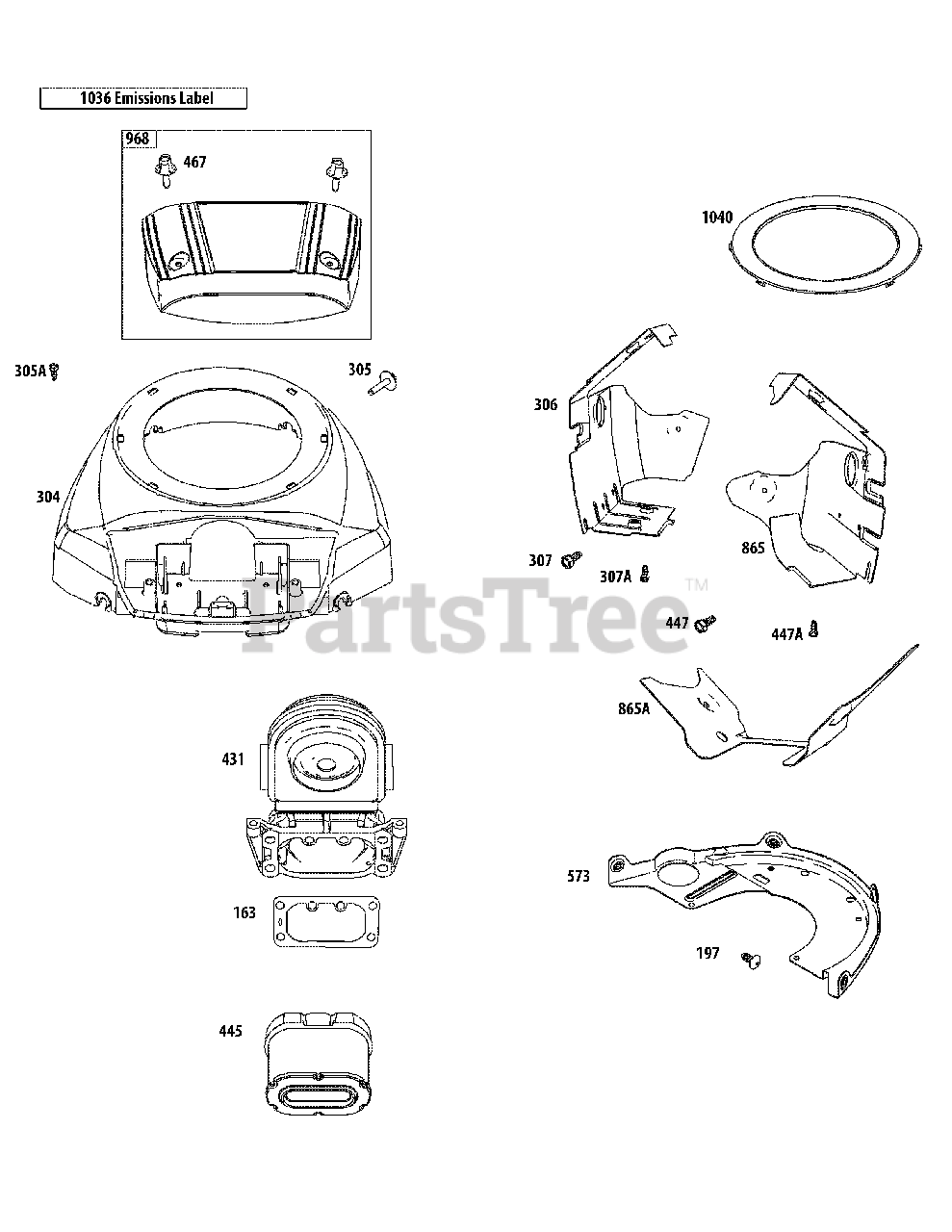

Engine 44P777-0765-B1 5 Parts Diagram

  • Title

1

Cub Cadet BS-793564

Cylinder Assembly

$

$

Not available

2

Cub Cadet BS-499585

Kit-Bushing/Seal (Magneto Side)

$18.99

$

In Stock, Qty 8

0

3

Cub Cadet BS-391086S

Seal-Oil (Magneto Side)

$6.49

$

In Stock, Qty 20+

0

4

Cub Cadet BS-796307

Sump-Engine

$278.99

$

Usually ships in 2-12 days

0

5

Cub Cadet BS-796270

Head-Cylinder (Cylinder #1)
(Superseded to BS-799088)

$

$

Not available

5A

Cub Cadet BS-796271

Head-Cylinder (Cylinder #2)

$

$

Not available

7

Cub Cadet BS-693997

Gasket-Cylinder Head

$24.99

$

In Stock, Qty 20+

0

8

Cub Cadet BS-792185

Breather Assembly

$

$

Not available

9

Cub Cadet BS-690937

Gasket-Breather

$8.49

$

In Stock, only 1 left!

0

10

Cub Cadet BS-697551

Screw (Breather Assembly)

$3.49

$

In Stock, Qty 20+

0

11

Cub Cadet BS-792184

Tube-Breather

$14.99

$

In Stock, only 3 left!

0

12

Cub Cadet BS-697227

Gasket-Crankcase
(Superseded to BS-594195)

$37.99

$

In Stock, Qty 20+

0

13

Cub Cadet BS-793988

Screw (Cylinder Head)
(Superseded to BS-592244)

$3.49

$

In Stock, Qty 20+

0

15

Cub Cadet BS-690946

Plug-Oil Drain

$5.99

$

In Stock, Qty 14

0

16

Cub Cadet BS-796540

Crankshaft

$

$

Not available

20

Cub Cadet BS-795387

Seal-Oil (PTO Side)

$7.49

$

In Stock, Qty 20+

0

22

Cub Cadet BS-694966

Screw (Crankcase Cover/Sump)

$5.99

$

Usually ships in 2-12 days

0

23

Cub Cadet BS-691053

Flywheel
(Superseded to BS-84004658)

$255.99

$

Usually ships in 2-12 days

0

24

Cub Cadet BS-222698S

Key-Flywheel

$2.99

$

In Stock, Qty 20+

0

25

Cub Cadet BS-793560

Piston Assembly (Standard)

$159.99

$

In Stock, only 2 left!

0

25

Cub Cadet BS-793563

Piston Assembly (.020" Oversize)

$172.99

$

Usually ships in 2-12 days

0

26

Cub Cadet BS-793561

Ring Set (Standard)
(Superseded to BS-792026)

$45.99

$

Usually ships in 2-12 days

0

26

Cub Cadet BS-792073

Ring Set (.020" Oversize)

$61.99

$

In Stock, Qty 5

0

27

Cub Cadet BS-690975

Lock-Piston Pin

$3.99

$

In Stock, Qty 10

0

28

Cub Cadet BS-696581

Pin-Piston

$17.99

$

In Stock, only 2 left!

0

29

Cub Cadet BS-796209

Rod-Connecting

$59.99

$

In Stock, Qty 5

0

32

Cub Cadet BS-690976

Screw (Connecting Rod)

$4.49

$

In Stock, Qty 17

0

33

Cub Cadet BS-793557

Valve-Exhaust

$38.99

$

In Stock, only 1 left!

0

34

Cub Cadet BS-793556

Valve-Intake

$32.99

$

In Stock, only 1 left!

0

35

Cub Cadet BS-694865

Spring-Valve (Intake)

$5.49

$

In Stock, only 2 left!

0

36

Cub Cadet BS-694865

Spring-Valve (Exhaust)

$5.49

$

In Stock, only 2 left!

0

40

Cub Cadet BS-690964

Retainer-Valve
(Superseded to BS-499586)

$7.49

$

In Stock, Qty 18

0

42

Cub Cadet BS-499586

Keeper-Valve

$7.49

$

In Stock, Qty 18

0

45

Cub Cadet BS-690977

Tappet-Valve

$7.99

$

Usually ships in 2-12 days

0

46

Cub Cadet BS-792555

Gear-Cam

$

$

Not available

48

Cub Cadet BS-698172

Short Block

$

$

Not available

50

Cub Cadet BS-695241

Manifold-Intake
(Superseded to BS-595606)

$87.99

$

In Stock, Qty 20+

0

51

Cub Cadet BS-795123

Gasket-Intake

$4.99

$

In Stock, Qty 8

0

51A

Cub Cadet BS-690950

Gasket-Intake

$2.99

$

In Stock, Qty 13

0

53

Cub Cadet BS-690951

Stud (Carburetor)

$7.49

$

In Stock, only 1 left!

0

54

Cub Cadet BS-699816

Screw (Intake Manifold)

$3.49

$

In Stock, Qty 7

0

73

Cub Cadet BS-494439

Screen-Rotating

$53.99

$

In Stock, Qty 8

0

74

Cub Cadet BS-698425

Screw (Rotating Screen)

$3.49

$

In Stock, Qty 20+

0

75

Cub Cadet BS-691056

Washer (Flywheel)

$9.49

$

Usually ships in 2-12 days

0

95

Cub Cadet BS-690718

Screw (Throttle Valve)

$5.99

$

Usually ships in 2-12 days

0

98

Cub Cadet BS-699721

Kit-Idle Speed

$13.99

$

Usually ships in 2-12 days

0

104

Cub Cadet BS-694918

Pin-Float Hinge

$7.49

$

In Stock, only 2 left!

0

105

Cub Cadet BS-698537

Valve-Float Needle

$15.99

$

In Stock, Qty 17

0

108

Cub Cadet BS-699723

Valve-Choke

$8.99

$

Usually ships in 2-12 days

0

117

Cub Cadet BS-792296

Jet-Main (Standard) (Left Jet)

$17.99

$

In Stock, Qty 7

0

117A

Cub Cadet BS-842627

Jet-Main (Standard) (Right Jet)

$17.99

$

In Stock, Qty 7

0

118

Cub Cadet BS-699457

Jet-Main (High Altitude) (Left Jet)

$15.99

$

In Stock, only 2 left!

0

118A

Cub Cadet BS-699733

Jet-Main (High Altitude) (Right Jet)

$17.99

$

In Stock, only 1 left!

0

121

Cub Cadet BS-792455

Kit-Carburetor Overhaul
(Superseded to BS-797890)

$95.99

$

Usually ships in 2-12 days

0

125

Cub Cadet BS-796227

Carburetor (Primer System)

$

$

Not available

130

Cub Cadet BS-690993

Valve-Throttle

$8.49

$

Usually ships in 2-12 days

0

131

Cub Cadet BS-499805

Kit-Throttle Shaft

$53.99

$

Usually ships in 2-12 days

0

133

Cub Cadet BS-699724

Float-Carburetor

$31.99

$

In Stock, only 1 left!

0

135

Cub Cadet BS-699729

Tube-Fuel Transfer

$36.99

$

In Stock, Qty 16

0

137

Cub Cadet BS-690994

Gasket-Float Bowl

$6.99

$

In Stock, Qty 20+

0

141

Cub Cadet BS-796228

Kit-Choke Shaft

$43.99

$

Usually ships in 2-12 days

0

142

Cub Cadet BS-699726

Nozzle-Carburetor

$35.99

$

Usually ships in 2-12 days

0

146

Cub Cadet BS-690979

Key-Timing

$3.49

$

In Stock, Qty 7

0

150

Cub Cadet BS-690995

Gasket-Nozzle

$5.99

$

In Stock, only 3 left!

0

163

Cub Cadet BS-691001

Gasket-Air Cleaner

$3.49

$

In Stock, Qty 5

0

177

Cub Cadet BS-691031

Seal-O Ring (Dipstick)

$5.49

$

In Stock, Qty 20+

0

186

Cub Cadet BS-795985

Connector-Hose (Intake Manifold)

$13.99

$

Usually ships in 2-12 days

0

187

Cub Cadet 751-10349-16

Line-Fuel (Cut to Required Length)

$19.99

$

In Stock, Qty 11

0

188

Cub Cadet BS-697551

Screw (Control Bracket)

$3.49

$

In Stock, Qty 20+

0

192

Cub Cadet BS-690083

Adjuster-Rocker Arm

$11.99

$

In Stock, only 1 left!

0

197

Cub Cadet BS-697820

Screw (Back Plate)

$4.49

$

In Stock, only 3 left!

0

209

Cub Cadet BS-796224

Spring-Governor (Yellow/ Black)

$10.99

$

Usually ships in 2-12 days

0

211

Cub Cadet BS-796225

Spring-Governed Idle

$4.99

$

In Stock, Qty 11

0

212

Cub Cadet BS-695238

Link-Throttle

$7.99

$

In Stock, only 1 left!

0

216

Cub Cadet BS-796229

Link-Choke

$9.49

$

In Stock, Qty 11

0

217

Cub Cadet BS-695409

Spring-Choke Return

$8.99

$

In Stock, only 1 left!

0

219

Cub Cadet BS-793338

Gear-Governor

$27.99

$

In Stock, Qty 20+

0

220

Cub Cadet BS-690412

Washer (Governor Gear)

$

$

Not available

221

Cub Cadet BS-841026

Cup-Governor

$11.99

$

In Stock, only 1 left!

0

222

Cub Cadet BS-796226

Bracket-Control

$33.99

$

Usually ships in 2-12 days

0

227

Cub Cadet BS-796223

Lever-Governor Control
(Superseded to BS-798856)

$23.99

$

In Stock, Qty 9

0

239

Cub Cadet BS-792028

Switch-Oil Pressure

$28.99

$

In Stock, only 1 left!

0

240

Cub Cadet BS-691035

Filter-Fuel
(Superseded to BS-84001895)

$7.99

$

In Stock, Qty 20+

0

250

Cub Cadet BS-690957

Retainer-Breather

$6.99

$

In Stock, only 1 left!

0

252

Cub Cadet BS-794389

Collector-Oil

$7.99

$

In Stock, only 1 left!

0

265

Cub Cadet BS-691024

Clamp-Casing

$3.99

$

In Stock, Qty 6

0

267

Cub Cadet BS-695134

Screw (Casing Clamp)
(Superseded to BS-792629)

$3.49

$

Usually ships in 2-12 days

0

276

Cub Cadet BS-695410

Washer-Sealing

$6.99

$

In Stock, Qty 15

0

278

Cub Cadet BS-792651

Washer (Governor Control Lever)

$23.99

$

In Stock, Qty 9

0

287

Cub Cadet BS-691108

Screw (Dipstick Tube)

$3.49

$

In Stock, Qty 20+

0

304

Cub Cadet BS-796678

Housing-Blower
(Superseded to BS-597767)

$187.99

$

In Stock, Qty 5

0

305

Cub Cadet BS-691005

Screw (Blower Housing)
(Superseded to BS-594618)

$3.99

$

In Stock, Qty 20+

0

305A

Cub Cadet BS-790690

Screw (Blower Housing to Intake Elbow)

$3.99

$

Usually ships in 2-12 days

0

306

Cub Cadet BS-796541

Shield-Cylinder (Cylinder #2)
(Superseded to BS-798855)

$

$

Not available

307

Cub Cadet BS-691003

Screw (Cylinder Shield) (Short)

$3.49

$

In Stock, Qty 9

0

307A

Cub Cadet BS-697551

Screw (Cylinder Shield) (Long)

$3.49

$

In Stock, Qty 20+

0

309

Cub Cadet BS-497595

Motor-Starter

$110.99

$

In Stock, Qty 20+

0

310

Cub Cadet BS-690323

Screw (Starter Motor)

$4.49

$

In Stock, Qty 7

0

311

Cub Cadet BS-497608

Brush Set

$27.99

$

In Stock, only 3 left!

0

332

Cub Cadet BS-691059

Nut (Flywheel)

$4.49

$

In Stock, only 1 left!

0

333

Cub Cadet BS-691060

Armature-Magneto
(Superseded to BS-592846)

$56.99

$

In Stock, Qty 20+

0

334

Cub Cadet BS-691061

Screw (Magneto Armature)

$3.49

$

In Stock, Qty 20+

0

337

Cub Cadet 759-3336

Plug-Spark
(Superseded to RC12YC)

$4.49

$

In Stock, Qty 20+

0

358

Cub Cadet BS-694012

Gasket Set-Engine

$113.99

$

In Stock, only 1 left!

0

385

Cub Cadet BS-697551

Screw (Fuel Pump)

$3.49

$

In Stock, Qty 20+

0

387

Cub Cadet BS-808656

Pump-Fuel
(Superseded to BS-597338)

$27.99

$

In Stock, Qty 20+

0

404

Cub Cadet BS-690442

Washer (Governor Crank)

$3.49

$

In Stock, Qty 5

0

415

Cub Cadet BS-690283

Plug (Oil Pressure Switch Hole)
(Superseded to BS-794903)

$5.49

$

Usually ships in 2-12 days

0

418

Cub Cadet BS-795912

Plate-Carburetor

$14.99

$

In Stock, only 2 left!

0

431

Cub Cadet BS-792297

Elbow-Intake

$

$

Not available

445

Cub Cadet BS-792105

Filter-Air Cleaner Cartridge

$28.99

$

In Stock, Qty 20+

0

447

Cub Cadet BS-691003

Screw (Air Guide Cover) (Short)

$3.49

$

In Stock, Qty 9

0

447A

Cub Cadet BS-697551

Screw (Air Guide Cover) (Long)

$3.49

$

In Stock, Qty 20+

0

467

Cub Cadet BS-790697

Knob-Air Cleaner

$7.99

$

In Stock, only 4 left!

0

474

Cub Cadet BS-696457

Alternator
(Superseded to BS-592829)

$102.99

$

In Stock, Qty 7

0

501

Cub Cadet BS-794360

Regulator

$64.99

$

In Stock, only 2 left!

0

505

Cub Cadet BS-691029

Nut (Governor Control Lever)

$5.49

$

Usually ships in 2-12 days

0

510

Cub Cadet BS-696541

Drive-Starter

$

$

Not available

513

Cub Cadet BS-692024

Clutch-Drive

$21.99

$

In Stock, only 2 left!

0

523

Cub Cadet BS-691036

Dipstick
(Superseded to BS-594528)

$18.99

$

In Stock, only 1 left!

0

524

Cub Cadet BS-691032

Seal-Dipstick Tube

$5.99

$

In Stock, only 1 left!

0

525

Cub Cadet BS-691037

Tube-Dipstick

$

$

Not available

526

Cub Cadet BS-691129

Screw (Regulator)

$3.99

$

In Stock, Qty 8

0

544

Cub Cadet N/A

Armature-Starter

Note: (Service with Starter Motor 497595, Reference 309)

$

$

Currently unavailable

552

Cub Cadet BS-690552

Bushing-Governor Crank

$8.49

$

In Stock, Qty 9

0

552A

Cub Cadet BS-690553

Bushing-Governor Crank

$7.49

$

In Stock, Qty 9

0

562

Cub Cadet BS-690311

Screw (Governor Control Lever)

$4.49

$

Usually ships in 2-12 days

0

573

Cub Cadet BS-790444

Plate-Back

$59.99

$

Usually ships in 2-12 days

0

579

Cub Cadet BS-691029

Nut (Starter Cable)

$5.49

$

Usually ships in 2-12 days

0

601

Cub Cadet BS-791850

Clamp-Hose (Green)

$3.49

$

In Stock, Qty 20+

0

601A

Cub Cadet BS-691038

Clamp-Hose (Black)

$3.99

$

In Stock, Qty 16

0

615

Cub Cadet BS-698290

Retainer-Governor Shaft

$4.49

$

In Stock, Qty 9

0

616

Cub Cadet BS-691045

Crank-Governor

$19.99

$

In Stock, only 1 left!

0

617

Cub Cadet BS-697891

Seal-O Ring (Intake Manifold) Red)
(Superseded to BS-691917)

$4.49

$

In Stock, Qty 20+

0

628

Cub Cadet BS-697551

Screw (Fuel Pump Bracket)

$3.49

$

In Stock, Qty 20+

0

633

Cub Cadet BS-699813

Seal-Choke/Throttle Shaft Choke Shaft)

$6.99

$

In Stock, only 1 left!

0

635

BS-66538s

Boot-Spark Plug

$

$

Not available

654

Cub Cadet BS-690958

Nut (Carburetor)

$3.49

$

In Stock, only 3 left!

0

668

Cub Cadet BS-691215

Spacer (Rotating Screen)

$7.49

$

In Stock, only 1 left!

0

668A

Cub Cadet BS-691500

Spacer (Rotating Screen)

$7.49

$

Usually ships in 2-12 days

0

672

Cub Cadet BS-690234

Gasket-Carburetor Plate

$12.99

$

In Stock, Qty 18

0

691

Cub Cadet BS-790574

Seal-Governor Shaft

$5.99

$

In Stock, Qty 20+

0

697

Cub Cadet BS-791680

Screw (Drive Cap)

$3.99

$

In Stock, Qty 6

0

703

Cub Cadet BS-691010

Clip

$6.99

$

Usually ships in 2-12 days

0

718

Cub Cadet BS-690959

Pin-Locating

$6.99

$

In Stock, only 1 left!

0

729

Cub Cadet BS-694123

Clip-Wire

$4.49

$

Usually ships in 2-12 days

0

741

Cub Cadet BS-690980

Gear-Timing

$14.99

$

Usually ships in 2-12 days

0

742

Cub Cadet BS-690328

Retainer-E Ring (Governor Crank)

$4.49

$

In Stock, Qty 6

0

750

Cub Cadet BS-796208

Screw (Oil Pump Cover)

$3.99

$

In Stock, only 3 left!

0

783

Cub Cadet BS-695708

Gear-Pinion

$6.99

$

In Stock, only 2 left!

0

788

Cub Cadet BS-793145

Bracket-Fuel Pump

$20.99

$

Usually ships in 2-12 days

0

789

Cub Cadet BS-696576

Harness-Wiring

$40.99

$

Usually ships in 2-12 days

0

797

Cub Cadet BS-693167

Nut (Brush Retainer)

$4.49

$

Usually ships in 2-12 days

0

798

Cub Cadet BS-697890

Screw (Rocker Arm)

$3.49

$

In Stock, Qty 7

0

801

Cub Cadet BS-691283

Cap-Drive

$83.99

$

Usually ships in 2-12 days

0

802

Cub Cadet BS-691286

Cap-End

$26.99

$

Usually ships in 2-12 days

0

803

Cub Cadet N/A

Housing-Starter

Note: (Service with Starter Motor 497595, Reference 309)

$

$

Currently unavailable

847

Cub Cadet BS-499602

Dipstick/Tube Assembly

$

$

Not available

851

Cub Cadet BS-493880S

Terminal-Spark Plug

$3.49

$

In Stock, Qty 20+

0

865

Cub Cadet BS-691012

Cover-Air Guide (Cylinder #1)

$

$

Not available

865A

Cub Cadet BS-792286

Cover-Air Guide (Valley)

$34.99

$

Usually ships in 2-12 days

0

868

Cub Cadet BS-690968

Seal-Valve

$10.99

$

In Stock, Qty 20+

0

877

Cub Cadet BS-790544

Wire/Connector-Alternator

$43.99

$

Usually ships in 2-12 days

0

883

Cub Cadet BS-690970

Gasket-Exhaust

$4.99

$

In Stock, Qty 19

0

914

Cub Cadet BS-691127

Screw (Rocker Cover)

$4.49

$

In Stock, Qty 13

0

918

Cub Cadet BS-793147

Hose-Vacuum

$7.99

$

In Stock, Qty 18

0

943

Cub Cadet BS-796222

Seal-O Ring (Oil Pump Cover)

$6.99

$

In Stock, Qty 20+

0

947

Cub Cadet BS-841546

Solenoid-Fuel

$166.99

$

Usually ships in 2-12 days

0

965

Cub Cadet BS-796221

Cover-Oil Pump

$10.99

$

In Stock, only 1 left!

0

968

Cub Cadet BS-795120

Cover-Air Cleaner

$39.99

$

In Stock, only 1 left!

0

975

Cub Cadet BS-793592

Bowl-Float

$

$

Not available

987

Cub Cadet BS-691000

Seal-Throttle Shaft

$6.99

$

Usually ships in 2-12 days

0

1005

Cub Cadet BS-791236

Fan-Flywheel
(Superseded to BS-593640)

$26.99

$

In Stock, only 1 left!

0

1013

Cub Cadet BS-690954

Nipple-Oil Filter

$7.99

$

In Stock, Qty 5

0

1017

Cub Cadet BS-690770

Screen-Oil Pump

$

$

Not available

1022

Cub Cadet BS-690971

Gasket-Rocker Cover

$7.49

$

In Stock, Qty 20+

0

1023

Cub Cadet BS-793146

Cover-Rocker (Cylinder #1)

$

$

Not available

1023A

Cub Cadet BS-499600

Cover-Rocker (Cylinder #2)

$15.99

$

In Stock, only 1 left!

0

1024

Cub Cadet BS-796220

Pump-Oil

$31.99

$

In Stock, only 2 left!

0

1026

Cub Cadet BS-690981

Rod-Push (Steel)
(Superseded to BS-597785)

$7.99

$

In Stock, Qty 20+

0

1026A

Cub Cadet BS-690982

Rod-Push (Aluminum)

$7.99

$

In Stock, Qty 20+

0

1027

Cub Cadet BS-696854

Filter-Oil

$13.99

$

In Stock, Qty 20+

0

1029

Cub Cadet BS-690972

Arm-Rocker

$12.99

$

In Stock, Qty 11

0

1036

Cub Cadet N/A

Label-Emissions

Note: (Available

$

$

Currently unavailable

from a Briggs & Stratton)

$

$

Not available

1040

Cub Cadet BS-791237

Plate-Trim

$31.99

$

In Stock, only 2 left!

0

1051

Cub Cadet BS-691265

Ring-Retaining (Starter Drive)

$5.49

$

In Stock, Qty 7

0

1054

Cub Cadet BS-280275

Tie-Cable

$4.49

$

Usually ships in 2-12 days

0

1059

Cub Cadet BS-698516

Kit-Screw/Washer (Alternator)

$5.49

$

Usually ships in 2-12 days

0

1070

Cub Cadet BS-791680

Screw (Flywheel Fan)

$3.99

$

In Stock, Qty 6

0

1090

Cub Cadet BS-691293

Retainer-Brush

$29.99

$

In Stock, Qty 5

0

1095

Cub Cadet BS-694013

Gasket Set-Valve

$69.99

$

In Stock, only 1 left!

0

1100

Cub Cadet BS-791959

Pivot-Rocker Arm

$6.99

$

In Stock, only 2 left!

0

1119

Cub Cadet BS-93621

Screw (Alternator)
(Superseded to BS-691183)

$

$

Not available

1123

Cub Cadet BS-841653

Seal-O Ring (Solenoid Retainer)

$14.99

$

In Stock, Qty 16

0

1124

Cub Cadet BS-841653

Seal-O Ring (Fuel Transfer Tube)

$14.99

$

In Stock, Qty 16

0

1126

Cub Cadet BS-690991

Screw (Fuel Transfer Tube)

$3.99

$

Usually ships in 2-12 days

0

1127

Cub Cadet BS-695407

Screw (Fuel Bowl)

$4.49

$

In Stock, Qty 20+

0

1128

Cub Cadet BS-690990

Screw (Carburetor Nozzle)

$3.99

$

Usually ships in 2-12 days

0

1169

Cub Cadet BS-690990

Screw (Carburetor Cover Plate)

$3.99

$

Usually ships in 2-12 days

0

1329

Cub Cadet BS-44Q777-0037

Replacement Engine
(Superseded to BS-44S977-0032)

$2198.99

$

Usually ships in 3-6 days

0
