SLTX 1054 (13AK92AK056) - Cub Cadet 54" Lawn Tractor (2009) Frame, Battery & PTO Parts Diagram

54" Lawn Tractor

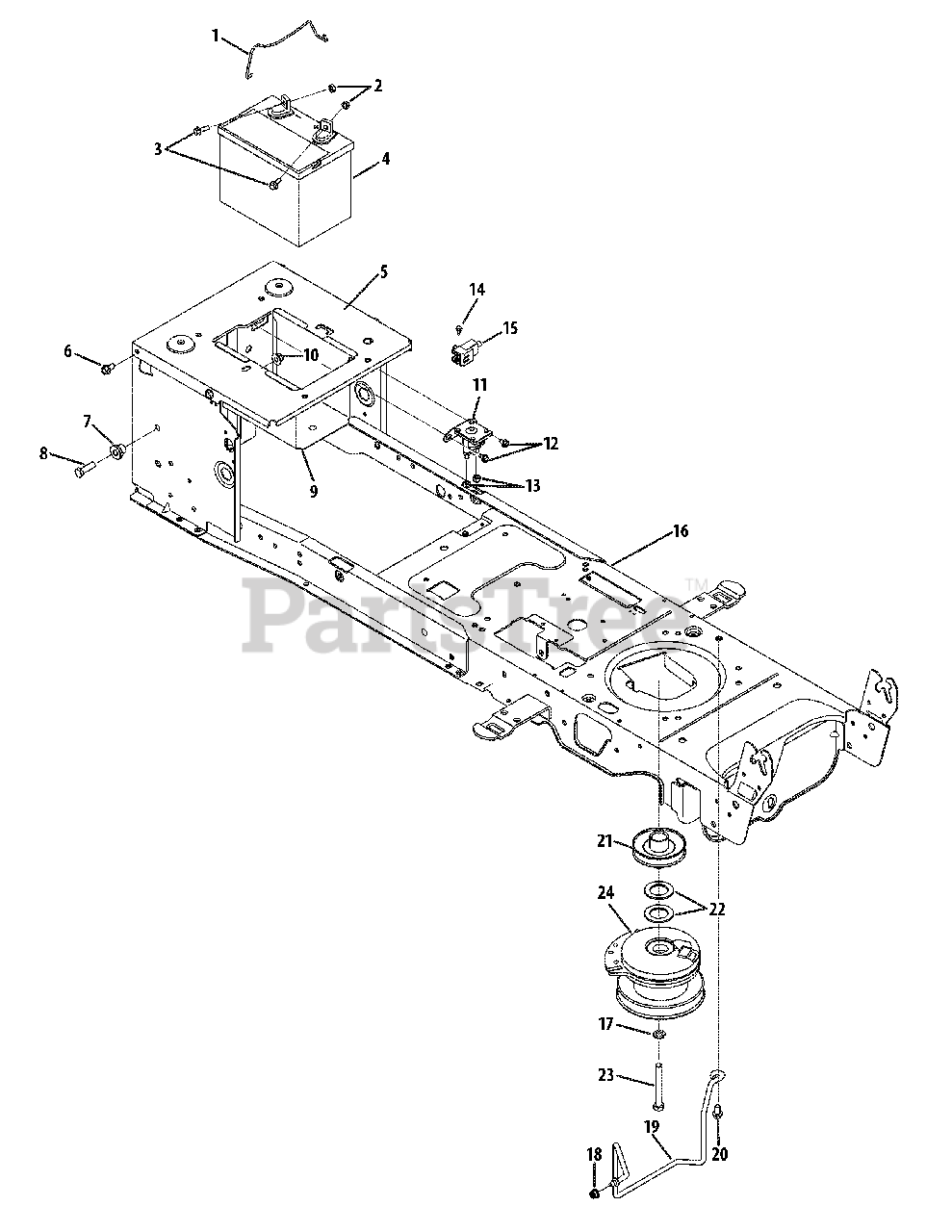

Frame, Battery & PTO Parts Diagram

  • Title
1

Cub Cadet 747-04121A

Battery Hold-Down Rod

$6.49

$

In Stock, Qty 20+

0

2

Cub Cadet 712-0271

Sems Nut, 1.4-20

$4.49

$

In Stock, Qty 19

0

3

Cub Cadet 710-04666

Hex Flange, 1.4-20 x .75

$6.99

$

In Stock, only 3 left!

0

$

$

Not available

5

Cub Cadet 783-06089-0637

Seat Frame Bracket

$57.99

$

In Stock, only 1 left!

0

6

Cub Cadet 710-04484

Hex Washer Screw, 5.16-18 x .750

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 738-04058

Shoulder Spacer, .38 x 1.0 x .70

$4.49

$

In Stock, only 1 left!

0

8

Cub Cadet 710-3005

Hex Screw, 3.8-16 x 1.25

$3.99

$

In Stock, Qty 20+

0

9

$

$

Not available

10

Cub Cadet 712-04065

Flange Lock Nut, 3.8-16

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 725-04439

Solenoid
(Superseded to 725-04439B)

$39.99

$

In Stock, Qty 20+

0

12

Cub Cadet 710-0653

Hex Washer Screw, 1.4-20 x .375

$4.49

$

In Stock, Qty 7

0

13

Cub Cadet 712-04064

Flange Lock Nut, 1.4-20

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 738-04237A

Shoulder Screw, #10-32 x .500

$6.49

$

In Stock, Qty 7

0

15

Cub Cadet 725-04363

Interlock Switch

$15.99

$

In Stock, Qty 10

0

16

Cub Cadet 683-04469-0637

Lower Frame Assembly
(Superseded to 683-04469D-0637)

$495.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 936-0171

Lock Washer, 7.16 (All Models)
(Superseded to 736-0171)

$4.49

$

In Stock, Qty 5

0

18

Cub Cadet 712-04063

Flange Lock Nut, 5.16-18 (All Models)

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 747-05073

Keeper Rod

$48.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 710-04484

Hex Washer Screw, 5.16-18 x .750

$3.99

$

In Stock, Qty 20+

0

21

Cub Cadet 756-0978B

Engine Pulley

$66.99

$

In Stock, Qty 13

0

22

Cub Cadet 736-0277

Flat Washer, 1.031 x 1.620 x .095

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet 710-04379A

Hex Screw, 7.16-20 x 3.50

$6.49

$

In Stock, only 3 left!

0

24

Cub Cadet 917-04174A

Electric PTO Clutch - SLTX1050

$679.99

$

Usually ships in 3-6 days

0

Cub Cadet 917-1774C

Electric PTO Clutch - SLTX1054
(Superseded to 917-05001)

$630.99

$

In Stock, only 2 left!

0
