SLTX 1054 (13AK92AK056) - Cub Cadet 54" Lawn Tractor (2009) Engine Accessories Parts Diagram

54" Lawn Tractor

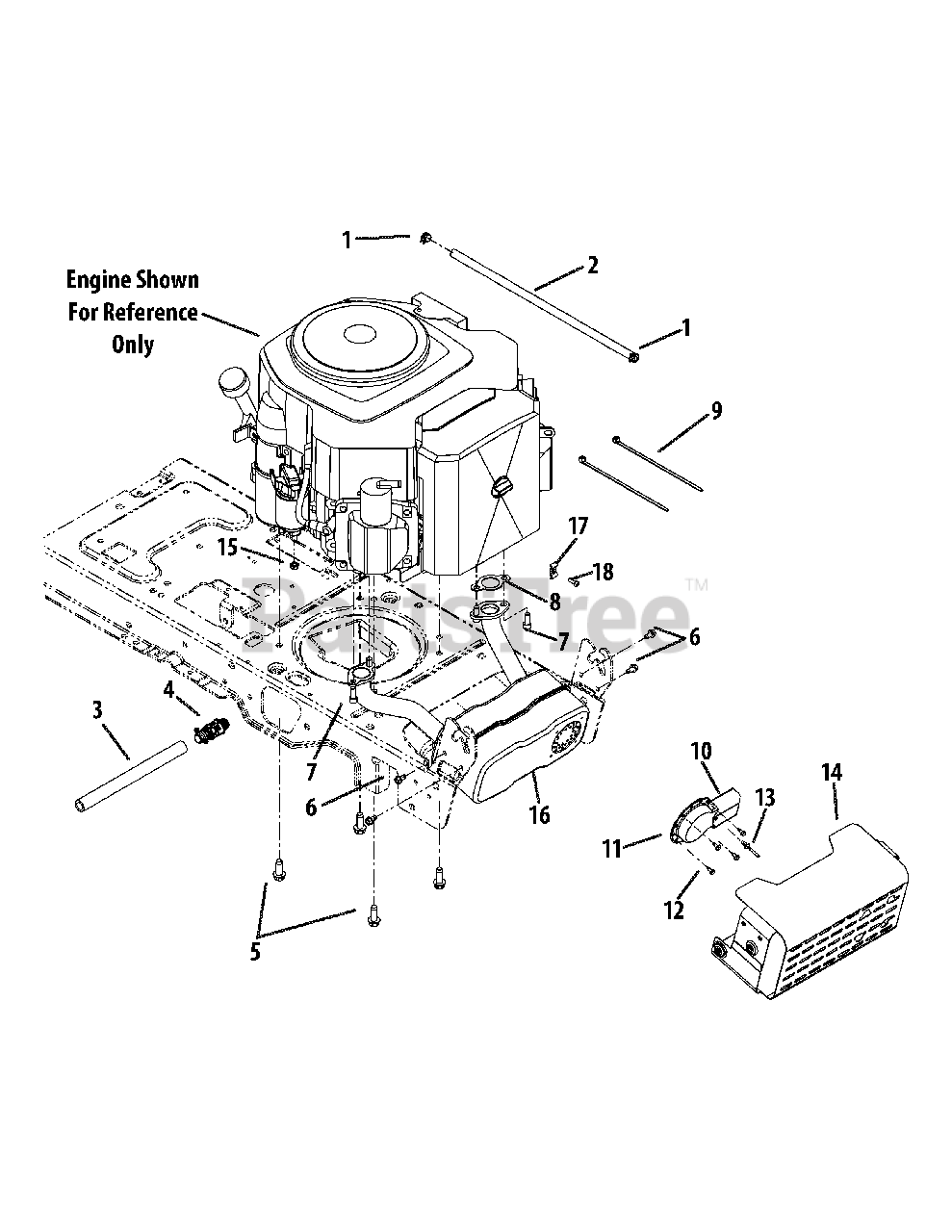

Engine Accessories Parts Diagram

  • Title

1

Cub Cadet 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 20+

0

2

Cub Cadet 751-10349-28

Fuel Hose

$41.99

$

In Stock, only 1 left!

0

3

Cub Cadet 751-3141-14

Extension Hose

$11.99

$

In Stock, Qty 7

0

4

Cub Cadet 951-10517A

Oil Drain

$24.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-04683

Hex Washer Screw, 3/8-16 x 1.00
(Superseded to 710-04683C)

$6.49

$

In Stock, only 4 left!

0

6

Cub Cadet 710-0599

Hex Washer Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-1314A

Screw, 5/16-18 x .750

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 721-0377A

Exhaust Gasket
(Superseded to KH-24-041-49-S)

$

$

Not available

9

Cub Cadet 725-0157

Cable Tie, 3/16 x .05 x 7.4

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 751-0564B

Muffler Deflector

$13.99

$

In Stock, only 3 left!

0

11

Cub Cadet 751-10353

Long Muffler Deflector
(Superseded to 751-11053B)

$5.49

$

In Stock, Qty 20+

0

12

Cub Cadet 710-0227

Hex Washer Screw, #8-18 x .500

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 728-04000

Rivet, .188 x .300

$6.99

$

In Stock, Qty 7

0

14

Cub Cadet 683-04549-0637

Muffler Shield Assembly
(Superseded to 683-05460A-0637)

$80.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 712-0271

Sems Nut, 1/4-20

$4.49

$

In Stock, Qty 19

0

16

Cub Cadet 751-10528

Kohler Twin Muffler
(Superseded to 951-10528B)

$160.99

$

In Stock, only 2 left!

0

17

Cub Cadet KH-47-237-02

Dual Conduit Clamp
(Superseded to KH-47-237-02-S)

$10.99

$

Usually ships in 2-5 days

0

18

Cub Cadet KH-24-086-43-S

Tap Screw, M5 x .8
(Superseded to KH-25-086-405-S)

$2.49

$

In Stock, only 2 left!

0
