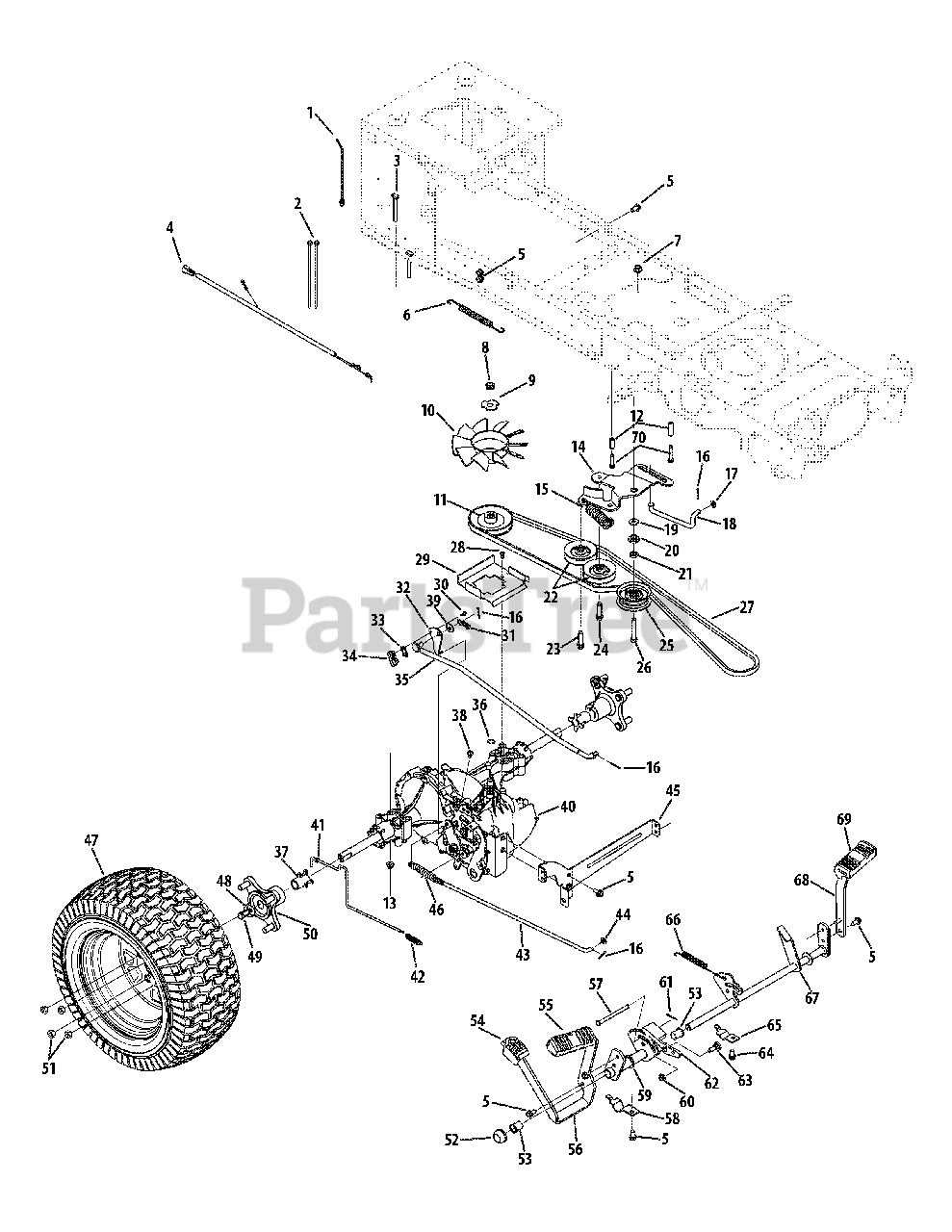

SLTX 1054 (13AK92AK056) - Cub Cadet 54" Lawn Tractor (2009) Drive System Parts Diagram

54" Lawn Tractor

Drive System Parts Diagram

  • Title

1

Cub Cadet 926-0154

Cable Tie, 7.5

$6.49

$

Usually ships in 3-6 days

0

2

Cub Cadet 725-0157

Cable Tie, 3.16 x .05 x 7.4

$3.99

$

In Stock, Qty 20+

0

3

Cub Cadet 710-04823

Bolt, 5.16-18 x 2.75

$5.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 725-04791

Jumper Harness
(Superseded to 725-04791A)

$15.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-04484

Hex Washer Screw, 5.16-18 x .750

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 732-04606

Extension Spring, .500 x 12.6

$12.99

$

In Stock, only 2 left!

0

7

Cub Cadet 912-0431

Flange Lock Nut, 3.8-16

$4.99

$

In Stock, Qty 20+

0

8

Cub Cadet 912-0346

Jam Lock Nut, 1.2-20
(Superseded to 712-0346)

$4.99

$

In Stock, Qty 6

0

9

Cub Cadet 736-04263

Lock Washer

$6.99

$

In Stock, Qty 20+

0

10

Cub Cadet 731-06098

Hydro Fan

$19.99

$

In Stock, Qty 20+

0

11

Cub Cadet 756-04308

Input Pulley

$31.99

$

In Stock, Qty 20+

0

12

Cub Cadet 750-04456

Spacer, .260 x .372 x 1.420

$7.49

$

In Stock, only 3 left!

0

13

Cub Cadet 712-04063

Flange Lock Nut, 5.16-18

$3.99

$

In Stock, Qty 5

0

14

Cub Cadet 783-06027

Idler Bracket
(Superseded to 783-06027B)

$

$

Not available

15

Cub Cadet 732-04624

Extension Spring, 1.00 x 4.75

$10.99

$

In Stock, only 1 left!

0

16

Cub Cadet 914-0111

Cotter Pin, 3.32 x 1.00
(Superseded to 714-0111)

$4.99

$

In Stock, Qty 13

0

17

Cub Cadet 936-0264

Flat Washer, .330 x .630 x .0635

$6.99

$

In Stock, only 3 left!

0

18

Cub Cadet 747-04957A

Pedal Transmission Bypass Rod

$13.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 736-04337

Shim Washer, 1.00 x .632 x .010

$3.99

$

In Stock, Qty 11

0

20

Cub Cadet 738-0372B

Shoulder Spacer, 1.00 x .38 x .38

$9.49

$

In Stock, Qty 20+

0

21

Cub Cadet 912-0240

Jam Nut, 7.16-20

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 756-04325

Idler Pulley

$24.99

$

In Stock, Qty 20+

0

23

Cub Cadet 710-1008

Hex Washer Screw, 3.8-16 x 1.875

$5.49

$

In Stock, Qty 8

0

24

Cub Cadet 710-1007

Hex Washer Screw, 3.8-16 x 1.500

$6.49

$

In Stock, only 1 left!

0

25

Cub Cadet 756-04224

Idler Pulley

$26.99

$

In Stock, Qty 20+

0

26

Cub Cadet 710-3011

Hex Screw, 3.8-16 x 2.25

$6.99

$

In Stock, Qty 20+

0

27

Cub Cadet 954-04207

V-Belt

$38.99

$

In Stock, Qty 20+

0

28

Cub Cadet 710-0351

Screw, #10-16 x .500

$4.49

$

Usually ships in 3-6 days

0

29

Cub Cadet 783-06260-0637

Belt Disengage Support Bracket

$

$

Not available

30

Cub Cadet 710-0227

Hex Washer Screw, #8-18 x .500

$4.49

$

In Stock, Qty 20+

0

31

Cub Cadet 732-3118

Extension Spring, .375 x 1.44

$10.99

$

In Stock, only 1 left!

0

32

Cub Cadet 783-1019B

Switch Actuator Bracket

$10.99

$

In Stock, only 1 left!

0

33

Cub Cadet 926-0320

Nut Insulator Plate

$6.99

$

In Stock, Qty 11

0

34

Cub Cadet 725-1644

Spring Safety Switch

$9.99

$

In Stock, Qty 11

0

35

Cub Cadet 747-04979

Hydro Control Rod

$116.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 12087

Wire Ring

$

$

Not available

37

Cub Cadet 731-05300

Sleeve, .765 x 2.410
(Superseded to 731-05300A)

$4.99

$

In Stock, only 1 left!

0

38

Cub Cadet 710-0653

Hex Washer Screw, 1.4-20 x .375

$4.49

$

In Stock, Qty 8

0

39

Cub Cadet 736-3010

Flat Washer, .407 x .812 x .135

$4.99

$

In Stock, only 1 left!

0

40

Cub Cadet 918-04270B

Hydro Transmission

$

$

Not available

41

Cub Cadet 747-04991

Hydro Bypass Rod

$9.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 932-0209

Extension Spring, .48 x 2.03

$7.99

$

In Stock, only 2 left!

0

43

Cub Cadet 747-04139

Hydro Brake Rod

$24.99

$

In Stock, only 1 left!

0

44

Cub Cadet 936-3008

Flat Washer, .344 x .750 x .120

$6.99

$

Usually ships in 3-6 days

0

45

Cub Cadet 783-06133-0637

Hydro Mount Bracket

$31.99

$

Usually ships in 3-6 days

0

46

Cub Cadet 732-0716D

Extension Spring, .59 x 4.00

$13.99

$

In Stock, only 1 left!

0

47

Cub Cadet 634-04210-0931

Wheel Assembly, Complete 22.0 x 9.5 x 12

$312.99

$

Usually ships in 3-6 days

0

47

Cub Cadet 634-04238-0499

Rim Assembly, 12.0 x 7.0

Note: Not shown

$172.99

$

Usually ships in 3-6 days

0

47

Cub Cadet 734-04174

Tire, 22.0 x 9.5 x 12

Note: Not shown

$113.99

$

Usually ships in 3-6 days

0

47

Cub Cadet 934-0255

Tubeless Air Valve

Note: Not shown

$4.49

$

In Stock, Qty 20+

0

48

Cub Cadet 736-0242

Bell Washer, .340 x .872 x .060

$4.49

$

In Stock, Qty 20+

0

49

Cub Cadet 710-0627

Cap Lock Screw, 5.16-24 x .750

$4.49

$

In Stock, Qty 20+

0

50

Cub Cadet 918-04228

Hub Assembly
(Superseded to 918-04228A)

$50.99

$

In Stock, Qty 5

0

51

Cub Cadet 712-3050

Lug Nut, 7.16-14

$9.99

$

In Stock, Qty 5

0

52

Cub Cadet 726-0214

Push Cap

$10.99

$

Usually ships in 3-6 days

0

53

Cub Cadet 741-0495

Flange Bearing, .630 x .695 x .60

$4.99

$

In Stock, Qty 20+

0

54

Cub Cadet 735-04135

Reverse Pedal Pad

$7.99

$

In Stock, Qty 8

0

55

Cub Cadet 735-04118A

Forward Pedal Pad

$14.99

$

Usually ships in 3-6 days

0

56

Cub Cadet 783-06059-0637

Forward/Reverse Hydro Pedal Bracket

$50.99

$

Usually ships in 3-6 days

0

57

Cub Cadet 711-05068

Clevis Pin, 5.16 x 3.985
(Superseded to 711-05068A)

$7.99

$

Usually ships in 3-6 days

0

58

Cub Cadet 783-05914

Transmission Rod Support Strap

$7.49

$

Usually ships in 3-6 days

0

59

Cub Cadet 683-04488

Hydro Drive Shaft Assembly
(Superseded to 983-04488)

$40.99

$

In Stock, only 4 left!

0

60

Cub Cadet 712-04065

Flange Lock Nut, 3.8-16

$3.99

$

In Stock, Qty 20+

0

61

Cub Cadet 714-04040

Bow-Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

62

Cub Cadet 748-04203

Cruise Latch

$14.99

$

Usually ships in 3-6 days

0

63

Cub Cadet 938-0380

Shoulder Bolt, 3.8-16 x .500 x .270
(Superseded to 738-0380)

$7.99

$

In Stock, only 1 left!

0

64

Cub Cadet 710-0604A

Hex Washer Screw, 5.16-18 x .625

$4.49

$

In Stock, Qty 20+

0

65

Cub Cadet 783-05940

Brake Shaft Support Strap

$7.49

$

Usually ships in 3-6 days

0

66

Cub Cadet 732-04587

Extension Spring, .63 x 4.95

$7.49

$

In Stock, Qty 12

0

67

Cub Cadet 647-04152

Brake Control Assembly
(Superseded to 647-04152D)

$

$

Not available

68

Cub Cadet 783-06103A-0637

Brake Pedal Bracket

$17.99

$

Usually ships in 3-6 days

0

69

Cub Cadet 735-04136

Brake Pedal Pad

$15.99

$

Usually ships in 3-6 days

0

70

Cub Cadet 710-1325

Hex Washer Screw, 1.4-20 x 1.625

$4.49

$

In Stock, Qty 20+

0
