SLTX 1054 (13AK92AK010) - Cub Cadet 54" Lawn Tractor (2009) Steering & Front Axle Assembly Parts Diagram

54" Lawn Tractor

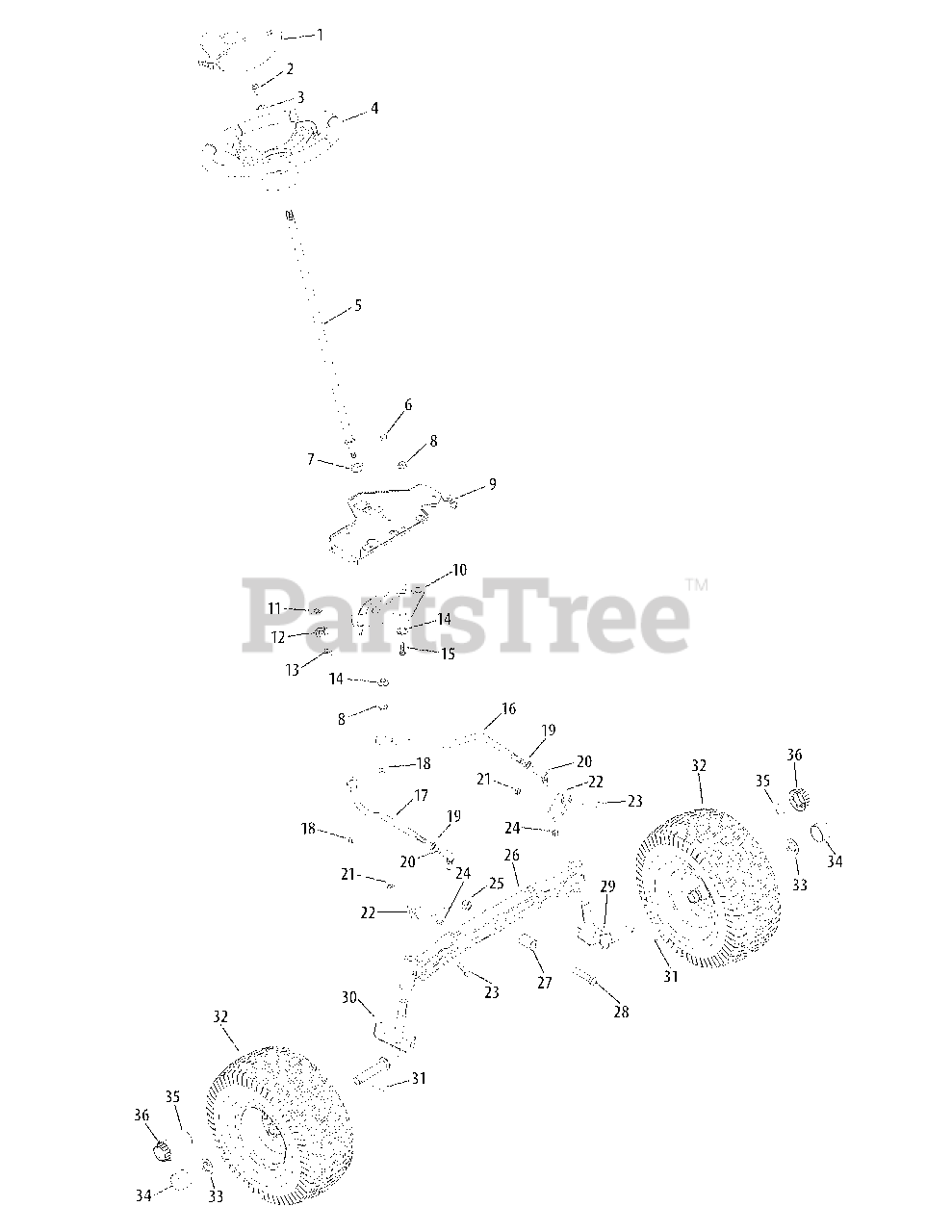

Steering & Front Axle Assembly Parts Diagram

  • Title

1

Cub Cadet 731-04532B

Steering Wheel Cover

$24.99

$

In Stock, Qty 12

0

2

Cub Cadet 710-0650

Hex Washer Screw, 5.16-18 x .875

Note: 4-15-09 & After

$3.99

$

In Stock, Qty 20+

0

2

Cub Cadet 710-04484

Hex Washer Screw, 5.16-18 x .750

Note: 4-15-09 & Before

$3.99

$

In Stock, Qty 20+

0

3

Cub Cadet 936-3004

Flat Washer, .406 x .875 x .105
(Superseded to 736-3004)

Note: use with 710-0650

$

$

Not available

4

Cub Cadet 631-04008A

Steering Wheel
(Superseded to 631-04008B)

$94.99

$

In Stock, only 3 left!

0

5

Cub Cadet 738-04262

Steering Wheel Shaft

$66.99

$

In Stock, only 2 left!

0

6

Cub Cadet 710-0514

Hex Screw, 3.8-16 x 1.00

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 741-04237A

Hex Flange Bearing
(Superseded to 741-04237B)

$6.99

$

In Stock, Qty 12

0

8

Cub Cadet 712-04065

Flange Lock Nut, 3.8-16

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 783-06043-0637

Steering Support Bracket

$

$

Not available

10

Cub Cadet 717-1550F

Steering Gear

$70.99

$

In Stock, Qty 20+

0

11

Cub Cadet 736-3084

Flat Washer, .51 x 1.12 x .06

$4.99

$

In Stock, Qty 20+

0

12

Cub Cadet 717-1554

Steering Gear

$10.99

$

In Stock, Qty 20+

0

13

Cub Cadet 712-0459

Flange Lock Nut, 7.16-20

$4.99

$

In Stock, Qty 20+

0

14

Cub Cadet 738-04363

Shoulder Spacer, .385 x 1.25 x .3025

$5.99

$

In Stock, only 3 left!

0

15

Cub Cadet 710-04095

Hex Screw, 3.8-16 x 1.00

$5.49

$

In Stock, Qty 20+

0

16

Cub Cadet 711-04998

LH Drag Link

$27.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 711-04999

RH Drag Link

$27.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 712-3004A

Flange Lock Nut, 5.16-18

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 912-0240

Jam Nut, 7.16-20

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 923-0448A

Lock Joint

$24.99

$

In Stock, Qty 20+

0

21

Cub Cadet 712-04063

Flange Lock Nut, 5.16-18

$3.99

$

In Stock, Qty 20+

0

22

Cub Cadet 748-04065-0637

Steering Block
(Superseded to 748-04278-0637)

$21.99

$

In Stock, only 2 left!

0

23

Cub Cadet 710-3180

Hex Screw, 5.16-18 x 1.75

$5.49

$

In Stock, Qty 20+

0

24

Cub Cadet 912-0214

Hex Lock Nut, 3.8-24
(Superseded to 712-0214)

$6.49

$

In Stock, only 2 left!

0

25

Cub Cadet 712-3083

Hex Lock Nut, 1.2-13

$4.49

$

In Stock, Qty 20+

0

26

Cub Cadet 719-04413

Axle Pivot Bar
(Superseded to 719-04413A)

$241.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 750-05041

Spacer, .510 x 1.00 x 1.5075

$

$

Not available

28

Cub Cadet 710-04824

Hex Screw, 1.2-13 x 2.5

$8.49

$

Usually ships in 3-6 days

0

29

Cub Cadet 638-04030-0637

LH Axle Assembly
(Superseded to 638-04030A-0637)

$67.99

$

In Stock, only 1 left!

0

30

Cub Cadet 638-04029-0637

RH Axle Assembly
(Superseded to 638-04029A-0637)

$

$

Not available

31

Cub Cadet 714-0162

Cotter Pin, 5.32 x 1.25

$4.99

$

In Stock, Qty 20+

0

32

Cub Cadet 634-04466-0931

Wheel Assembly, Complete, 16.0 x 6.5 x 8

$100.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 934-04082-0499

Rim Assembly, 8.0 x 5.38

Note: Not Shown

$131.99

$

In Stock, Qty 5

0

32

Cub Cadet 734-1727

Tire, 16.0 x 6.50 x 8

Note: Not Shown

$56.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 741-0516B

Bearing, Flange

Note: Not Shown

$6.49

$

In Stock, Qty 20+

0

32

Cub Cadet 741-0990B

Bearing, Flange w/fitting

Note: Not Shown

$10.99

$

In Stock, Qty 20+

0

33

Cub Cadet 736-04228A

Flat Washer, .781 x 1.590
(Superseded to 736-04228B)

$5.49

$

In Stock, Qty 20+

0

34

Cub Cadet 731-05674

Bumper Cap

$5.49

$

In Stock, Qty 20+

0

35

Cub Cadet N/A

Flat Washer, .755 x 1.92 x .060

Note: Not Used in this Application

$

$

Currently unavailable

36

Cub Cadet N/A

Bumper Cap

Note: Not Used in this Application

$

$

Currently unavailable
