SLTX 1054 (13AK92AK010) - Cub Cadet 54" Lawn Tractor (2009) Mowing Deck 54 Inch Parts Diagram

54" Lawn Tractor

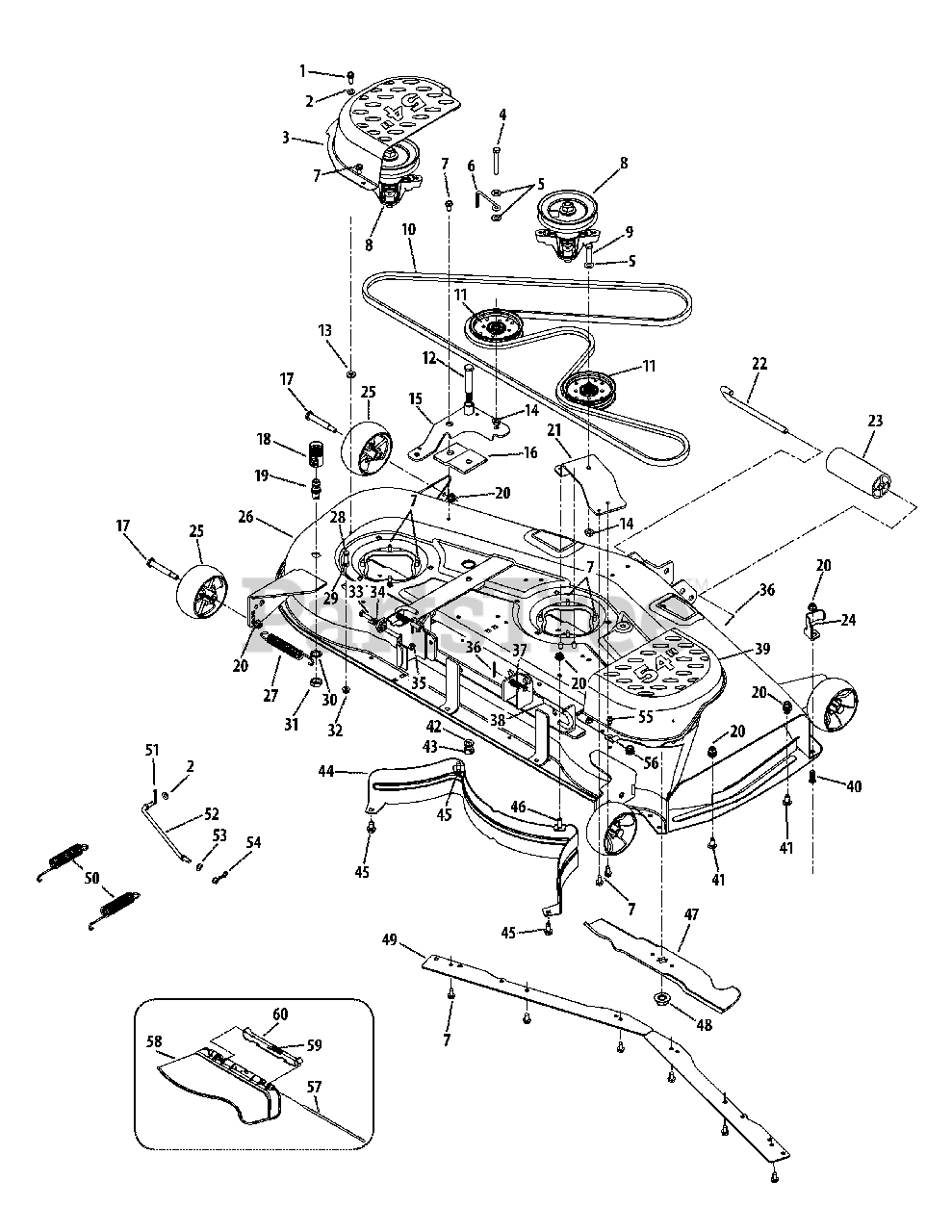

Mowing Deck 54 Inch Parts Diagram

  • Title

1

Cub Cadet 710-0650

Hex Washer Screw, 5.16-18 x .875

$3.99

$

In Stock, Qty 20+

0

2

Cub Cadet 736-0275

Flat Washer, .344 x .688 x .065

$6.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 783-04692-4021

LH Belt Cover

$104.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-0859

Hex Screw, 3.8-16 x 2.50

$6.99

$

In Stock, Qty 16

0

5

Cub Cadet 936-0300

Flat Washer, .406 x .875 x .059
(Superseded to 736-0300)

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 747-04530

Belt Keeper Rod

$7.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-04484

Hex Washer Screw, 5.16-18

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 918-04126A

Spindle Assembly
(Superseded to 918-04125C)

$133.99

$

In Stock, Qty 20+

0

8

Cub Cadet 712-0417A

Hex Flange Nut 5/8-18

Note: Not shown

$6.99

$

In Stock, Qty 20+

0

8

Cub Cadet 736-0315

Washer, Flat .760 X 1.5

Note: Not shown

$6.99

$

In Stock, Qty 6

0

8

Cub Cadet 937-3000

Grease Fitting

Note: Not shown

$4.99

$

In Stock, Qty 20+

0

8

Cub Cadet 738-1010A

Spindle Shaft 5.75"

Note: Not shown

$46.99

$

In Stock, only 2 left!

0

8

Cub Cadet 941-0919

Ball Bearing 20 x 47 x 14:62
(Superseded to 941-0919B)

Note: Not shown

$21.99

$

In Stock, Qty 20+

0

8

Cub Cadet 748-0160A

Spacer .790 ID x 1.25 OD x .175

Note: Not shown

$6.99

$

In Stock, only 3 left!

0

8

Cub Cadet 750-1000

Spacer .80 x 1.10 x 1.322

Note: Not shown

$4.49

$

In Stock, Qty 7

0

8

Cub Cadet 750-1349A

Spacer .79 X 1.82 X .55

Note: Not shown

$13.99

$

In Stock, only 3 left!

0

8

Cub Cadet 756-04216

Deck V Type Pulley 5.39"

Note: Not shown

$33.99

$

In Stock, only 1 left!

0

9

Cub Cadet 710-0347

Hex Screw, 3.8-16 x 1.75

$5.49

$

In Stock, Qty 20+

0

10

Cub Cadet 954-0642

V-Belt

$82.99

$

In Stock, Qty 8

0

11

Cub Cadet 756-04129B

Idler Pulley
(Superseded to 753-08171)

$35.99

$

In Stock, Qty 20+

0

12

Cub Cadet 738-1229A

Shoulder Screw, 1.2-13 x .625 x 2.50

$12.99

$

In Stock, only 4 left!

0

13

Cub Cadet 736-3010

Flat Washer, .407 x .812 x .135

$4.99

$

In Stock, only 2 left!

0

14

Cub Cadet 912-0431

Flange Lock Nut, 3.8-16

$4.99

$

In Stock, Qty 20+

0

15

Cub Cadet 683-04182-0637

Idler Assembly Arm

$75.99

$

In Stock, only 1 left!

0

16

Cub Cadet 783-04013A-0637

Pulley Stabilizer Bracket

$22.99

$

In Stock, only 1 left!

0

17

Cub Cadet 938-3056

Shoulder Bolt, 3.8-16 x .496 x 2.50

$9.49

$

In Stock, Qty 20+

0

18

Cub Cadet 921-04041

Water Nozzle Adapter

$23.99

$

In Stock, Qty 20+

0

19

Cub Cadet 737-04003D

Deck Water Nozzle

$23.99

$

In Stock, Qty 6

0

20

Cub Cadet 712-04065

Flange Lock Nut, 3.8-16

$3.99

$

In Stock, Qty 20+

0

21

Cub Cadet 783-04726-0637

Stationary Idler Bracket

$36.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 911-3314

Roller Pin, 1.2 x 7.31
(Superseded to 711-3314A)

$25.99

$

In Stock, Qty 11

0

23

Cub Cadet 731-05679

Front Roller
(Superseded to 731-05679B)

$18.99

$

In Stock, Qty 20+

0

24

Cub Cadet 703-3279-4021

Chute Deflector Stop
(Superseded to 703-3279)

$40.99

$

In Stock, only 1 left!

0

25

Cub Cadet 734-04155

Deck Wheel

$20.99

$

In Stock, Qty 20+

0

26

Cub Cadet 983-04510-4021

Deck Assembly

$

$

Not available

27

Cub Cadet 732-04247

Extension Spring, .850 x 6.415

$11.99

$

In Stock, Qty 6

0

28

Cub Cadet 710-3103

Hex Screw, 5.16-18 x 2.00

$4.49

$

In Stock, only 4 left!

0

29

Cub Cadet 712-3010

Hex Nut, 5.16-18

$4.49

$

In Stock, Qty 20+

0

30

Cub Cadet 736-0225

Lock Washer, 5.8

$4.49

$

In Stock, only 2 left!

0

31

Cub Cadet 712-0641

Hex Nut, M16-1.5

$6.49

$

In Stock, Qty 7

0

32

Cub Cadet 712-04063

Flange Lock Nut, 5.16-18

$3.99

$

In Stock, Qty 20+

0

33

Cub Cadet 710-0528

Hex Screw, 5.16-18 x 1.25

$4.49

$

In Stock, Qty 20+

0

34

Cub Cadet 917-04074

Deck Adjustment Gear

$13.99

$

In Stock, Qty 20+

0

35

Cub Cadet 683-0254B-4021

Deck Hanger Bracket Assembly

$49.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 914-0111

Cotter Pin, 3.32 x 1.0
(Superseded to 714-0111)

$4.99

$

In Stock, Qty 13

0

37

Cub Cadet 932-0306A

Compression Spring, .531 x 1.75

$8.49

$

In Stock, only 4 left!

0

38

Cub Cadet 747-1116

Deck Release Rod

$12.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 783-04691-4021

RH Belt Cover
(Superseded to 783-04691-0637)

$107.99

$

In Stock, only 1 left!

0

40

Cub Cadet 710-04095

Hex Screw, 3.8-16 x 1.00

$5.49

$

In Stock, Qty 20+

0

41

Cub Cadet 710-3178

Carriage Bolt, 3.8-16 x .75

$4.49

$

In Stock, Qty 20+

0

42

Cub Cadet 936-0921

Lock Washer, 1.2
(Superseded to 736-0921)

$4.49

$

In Stock, Qty 5

0

43

Cub Cadet 712-3022

Hex Lock Nut, 1.2-13

$3.99

$

In Stock, Qty 8

0

44

Cub Cadet 703-2093-0637

Inner Baffle
(Superseded to 703-2093C-0637)

$96.99

$

In Stock, only 2 left!

0

45

Cub Cadet 710-0623

Hex Washer Screw, 3.8-16 x .750

$4.49

$

In Stock, only 2 left!

0

46

Cub Cadet 710-3168

Carriage Bolt, 3.8-16 x 1.00

$3.99

$

In Stock, Qty 20+

0

47

Cub Cadet 942-0677B

Blade, 18.5

$30.99

$

In Stock, Qty 20+

0

48

Cub Cadet 712-0417A

Flange Nut, 5.8-18

$6.99

$

In Stock, Qty 20+

0

49

Cub Cadet 783-04690B-0637

Deck Skirt

$42.99

$

In Stock, only 3 left!

0

50

Cub Cadet 732-0971

Extension Spring, 1.010 x 6.500

$23.99

$

In Stock, only 1 left!

0

51

Cub Cadet 714-0470

Cotter Pin, 1.8 x 1.25

$4.49

$

In Stock, Qty 20+

0

52

Cub Cadet 711-05078

Deck Support Rod

$23.99

$

In Stock, Qty 10

0

53

Cub Cadet 936-0314

Washer, .375 x .70 x .030
(Superseded to 736-0314)

$

$

Not available

54

Cub Cadet 714-04043

Bow-Tie Cotter Pin

$4.99

$

In Stock, Qty 20+

0

55

Cub Cadet 710-0599

Hex Washer Screw, 1.4-20 x .500

$4.49

$

In Stock, Qty 20+

0

56

Cub Cadet 16608

Hook Retainer Bracket

$

$

Not available

57

Cub Cadet 711-04565

Hinge Pin, .3175 x 14.06

$15.99

$

In Stock, only 3 left!

0

58

Cub Cadet 631-04070A

Chute Assembly
(Superseded to 631-04070C)

$122.99

$

In Stock, only 2 left!

0

59

Cub Cadet 732-04372

Torsion Spring, .44 x 2.0

$10.99

$

In Stock, Qty 9

0

60

Cub Cadet 783-05030

Chute Bracket

$29.99

$

In Stock, Qty 5

0
