SLTX 1050 (13WQ92AP010) - Cub Cadet 50" Lawn Tractor (2010) Kohler SV730 & SV735 Ignition & Electrical Parts Diagram

50" Lawn Tractor

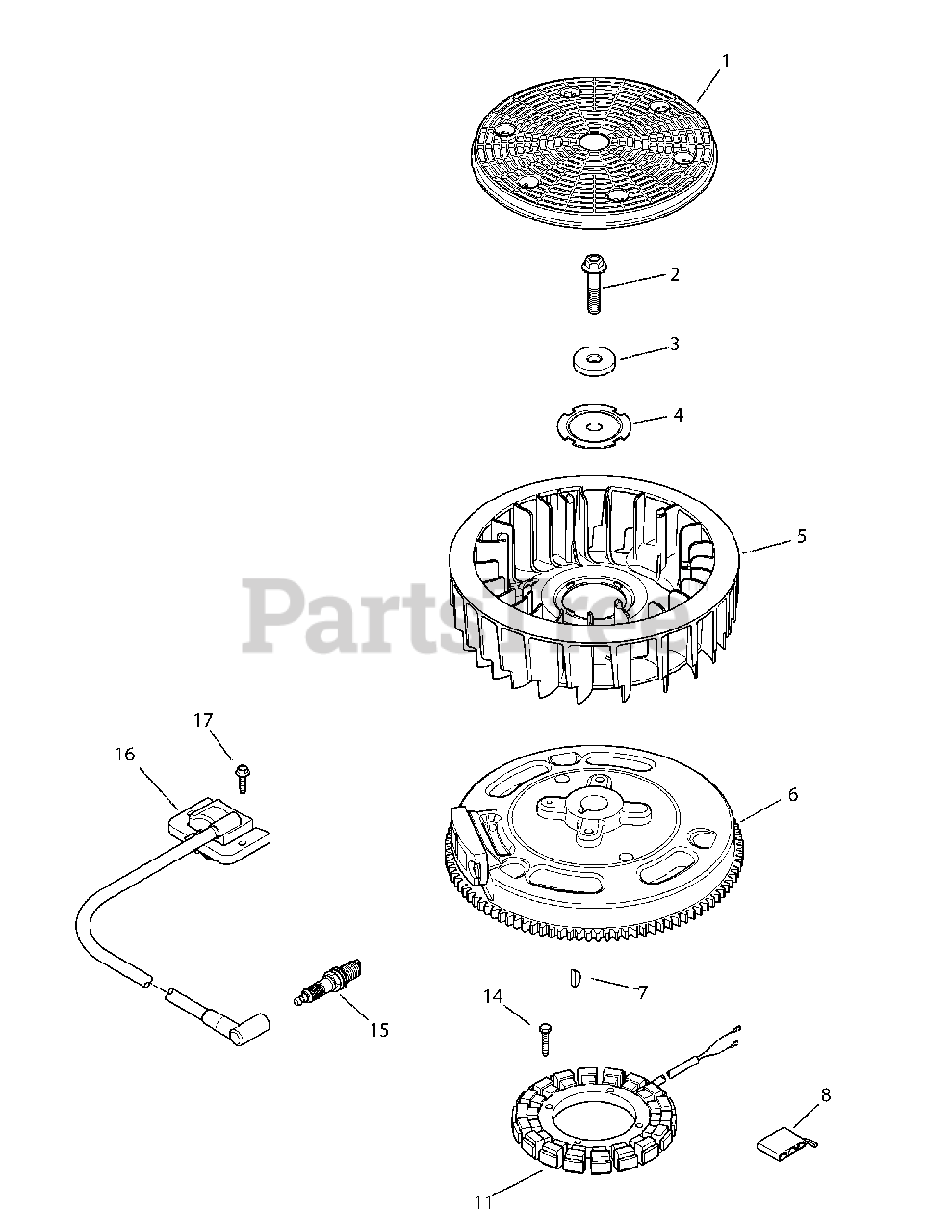

Kohler SV730 & SV735 Ignition & Electrical Parts Diagram

  • Title

1

Cub Cadet KH-32-162-03-S

Grass Screen

$5.49

$

In Stock, only 3 left!

0

2

Cub Cadet KH-12-086-14

Flg. Screw, M 10 X 1.5 X 45
(Superseded to KH-25-086-361-S)

$4.49

$

Usually ships in 2-5 days

0

3

Cub Cadet KH-12-468-03

Flat Washer, 13/32

$

$

Not available

4

Cub Cadet KH-20-146-05-S

Fan Mounting Plate

$2.99

$

In Stock, only 2 left!

0

5

Cub Cadet KH-32-157-01-S

15 Amp Stator Kit Inc. KH-25-452-01-S)
(Superseded to KH-32-755-38-S)

$21.99

$

In Stock, only 2 left!

0

6

Cub Cadet KH-32-025-16-S

Flywheel Assembly (SV730)
(Superseded to KH-32-025-22-S)

$347.99

$

In Stock, only 2 left!

0

6

Cub Cadet KH-32-025-15-S

Flywheel Assembly (SV735)
(Superseded to KH-32-025-21-S)

$347.99

$

In Stock, only 1 left!

0

7

Cub Cadet KH-X-42-15

Key, 3/16 X 5/8

$

$

Not available

8

Cub Cadet KH-25-155-41-S

Connector

$29.99

$

In Stock, only 2 left!

0

11

Cub Cadet KH-237878

15 Amp Stator Kit

$149.99

$

In Stock, Qty 10

0

14

Cub Cadet KH-M-548025-S

Thd. Frm. Screw, M5 X 0.8 X 25
(Superseded to KH-25-086-402-S)

$2.99

$

In Stock, only 1 left!

0

15

Cub Cadet 759-3336

Spark Plug
(Superseded to RC12YC)

$7.49

$

Usually ships in 3-6 days

0

16

Cub Cadet KH-24-584-45-S

Module Ignition Kit (SV730)
(Superseded to KH-24-584-201-S)

$116.99

$

Usually ships in 3-6 days

0

16

Cub Cadet KH-24-584-52-S

Module Ignition Kit (SV735)

$

$

Not available

17

Cub Cadet KH-M-545020-S

Flg. Thd. Frm. Screw, M5 X .8 X 20
(Superseded to KH-25-086-473-S)

$2.99

$

In Stock, Qty 20+

0

Cub Cadet KH-25-454-03-S

Wire Tie

Note: Not Shown

$2.49

$

Usually ships in 2-5 days

0

Cub Cadet KH-25-454-05-S

Tie

Note: Not Shown

$2.49

$

In Stock, only 2 left!

0

Cub Cadet KH-32-176-24-S

Wiring Harness (SV730)

Note: Not Shown

$

$

Not available

Cub Cadet KH-32-176-26-S

Wiring Harness (SV735)

Note: Not Shown

$

$

Not available

Cub Cadet KH-25-454-05-S

Tie

Note: Not Shown

$2.49

$

In Stock, only 2 left!

0

Cub Cadet KH-25-452-01-S

Terminal

Note: Not Shown

$5.49

$

In Stock, only 1 left!

0
