SLTX 1050 (13AQ92AP010) - Cub Cadet 50" Lawn Tractor (2009) Mowing Deck 50 Inch Parts Diagram

50" Lawn Tractor

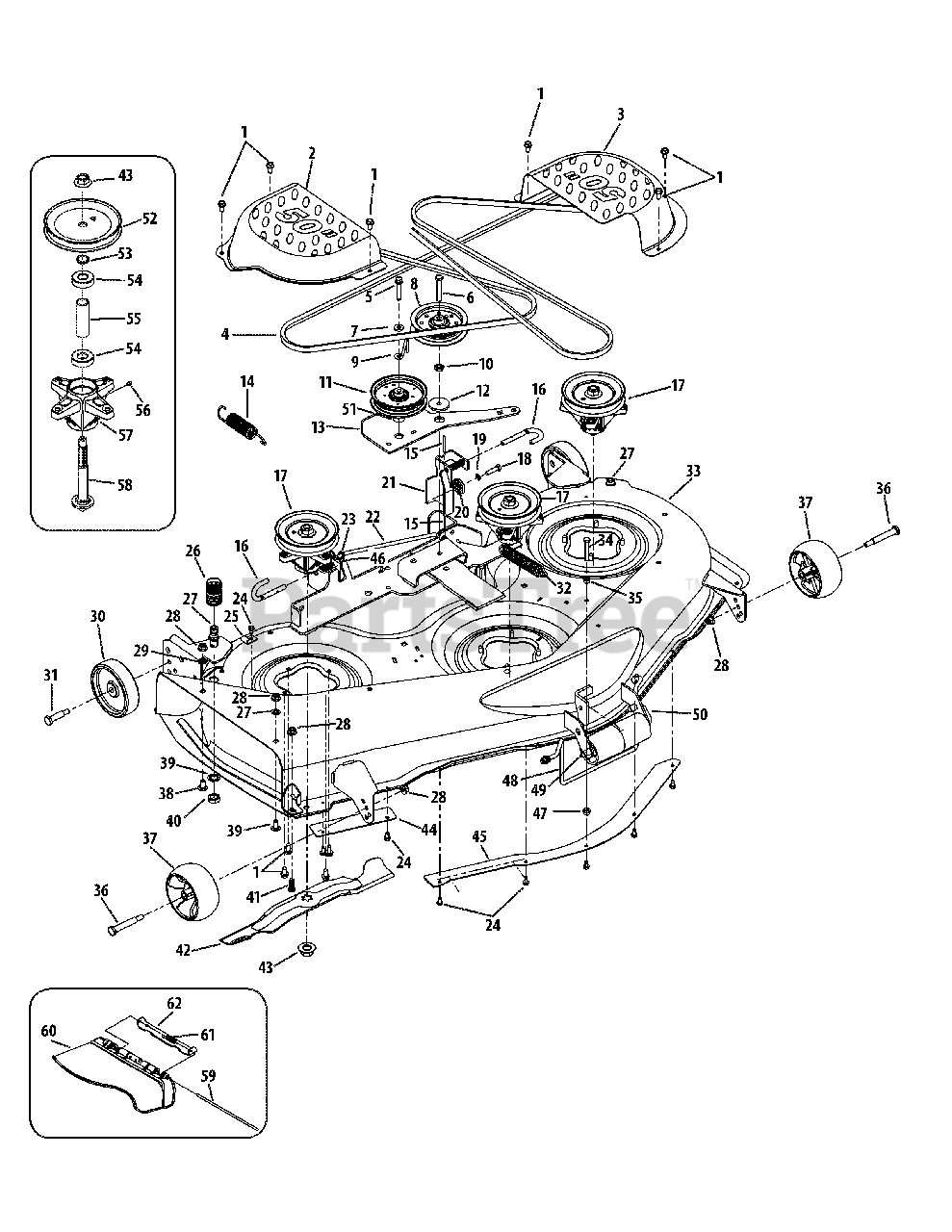

Mowing Deck 50 Inch Parts Diagram

  • Title

1

Cub Cadet 710-04484

Hex Washer Screw, 5.16-18 x .750

$3.99

$

In Stock, Qty 20+

0

2

Cub Cadet 783-04400-4021

Belt Cover, RH
(Superseded to 783-04400-0637)

$95.99

$

In Stock, only 4 left!

0

3

Cub Cadet 783-04399-4021

Belt Cover, LH
(Superseded to 783-04399)

$95.99

$

In Stock, only 2 left!

0

4

Cub Cadet 954-04240

V-Belt

Note: PTO & Deck

$94.99

$

In Stock, Qty 20+

0

5

Cub Cadet 710-1008

Hex Washer Screw, 3.8-16 x 1.875

$5.49

$

In Stock, Qty 7

0

6

Cub Cadet 710-3011

Hex Screw, 3.8-16 x 2.25

$6.99

$

In Stock, Qty 19

0

7

Cub Cadet 736-3010

Flat Washer, .407 x .812 x .135

$4.99

$

In Stock, Qty 20+

0

8

Cub Cadet 756-04400

Idler Pulley
(Superseded to 02004447)

$57.99

$

In Stock, Qty 20+

0

9

Cub Cadet 747-04530

Belt Keeper Rod

$7.49

$

In Stock, Qty 20+

0

10

Cub Cadet 912-0240

Jam Nut, 7.16-20

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 756-04129B

Idler Pulley
(Superseded to 753-08171)

$35.99

$

In Stock, Qty 20+

0

12

Cub Cadet 738-04162A

Shoulder Spacer, .8840 x .190
(Superseded to 738-04162C)

$13.99

$

In Stock, Qty 20+

0

13

Cub Cadet 783-06361-0637

Idler Arm Bracket
(Superseded to 783-06361A)

$60.99

$

In Stock, only 1 left!

0

14

Cub Cadet 732-0934

Extension Spring, 1.15 x 5.99

$11.99

$

In Stock, only 1 left!

0

15

Cub Cadet 914-0470

Cotter Pin, 1.8 x 1.25
(Superseded to 714-0470)

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 747-1116

Deck Handle Rod

$12.99

$

In Stock, Qty 6

0

17

Cub Cadet 918-04825

Spindle Assembly
(Superseded to 918-05016)

$150.99

$

In Stock, Qty 14

0

18

Cub Cadet 710-0528

Hex Screw, 5.16-18 x 1.25

$4.49

$

In Stock, Qty 19

0

19

Cub Cadet 936-0119

Lock Washer, 5.16

$4.99

$

In Stock, Qty 20+

0

20

Cub Cadet 917-04074-4021

Deck Adjustment Gear

$

$

Currently unavailable

21

Cub Cadet 683-0254B-4021

Deck Hanger Bracket Assembly

$49.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 711-05078

Deck Support Rod

$23.99

$

In Stock, Qty 10

0

23

Cub Cadet 936-0314

Washer, .375 x .70 x .030
(Superseded to 736-0314)

$

$

Not available

24

Cub Cadet 710-0599

Hex Washer Screw, 1.4-20 x .500

$4.49

$

In Stock, Qty 20+

0

25

Cub Cadet 96606

Hook Retainer Bracket

$7.49

$

In Stock, Qty 7

0

26

Cub Cadet 921-04041

Water Nozzle Adapter

$23.99

$

In Stock, Qty 20+

0

27

Cub Cadet 737-04003D

Deck Water Nozzle

$23.99

$

In Stock, Qty 6

0

28

Cub Cadet 712-04065

Flange Lock Nut, 3.8-16

$3.99

$

In Stock, Qty 20+

0

29

Cub Cadet 712-0229

Push Nut, 3.8

$3.99

$

In Stock, Qty 20+

0

30

Cub Cadet 734-0973

Deck Wheel

$12.99

$

In Stock, Qty 20+

0

31

Cub Cadet 938-0373

Shoulder Bolt, 3.8-16 x .496 x 1.525

$9.49

$

In Stock, Qty 20+

0

32

Cub Cadet 732-04649

Extension Spring, 1.0 X 6.10

$16.99

$

In Stock, only 1 left!

0

33

Cub Cadet 683-04561-4021

Deck Assembly
(Superseded to 983-04561-4021)

$1272.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 710-3103

Hex Screw, 5.16-18 x 2.00

$4.49

$

In Stock, Qty 20+

0

35

Cub Cadet 912-3010

Hex Nut, 5.16-18
(Superseded to 712-3010)

$4.49

$

In Stock, Qty 20+

0

36

Cub Cadet 938-3056

Shoulder Bolt, 3.8-16 x .496 x 2.50

$9.49

$

In Stock, Qty 20+

0

37

Cub Cadet 734-04155

Deck Wheel

$20.99

$

In Stock, Qty 20+

0

38

Cub Cadet 710-3178

Carriage Bolt, 3.8-16 x .75

$4.49

$

In Stock, Qty 20+

0

39

Cub Cadet 736-0225

Lock Washer, 5.8

$4.49

$

In Stock, only 2 left!

0

40

Cub Cadet 912-0641

Hex Nut, M16-1.5
(Superseded to 712-0641)

$6.49

$

In Stock, Qty 7

0

41

Cub Cadet 710-04095

Hex Screw, 3.8-16 x 1.00

$5.49

$

In Stock, Qty 20+

0

42

Cub Cadet 942-04053C

2-in-1 Blade

$28.99

$

In Stock, Qty 20+

0

43

Cub Cadet 712-0417A

Flange Nut, 5.8-18

$6.99

$

In Stock, Qty 20+

0

44

Cub Cadet 783-04415-4021

RH Skirt

$30.99

$

In Stock, only 1 left!

0

45

Cub Cadet 783-04414A-4021

Center Skirt

$35.99

$

In Stock, only 1 left!

0

46

Cub Cadet 714-04043

Bow-Tie Cotter Pin

$4.99

$

In Stock, Qty 12

0

47

Cub Cadet 712-04063

Flange Lock Nut, 5.16-18

$3.99

$

In Stock, Qty 20+

0

48

Cub Cadet 747-05073

Torque Rod

$48.99

$

Usually ships in 3-6 days

0

49

Cub Cadet 914-0111

Cotter Pin, 3.32 x 1.00
(Superseded to 714-0111)

$4.99

$

In Stock, Qty 13

0

50

Cub Cadet 911-3314

Roller Pin
(Superseded to 711-3314A)

$25.99

$

In Stock, Qty 11

0

51

Cub Cadet 750-3119

Spacer, .406 x 1.00 x .38

$11.99

$

In Stock, only 4 left!

0

52

Cub Cadet 756-04216

Deck Pulley

$33.99

$

In Stock, only 1 left!

0

53

Cub Cadet 748-0434

Spacer, .750 x 1.150 x .230

$4.49

$

In Stock, Qty 5

0

54

Cub Cadet 941-0919

Ball Bearing, .787 x 1.85
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

55

Cub Cadet 750-1096

Spacer, .800 x 1.100 x 1.5300

$8.49

$

Usually ships in 3-6 days

0

56

Cub Cadet 937-3000

Lube Fitting

$4.99

$

In Stock, Qty 20+

0

57

Cub Cadet N/A

Spindle Housing

Note: Order Ref No 17

$

$

Currently unavailable

58

Cub Cadet 738-0976

Spindle Shaft

$48.99

$

In Stock, only 4 left!

0

59

Cub Cadet 711-04565

Hinge Pin, .3175 x 14.06

$15.99

$

In Stock, only 3 left!

0

60

Cub Cadet 631-04070A

Chute Assembly
(Superseded to 631-04070C)

$122.99

$

In Stock, only 3 left!

0

61

Cub Cadet 732-04372

Torsion Spring, .44 x 2.0

$10.99

$

In Stock, Qty 8

0

62

Cub Cadet 783-05030

Chute Bracket

$29.99

$

In Stock, Qty 5

0
