SLTX 1050 (13AQ92AP010) - Cub Cadet 50" Lawn Tractor (2009) Kohler SV730-0011 Engine Controls Parts Diagram

50" Lawn Tractor

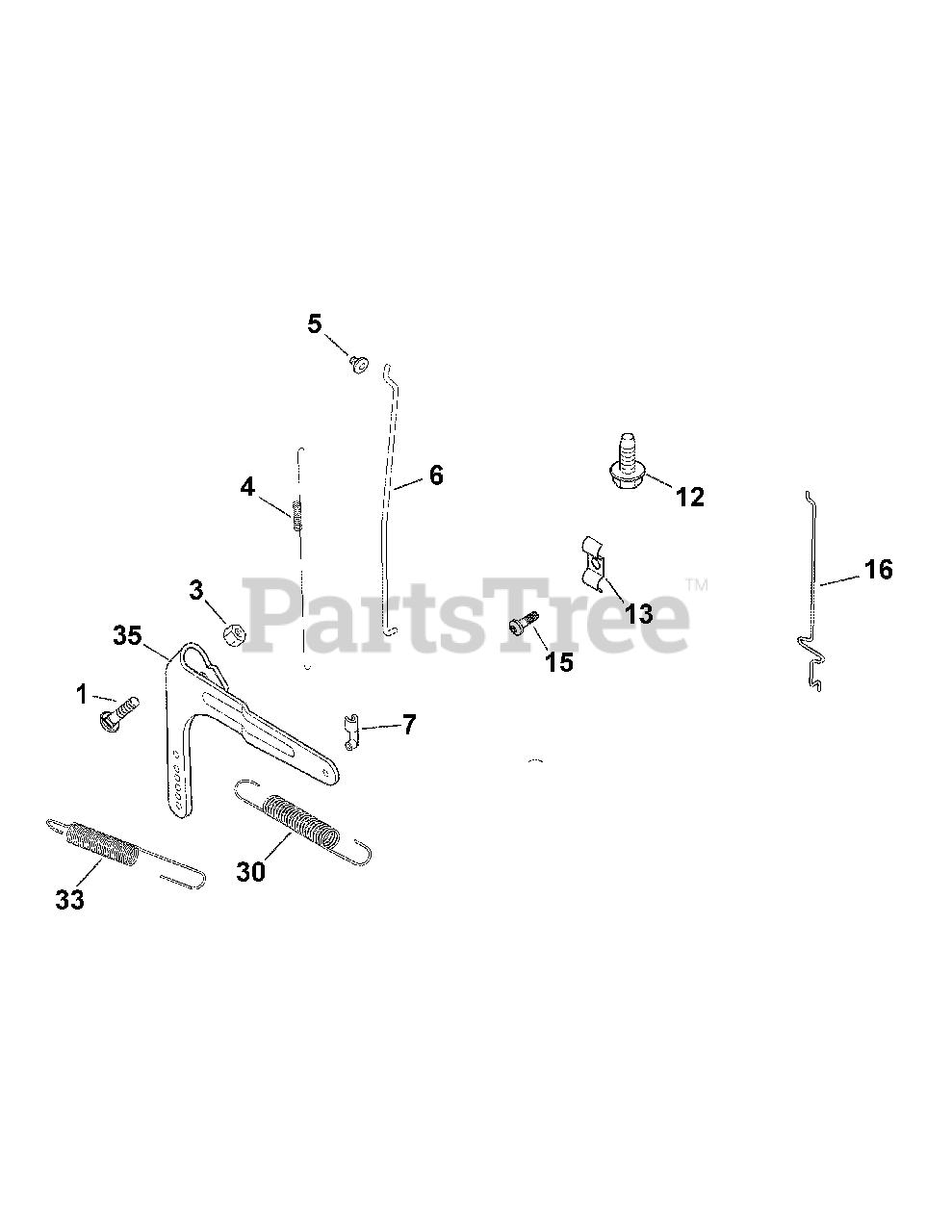

Kohler SV730-0011 Engine Controls Parts Diagram

  • Title

1

Cub Cadet KH-24-211-03-S

Rd. Hd. Sq. Neck Bolt, M6 x 1.0 x 25

$2.49

$

In Stock, Qty 15

0

3

Cub Cadet KH-M-641060-S

Flg. Nut, M6 x 1.0

$4.49

$

In Stock, Qty 7

0

4

KH-24-089-01-S

Linkage Spring

$

$

Not available

5

Cub Cadet KH-25-158-08

Linkage Retaining Bushing

$5.99

$

Usually ships in 2-5 days

0

6

Cub Cadet KH-24-079-04

Throttle Linkage

$

$

Not available

7

Cub Cadet KH-25-158-11

Throttle Linkage Bushing

$

$

Not available

12

Cub Cadet KH-M-645016-S

Flg. Thd. Frm. Screw, M6 x 1.0 x 16

$3.99

$

In Stock, Qty 15

0

13

Cub Cadet KH-47-237-02

Dual Conduit Clamp
(Superseded to KH-47-237-02-S)

$10.99

$

Usually ships in 2-5 days

0

15

Cub Cadet KH-24-086-43-S

Lbd. Thd. Frm. Screw, M5 x 0.8 x 16
(Superseded to KH-25-086-405-S)

$2.49

$

In Stock, only 2 left!

0

16

Cub Cadet KH-24-079-22-S

Choke Linkage

$6.99

$

In Stock, Qty 7

0

30

Cub Cadet KH-24-089-55-S

Governor Spring

$2.49

$

In Stock, Qty 6

0

33

Cub Cadet KH-24-089-18

Governor Spring

$

$

Not available

35

Cub Cadet KH-24-090-51-S

Governor Lever
(Superseded to KH-24-090-69-S)

$8.99

$

In Stock, only 1 left!

0
