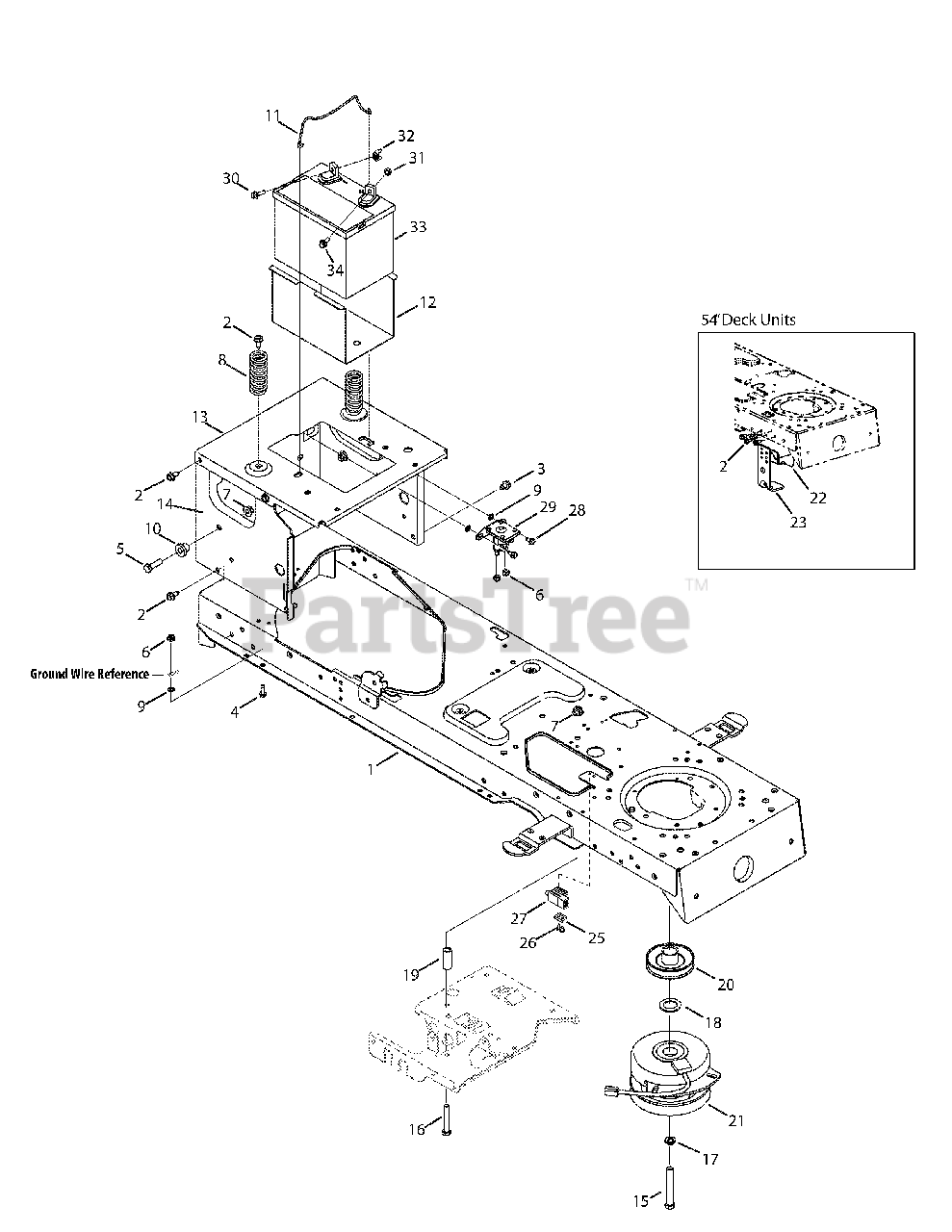

SLT-5400 (13AP62TK090) - White Outdoor 54" Lawn Tractor (2008) Frame, PTO Clutch & Battery Parts Diagram

54" Lawn Tractor

Frame, PTO Clutch & Battery Parts Diagram

  • Title

1

White Outdoor 683-04173B

Frame Assembly, Lower

Variations

White Outdoor 683-04173B-0606

FRAME ASSY-LOWER - MAJESTIC ORANGE (0606)

$

$

Not available

White Outdoor 683-04173B-0637

FRAME ASSY-LOWER - POWDER BLACK (0637)

$

$

Not available

White Outdoor 683-04173B-0650

FRAME ASSY-LOWER - RED METALLIC (0650)

$

$

Not available

White Outdoor 683-04173B-0665

FRAME ASSY-LOWER - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 683-04173B-0691

FRAME ASSY-LOWER - BLACK JACK (0691)

$

$

Not available

White Outdoor 683-04173B-0709

FRAME ASSY-LOWER - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

2

White Outdoor 710-04484

Screw, 5/16-18 x 0.75

$3.99

$

In Stock, Qty 20+

0

3

White Outdoor 710-0607

Screw, 5/16-18, 0.500

$6.99

$

In Stock, Qty 11

0

4

White Outdoor 710-0642

Screw, 1/4-20, 0.750

$4.49

$

In Stock, Qty 20+

0

5

White Outdoor 710-3005

Screw, 3/8-16, 1.25, Gr5

$3.99

$

In Stock, Qty 20+

0

6

White Outdoor 712-04064

Nut, Flange Lock, 1/4-20

$3.99

$

In Stock, Qty 20+

0

7

White Outdoor 712-04065

Nut, Flange Lock, 3/8-16

$3.99

$

In Stock, Qty 20+

0

8

White Outdoor 732-04035

Spring, Compress., 1.28 x 3.125

$10.99

$

In Stock, only 4 left!

0

9

White Outdoor 736-0222

Washer, Lock, 1/4, External

$5.99

$

In Stock, only 3 left!

0

10

White Outdoor 738-04058

Spacer, Shoulder,.38 x 1.0 x.70

$4.49

$

In Stock, only 3 left!

0

11

White Outdoor 747-04121A

Hold Rod, Battery

$6.49

$

In Stock, Qty 20+

0

12

White Outdoor 783-0349

Battery Tray

Variations

White Outdoor 783-0349-4008

TRAY-BATTERY 400 S - WINE RED (4008)

$

$

Not available

White Outdoor 783-0349-0606

TRAY-BATTERY 400 S - MAJESTIC ORANGE (0606)

$

$

Not available

White Outdoor 783-0349-0637

Battery Tray, Powder Black - POWDER BLACK (0637)

$

$

Not available

$

$

13

White Outdoor 783-04329A

Seat Bracket, Frame

Variations

White Outdoor 783-04329A-0606

BRACKET-FRAME SEAT - MAJESTIC ORANGE (0606)

$

$

Not available

White Outdoor 783-04329A-0637

BRACKET-FRAME SEAT - POWDER BLACK (0637)

$

$

Not available

White Outdoor 783-04329A-0716

BRACKET-FRAME SEAT - CUB YELLOW-99 (0716)

$

$

Not available

White Outdoor 783-04329A-4008

BRACKET-FRAME SEAT - WINE RED (4008)

$

$

Not available

$

$

14

White Outdoor 783-04809C

Frame, Upper

Variations

White Outdoor 783-04809C-0606

FRAME-UPPER - MAJESTIC ORANGE (0606)

$

$

Not available

White Outdoor 783-04809C-0637

FRAME-UPPER - POWDER BLACK (0637)

$

$

Not available

White Outdoor 783-04809C-0650

FRAME-UPPER - RED METALLIC (0650)

$

$

Not available

White Outdoor 783-04809C-0665

FRAME-UPPER - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 783-04809C-0691

FRAME-UPPER - BLACK JACK (0691)

$

$

Not available

$61.99

$

Usually ships in 3-6 days

0

15

White Outdoor 710-04379A

Screw, 7/16-20, 3.50, Gr5, Lock

$6.49

$

In Stock, only 2 left!

0

16

White Outdoor 710-3011

Screw, 3/8-16, 2.25, Gr5

$6.99

$

In Stock, Qty 20+

0

17

White Outdoor 736-0171

Lock Washer, 7/16

$4.49

$

In Stock, only 4 left!

0

18

White Outdoor 736-0277

Washer, Flat, 1.031 x 1.620 x.095

$4.49

$

In Stock, Qty 20+

0

19

White Outdoor 748-0415B

Spacer,.385 ID x.635 OD x 1.54

$7.49

$

In Stock, Qty 10

0

20

White Outdoor 756-0978B

Pulley, Engine, 3.56 Diameter

$66.99

$

In Stock, Qty 13

0

21

White Outdoor 717-1774C

PTO Clutch, Electric
(Superseded to 917-05001)

Note: (54" Deck Units)

$630.99

$

In Stock, only 2 left!

0

22

White Outdoor 783-04419B

Clutch Bracket
(Superseded to 783-04419B-0637)

Variations

White Outdoor 783-04419B-0637

Clutch Bracket - POWDER BLACK (0637)

$14.99

$

In Stock, only 4 left!

0

White Outdoor 783-04419B-4008

Clutch Bracket - WINE RED (4008)

$14.99

$

In Stock, only 4 left!

0

$14.99

$

In Stock, only 4 left!

0

23

White Outdoor 783-04467

Deck Bracket, Up-Stop

Note: (54" Deck)

Variations

White Outdoor 783-04467-0606

BRACKET-DECK:UP STOP - MAJESTIC ORANGE (0606)

$37.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04467-0637

Deck Up-Stop Bracket - POWDER BLACK (0637)

$37.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04467-0691

Deck Up-Stop Bracket - BLACK JACK (0691)

$37.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04467-0650

BRACKET-DECK:UP STOP - RED METALLIC (0650)

$

$

Not available

White Outdoor 783-04467-0665

BRACKET-DECK:UP STOP - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 783-04467-0716

BRACKET-DECK:UP STOP - CUB YELLOW-99 (0716)

$

$

Not available

White Outdoor 783-04467-4008

BRACKET-DECK:UP STOP - WINE RED (4008)

$

$

Not available

$34.99

$

Usually ships in 3-6 days

0

25

White Outdoor 17962

Switch Plate

$4.99

$

In Stock, only 3 left!

0

26

White Outdoor 710-0224

AB Screw, #10-16 x.500
(Superseded to 910-0224)

$3.99

$

In Stock, Qty 20+

0

27

White Outdoor 725-04039

Switch
(Superseded to 925-04039)

$24.99

$

In Stock, Qty 8

0

28

White Outdoor 710-0599

Screw, 1/4-20, 0.50

$4.49

$

In Stock, Qty 20+

0

29

White Outdoor 725-04439

Solenoid, 12V, 100 Amp
(Superseded to 725-04439B)

$39.99

$

In Stock, Qty 20+

0

30

White Outdoor 710-04666

Hex Flange Bolt, 1/4-20,.75

$6.99

$

In Stock, only 3 left!

0

31

White Outdoor 712-0271

Nut, Sems, 1/4-20

$4.49

$

In Stock, Qty 20+

0

32

White Outdoor 712-3087

Nut, Wing, 1/4-20

$3.99

$

In Stock, Qty 20+

0

33

White Outdoor 725-1750A

Battery, 235 CCA
(Superseded to 925-1707D)

$

$

Not available

34

White Outdoor 738-1132

Screw, Shoulder,.250 x.15, 1/4-20

$5.49

$

In Stock, only 2 left!

0
