SLT-5400 (13AP62TK090) - White Outdoor 54" Lawn Tractor (2008) Fender & Seat Assembly Parts Diagram

54" Lawn Tractor

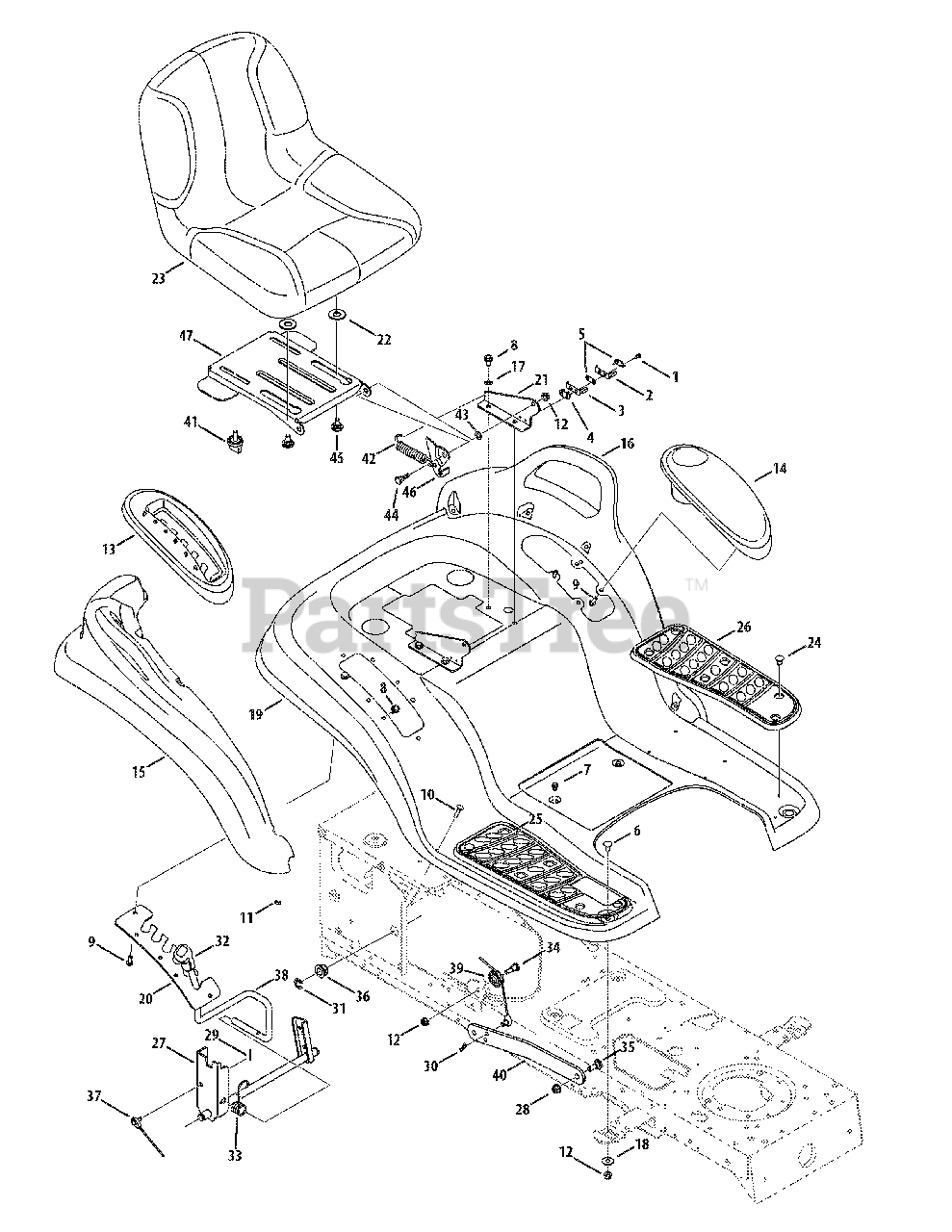

Fender & Seat Assembly Parts Diagram

  • Title

1

White Outdoor 710-0227

Screw, #8-18 x.500

$4.49

$

In Stock, Qty 20+

0

2

White Outdoor 725-1303

Outer Seat Spring Switch
(Superseded to 925-1303)

$6.49

$

In Stock, Qty 7

0

3

White Outdoor 725-1439

Inner Seat Spring Switch

$8.49

$

In Stock, Qty 10

0

4

White Outdoor 726-0278

Insulator Boss Plate

$6.99

$

In Stock, Qty 10

0

5

White Outdoor 726-0279

Insulator Plate

$3.99

$

In Stock, Qty 8

0

6

White Outdoor 710-0451

Carriage Bolt, 5/16-18 x.750

$4.49

$

In Stock, Qty 20+

0

7

White Outdoor 710-0599

Screw, 1/4-20 x.500

$4.49

$

In Stock, Qty 20+

0

8

White Outdoor 710-04484

Screw, 5/16-18 x.750

$3.99

$

In Stock, Qty 20+

0

9

White Outdoor 710-0895

Self-tapping Screw, 1/4-15 x.75

$6.49

$

Usually ships in 3-6 days

0

10

White Outdoor 710-0932

Carriage Screw 1/4-20 x 1.00
(Superseded to 710-0932A)

$3.99

$

In Stock, only 4 left!

0

11

White Outdoor 712-0271

Sems Nut 1/4-20

$4.49

$

In Stock, Qty 20+

0

12

White Outdoor 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

13

White Outdoor 731-1990

Lift Lever Cover
(Superseded to 731-06795)

$24.99

$

Usually ships in 3-6 days

0

14

White Outdoor 731-1993A

Cover w/ Cup Holder

$25.99

$

Usually ships in 3-6 days

0

15

White Outdoor 731-2618

RH Fender Flare

$

$

Not available

16

White Outdoor 731-2619

LH Fender Flare

$80.99

$

Usually ships in 3-6 days

0

17

White Outdoor 736-0607

Flat Washer, 5/16 Int. Tooth

$3.99

$

In Stock, Qty 20+

0

18

White Outdoor 736-3078

Flat Washer,.349 x 1.0 x.063

$4.49

$

In Stock, Qty 20+

0

19

White Outdoor 783-04459A

Fender 4 Sty Hydro w/ Flares

Variations

White Outdoor 783-04459A-0606

FENDER-HYDRO 4-STY - MAJESTIC ORANGE (0606)

$

$

Not available

White Outdoor 783-04459A-0650

FENDER-HYDRO 4-STY - RED METALLIC (0650)

$

$

Not available

White Outdoor 783-04459A-0665

FENDER-HYDRO 4-STY - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 783-04459A-4008

FENDER-HYDRO 4-STY - WINE RED (4008)

$

$

Not available

$

$

20

White Outdoor 783-0677B

Lift Adjustment Bracket

Variations

White Outdoor 783-0677B-0637

BRACKET:LIFT:ADJ - POWDER BLACK (0637)

$

$

Not available

White Outdoor 783-0677B-4008

BRACKET:LIFT:ADJ - WINE RED (4008)

$

$

Not available

White Outdoor 783-0677B-4015

BRACKET:LIFT:ADJ - FIRE RED (4015)

$

$

Not available

$22.99

$

Usually ships in 3-6 days

0

21

White Outdoor 783-1489C

Seat Mounting Bracket

Variations

White Outdoor 783-1489C-0638

BRACKET-MOUNT SEAT - MTD/TROY-BILT RED (0638)

$23.99

$

In Stock, only 1 left!

0

White Outdoor 783-1489C-0637

Seat Mounting Bracket - POWDER BLACK (0637)

$23.99

$

In Stock, only 1 left!

0

White Outdoor 783-1489C-0650

Seat Mounting Bracket - RED METALLIC (0650)

$23.99

$

In Stock, only 1 left!

0

White Outdoor 783-1489C-4008

Seat Mounting Bracket - WINE RED (4008)

$21.99

$

Usually ships in 3-6 days

0

White Outdoor 783-1489C-0716

BRACKET-MOUNT SEAT - CUB YELLOW-99 (0716)

$23.99

$

In Stock, only 1 left!

0

White Outdoor 783-1489C-4015

BRACKET-MOUNT SEAT - FIRE RED (4015)

$21.99

$

Usually ships in 3-6 days

0

White Outdoor 783-1489C-4021

BRACKET-MOUNT SEAT - CUB YELLOW 2 (4021)

$23.99

$

In Stock, only 1 left!

0

$19.99

$

Usually ships in 3-6 days

0

22

White Outdoor 736-0300

Washer, Flat, .406 x .875 x .059

$4.49

$

In Stock, Qty 20+

0

23

White Outdoor 757-04075

High Back Seat, Gray

$

$

Not available

24

White Outdoor 726-3046

Foot Pad Clips

$3.99

$

In Stock, Qty 16

0

25

White Outdoor 735-0656

RH Foot Pad

$25.99

$

Usually ships in 3-6 days

0

26

White Outdoor 735-0657

LH Foot Pad

$26.99

$

Usually ships in 3-6 days

0

27

White Outdoor 683-04301

Lift Assembly Shaft
(Superseded to 683-04301-0637)

Variations

White Outdoor 683-04301-0637

SHF ASSY-LIFT:54" - POWDER BLACK (0637)

$

$

Not available

$

$

28

White Outdoor 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

29

White Outdoor 714-0104

Hairpin Clip

$4.49

$

In Stock, Qty 20+

0

30

White Outdoor 714-0111

Cotter Pin

$4.99

$

In Stock, Qty 13

0

31

White Outdoor 716-0106A

E-Ring

$5.49

$

In Stock, only 2 left!

0

32

White Outdoor 720-0311

Handle Grip

$15.99

$

In Stock, only 1 left!

0

33

White Outdoor 732-0874

Torsion Spring

$4.99

$

In Stock, Qty 6

0

34

White Outdoor 738-0138A

Hex Cap Screw, 5/16-18 x.62

$6.99

$

In Stock, only 2 left!

0

35

White Outdoor 738-0380

Shoulder Screw, 3/8-16

$7.99

$

In Stock, only 1 left!

0

36

White Outdoor 741-0225

Hex Flange Bearing
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 20+

0

37

White Outdoor 746-0968

Lift Cable, 16.16

$19.99

$

In Stock, Qty 20+

0

38

White Outdoor 747-04447

Lift Handle

$44.99

$

In Stock, only 3 left!

0

39

White Outdoor 756-1154

Roller Pulley

$7.99

$

In Stock, only 2 left!

0

40

White Outdoor 783-05546

Arm Lift
(Superseded to 783-05546A-0637)

Variations

White Outdoor 783-05546-0637

Lift Link - POWDER BLACK (0637)

$20.99

$

In Stock, only 2 left!

0

$20.99

$

In Stock, only 2 left!

0

41

White Outdoor 720-04061

Knob, 3/8-16 x .875

$5.49

$

In Stock, Qty 20+

0

42

White Outdoor 732-1184

Extension Spring,.84 x 4.6

$11.99

$

In Stock, only 1 left!

0

43

White Outdoor 736-0242

Flat Washer

$4.49

$

In Stock, Qty 20+

0

44

White Outdoor 738-0296

Shoulder Screw,.437 x.286

$4.49

$

In Stock, Qty 20+

0

45

White Outdoor 738-04012A

Shoulder Screw, 3/8-16 .625 x .145
(Superseded to 738-04012C)

$5.49

$

In Stock, Qty 12

0

46

White Outdoor 783-0209D

Seat Lift Bracket

$16.99

$

In Stock, only 1 left!

0

47

White Outdoor 783-04081B

Seat Pivot Bracket

Variations

White Outdoor 783-04081B-0637

Seat Pivot Bracket - POWDER BLACK (0637)

$41.99

$

In Stock, only 1 left!

0

White Outdoor 783-04081B-4008

BRACKET-SEAT PIVOT - WINE RED (4008)

$41.99

$

In Stock, only 1 left!

0

$33.99

$

Usually ships in 3-6 days

0
