SLT-5400 (13AP62TK090) - White Outdoor 54" Lawn Tractor (2008) Engine Blower Housing & Baffles Parts Diagram

54" Lawn Tractor

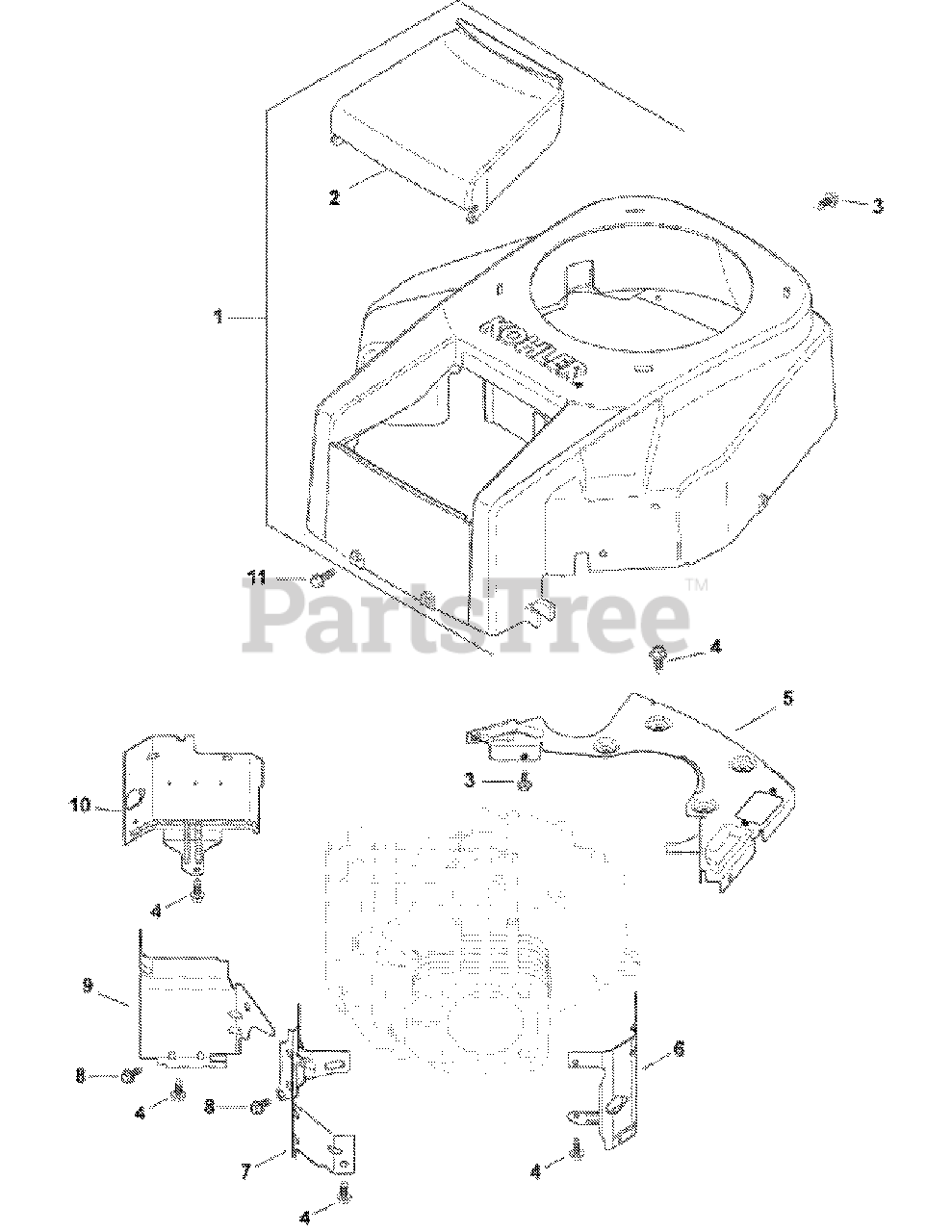

Engine Blower Housing & Baffles Parts Diagram

  • Title

1

White Outdoor KH-32-027-03-S

KIT, HOUSING BLOWER

Note: (Includes 2 & 41 037 10-S)

$

$

Not available

2

MTD KH-32-096-08-S

COVER, AIR CLEANER

$7.49

$

In Stock, Qty 9

0

3

White Outdoor KH-M-545016-S

SCREW, FLG THD FRM M5X.8X16
(Superseded to KH-25-086-398-S)

$3.99

$

Usually ships in 2-5 days

0

4

White Outdoor KH-M-645016-S

SCREW, FLG THD FRM M6X1.0X16

$3.99

$

In Stock, Qty 15

0

5

White Outdoor KH-32-146-05-S

KIT, BACKING PLATE

$

$

Not available

6

White Outdoor KH-32-063-12-S

BAFFLE, CYL BARREL - #2 SIDE

$19.99

$

Usually ships in 2-5 days

0

7

MTD KH-32-063-02-S

BAFFLE, VALLEY #2 SIDE

$

$

Not available

8

White Outdoor KH-M-545010

SCREW, FLG THD FRM M5X.8X10
(Superseded to KH-M-0545010)

$

$

Not available

9

MTD KH-32-063-03-S

BAFFLE, VALLEY #1 SIDE
(Superseded to KH-24-063-93-S)

$

$

Not available

10

White Outdoor KH-32-063-10-S

BAFFLE, CYL BARREL - #1 SIDE

$15.99

$

Usually ships in 2-5 days

0

11

White Outdoor KH-24-086-12

SCREW, TAP M6X1.7X18

$

$

Not available

White Outdoor KH-41-037-10-S

NAMEPLATE, SERVICE

Note: NOT ILLUSTRATED

$8.99

$

In Stock, only 4 left!

0

MTD KH-25-086-15

SCREW, THREAD FORMING

Note: NOT ILLUSTRATED

$

$

Not available
