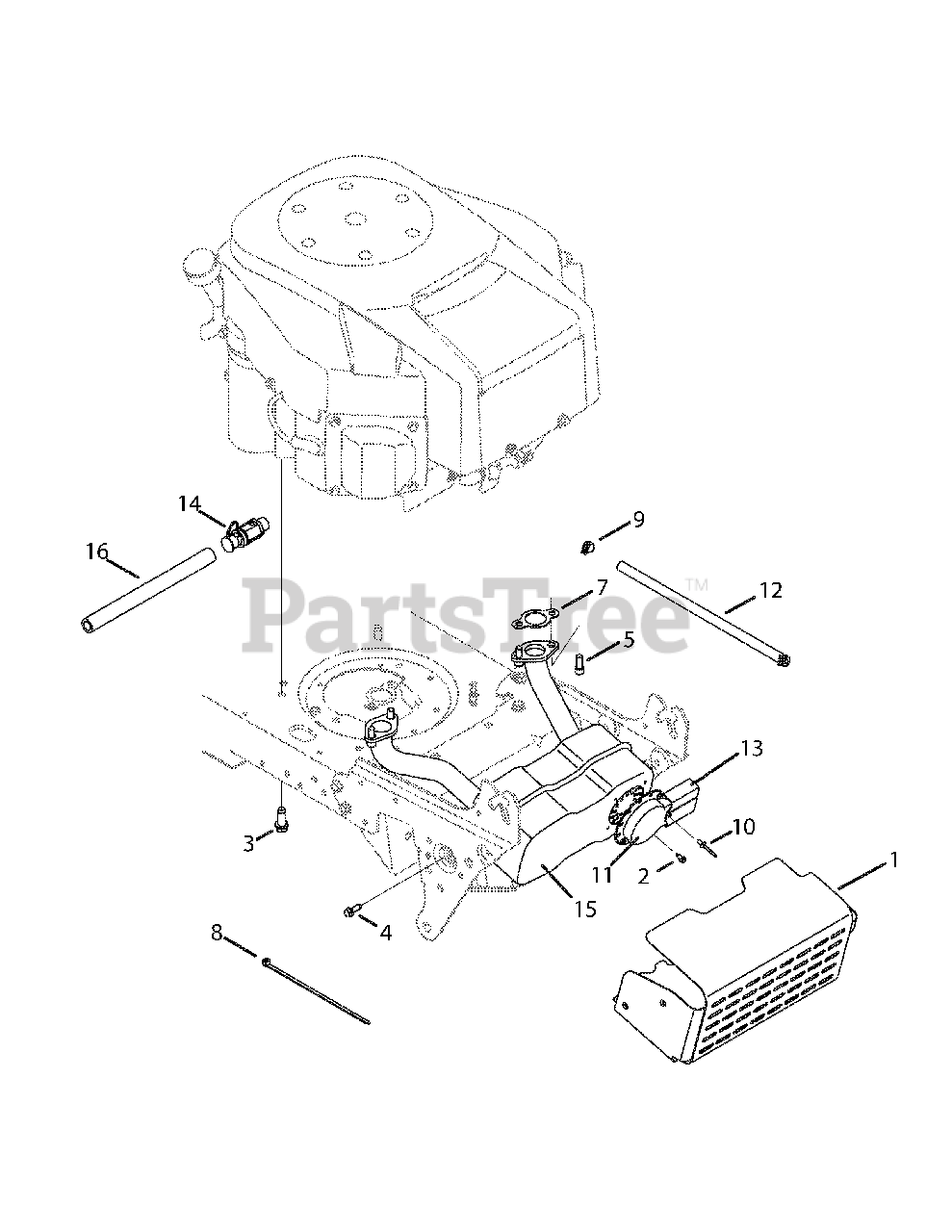

SLT-5400 (13AP62TK090) - White Outdoor 54" Lawn Tractor (2008) Engine Accessories Parts Diagram

54" Lawn Tractor

Engine Accessories Parts Diagram

  • Title

1

White Outdoor 683-04370

Muffler Shield Assembly
(Superseded to 683-05460A-0637)

Variations

White Outdoor 683-04370-0637

Muffler Shield - POWDER BLACK (0637)

$80.99

$

Usually ships in 3-6 days

0

$80.99

$

Usually ships in 3-6 days

0

2

White Outdoor 710-0227

Screw, #8-18, 0.500

$4.49

$

In Stock, Qty 20+

0

3

White Outdoor 710-04683

Screw, Hex, 3/8-16 x 1.00
(Superseded to 710-04683C)

$6.49

$

In Stock, only 4 left!

0

4

White Outdoor 710-0642

Screw, Hex, 1/4-20, 0.750

$4.49

$

In Stock, Qty 20+

0

5

White Outdoor 710-1314A

Screw, 5/16-18, 0.75

$4.49

$

In Stock, Qty 20+

0

6

White Outdoor 712-0271

Sems Nut, 1/4-20

$4.49

$

In Stock, Qty 19

0

7

White Outdoor KH-20-041-12-S

Exhaust Gasket, Kohler Twin

$4.99

$

Usually ships in 2-5 days

0

8

White Outdoor 725-0157

Cable, Tie, 3/16 x .05 x 7.4

$3.99

$

In Stock, Qty 20+

0

9

White Outdoor 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 20+

0

10

White Outdoor 728-04000

Rivet, Pop, .188 x .325

$6.99

$

In Stock, Qty 7

0

11

White Outdoor 751-0564B

Deflector, Muffler

$13.99

$

In Stock, only 3 left!

0

12

MTD 751-10349

Fuel Line, Low Permeation

$9.49

$

Usually ships in 3-6 days

0

13

White Outdoor 751-10353

Extension, Deflector
(Superseded to 751-11053B)

$5.49

$

In Stock, Qty 20+

0

14

White Outdoor 751-10517

Drain, Oil
(Superseded to 951-10517A)

$24.99

$

In Stock, only 1 left!

0

15

White Outdoor 751-10528

Muffler, Dual Inlet, Kohler
(Superseded to 951-10528B)

$160.99

$

In Stock, only 2 left!

0

16

White Outdoor 751-3141

Extension Hose, Oil Drain
(Superseded to 751-3141-14)

$11.99

$

In Stock, Qty 7

0
