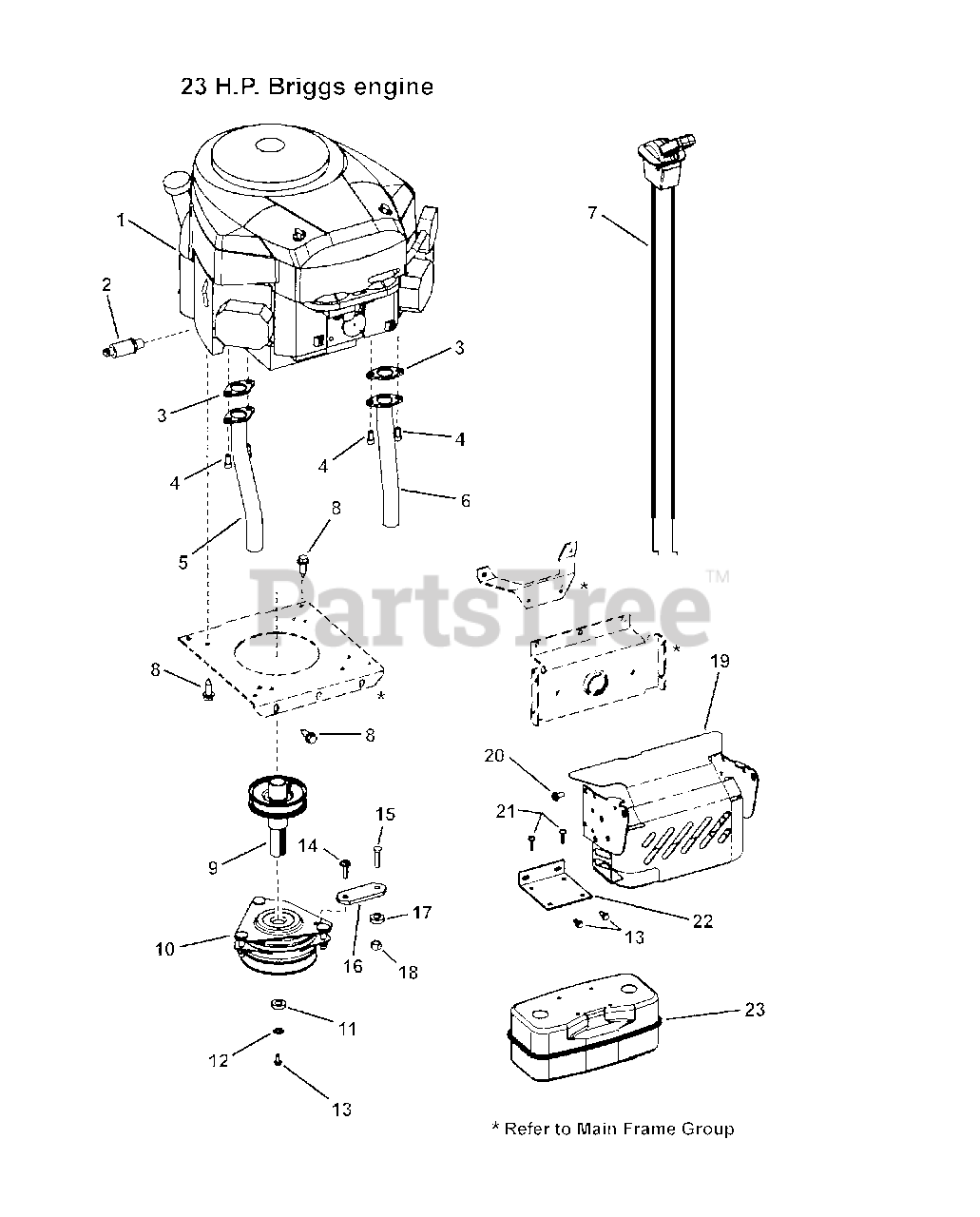

SLT 24520FC (7800318) - Snapper 52" Lawn Tractor, 24hp Engine Group Parts Diagram

52" Lawn Tractor, 24hp

Engine Group Parts Diagram

  • Title

1

* ENGINE, 23HP B&S ELS 2-Cyl, Mod. 44L777-0125-B1

$

$

Not available

1

* ENGINE, 24HP B&S ELS V-Twin Mod. 44M777-0113-B1

$

$

Not available

2

Snapper 7027972

ASSEMBLY, Oil Valve
(Superseded to 7027972SM)

$24.99

$

In Stock, Qty 9

0

3

Snapper 1731214

GASKET, Exhaust B&S Reg. (No Chre.)
(Superseded to 1731214SM)

$4.99

$

Usually ships in 2-12 days

0

4

Snapper 720663

SCREW, 5/16-18 x 5/8" Torx Head, YZ
(Superseded to 06X103MA)

$6.49

$

Usually ships in 2-12 days

0

5

Snapper 7102402

EXHAUST TUBE RH
(Superseded to 7102402YP)

$23.99

$

Usually ships in 2-12 days

0

6

Snapper 7102403

EXHAUST TUBE LH
(Superseded to 7102403YP)

$23.99

$

Usually ships in 2-12 days

0

7

Snapper 1727817

THROTTLE ASSY, Dual Lever
(Superseded to 1727817SM)

$115.99

$

Usually ships in 2-12 days

0

8

Snapper 720045

SCREW, 3/8-16 x 1-1/4" Hex Head Self-Tap
(Superseded to 2828635SM)

$4.99

$

In Stock, Qty 20+

0

9

Snapper 7101543

ADAPTER - Electric PTO
(Superseded to 7101543YP)

$128.99

$

Usually ships in 2-12 days

0

10

Snapper 1736105

CLUTCH, Electric (Ogura GT-EH13)
(Superseded to 1736105SM)

Note: or 7101323

$387.99

$

Usually ships in 2-12 days

0

11

Snapper 7091807

WASHER, .468 ID x 1.38 OD x .25 Flat
(Superseded to 7091807SM)

Note: or 722605

$2.99

$

Usually ships in 2-12 days

0

12

Snapper 7091301

WASHER, 7/16 Split Lock
(Superseded to 704007)

Note: or 720183, 7/16 (External Lock Washer)

$4.49

$

In Stock, Qty 20+

0

13

Snapper 722866

SCREW, 1/4-20 x 5/8" Hex Washer Self-Tap
(Superseded to 26X263MA)

$4.99

$

In Stock, only 1 left!

0

14

Snapper 7091000

SCREW, 5/16-18 x 7/8" Pan Head Self-Tap, Torx, BP
(Superseded to 1960086SM)

$4.99

$

In Stock, only 2 left!

0

15

Snapper 1921332

SCREW, 5/16-18 x 3/4" Hex Head Cap
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

16

Snapper 7101706

ANCHOR PAD, Clutch
(Superseded to 7101706YP)

$17.99

$

In Stock, only 1 left!

0

17

Snapper 7090188

WASHER, .34 x .69 x .08 Flat
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0

18

Snapper 7091298

NUT, 5/16-18 Hex Nyloc
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

19

Snapper 7500533Z

ASSY - Heat Shield
(Superseded to 7500533ZYP)

$125.99

$

Usually ships in 2-12 days

0

20

Snapper 722871

SCREW, 5/16-18 x 1/2" Hex Washer Head
(Superseded to 26X277MA)

$4.99

$

Usually ships in 2-12 days

0

21

Snapper 722851

SCREW, 1/4-14 x 3/8" Hex Washer Self-Tap
(Superseded to 26X229MA)

$4.49

$

In Stock, only 1 left!

0

22

Snapper 7300760Z

BRACKET - Muffler
(Superseded to 7300760ZYP)

$18.99

$

Usually ships in 2-12 days

0

23

Snapper 721180

MUFFLER, Twin
(Superseded to 093259MA)

$96.99

$

Usually ships in 2-12 days

0

24

Snapper 1736106

HARNESS, Jumper Ogura Clutch (not shown)
(Superseded to 1736106SM)

$11.99

$

Usually ships in 2-12 days

0
