SLT 24520FC (7800318) - Snapper 52" Lawn Tractor, 24hp 52" Mower Housing Assembly Parts Diagram

52" Lawn Tractor, 24hp

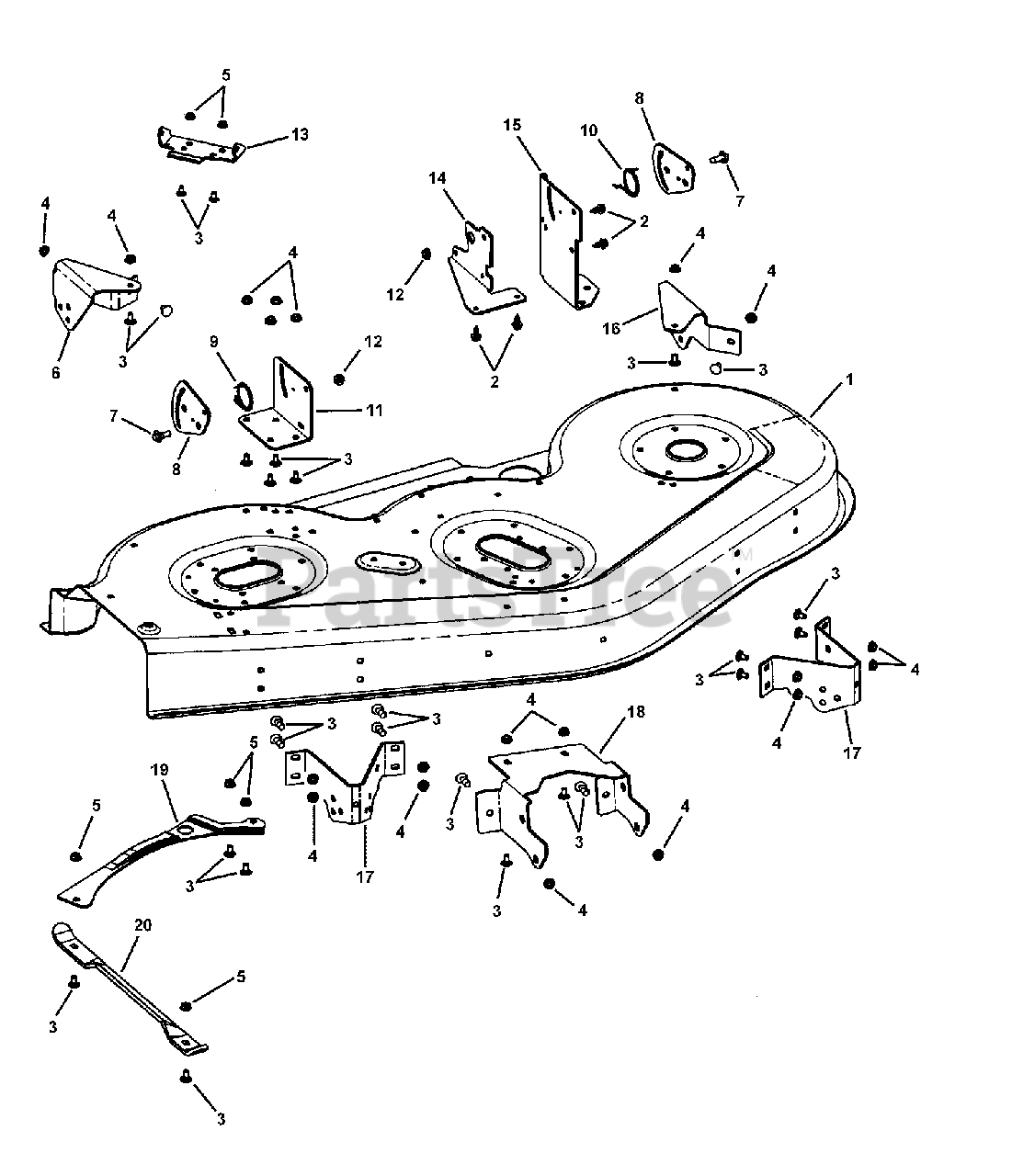

52" Mower Housing Assembly Parts Diagram

  • Title
1

Snapper 7300937D

HOUSING, 52" Mower Deck
(Superseded to 7300937DYP)

$585.99

$

Usually ships in 2-12 days

0

2

Snapper 722858

CAPSCREW, 5/16-18 Hex Washer Face
(Superseded to 26X249MA)

$

$

Not available

3

Snapper 720049

BOLT, 5/16-18 x 5/8" Square Neck Carriage, GR 5
(Superseded to 703159)

$3.99

$

In Stock, Qty 19

0

4

Snapper 720139

NUT, 5/16-18 Hex Flange Ser YZ
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

5

Snapper 720145

NUT, 5/16-18 Hex Flange Lock, NC
(Superseded to 704067)

$3.99

$

In Stock, Qty 14

0

6

Snapper 7300808D

BRACKET, Gage Wheel RH Rear
(Superseded to 7300808DYP)

$34.99

$

Usually ships in 2-12 days

0

7

Snapper 720097

BOLT, 3/8-16 Shoulder
(Superseded to 009X51MA)

$4.99

$

In Stock, only 2 left!

0

8

Snapper 7300862D

PLATE, Suspension
(Superseded to 7300862DYP)

$27.99

$

Usually ships in 2-12 days

0

9

Snapper 722511

SPRING, Torsion RH
(Superseded to 166X42MA)

$4.99

$

In Stock, Qty 8

0

10

Snapper 722512

SPRING, Torsion LH
(Superseded to 166X43MA)

$4.99

$

In Stock, only 2 left!

0

11

Snapper 7300815D

BRACKET, Lifter RH
(Superseded to 7300815DYP)

$14.99

$

Usually ships in 2-12 days

0

12

Snapper 720142

NUT, 3/8-16 Hex Flange Lock, NC
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

13

Snapper 7300811D

BRACKET, Hinge
(Superseded to 7300811DYP)

$68.99

$

Usually ships in 2-12 days

0

14

Snapper 7300936D

BRACE, LH Lifter
(Superseded to 7300936DYP)

$18.99

$

Usually ships in 2-12 days

0

15

Snapper 7300755D

BRACKET, Lifter LH
(Superseded to 7300755DYP)

$42.99

$

Usually ships in 2-12 days

0

16

Snapper 7300807D

BRACKET, Gage Wheel LH Rear
(Superseded to 7300807DYP)

$24.99

$

Usually ships in 2-12 days

0

17

Snapper 7300746D

BRACKET, Gage Wheel 52 Deck
(Superseded to 7300746DYP)

$39.99

$

Usually ships in 2-12 days

0

18

Snapper 7300802D

BRACKET, Front Deck
(Superseded to 7300802DYP)

$66.99

$

Usually ships in 2-12 days

0

19

Snapper 7300729D

BAFFLE, RH Bottom

$

$

Not available

20

Snapper 7300800D

BRACKET, Chute Support
(Superseded to 7300800DYP)

$21.99

$

Usually ships in 2-12 days

0
