SLT 1554 (13AK11CK710) - Cub Cadet 54" Lawn Tractor Engine Accessories Parts Diagram

54" Lawn Tractor

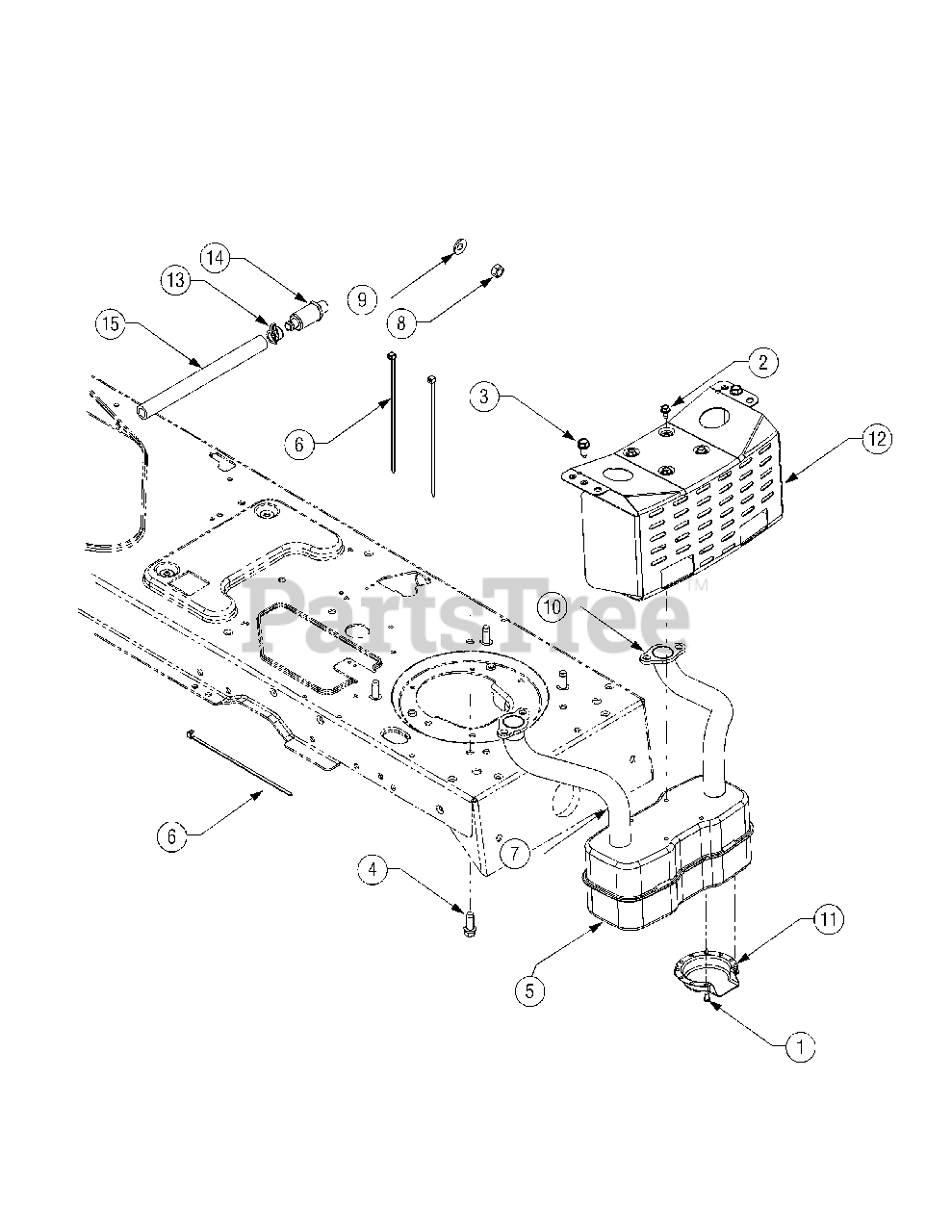

Engine Accessories Parts Diagram

  • Title

1

Cub Cadet 710-0227

Screw, #8-18, 0.500

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet 710-0599

Screw, Hex, 1/4-20, 0.500

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 710-0726

Screw, Hex, 5/16-12 x.75

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 710-1315

Screw, Hex, 3/8-16 x 1.25

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 751-0805

Muffler, Dual Inlet
(Superseded to 951-0805A)

$123.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 725-0157

Cable, Tie, 3/16 x.05 x 7.4

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 751-0645A

Pipe, Exhaust, RH

$93.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 712-3005

Flange Lock Nut, 3/8-16

$6.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 736-0300

Flat Washer,.406 x.875 x.059

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 751-0644B

Pipe, Exhaust, LH

$146.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 751-0564A

Deflector, Muffler
(Superseded to 751-0564B)

$13.99

$

In Stock, only 3 left!

0

12

Cub Cadet 783-0615D

Bracket, Muffler
(Superseded to 783-0615E-0637)

Variations

Cub Cadet 783-0615D-0637

Muffler Bracket - POWDER BLACK (0637)

$64.99

$

In Stock, only 1 left!

0

$64.99

$

In Stock, only 1 left!

0

13

Cub Cadet 751-3142

Cap, Oil Drain

$4.49

$

In Stock, Qty 14

0

14

Cub Cadet 751-3140

Drain, Oil
(Superseded to 951-10517A)

$24.99

$

In Stock, only 1 left!

0

15

Cub Cadet 751-3141

Extension Hose, Oil Drain
(Superseded to 751-3141-14)

$11.99

$

In Stock, Qty 7

0
