SLT 1554 (13AK11CK709) - Cub Cadet 54" Lawn Tractor Ignition Electrical Parts Diagram

54" Lawn Tractor

Ignition Electrical Parts Diagram

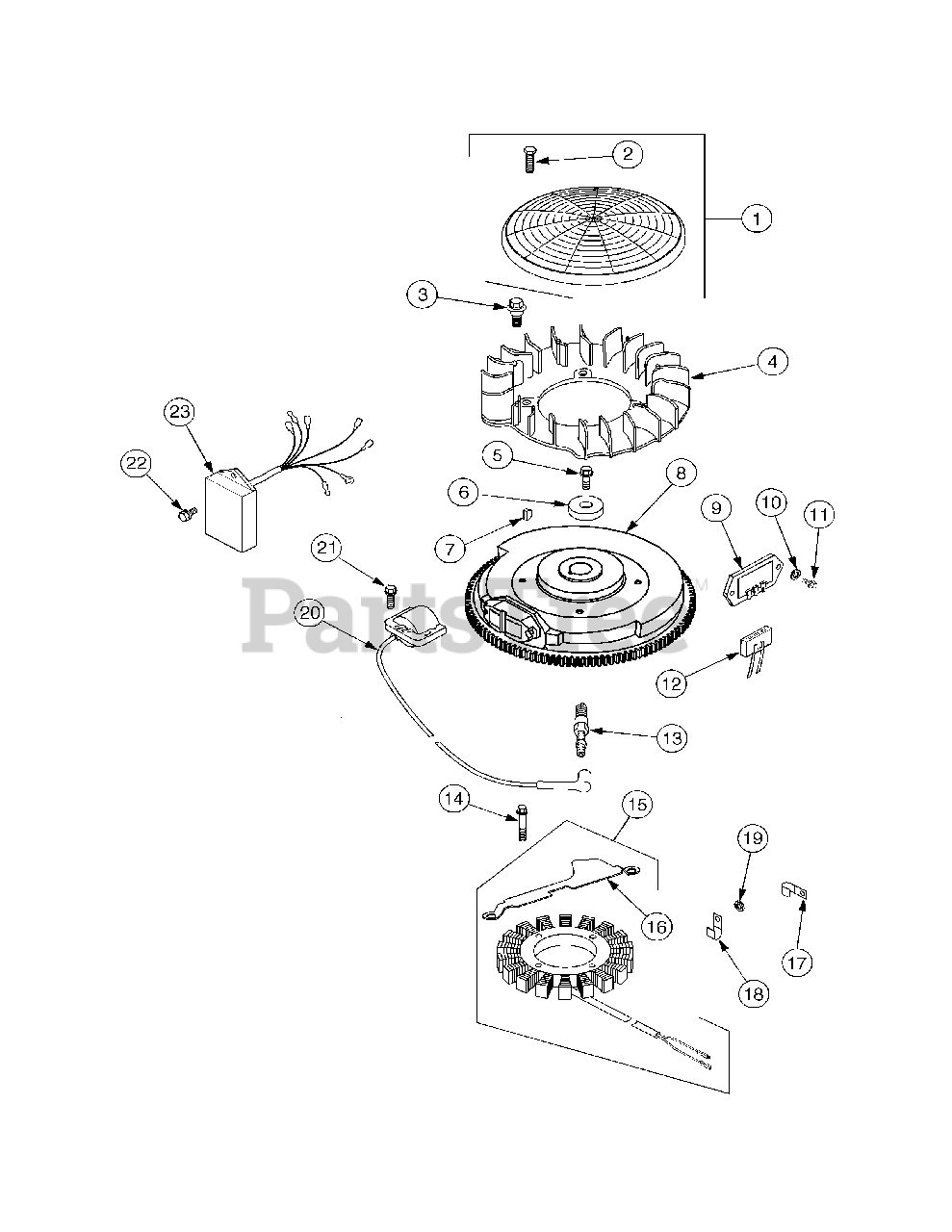

  • Title

1

Cub Cadet KH-24-755-79

Kit, Grass Screen

$

$

Not available

2

Cub Cadet KH-25-086-117-S

Screw, Hex Sems

$2.99

$

In Stock, only 4 left!

0

3

Cub Cadet KH-25-086-47

Bolt, Shoulder

$

$

Not available

4

Cub Cadet KH-24-157-08-S

Fan
(Superseded to KH-24-755-253-S)

$46.99

$

In Stock, Qty 5

0

5

Cub Cadet KH-12-086-14

Screw, Hx Flange, M10-1.5 x 46
(Superseded to KH-25-086-361-S)

$3.99

$

In Stock, Qty 12

0

6

Cub Cadet KH-12-468-03

Washer, Plain, 3/8

$

$

Not available

7

Cub Cadet KH-X-42-15

Key

$

$

Not available

8

Cub Cadet KH-24-025-15-S

Flywheel
(Superseded to KH-24-025-58-S)

$

$

Not available

9

Cub Cadet KH-41-403-09

Rectifier-Regulator
(Superseded to KH-25-403-37-S)

$

$

Not available

10

Cub Cadet KH-X-25-92

Washer, Plain, 3/16

$

$

Not available

11

Cub Cadet KH-24-086-18

Screw, Phillips Hd, 11-16 x 7/8

$

$

Not available

12

Cub Cadet KH-236602-S

Connector
(Superseded to KH-25-155-41-S)

$24.99

$

In Stock, only 1 left!

0

13

Cub Cadet 759-3336

Spark Plug
(Superseded to RC12YC)

$3.49

$

In Stock, Qty 20+

0

14

Cub Cadet KH-M-548025-S

Screw, Hx Cap, M5-0.8 x 25
(Superseded to KH-25-086-402-S)

$2.49

$

In Stock, only 2 left!

0

15

Cub Cadet KH-54-755-09-S

Kit, 15 Amp Stator
(Superseded to KH-237878)

$

$

Not available

16

Cub Cadet KH-24-126-139-S

Bracket, Stator Wire

$15.99

$

Usually ships in 2-5 days

0

17

Cub Cadet KH-47-154-01

Clip, Cable
(Superseded to KH-47-154-01-S)

$5.49

$

In Stock, Qty 5

0

18

Cub Cadet KH-48-154-02

Clip, Cable

$

$

Not available

19

Cub Cadet KH-X-25-63

Washer, Plain, 1/4

$

$

Not available

20

Cub Cadet KH-24-584-36-S

Module, Ignition

$102.99

$

In Stock, only 2 left!

0

21

Cub Cadet KH-M-0545020

Screw, Hx Flange, M5-0.8 x 20

$

$

Not available

22

Cub Cadet KH-24-584-31-S

Module, Speed Advance

$

$

Not available

23

Cub Cadet KH-M-448010

Screw, M4 x 0.7 x 10

$

$

Not available

Cub Cadet KH-24-176-81-S

Harness, Wire (Not Shown)

$76.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-126-137-S

Bracket, Ground Strap (Not Shown)
(Superseded to KH-24-518-12-S)

$4.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-25-454-03-S

Tie, Wire (Not Shown)

$2.49

$

Usually ships in 2-5 days

0
