SLT 1554 (13AK11CK709) - Cub Cadet 54" Lawn Tractor Adjustable Seat Rev01 Parts Diagram

54" Lawn Tractor

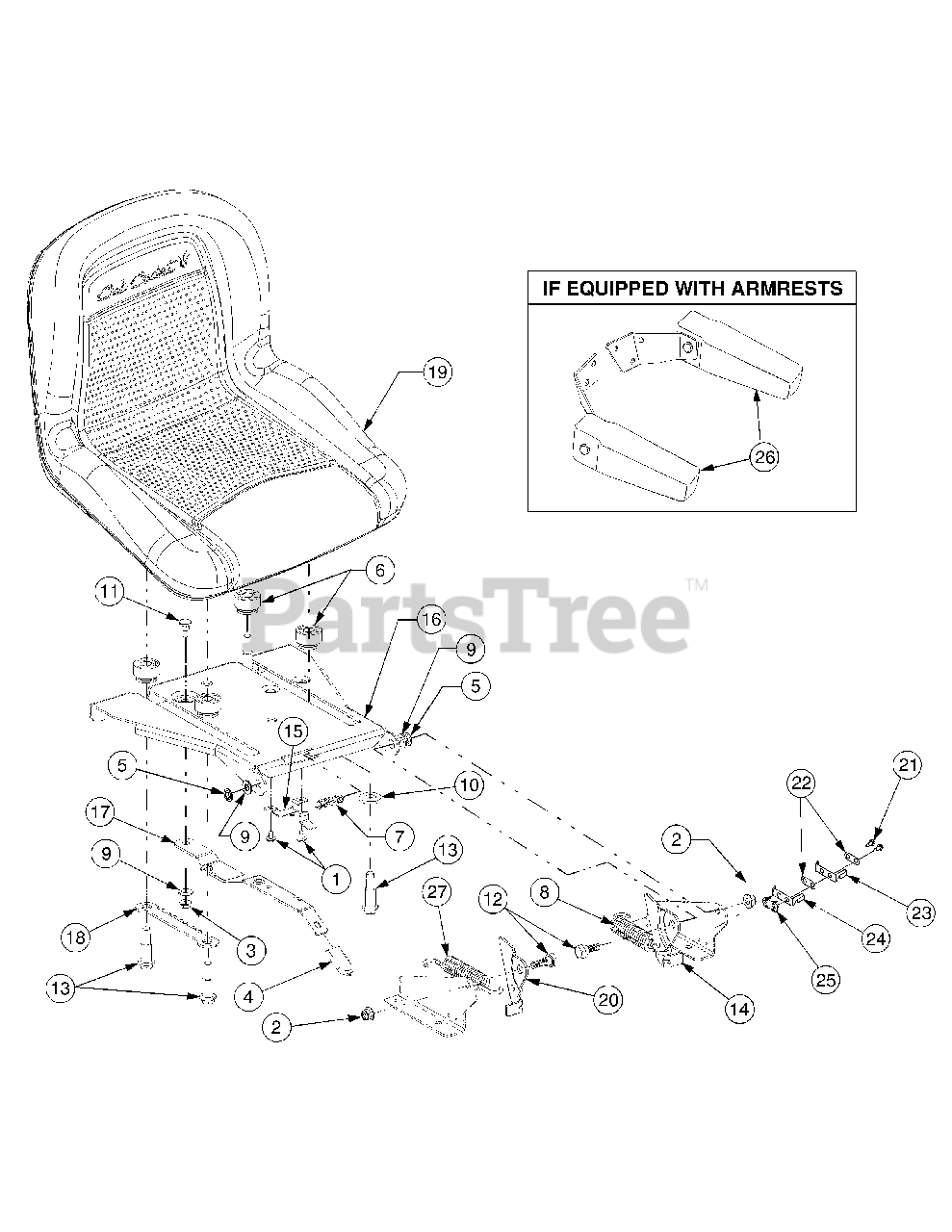

Adjustable Seat Rev01 Parts Diagram

  • Title

1

Cub Cadet 710-1268

Screw Hex Wash Hd., #10-16, 0.375

$4.49

$

In Stock, only 2 left!

0

2

Cub Cadet 712-04063

Nut, Flange Insert Lck, 5/16-18,Gr5

$3.99

$

In Stock, Qty 20+

0

3

Cub Cadet 712-3027

Nut, Flange Lock, 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 720-0433

Grip, Seat Adjustment (Yellow)

$10.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 726-0201

Nut, Speed, .3125 ID

$6.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 731-04074

Spacer, Seat, Adjustment

$7.49

$

In Stock, Qty 20+

0

7

Cub Cadet 732-0499

Spring, Compression .41 OD x 1.5

$9.49

$

In Stock, only 1 left!

0

8

Cub Cadet 732-1184

Spring, Extension, .84 Dia x 4.6 Lg

$11.99

$

In Stock, only 1 left!

0

9

Cub Cadet 736-0275

Washer, Flat, .344 x .688 x .065

$6.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 736-3019

Washer, Flat, .531 x 1.062 x .134

$5.99

$

In Stock, Qty 11

0

11

Cub Cadet 738-0137A

Screw, Shoulder, .34 x .285, 1/4-20

$10.99

$

In Stock, Qty 10

0

12

Cub Cadet 738-0296

Shoulder, Screw .437 x .286 Lg

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 738-0966A

Screw, Shoulder, .50 x.925:3/8-16

$4.99

$

In Stock, Qty 19

0

14

Cub Cadet 783-0209D

Bracket, Seat Lift

$16.99

$

In Stock, only 1 left!

0

15

Cub Cadet 783-0611

Stop, Seat, Adjustment

$10.99

$

In Stock, only 3 left!

0

16

Cub Cadet 783-0738B

Bracket, Pivot, Seat
(Superseded to 783-0738D)

Variations

Cub Cadet 783-0738B-0716

Seat Pivot Bracket - CUB YELLOW-99 (0716)

$

$

Not available

Cub Cadet 783-0738B-0638

Seat Pivot Bracket - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 783-0738B-0650

USE 783-0738D-0650 BRACKET-PI - RED METALLIC (0650)

$

$

Not available

Cub Cadet 783-0738B-0665

USE 783-0738D-0665 BRACKET-PI - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 783-0738B-0691

Seat Pivot Bracket - BLACK JACK (0691)

$

$

Not available

$

$

17

Cub Cadet 783-0739A

Lever, Seat, Adjustment
(Superseded to 783-0739A-0637)

Variations

Cub Cadet 783-0739A-0637

Seat Adjust Lever - POWDER BLACK (0637)

$25.99

$

Usually ships in 3-6 days

0

$25.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 783-0753

Selector, Seat, Adjustment

$15.99

$

In Stock, only 1 left!

0

19

Cub Cadet 757-04035

Seat, Mid-back, V-1480

$

$

Not available

19

Cub Cadet 777D06883

Graphic, Made in USA

$17.99

$

In Stock, only 2 left!

0

19

Cub Cadet 777D01782

Graphic, Cub Cadet

$

$

Not available

20

Cub Cadet 17239D

Bracket, Seat Lift

$

$

Not available

21

Cub Cadet 710-0227

Screw, #8-18 x.50

$4.49

$

In Stock, Qty 15

0

22

Cub Cadet 726-0279

Plate, Insulator

$3.99

$

In Stock, Qty 8

0

23

Cub Cadet 725-1303

Spring Switch, Outer
(Superseded to 925-1303)

$6.49

$

In Stock, Qty 7

0

24

Cub Cadet 725-1439

Spring Switch, Inner

$8.49

$

In Stock, Qty 8

0

25

Cub Cadet 726-0278

Plate, Insulator Boss

$6.99

$

In Stock, Qty 10

0

26

Cub Cadet 757-04039

Arm Rest (If Equipped)
(Superseded to 757-04040)

$227.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 732-04309

Spring, Extension, .815 x 4.775

$12.99

$

Usually ships in 3-6 days

0
