SLT 1554 (13AK11BK710) - Cub Cadet 54" Lawn Tractor (2007 & Before) Drive System Parts Diagram

54" Lawn Tractor

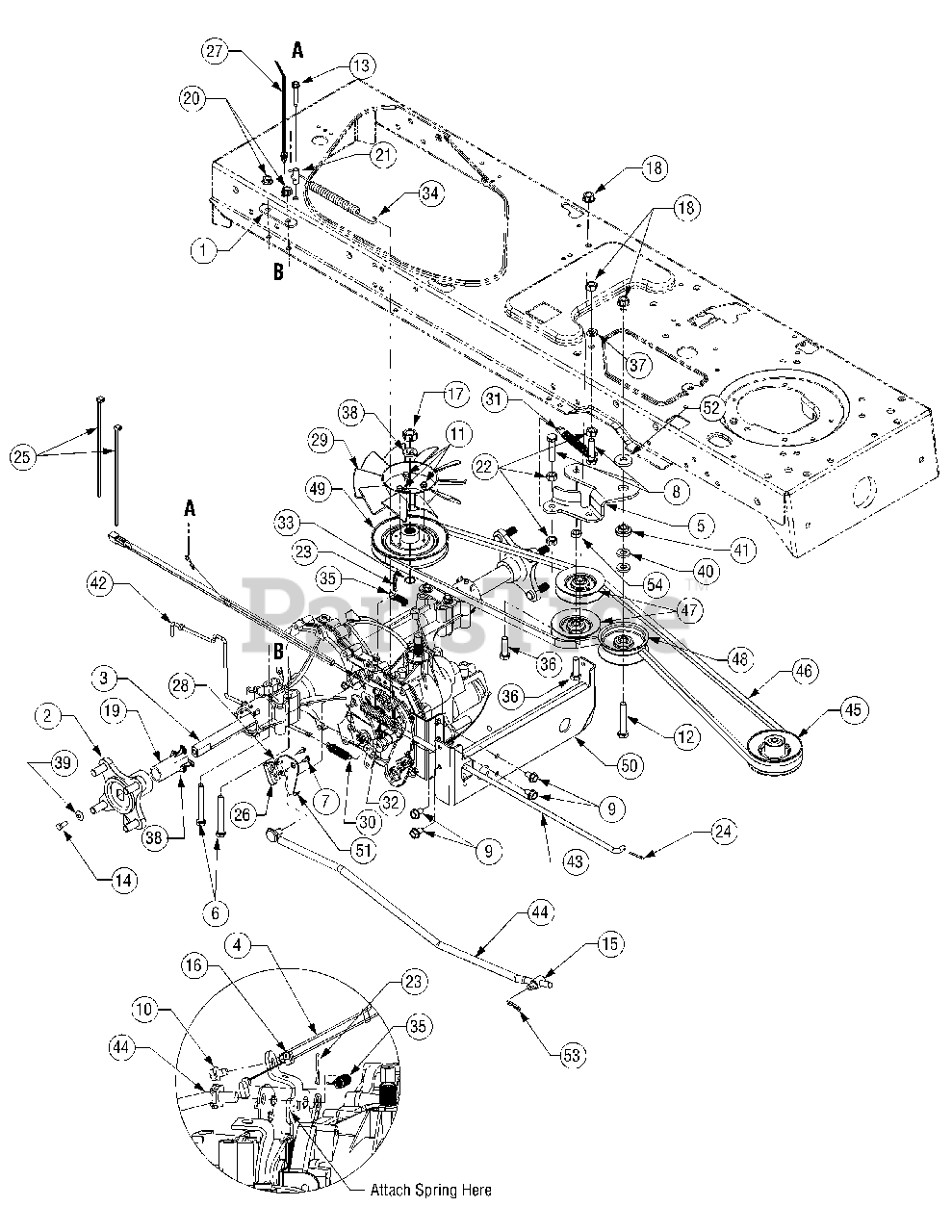

Drive System Parts Diagram

  • Title

1

Cub Cadet 17840-0637

Bracket, Mounting, Transaxle

$11.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 918-04228

Hub Assembly, Wheel
(Superseded to 918-04228A)

$50.99

$

In Stock, Qty 5

0

3

Cub Cadet 918-04270B

Transmission, Hydrostatic

$

$

Not available

4

Cub Cadet 629-04124

Harness Assembly, Ground & Reverse

$

$

Not available

5

Cub Cadet 783-04442

Bracket Assembly, Idler, Center Dbl

Variations

Cub Cadet 783-04442-0637

Double Idler Bracket Assembly - POWDER BLACK (0637)

$35.99

$

In Stock, only 1 left!

0

Cub Cadet 783-04442-4008

Double Idler Bracket Assembly - WINE RED (4008)

$

$

Not available

$35.99

$

In Stock, only 1 left!

0

6

Cub Cadet 710-1266

Hex Cap Screw, 5/16-18,3.5, Gr5

$9.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 710-0227

Screw, #8-18, 0.500

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-0344

Hex Cap Screw, 3/8-16, 1.50, Gr5

$5.99

$

In Stock, Qty 11

0

9

Cub Cadet 710-0726

Screw, 5/16-12, 0.75

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 710-0599

Screw, 1/4-20, 0.5

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 710-3007

Screw, #12-24, 0.375

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 710-3011

Hex Cap Screw, 3/8-16, 2.25, Gr5

$6.99

$

In Stock, Qty 20+

0

13

Cub Cadet 710-0778

Hex Cap Screw, 1/4-20, 1.5, Gr5

$4.49

$

In Stock, only 1 left!

0

14

Cub Cadet 710-0627

Hex Cap Screw, 5/16-24 x .750

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 911-0832

Ferrule, 3/8-24 x .375 Dia

$15.99

$

In Stock, only 4 left!

0

16

Cub Cadet 912-0291

Nut, Hex Lock, 1/4-20
(Superseded to 712-0291)

$

$

Not available

17

Cub Cadet 912-3066

Nut, Hex, 1/2-20, Gr5

$6.99

$

In Stock, only 1 left!

0

18

Cub Cadet 712-04065

Nut, Nylon Lock, 3/8-16

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 731-05300

Sleeve, 2.4"
(Superseded to 731-05300A)

$4.99

$

In Stock, only 1 left!

0

20

Cub Cadet 712-04063

Nut, Nylon Lock, 5/16-18, Gr5

$3.99

$

In Stock, Qty 5

0

21

Cub Cadet 750-0566A

Spacer, 1"

$9.99

$

In Stock, only 1 left!

0

22

Cub Cadet 912-3017

Nut, Hex, 3/8-16, Gr8
(Superseded to 712-3017)

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet 914-0104

Pin, Cotter, .072 Dia. x 1.13 Lg
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet 914-0111

Pin, Cotter, 3/32, 1.0
(Superseded to 714-0111)

$4.99

$

In Stock, Qty 13

0

25

Cub Cadet 725-0157

Cable, Tie, 3/16 x .05 x 7.4

$3.99

$

In Stock, Qty 20+

0

26

Cub Cadet 725-1644

Switch, Spring, Short

$9.99

$

In Stock, Qty 11

0

27

Cub Cadet 926-0154

Tie, Cable, Push Mount 7.5 Lg

$6.49

$

Usually ships in 3-6 days

0

28

Cub Cadet 926-0320

Plate, Insulator Nut

$6.99

$

In Stock, Qty 11

0

29

Cub Cadet 931-1449A

Fan, Blade, 10"

$35.99

$

In Stock, Qty 9

0

30

Cub Cadet 932-0209

Spring, .48 OD x 2.03 Extension

$7.99

$

In Stock, only 2 left!

0

31

Cub Cadet 732-04323B

Spring, Extension, .563 Dia x 3.72 Lg

$12.99

$

In Stock, only 1 left!

0

32

Cub Cadet 732-0716D

Spring, Extension, .59 OD x 4.00 Lg

$13.99

$

In Stock, only 1 left!

0

33

Cub Cadet 732-0729

Ring, Wire

$4.99

$

In Stock, only 4 left!

0

34

Cub Cadet 732-0994

Spring, Extension, .500 Dia x 7.0

$10.99

$

In Stock, Qty 9

0

35

Cub Cadet 732-3118

Spring, Extension, 3/8 OD x 1.44

$10.99

$

In Stock, only 1 left!

0

36

Cub Cadet 710-0502A

Screw, 3/8-16, 1.25

$6.99

$

In Stock, only 2 left!

0

37

Cub Cadet 936-0169

Washer, Lock, 3/8, Regular Duty
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

38

Cub Cadet 936-0921

Washer, Lock, 1/2
(Superseded to 736-0921)

$4.49

$

In Stock, Qty 6

0

39

Cub Cadet 736-0242

Bell Washer

$4.49

$

In Stock, Qty 20+

0

40

Cub Cadet 736-3010

Washer, Flat, .407 x .812 x .135

$4.99

$

In Stock, only 1 left!

0

41

Cub Cadet 738-0372B

Spacer, Shoulder, 1.00 x .38 x .38

$9.49

$

In Stock, Qty 20+

0

42

Cub Cadet 747-1149

Rod, Hydro Bypass

$24.99

$

In Stock, only 1 left!

0

43

Cub Cadet 747-04139

Rod, Brake, Hydro

$24.99

$

In Stock, only 1 left!

0

44

Cub Cadet 747-1151

Rod, Control, Hydro

$

$

Not available

45

Cub Cadet 756-0978B

Pulley, Engine, 3.56 Dia.

$66.99

$

In Stock, Qty 13

0

46

Cub Cadet 954-0461

Belt, V Type, Poly

$59.99

$

In Stock, Qty 20+

0

47

Cub Cadet 756-04209

Pulley, Idler, V Type x 3.06 Dia

$22.99

$

In Stock, Qty 20+

0

48

Cub Cadet 756-04224

Pulley, Idler, Flat 2.75 OD

$26.99

$

In Stock, Qty 20+

0

49

Cub Cadet 756-04111

Pulley, Engine, 4.11Dia.

$50.99

$

In Stock, only 2 left!

0

50

Cub Cadet 783-0810B-0637

Bracket, Transmission, Torque Hydro

$

$

Not available

51

Cub Cadet 783-1019B

Bracket, Actuator, Switch

$10.99

$

In Stock, only 1 left!

0

52

Cub Cadet 736-0320

Washer, Flat, .38 x 1.92 x .060

$6.99

$

In Stock, Qty 7

0

53

Cub Cadet 914-0507

Pin, Cotter, 3/32, .750

$4.49

$

In Stock, Qty 17

0

54

Cub Cadet 950-0535

Spacer, .38 x .625 x .21

$4.49

$

In Stock, Qty 20+

0
