SLT 1554 (13AK11BK709) - Cub Cadet 54" Lawn Tractor (2007 & Before) Fender and Fuel Tank Parts Diagram

54" Lawn Tractor

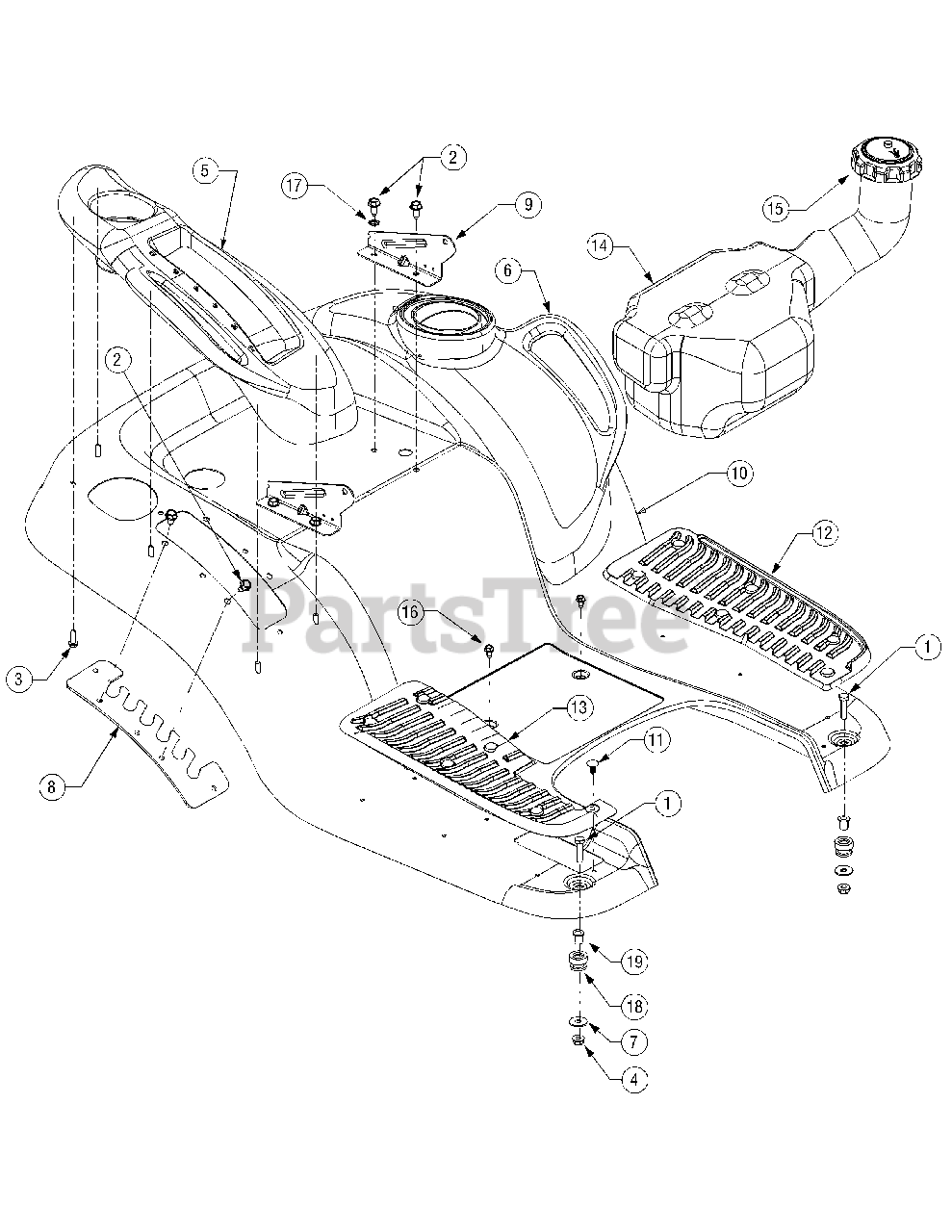

Fender and Fuel Tank Parts Diagram

  • Title
1

Cub Cadet 710-0528

Screw, 5/16-18 x 1.25

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet 710-0726

Screw, 5/16-12, 0.75

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 710-0895

Screw, 1/4-15, 0.750

$6.49

$

Usually ships in 3-6 days

0

4

Cub Cadet 712-04063

Nut, Nylon Lock, 5/16-18

$3.99

$

In Stock, Qty 5

0

5

Cub Cadet 731-2616A

Cover, Fender, RH
(Superseded to 931-2616A)

$

$

Not available

6

Cub Cadet 731-2617

Cover, Fender, LH

$97.99

$

In Stock, only 1 left!

0

7

Cub Cadet 736-3078

Washer, Flat, .349 x 1.00 x .063

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 783-0677B

Bracket, Lift, Adjustment

Variations

Cub Cadet 783-0677B-0637

Lift Adjustment Bracket - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 783-0677B-4008

BRACKET:LIFT:ADJ - WINE RED (4008)

$

$

Not available

Cub Cadet 783-0677B-4015

BRACKET:LIFT:ADJ - FIRE RED (4015)

$

$

Not available

$22.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 783-1489A

Bracket, Seat, Mount
(Superseded to 783-1489C)

Variations

Cub Cadet 783-1489A-0637

Seat Mounting Bracket - POWDER BLACK (0637)

$23.99

$

In Stock, only 1 left!

0

Cub Cadet 783-1489A-4008

Seat Mounting Bracket - WINE RED (4008)

$21.99

$

Usually ships in 3-6 days

0

$19.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 783-04477

Fender
(Superseded to 783-04477A)

Variations

Cub Cadet 783-04477-0716

FENDER:R STYLE - CUB YELLOW-99 (0716)

$

$

Not available

$

$

11

Cub Cadet 726-3046

Clip, Ratchet, .250 Dia

$3.99

$

In Stock, Qty 16

0

12

Cub Cadet 735-0697A

Pad, Foot, LH

$27.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 735-0698B

Pad, Foot, RH

$

$

Not available

14

Cub Cadet 751-0819B

Tank, Fuel
(Superseded to 951-0819B)

$237.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 751-3124B

Cap, Fuel
(Superseded to 951-3124E)

$36.99

$

In Stock, only 1 left!

0

16

Cub Cadet 710-0599

Screw, Self-tapping, 1/4-20, 0.500

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 736-0607

Washer, Lock, 5/16 External Tooth

$3.99

$

In Stock, Qty 20+

0

18

$11.99

$

In Stock, only 1 left!

0

19

Cub Cadet 750-3310

Flange Spacer, .3125 x .4375 x .625

$5.49

$

Usually ships in 3-6 days

0
