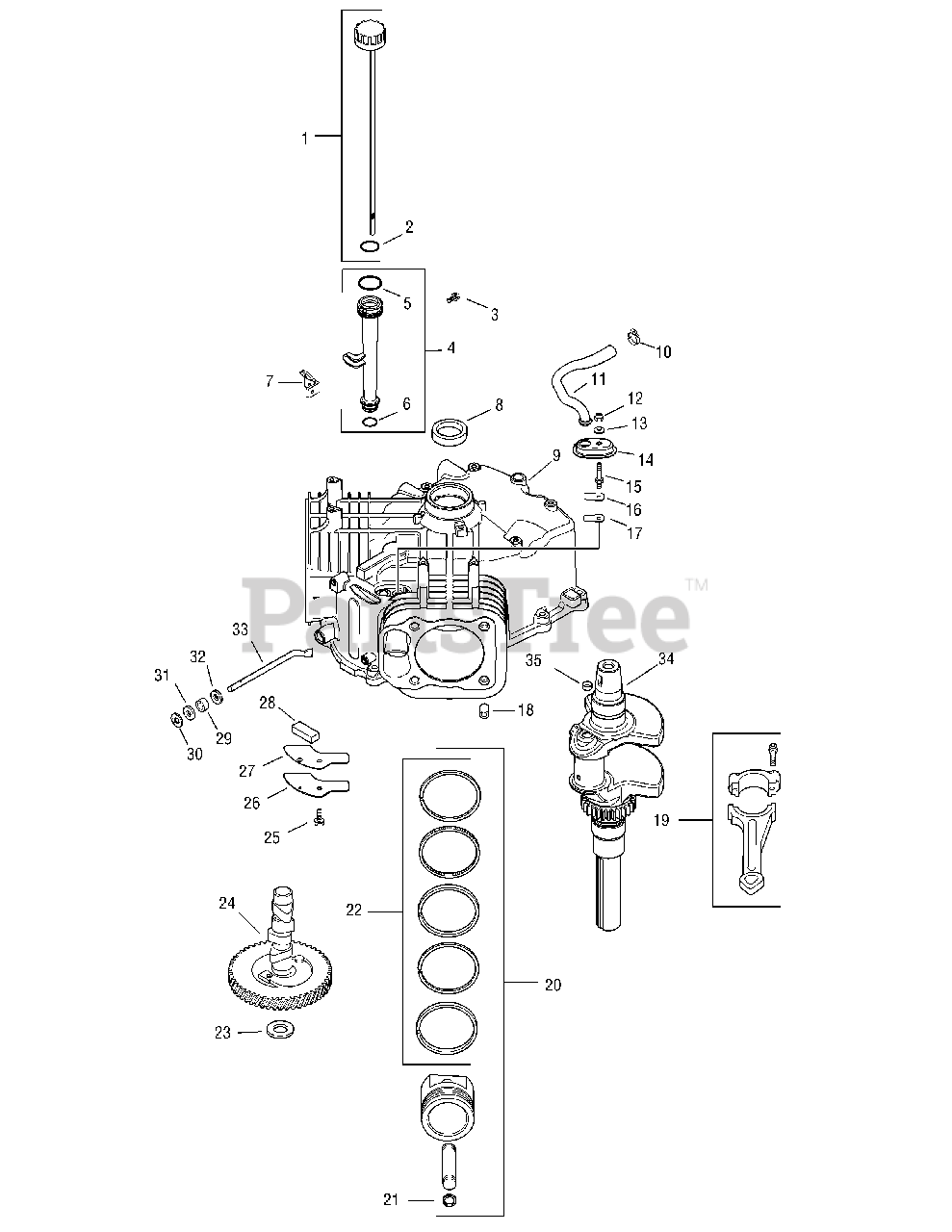

SLT 1554 (13AK11BK709) - Cub Cadet 54" Lawn Tractor (2007 & Before) Engine Crankcase Parts Diagram

54" Lawn Tractor

Engine Crankcase Parts Diagram

  • Title

1

Cub Cadet KH-32-038-01-S

Kit, dipstick (Includes 2)
(Superseded to KH-32-755-04-S)

$

$

Not available

2

Cub Cadet KH-12-153-03

O-Ring
(Superseded to KH-25-153-02-S)

$2.49

$

Usually ships in 2-5 days

0

3

Cub Cadet KH-M-545016-S

Screw, hex. flange thread forming
(Superseded to KH-25-086-398-S)

$3.99

$

Usually ships in 2-5 days

0

4

Cub Cadet KH-12-123-04

Tube, oil fill (Includes 5,6)
(Superseded to KH-32-755-04-S)

$

$

Not available

5

Cub Cadet KH-12-153-02-S

O-Ring, upper oil fill tube

$2.49

$

In Stock, Qty 9

0

6

Cub Cadet KH-12-153-01-S

O-Ring, lower oil fill tube

$4.99

$

In Stock, Qty 17

0

7

Cub Cadet KH-24-126-19

Bracket, oil fill tube
(Superseded to KH-24-126-243-S)

$11.99

$

In Stock, only 1 left!

0

8

Cub Cadet KH-24-032-01-S

Seal, oil
(Superseded to KH-24-032-19-S)

$7.49

$

In Stock, Qty 20+

0

9

Cub Cadet N/A

Crankcase

Note: See below

$

$

Currently unavailable

10

Cub Cadet KH-25-237-14-S

Clamp, hose
(Superseded to KH-25-237-31-S)

$4.99

$

In Stock, only 3 left!

0

11

Cub Cadet KH-32-326-04-S

Hose, breather
(Superseded to KH-32-326-06-S)

$17.99

$

In Stock, only 1 left!

0

12

Cub Cadet KH-M-547050-S

Nut, hex. lock M5x0.8

$2.49

$

In Stock, only 2 left!

0

13

Cub Cadet KH-32-468-01-S

Washer, sealing

$2.99

$

In Stock, only 1 left!

0

14

Cub Cadet KH-32-081-02-S

Housing, breather

$2.49

$

In Stock, only 1 left!

0

15

Cub Cadet KH-32-072-02-S

Stud, breather cover

$

$

Not available

16

Cub Cadet KH-24-018-04

Retainer, breather reed

$

$

Not available

17

Cub Cadet KH-24-402-05-S

Reed, breather
(Superseded to KH-24-402-07-S)

$4.49

$

Usually ships in 3-6 days

0

18

Cub Cadet KH-24-380-16-S

Pin, locating

$4.49

$

In Stock, only 3 left!

0

19

Cub Cadet KH-24-067-13-S

Connecting Rod (Std.)
(Superseded to KH-25-067-04-S)

$59.99

$

In Stock, Qty 6

0

20

Cub Cadet KH-32-874-06-S

Piston w/Ring Set (Std.) (Includes 20,21)
(Superseded to KH-25-874-13-S)

$269.99

$

In Stock, only 2 left!

0

20

Piston w/Ring Set (.25) (TBD)

$

$

Not available

21

Cub Cadet KH-24-018-01

Retainer, piston pin
(Superseded to KH-24-018-01-S)

$2.49

$

In Stock, Qty 7

0

22

Cub Cadet KH-24-108-05-S

Ring Set (Std.)
(Superseded to KH-24-108-15-S)

$102.99

$

In Stock, only 3 left!

0

22

Cub Cadet KH-24-108-06-S

Ring Set (.25)
(Superseded to KH-24-108-16-S)

$102.99

$

In Stock, only 2 left!

0

23

Cub Cadet KH-12-422-10

Shim, camshaft (yellow)
(Superseded to KH-12-422-10-S)

Note: A.R.

$2.49

$

In Stock, only 1 left!

0

23

Cub Cadet KH-12-422-09

Shim, camshaft (red)
(Superseded to KH-12-422-09-S)

Note: A.R.

$2.49

$

In Stock, only 1 left!

0

23

Cub Cadet KH-12-422-13

Shim, camshaft (black)
(Superseded to KH-12-422-13-S)

Note: A.R.

$2.99

$

Usually ships in 2-5 days

0

23

Cub Cadet KH-12-422-07

Shim, camshaft (white)
(Superseded to KH-12-422-07-S)

Note: A.R.

$4.49

$

Usually ships in 2-5 days

0

23

Cub Cadet KH-12-422-08

Shim, camshaft (blue)
(Superseded to KH-12-422-08-S)

Note: A.R.

$2.49

$

In Stock, only 2 left!

0

23

Cub Cadet KH-12-422-11

Shim, camshaft (green)
(Superseded to KH-12-422-11-S)

Note: A.R.

$2.49

$

Usually ships in 2-5 days

0

23

Cub Cadet KH-12-422-12

Shim, camshaft (gray)
(Superseded to KH-12-422-12-S)

Note: A.R.

$2.99

$

Usually ships in 2-5 days

0

24

Cub Cadet KH-32-012-01-S

Kit, camshaft

$135.99

$

Usually ships in 2-5 days

0

25

Cub Cadet KH-M-645016-S

Screw, hex. flange thread forming

$3.99

$

In Stock, Qty 15

0

26

Cub Cadet KH-32-096-04-S

Cover, breather

$2.99

$

Usually ships in 2-5 days

0

27

Cub Cadet KH-32-041-01-S

Gasket, breather cover

$

$

Not available

28

Cub Cadet KH-32-050-01-S

Filter, breather

$2.99

$

In Stock, only 2 left!

0

29

Cub Cadet KH-28-032-09-S

Seal, governor cross shaft

$3.49

$

In Stock, Qty 10

0

30

Cub Cadet KH-24-018-09-S

Ring, retainer

$2.49

$

In Stock, only 2 left!

0

31

Cub Cadet KH-M-931010-S

Washer, plain 8 mm

$2.49

$

In Stock, only 2 left!

0

32

Cub Cadet KH-24-468-15-S

Washer, flat 1/4"

$2.49

$

In Stock, Qty 6

0

33

Cub Cadet KH-24-144-38-S

Shaft, governor cross
(Superseded to KH-24-144-39-S)

$41.99

$

Usually ships in 2-5 days

0

34

Cub Cadet KH-32-014-04-S

Crankshaft (Includes 2)
(Superseded to KH-32-014-303-S)

$

$

Not available

35

KH-52-139-09-

Plug, cup

$

$

Not available

Cub Cadet KH-32-782-01

Miniblock

Note: Not shown

$

$

Not available

Cub Cadet KH-32-522-03

Short Block
(Superseded to KH-32-522-07)

Note: Not shown

$

$

Not available

Cub Cadet KH-SV730-0011

Complete Engine (SLT1550)

Note: Not shown

$

$

Not available

Cub Cadet KH-SV740-0010

Complete Engine (SLT1554)

Note: Not shown

$

$

Not available
