SLT 1554 (13AK11BK010) - Cub Cadet 54" Lawn Tractor (2008 & After) Pedal Assembly Parts Diagram

54" Lawn Tractor

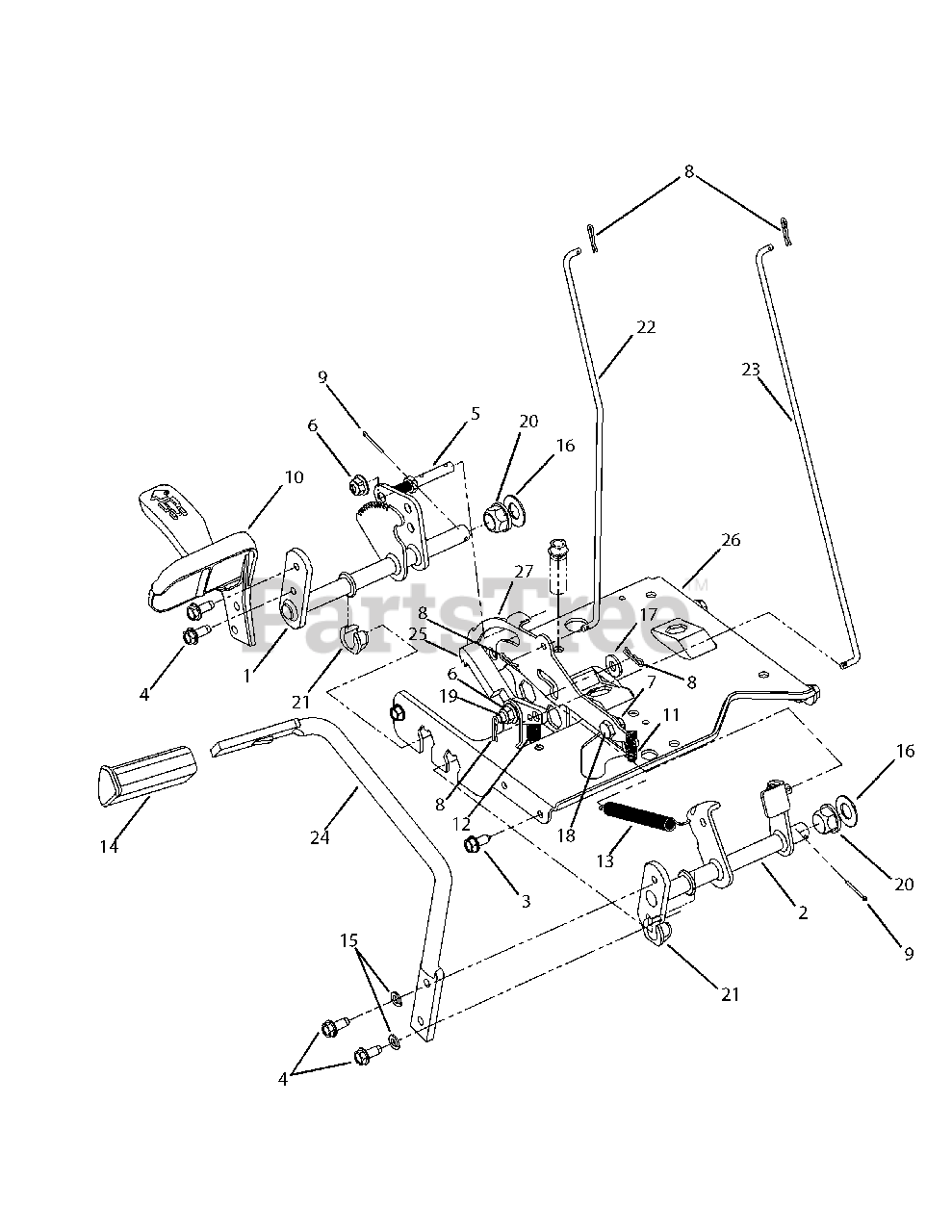

Pedal Assembly Parts Diagram

  • Title

1

Cub Cadet 647-0049A

Control Assembly, Hydro
(Superseded to 647-0049A-0637)

Variations

Cub Cadet 647-0049A-0637

Hydro Control Assembly - POWDER BLACK (0637)

$

$

Not available

$

$

2

Cub Cadet 647-04100

Control Assembly, Brake
(Superseded to 647-04100-0637)

Variations

Cub Cadet 647-04100-0637

Brake Control Assembly - POWDER BLACK (0637)

$

$

Not available

$

$

3

Cub Cadet 710-04484

Screw, Self-tapping, 5/16-18, 0.75

$3.99

$

In Stock, Qty 20+

0

4

Cub Cadet 710-1260A

Screw, Self-tapping, 5/16-18, 0.75

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 711-04159B

Pin, 3/8-16, 3/8 x 2.68

$7.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 712-04065

Nut, Nylon Lock, 3/8-16

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 712-3004A

Nut, Flange Lock, 5/16-18, Gr5

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 714-0104

Pin, Cotter, .072 Dia. x 1.13 Lg

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 714-0111

Pin, Cotter, 3/32, 1.0

$4.99

$

In Stock, Qty 13

0

10

Cub Cadet 719-0584B

Pedal, Hydro Control
(Superseded to 719-0584B-0637)

Variations

Cub Cadet 719-0584B-0637

Pedal Hydraulic Control - POWDER BLACK (0637)

$60.99

$

In Stock, only 1 left!

0

$60.99

$

In Stock, only 1 left!

0

11

Cub Cadet 732-0335

Spring, Compression, .405 x 1.17

$

$

Not available

12

Cub Cadet 732-0955

Spring, Extension, .50 OD x 1.41 Lg

$9.99

$

In Stock, only 1 left!

0

13

Cub Cadet 732-0963

Spring, Extension, .50 Dia x 6.37 Lg

$9.99

$

In Stock, only 4 left!

0

14

Cub Cadet 735-3049A

Pad, Brake, Control

$12.99

$

In Stock, only 1 left!

0

15

Cub Cadet 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

16

Cub Cadet 736-0187

Washer, Flat .64 x 1.24 x .06

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 736-0262

Washer, Flat, .385 x .870 x .092

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 738-0155

Shoulder, Screw .437
(Superseded to 938-0155)

$6.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 738-0380

Shoulder, Screw 3/8-16

$7.99

$

In Stock, only 1 left!

0

20

Cub Cadet 741-0225

Bearing, Hex Flange
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 19

0

21

Cub Cadet 741-3065B

Bearing, Hex Flange, .628 ID, Split

$8.49

$

In Stock, Qty 20+

0

22

Cub Cadet 747-04093A

Rod, Control, Brake Lock

$

$

Not available

23

Cub Cadet 747-04096

Rod, Control, Cruise

$15.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 783-04641A

Pedal, Brake

Variations

Cub Cadet 783-04641A-0637

Idler Bracket, 46" - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 783-04641A-4008

BRACKET-IDLER:46" - WINE RED (4008)

$

$

Not available

$

$

25

Cub Cadet 748-04039C

Latch, Cruise

$

$

Not available

26

Cub Cadet 783-04612

Bracket, Support, Stearing
(Superseded to 783-04612-0637)

Variations

Cub Cadet 783-04612-0637

Steering Support Bracket - POWDER BLACK (0637)

$89.99

$

In Stock, only 3 left!

0

$89.99

$

In Stock, only 3 left!

0

27

Cub Cadet 783-0663E

Bracket, Lockout, Hydro

$17.99

$

Usually ships in 3-6 days

0
