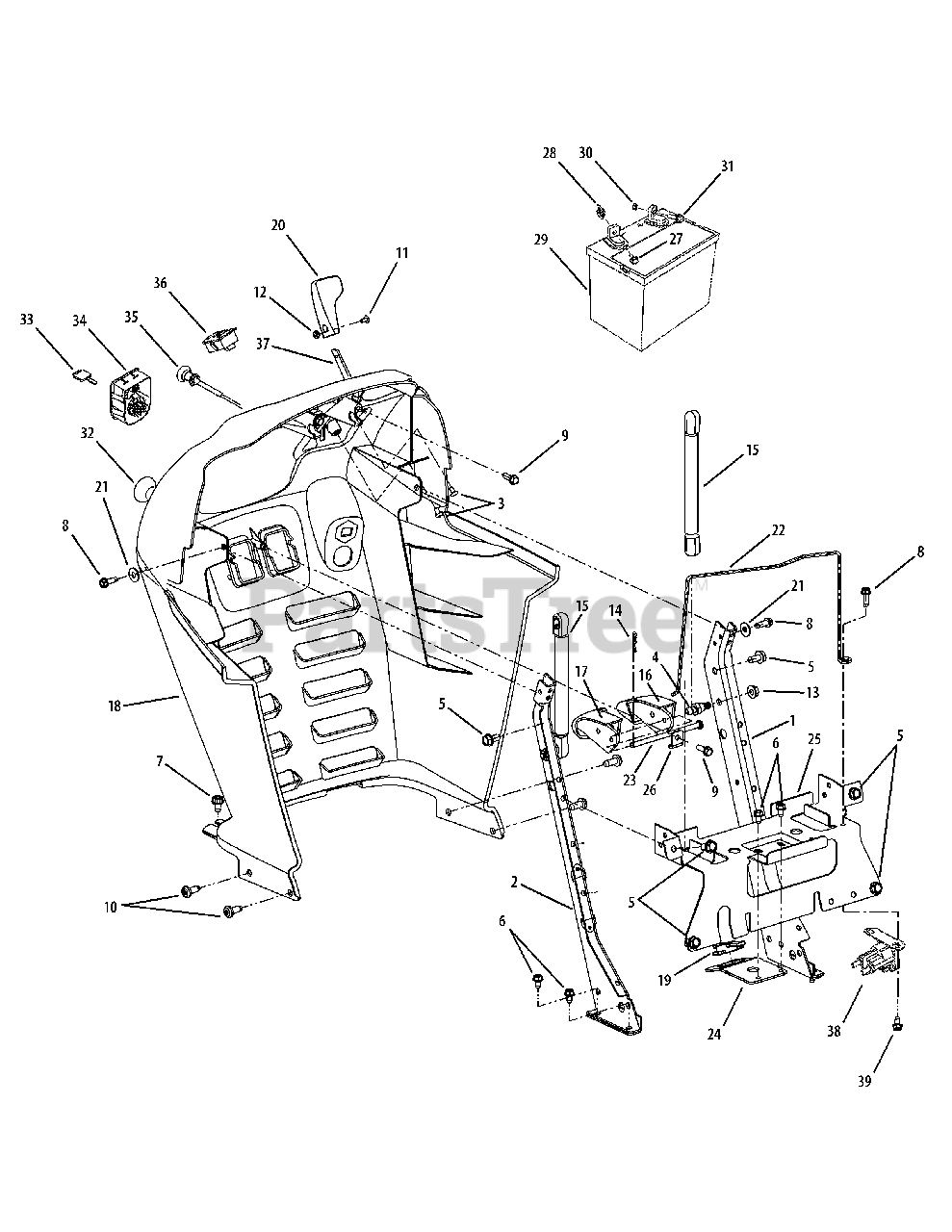

SLT 1554 (13AK11BK010) - Cub Cadet 54" Lawn Tractor (2008 & After) Dash Assembly, Battery & Solenoid Parts Diagram

54" Lawn Tractor

Dash Assembly, Battery & Solenoid Parts Diagram

  • Title

1

Cub Cadet 683-04231

Dash Support, LH
(Superseded to 683-04231-0637)

Variations

Cub Cadet 683-04231-0637

SUPPORT-DASH LH - POWDER BLACK (0637)

$

$

Not available

$

$

2

Cub Cadet 683-04232

Dash Support, RH
(Superseded to 683-04232-0637)

Variations

Cub Cadet 683-04232-0637

SUPPORT-DASH RH - POWDER BLACK (0637)

$

$

Not available

$

$

3

Cub Cadet 710-0192

Screw, #10-24 x .375

$3.99

$

In Stock, Qty 12

0

4

Cub Cadet 710-04471

Screw, Shoulder Ball, 5/16-18 x .48

$27.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-04484

Screw, Hex, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 710-0599

Screw, Self-tapping, 1/4-20, 0.500

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-0607

Screw, Hex, 5/16-18 x .500

$6.99

$

In Stock, Qty 11

0

8

Cub Cadet 710-0642

Screw, 1/4-20, .750

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 710-0895

Screw, 1/4-15, 0.750

$6.49

$

In Stock, only 2 left!

0

10

Cub Cadet 710-1611B

Screw, Torx Hd. Tapp. 5/16-18 x .75

$6.99

$

In Stock, only 2 left!

0

11

Cub Cadet 710-3217

Screw, Machine, #8-32, 0.375

$6.99

$

In Stock, Qty 7

0

12

Cub Cadet 712-0142

Nut, 8-32

$4.49

$

In Stock, Qty 10

0

13

Cub Cadet 712-3004A

Nut, Flangelock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 714-0104

Internal Cotter Pin, .072 x 1.13

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 727-04142

Gas Spring Cylinder

$59.99

$

In Stock, only 1 left!

0

16

Cub Cadet 731-04293A

Lever, Dash, Brake
(Superseded to 731-04293B)

$30.99

$

In Stock, only 1 left!

0

17

Cub Cadet 731-04294A

Lever, Dash, Cruise

$17.99

$

In Stock, only 1 left!

0

18

Cub Cadet 731-05077C

Cub 1500 Dash

$

$

Not available

19

Cub Cadet 731-05659

Steering Column Bearing

$10.99

$

In Stock, only 1 left!

0

20

Cub Cadet 731-3161A

Knob, Throttle Control
(Superseded to 931-3161A)

$19.99

$

In Stock, only 1 left!

0

21

Cub Cadet 736-0173

Washer, Flat, .28 x .74 x .063

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 747-04215

Hold-down Rod, Battery
(Superseded to 747-04215-0637)

Variations

Cub Cadet 747-04215-0637

Battery Strap - POWDER BLACK (0637)

$16.99

$

In Stock, Qty 7

0

$16.99

$

In Stock, Qty 7

0

23

Cub Cadet 747-1323A

Rod, .250 Dia x 4.25 Lg.

$11.99

$

In Stock, only 3 left!

0

24

Cub Cadet 783-05240A

Bracket, Steering Support

Variations

Cub Cadet 783-05240A-0637

Steering Support Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

25

Cub Cadet 783-05469

Bracket, Support, Battery

Variations

Cub Cadet 783-05469-0637

BRACKET-BATTERY TRAY - POWDER BLACK (0637)

$

$

Not available

$

$

26

Cub Cadet 783-1499

Bracket, Rod, Dash
(Superseded to 783-1499-0637)

Variations

Cub Cadet 783-1499-0637

Lever Rod Retainer - POWDER BLACK (0637)

$13.99

$

Usually ships in 3-6 days

0

$13.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 738-1132

Shoulder Screw, .250 x .150, 1/4-20

$5.49

$

In Stock, only 2 left!

0

28

Cub Cadet 712-3087

Wing Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

29

Cub Cadet 725-1750A

Battery, 235 CCA
(Superseded to 925-1707D)

$

$

Not available

30

Cub Cadet 712-0271

Nut, Sems, 1/4-20

$4.49

$

In Stock, Qty 20+

0

31

Cub Cadet 710-04666

Screw, Flange, 1/4-20, .75,

$6.99

$

In Stock, only 3 left!

0

32

Cub Cadet 725-04175

Switch, PTO, Yellow
(Superseded to 925-04175A)

$46.99

$

In Stock, only 4 left!

0

33

Cub Cadet 725-2054A

Ignition Key, Plastic
(Superseded to 925-2054A)

$17.99

$

In Stock, Qty 20+

0

33

Cub Cadet 725-1744A

Ignition Key, Metal
(Superseded to 925-1745A)

$17.99

$

In Stock, Qty 20+

0

34

Cub Cadet 725-04227B

Switch Module, Ignition
(Superseded to 925-06119C)

$116.99

$

In Stock, Qty 20+

0

35

Cub Cadet 746-04120

Choke, 40.5 x 2.0
(Superseded to 746P04120)

$34.99

$

In Stock, only 3 left!

0

36

Cub Cadet 725-04022B

Monitor, Sys. Indicator / Hour Meter
(Superseded to 925-04022B)

$146.99

$

In Stock, Qty 5

0

37

Cub Cadet 746-04352

Throttle, 38.0 x 1.62
(Superseded to 946-04352A)

$42.99

$

In Stock, only 1 left!

0

38

Cub Cadet 725-04439

Solenoid, 12V, 100 Amp
(Superseded to 725-04439B)

$39.99

$

In Stock, Qty 20+

0

39

Cub Cadet 710-0642

Screw, 1/4-20

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 725-04405A

Wire Harness
(Superseded to 925-04405A)

Note: Not Shown

$

$

Not available

Cub Cadet 725-2003

12V Power Receptacle

Note: Not Shown

$42.99

$

Usually ships in 3-6 days

0
