SLT 1554 (13AK11BK009) - Cub Cadet 54" Lawn Tractor (2008 & After) Hydrostatic Transmission Parts Diagram

54" Lawn Tractor

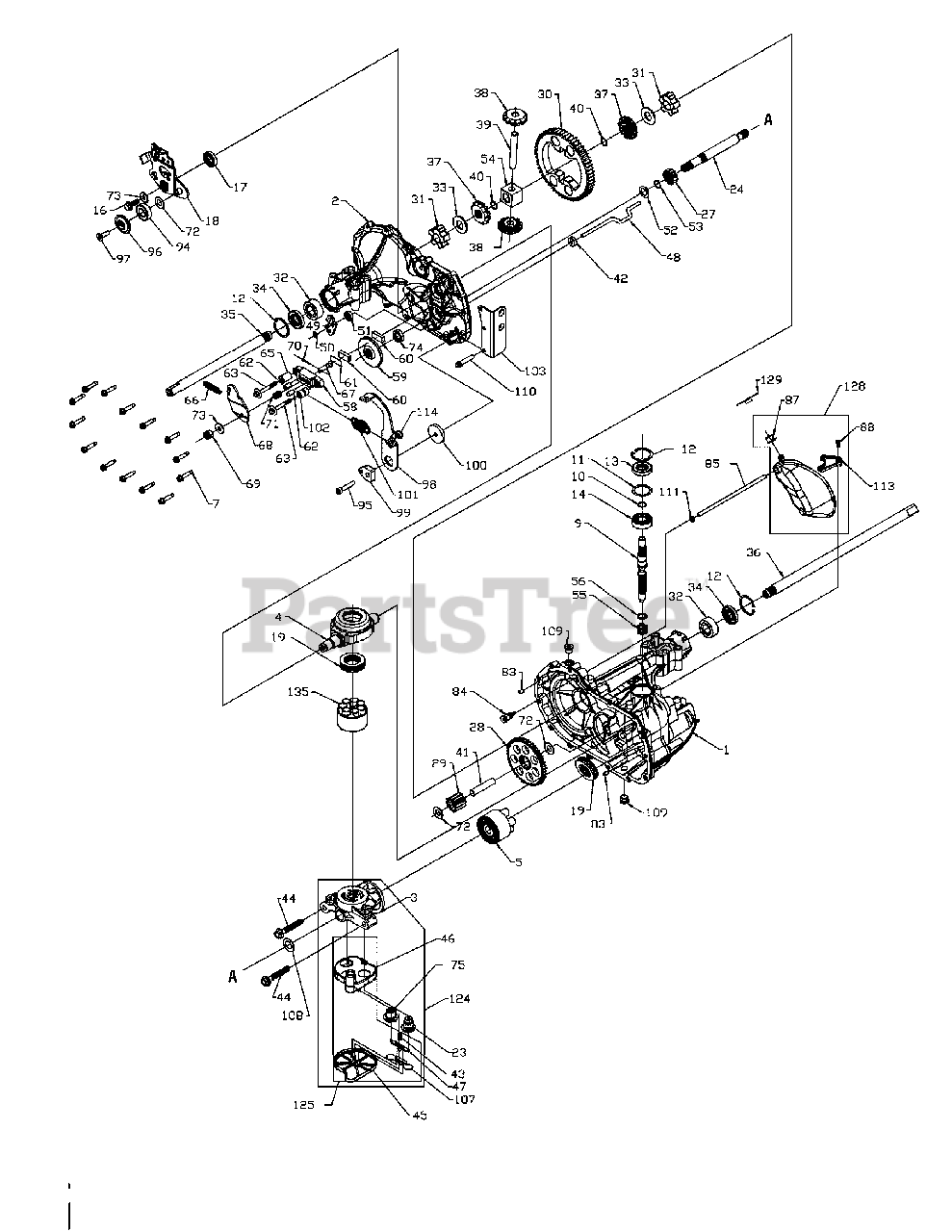

Hydrostatic Transmission Parts Diagram

  • Title

1

Cub Cadet HG-71275

Main Housing, Assembly

Note: Main Housing, Machined Drain, Bushing .865 X .985 X .790

$

$

Not available

2

Cub Cadet HG-70483

Side Housing, Assembly

Note: Side Housing, Bushing .865 X .985 X .790, Bushing .624 X .719 X .562

$159.99

$

Usually ships in 3-6 days

0

3

Cub Cadet HG-70724

Center Section, Assembly

Note: Center Section, Bushing .707 X .788 X .591

$

$

Not available

4

Cub Cadet HG-51048

Swashplate, Trunnion Machined

$88.99

$

Usually ships in 3-6 days

0

5

Cub Cadet HG-70331

Block - Assembly

Note: Block - Cylinder, Piston, Spring, Compression, Washer - Thrust

$188.99

$

Usually ships in 3-6 days

0

7

Cub Cadet HG-51190

Hex Flange Screw 1/4-20 X 1.25
(Superseded to HG-53246)

$3.99

$

Usually ships in 3-6 days

0

9

Cub Cadet HG-51062

Shaft, Input
(Superseded to HG-51062P)

$134.99

$

In Stock, only 1 left!

0

10

Cub Cadet HG-2000022

Ring, Retaining

$4.49

$

Usually ships in 3-6 days

0

11

Cub Cadet HG-50951

Spacer

$4.49

$

Usually ships in 3-6 days

0

12

Cub Cadet HG-50329

Ring, Retaining

$11.99

$

Usually ships in 3-6 days

0

13

Cub Cadet HG-51161

Seal, Lip .67 X 1.58 X .276

$11.99

$

Usually ships in 3-6 days

0

14

Cub Cadet HG-50315

Ball, Bearing 17mm ID X 40mm OD X12mm

$18.99

$

Usually ships in 3-6 days

0

16

Cub Cadet HG-51064

Bolt, Hex Flange Head 5/16-24 X .94 (Patch)

$3.99

$

Usually ships in 3-6 days

0

17

Cub Cadet HG-51140

Lip Seal 18 X 32 X 7

$9.99

$

Usually ships in 3-6 days

0

18

Cub Cadet HG-51119

Arm, Control

$42.99

$

Usually ships in 3-6 days

0

19

Cub Cadet HG-50551

Bearing, 30 X 52 X 13 Thrust
(Superseded to HG-50551P)

$29.99

$

Usually ships in 3-6 days

0

23

Cub Cadet HG-51843-1027

Shock Valve Assembly
(Superseded to HG-52498-0127)

$

$

Not available

24

Cub Cadet HG-50966

Shaft, Motor

$64.99

$

Usually ships in 3-6 days

0

27

Cub Cadet HG-51767

Gear - Pinion, 12T

$

$

Not available

28

Cub Cadet HG-51766

10T/49T Gear

$33.99

$

Usually ships in 3-6 days

0

29

Cub Cadet HG-51043

Gear, LDT Jackshaft

$28.99

$

Usually ships in 3-6 days

0

30

Cub Cadet HG-51847

60T Bull Gear

$

$

Not available

31

Cub Cadet HG-51088

Sleeve Bearing .75 X 1.750 X .625

$10.99

$

In Stock, only 2 left!

0

32

Cub Cadet HG-51089

Sleeve Bearing (Outboard) .75 X 1.575 X .625

$12.99

$

In Stock, only 2 left!

0

33

Cub Cadet HG-44875

Washer, 3/4 X 1 1/2 X .13 THK

$4.49

$

Usually ships in 3-6 days

0

34

Cub Cadet HG-51066

Lip Seal Axle Seal

$9.49

$

Usually ships in 3-6 days

0

35

Cub Cadet HG-52209

Shaft, Axle (R.H.)
(Superseded to HG-51079)

$75.99

$

Usually ships in 3-6 days

0

36

Cub Cadet HG-52210

Shaft, Axle (L.H.)
(Superseded to HG-51078)

$87.99

$

Usually ships in 3-6 days

0

37

Cub Cadet HG-51829

Miter Gear 12T (Splined)

$

$

Not available

38

Cub Cadet HG-51830

Miter Gear 12T

$44.99

$

Usually ships in 3-6 days

0

39

Cub Cadet HG-50146

Shaft

$

$

Not available

40

Cub Cadet HG-44871

Ring, Spiral Retaining

$4.49

$

Usually ships in 3-6 days

0

41

Cub Cadet HG-51083

Pin, Jackshaft

$33.99

$

Usually ships in 3-6 days

0

42

Cub Cadet HG-51100

Magnet, Ring

$4.49

$

Usually ships in 3-6 days

0

43

Cub Cadet HG-51136

Spring, Bypass

$

$

Not available

44

Cub Cadet HG-50016

Bolt, Hex Flange 3/8-24 X 2.5

$4.99

$

Usually ships in 3-6 days

0

47

Cub Cadet HG-51091

Actuator, Bypass

$

$

Not available

48

Cub Cadet HG-51098

Rod, Bypass Actuator

$23.99

$

Usually ships in 3-6 days

0

49

Cub Cadet HG-51135

Arm, Bypass

$7.99

$

In Stock, only 1 left!

0

50

Cub Cadet HG-51116

Retaining Ring, 250 External

$4.99

$

Usually ships in 3-6 days

0

51

Cub Cadet HG-51081

Seal, Lip .741 X .250 X 250 TC

$7.99

$

Usually ships in 3-6 days

0

52

Cub Cadet HG-44371

Flat Washer

$15.99

$

Usually ships in 3-6 days

0

53

Cub Cadet HG-44145

Retaining Ring

$4.49

$

In Stock, only 2 left!

0

54

Cub Cadet HG-51071

Bearing, Center Block

$

$

Not available

55

Cub Cadet HG-2003014

Spring - Helical Compression

$4.99

$

Usually ships in 3-6 days

0

56

Cub Cadet HG-2003017

Washer

$4.49

$

Usually ships in 3-6 days

0

58

Cub Cadet HG-62589

Brake, Yoke

$46.99

$

Usually ships in 3-6 days

0

59

Cub Cadet HG-51072

Rotor, Brake

$17.99

$

In Stock, only 4 left!

0

60

Cub Cadet HG-44132

Brake, Puck
(Superseded to 917-0678)

$7.49

$

In Stock, only 3 left!

0

61

Cub Cadet HG-44134

Puck Plate
(Superseded to 917-0682)

$9.99

$

In Stock, Qty 7

0

62

Cub Cadet HG-44127

Brake Actuating Pin
(Superseded to 941-0343)

$

$

Not available

63

Cub Cadet HG-51146

HFHCS 1/4-20 X 2 w/Patch SPECIAL FLANGE

$3.99

$

Usually ships in 3-6 days

0

65

Cub Cadet HG-23711

Spacer

$11.99

$

Usually ships in 3-6 days

0

66

Cub Cadet HG-51607

Spring, Brake ARM BIAS

$

$

Not available

67

Cub Cadet HG-44138

Sq. HD, Bolt 5/16-24

$

$

Not available

68

Cub Cadet HG-44094

Arm, Brake

$9.99

$

Usually ships in 3-6 days

0

69

Cub Cadet HG-44142

Slotted Hex Nut, 5/16-24
(Superseded to 912-0273)

$4.99

$

Usually ships in 3-6 days

0

70

Cub Cadet HG-44101

Cotter Pin, 3/32 X 3/4
(Superseded to 914-0507)

$4.49

$

In Stock, Qty 17

0

71

Cub Cadet HG-50919

Compression Spring Anti-Drag

$3.99

$

Usually ships in 3-6 days

0

72

Cub Cadet HG-50132

Washer

$4.49

$

Usually ships in 3-6 days

0

73

Cub Cadet HG-44130

Flat, Washer 11/32 I.D. X 7/9 O.D
(Superseded to 736-0371)

$4.49

$

In Stock, only 3 left!

0

74

Cub Cadet HG-44761

Seal, Kit
(Superseded to HG-70719)

$14.99

$

Usually ships in 3-6 days

0

75

Cub Cadet HG-51084

Check Plug Assembly, .027 Washer

$36.99

$

In Stock, only 2 left!

0

83

Cub Cadet HG-9004800-2506

Pin, Standard Headless

$4.49

$

Usually ships in 3-6 days

0

84

Cub Cadet HG-51143

Fitting, 5/16 SAE 5/32 Tube

$15.99

$

Usually ships in 3-6 days

0

85

Cub Cadet HG-51147

Hose, Expansion Tank

$4.99

$

Usually ships in 3-6 days

0

87

Cub Cadet HG-51251

Cap, Vent

$

$

Not available

88

Cub Cadet HG-50653

Bolt, Self Tapping 10-32 x 1/2

$2.99

$

Usually ships in 3-6 days

0

93

Cub Cadet HG-51118

Spring, Clip - Housing Thrust

$

$

Not available

94

Cub Cadet HG-44147

Bearing, Ball .62 ID X 1.39 .44

$34.99

$

Usually ships in 3-6 days

0

95

Cub Cadet HG-50837

Screw, Socket Head Cap 5/16-24 X 1 1/2

$3.49

$

Usually ships in 3-6 days

0

96

Cub Cadet HG-51200

Spacer, Locating

$7.49

$

Usually ships in 3-6 days

0

97

Cub Cadet HG-50870

Screw, SFHCS 5/16-18 X 1

$

$

Not available

98

Cub Cadet HG-51120

Arm, Return

$

$

Not available

99

Cub Cadet HG-51097

Puck, Adjusting

$10.99

$

Usually ships in 3-6 days

0

100

Cub Cadet HG-51122

Washer
(Superseded to HG-52493)

$4.99

$

Usually ships in 3-6 days

0

101

Cub Cadet HG-51131

Spring, Extension

$5.49

$

Usually ships in 3-6 days

0

102

Cub Cadet HG-51123

Spacer, .260 ID X .560 OD X .870

$

$

Not available

103

Cub Cadet HG-51223

Bracket, Torque

$8.99

$

Usually ships in 3-6 days

0

107

Cub Cadet HG-51134

Deflector

$

$

Not available

108

Cub Cadet HG-51069

Washer, Motor Shaft .71 ID X 1.15 OD X .030 THK

$4.49

$

Usually ships in 3-6 days

0

109

Cub Cadet HG-9005110-5600

Plug, SAE #6

$20.99

$

Usually ships in 3-6 days

0

110

Cub Cadet HG-50868

Screw, Torx Head 5/16-18 T.F.

$2.99

$

Usually ships in 3-6 days

0

111

Cub Cadet HG-51144

O-Ring .103 X .299 ID

$4.99

$

Usually ships in 3-6 days

0

113

Cub Cadet HG-51179

Bracket, Support Expansion Tank

$3.49

$

Usually ships in 3-6 days

0

114

Cub Cadet HG-51184

Spring, Guide

$

$

Not available

124

Cub Cadet HG-70930

Center Section - Filter - Bypass Assembly

Note: Center Section, Base Filterw/Poppet, Check Plug Assembly .027 Washer, Shock Valve Assembly, Spring Bypass, Actuator Bypass, Deflector, Bottom Filter, Bushing .707 X .788 X .591

$

$

Not available

125

Cub Cadet HG-70756

Filter Assembly

Note: Bottom Filter, Spring Bypass, Deflector, Base Filter w/Poppet

$26.99

$

Usually ships in 3-6 days

0

128

Cub Cadet HG-70503

Kit, Expansion Tank

Note: Tank Expansion Assembly, Cap Vent, VSBolt Self Tapping 10/32 X 1/2, Bracket Support Expansion Tank

$38.99

$

Usually ships in 3-6 days

0

135

Cub Cadet HG-70723

Block - Assembly

Note: Block - Cylinder, Piston, Spring Compression, Washer - Thrust

$228.99

$

Usually ships in 3-6 days

0

Cub Cadet 737-3121

Drive System Fluid

Note: not shown

$77.99

$

In Stock, only 2 left!

0

Cub Cadet HG-50928

Sealant 10.5 oz.

Note: not shown

$103.99

$

In Stock, Qty 8

0

Cub Cadet HG-70463

Seal - O-Ring Kit, includes:

Note: not shown

$42.99

$

Usually ships in 3-6 days

0

Seal, Lip .67 X 1.58 X .276

$

$

Not available

Lip Seal 18 X 32 X 7

$

$

Not available

Lip Seal .706 X 1.584 .25

$

$

Not available

Seal, Lip .741 X .250 X .250 TC

$

$

Not available

Oil Seal .625 X .25

$

$

Not available

O-Ring

$

$

Not available
