SLT 1554 (13AK11BK009) - Cub Cadet 54" Lawn Tractor (2008 & After) Engine Fuel System SV730 & SV740 Parts Diagram

54" Lawn Tractor

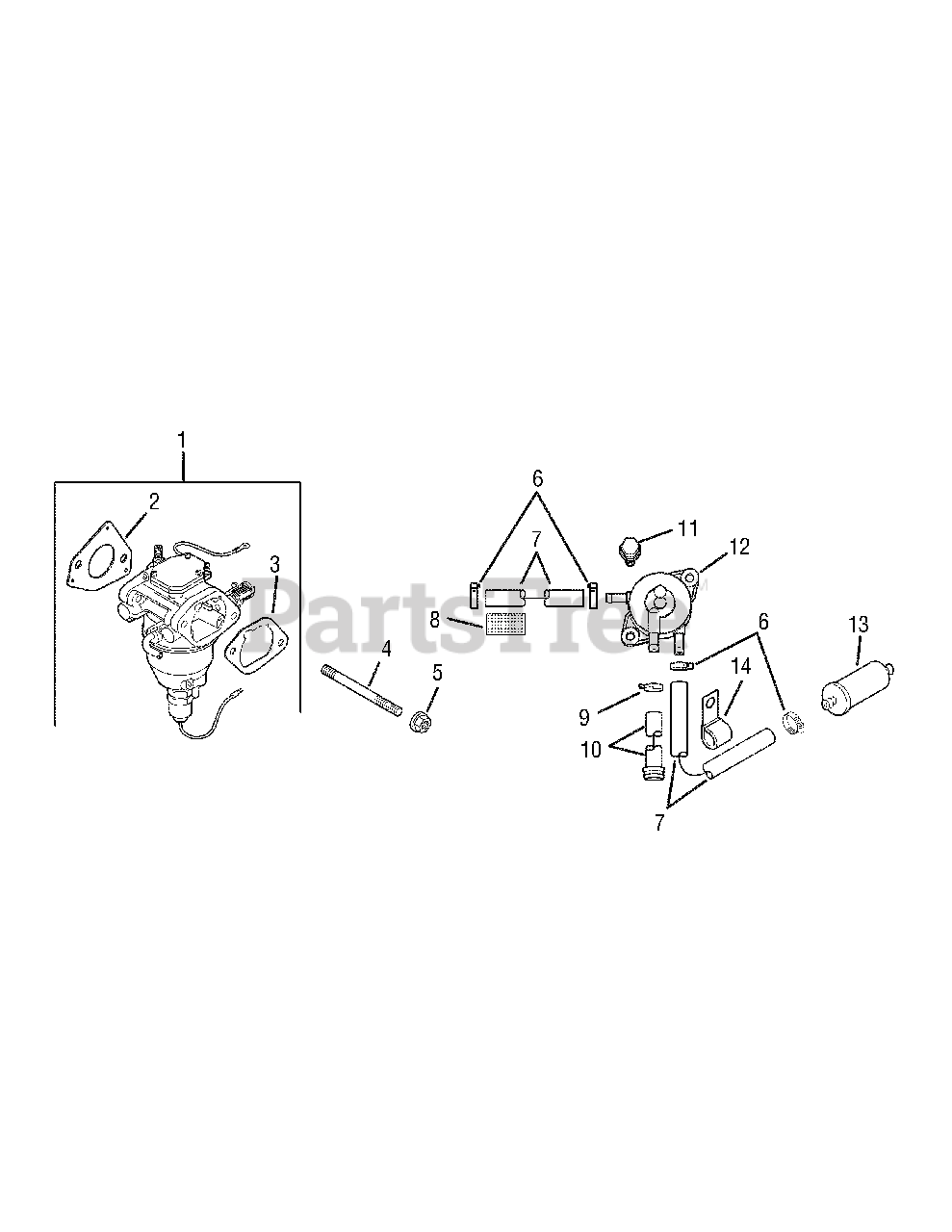

Engine Fuel System SV730 & SV740 Parts Diagram

  • Title

1

Cub Cadet KH-32-853-04-S

Kit, carb. w/gaskets
(Superseded to KH-32-853-12-S)

Note: (Incl. 2,3)

$359.99

$

Usually ships in 2-5 days

0

2

Cub Cadet KH-24-041-52-S

Gasket, carburetor
(Superseded to KH-24-041-91-S)

$5.49

$

Usually ships in 3-6 days

0

3

Cub Cadet KH-24-041-14

Gasket, air cleaner base

$

$

Not available

4

Cub Cadet KH-M-629105-S

Stud, carburetor
(Superseded to KH-25-072-25-S)

$14.99

$

In Stock, only 2 left!

0

5

Cub Cadet KH-M-641060-S

Nut, hex. flange M6x1.0

$4.49

$

In Stock, Qty 8

0

6

Cub Cadet KH-25-237-14-S

Clamp, hose
(Superseded to KH-25-237-31-S)

$4.99

$

In Stock, only 3 left!

0

7

Cub Cadet KH-25-111-34-S

Line, fuel
(Superseded to KH-25-111-81-S)

Note: (In lengths of 24" - Cut to length as needed)

$17.99

$

In Stock, only 4 left!

0

8

Cub Cadet KH-25-431-10-S

Anti-Abrasion Sleeve
(Superseded to KH-25-431-12-S)

$10.99

$

In Stock, only 1 left!

0

9

Cub Cadet KH-25-237-01-S

Clamp, hose

$3.49

$

Usually ships in 2-5 days

0

10

Cub Cadet KH-32-326-02-S

Hose, fuel pump
(Superseded to KH-32-326-07-S)

$4.49

$

In Stock, Qty 6

0

11

Cub Cadet KH-24-086-12

Screw, hex. cap M6x1.7x18

$

$

Not available

12

Cub Cadet KH-24-393-16

Pump, pulse fuel

$

$

Not available

13

Cub Cadet KH-25-050-22-S

Filter, fuel
(Superseded to KH-25-050-22-S1)

$9.99

$

Usually ships in 2-5 days

0

14

Cub Cadet KH-47-154-01-S

Clip, cable

$5.49

$

In Stock, only 4 left!

0

Cub Cadet KH-24-757-36-S

Kit, service choke repair

$116.99

$

In Stock, only 1 left!

0

Cub Cadet KH-24-757-38-S

Kit, service gasket repair

$32.99

$

In Stock, only 1 left!

0

Cub Cadet KH-24-757-44-S

Kit, float w/gaskets

$94.99

$

In Stock, only 1 left!

0

Cub Cadet KH-24-757-45-S

Kit, solenoid valve w/gaskets

$246.99

$

In Stock, only 1 left!

0

Cub Cadet KH-24-757-46-S

Kit, overhaul w/gaskets

$137.99

$

In Stock, only 1 left!

0
