SLT 1550 (13AQ11BP710) - Cub Cadet 50" Lawn Tractor (2007 & Before) Hood and Grille 1K016 & after Parts Diagram

50" Lawn Tractor

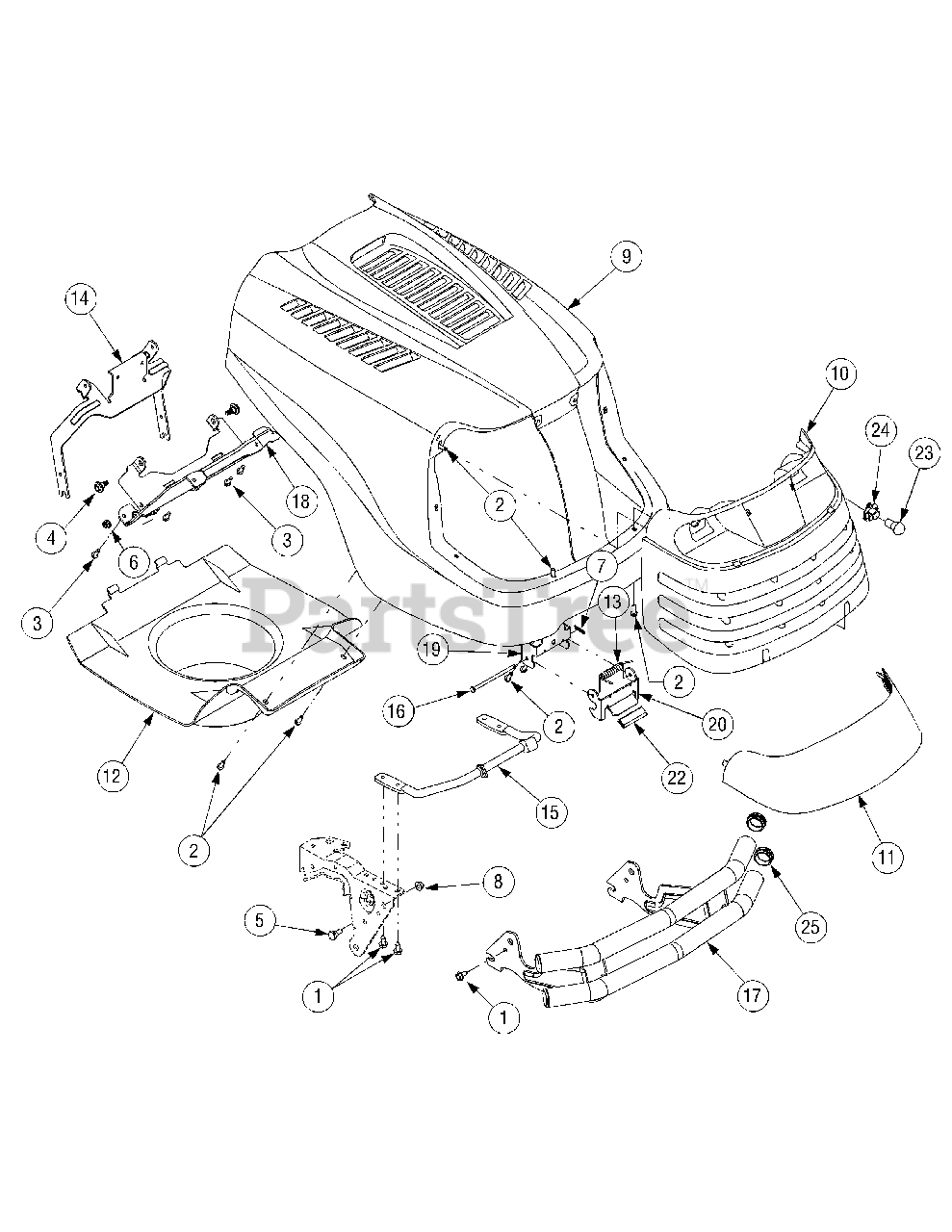

Hood and Grille 1K016 & after Parts Diagram

  • Title

1

Cub Cadet 710-0726

Screw, 5/16-12 x.750

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet 710-0895

Screw, 1/4-15 x.750

$6.49

$

Usually ships in 3-6 days

0

3

Cub Cadet 710-0642

Screw, Self Tapp, 1/4-20 x.750

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 738-04091

Screw, Shoulder, 5/16-18
(Superseded to 738-04091A)

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 738-0143

Bolt, Shoulder, 3/8-16

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 712-04063

Nut, Flange Lock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 714-0104

Pin, Cotter,.072 Dia. x 1.13

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 712-04065

Nut, Nylon Lock, 3/8-16

$3.99

$

In Stock, Qty 17

0

9

Cub Cadet 759-04209

Hood, Service Kit

Note: (contains 931-06887, 726-0233, 710-1242 and installation instructions)

$

$

Not available

9

Cub Cadet 931-06887

Hood
(Superseded to 931-06887A)

Note: Replaces 731-05053B

$

$

Not available

9

Cub Cadet 726-0233

Push Nut .25ID x .50 OD

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 710-1242

Screw, Hi Low 5/16-14 x .75

$4.99

$

In Stock, Qty 19

0

10

Cub Cadet 731-05103

Grill
(Superseded to 931-05103)

$98.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 731-05111

Lens
(Superseded to 931-05111)

$47.99

$

In Stock, Qty 11

0

12

Cub Cadet 731-05129

Hood Plenum

$

$

Not available

13

Cub Cadet 732-04281A

Latch Spring

$8.49

$

In Stock, Qty 12

0

14

Cub Cadet 783-05028

Hood Pivot Rod
(Superseded to 783-05028-0637)

Variations

Cub Cadet 783-05028-0637

Hood Pivot Bracket - POWDER BLACK (0637)

$42.99

$

Usually ships in 3-6 days

0

$42.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 747-04494

Hood Latch Rod

$

$

Not available

16

Cub Cadet 747-1323A

Rod,.250 Dia. x 4.55

$11.99

$

In Stock, only 3 left!

0

17

Cub Cadet 683-04218

Bumper
(Superseded to 683-04218-0637)

Variations

Cub Cadet 683-04218-0637

BUMPER-FRONT - POWDER BLACK (0637)

$164.99

$

Usually ships in 3-6 days

0

$164.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 783-05029

Hood Hinge Bracket
(Superseded to 783-05029C-0637)

Variations

Cub Cadet 783-05029-0637

USE 783-05029C-0637 BRACKET-P - POWDER BLACK (0637)

$62.99

$

Usually ships in 3-6 days

0

$62.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 783-04848

Latch Plate

$23.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 783-04717A

Latch Pivot Bracket

$

$

Not available

21

Cub Cadet 710-0607

Screw, 5/16-18 x.50

$6.99

$

In Stock, Qty 11

0

22

Cub Cadet 731-05291

Vinyl Strip, 2.5"
(Superseded to 731-05291-2.50)

$

$

Not available

23

Cub Cadet 725-0963

Miniature Lamp, 12V
(Superseded to 925-0963)

$7.49

$

In Stock, only 3 left!

0

24

Cub Cadet 725-1649

Lamp Socket
(Superseded to 925-1649A)

$11.99

$

In Stock, Qty 20+

0

25

Cub Cadet 731-05368

Cap, Bumper

$5.99

$

In Stock, Qty 11

0

Cub Cadet 629-04142A

Headlight Harness

Note: not shown

$25.99

$

In Stock, only 1 left!

0
