SLT 1550 (13AQ11BP710) - Cub Cadet 50" Lawn Tractor (2007 & Before) Engine Accessories 1K016 & before Parts Diagram

50" Lawn Tractor

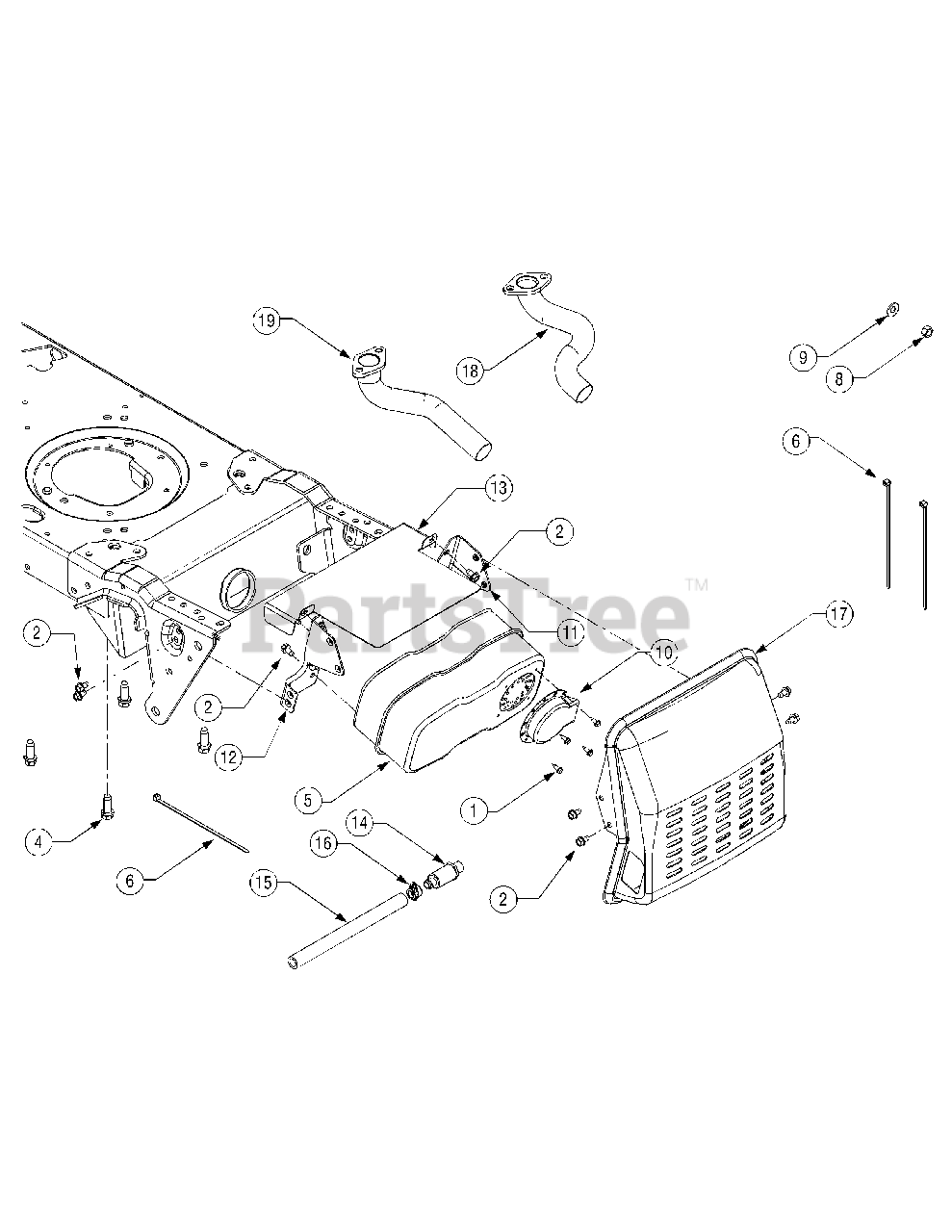

Engine Accessories 1K016 & before Parts Diagram

  • Title
1

Cub Cadet 710-0227

Screw, #8-18, 0.500

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet 710-0599

Screw, Hex, 1/4-20, 0.500

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 710-0726

Screw, Hex, 5/16-12 x .75

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 710-1315

Screw, Hex, 3/8-16 x 1.25

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 751-10161

Muffler, Dual Inlet
(Superseded to 951-10161)

$86.99

$

In Stock, only 1 left!

0

6

Cub Cadet 725-0157

Cable, Tie, 3/16 x .05 x 7.4

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 712-3004A

Nut, Flange Lock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 712-3005

Hex Flange Nut, 3/8-16

$6.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 736-0300

Lock Washer,.406 x.875 x.059

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 751-0564A

Deflector, Muffler
(Superseded to 751-0564B)

$13.99

$

In Stock, Qty 5

0

11

Cub Cadet 783-04573

Muffler Bracket, LH

Variations

Cub Cadet 783-04573-0637

Muffler Bracket, LH - POWDER BLACK (0637)

$23.99

$

In Stock, only 1 left!

0

Cub Cadet 783-04573-4008

BRACKET:MFLR:LH - WINE RED (4008)

$6.49

$

In Stock, only 1 left!

0

$18.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 783-04574

Muffler Bracket, RH

Variations

Cub Cadet 783-04574-0637

Muffler Bracket, RH - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 783-04574-4008

BRACKET:MFLR:RH - WINE RED (4008)

$

$

Not available

$

$

13

Cub Cadet 783-04783

Heat Shield
(Superseded to 783-04783A)

$

$

Not available

14

Cub Cadet 751-3140

Drain, Oil
(Superseded to 951-10517A)

$24.99

$

In Stock, only 3 left!

0

15

Cub Cadet 751-3141

Extension Hose, Oil Drain
(Superseded to 751-3141-14)

$11.99

$

In Stock, Qty 8

0

16

Cub Cadet 751-3142

Cap, Oil Drain

$4.49

$

In Stock, Qty 14

0

17

Cub Cadet 783-04576

Shield, Muffler

Variations

Cub Cadet 783-04576-0637

Muffler Shield Assembly - POWDER BLACK (0637)

$58.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-04576-4008

Muffler Shield Assembly - WINE RED (4008)

$58.99

$

Usually ships in 3-6 days

0

$51.99

$

In Stock, only 1 left!

0

18

Cub Cadet 751-10007

Pipe, Exhaust, LH

$223.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 751-10006

Pipe, Exhaust, RH

$152.99

$

In Stock, only 1 left!

0
