SLB 862 IC (80519) - Snapper Leaf Blower, 8hp General Assembly Parts Diagram

Leaf Blower, 8hp

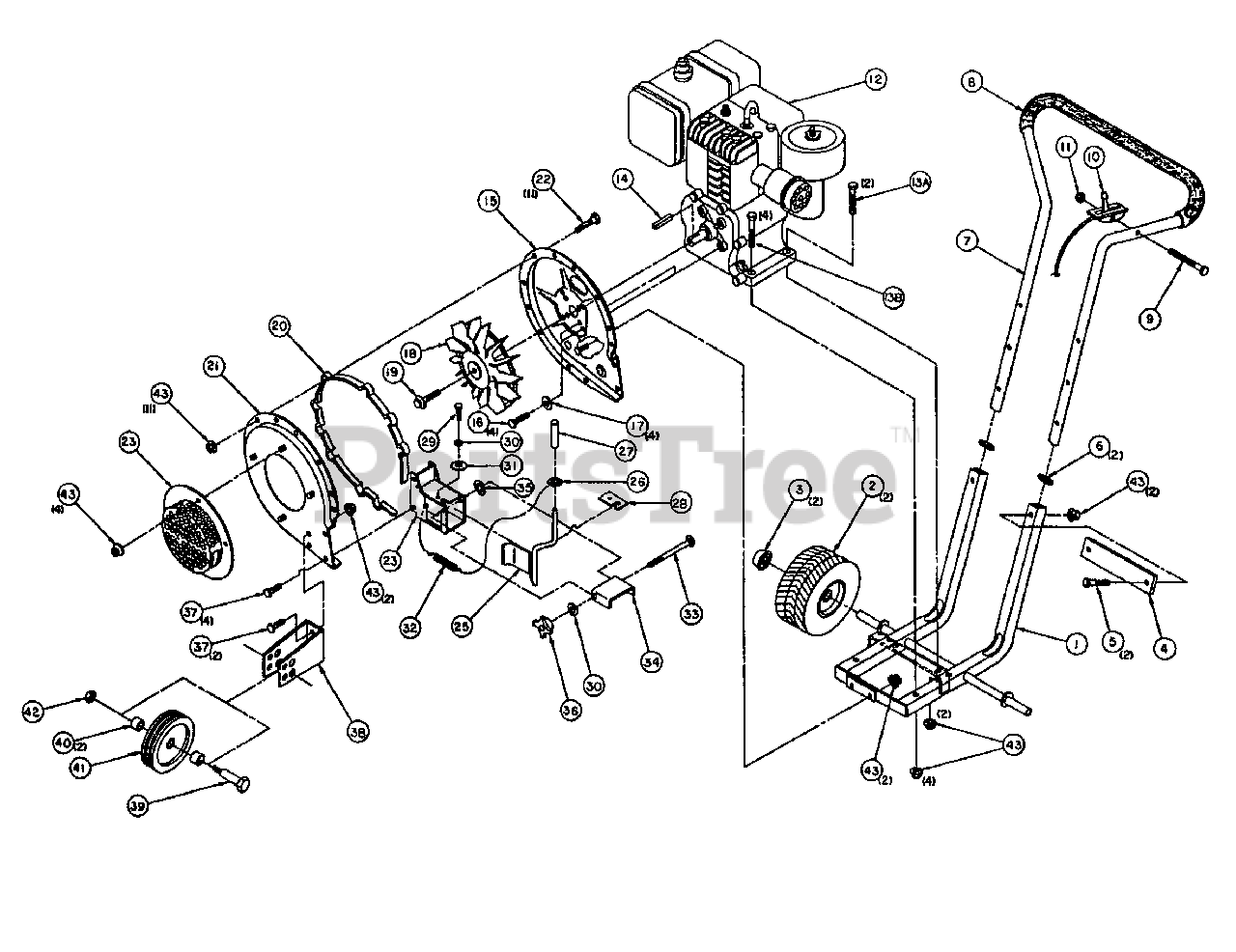

General Assembly Parts Diagram

  • Title
1

Snapper 7050092

Lower Handle Bar Assembly

$

$

Currently unavailable

2

Snapper 7030108

Wheel 4.10 x 3.50 x 4

$

$

Currently unavailable

3

Snapper 0900457

Push Nut Cap

$

$

Currently unavailable

4

Snapper 70500282

Upper Lifting Handle

$

$

Currently unavailable

5

Snapper 0900091

5/16-18 x 1-3/4" HHCS Pltd

$

$

Currently unavailable

6

Snapper 7050044

Washer Handle Bar

$

$

Currently unavailable

7

Snapper 7050034

Upper Handlebar Assembly

$

$

Currently unavailable

8

Snapper 7050002

Grip, Handlebar

$

$

Currently unavailable

9

Snapper 0900057

1/4-20 x 1-1/2" HHCS Pltd

$

$

Currently unavailable

10

Snapper 7030422

Throttle Control

$

$

Currently unavailable

11

Snapper 0900031

1/4-20 Flex Locknut Pltd

$

$

Currently unavailable

12

ENGINE, 8 HP IC (Pt. #0300172)

Note: 0300172

$

$

Not available

13A

5/16-18 x 1-1/2" HHCS Pltd

Note: (Not used on this model)

$

$

Not available

13B

Snapper 0900419

5/16-18 x 2-3/4" HHCS Pltd

$

$

Currently unavailable

14

Snapper 7030424

1/4" x 1/4" x 2" Lg. Shaft Key

$

$

Currently unavailable

15

Snapper 7050095RD

Engine Housing

$

$

Currently unavailable

16

Snapper 0900408

5/16-24 x 3/4" HHCS

$

$

Currently unavailable

17

Snapper 0900392

5/16" Split Lockwasher Pltd

$

$

Currently unavailable

18

Snapper 7050084

Impeller

$

$

Currently unavailable

19

Snapper 0900021

3/8-24 x 1-1/4" HHCS Pltd

$

$

Currently unavailable

20

Snapper 7050097RD

Housing Spacer

$

$

Currently unavailable

21

Snapper 7050093RD

Front Housing

$

$

Currently unavailable

22

Snapper 0900090

5/16-18 x 1-1/2" HHCS

$

$

Currently unavailable

23

Snapper 7030021A

Impeller Cover

$

$

Currently unavailable

?24

Snapper 7050104RD

Chute Weld Assembly

$

$

Currently unavailable

25

Snapper 7050110

Diverter Weld Assembly

$

$

Currently unavailable

26

Snapper 0900225

3/8" Internal Lockwasher Pltd.

$

$

Currently unavailable

27

Snapper 7010185

Vinyl Grip, Diverter Handle

$

$

Currently unavailable

28

Snapper 7050113

Diverter Clip

$

$

Currently unavailable

29

Snapper 0900052

1/4-20 x 1/2" HHCS Pltd

$

$

Currently unavailable

30

Snapper 0900378

1/4" Split Lockwasher Pltd

$

$

Currently unavailable

31

Snapper 0900232

1/4" Flat Washer Pltd

$

$

Currently unavailable

32

Snapper 7010059

Spring, Diverter

$

$

Currently unavailable

33

Snapper 0900481

1/4-20 x 6" Lg. Carriage Bolt

$

$

Currently unavailable

34

Snapper 7050099RD

Deflector

$

$

Currently unavailable

35

Snapper 0900223

1/4" Internal Lockwasher Pltd

$

$

Currently unavailable

36

Snapper 7050049

Adjustment Knob

$

$

Currently unavailable

37

Snapper 0900067

5/16-18 x 5/8" HHCS, GR5

$

$

Currently unavailable

38

Snapper 7050014

Front Wheel Bracket

$

$

Currently unavailable

39

Snapper 70500561

Hex Head Shoulder Bolt

$

$

Currently unavailable

40

Spacer, Wheel

Note: (Not used on this model)

$

$

Not available

41

Snapper 7010052

Front Wheel

$

$

Currently unavailable

42

Snapper 0900042

3/8-16 Gripco Locknut

$

$

Currently unavailable

43

Snapper 0900418

5/16-18 Whiz Locknut Pltd

$

$

Currently unavailable

?44

Snapper 0900228

3/8" Med. Split Lockwasher

$

$

Currently unavailable
