SK 80C-02 - Paramount Trimmer, Electric TRIMMER ASSEMBLY Parts Diagram

Trimmer, Electric

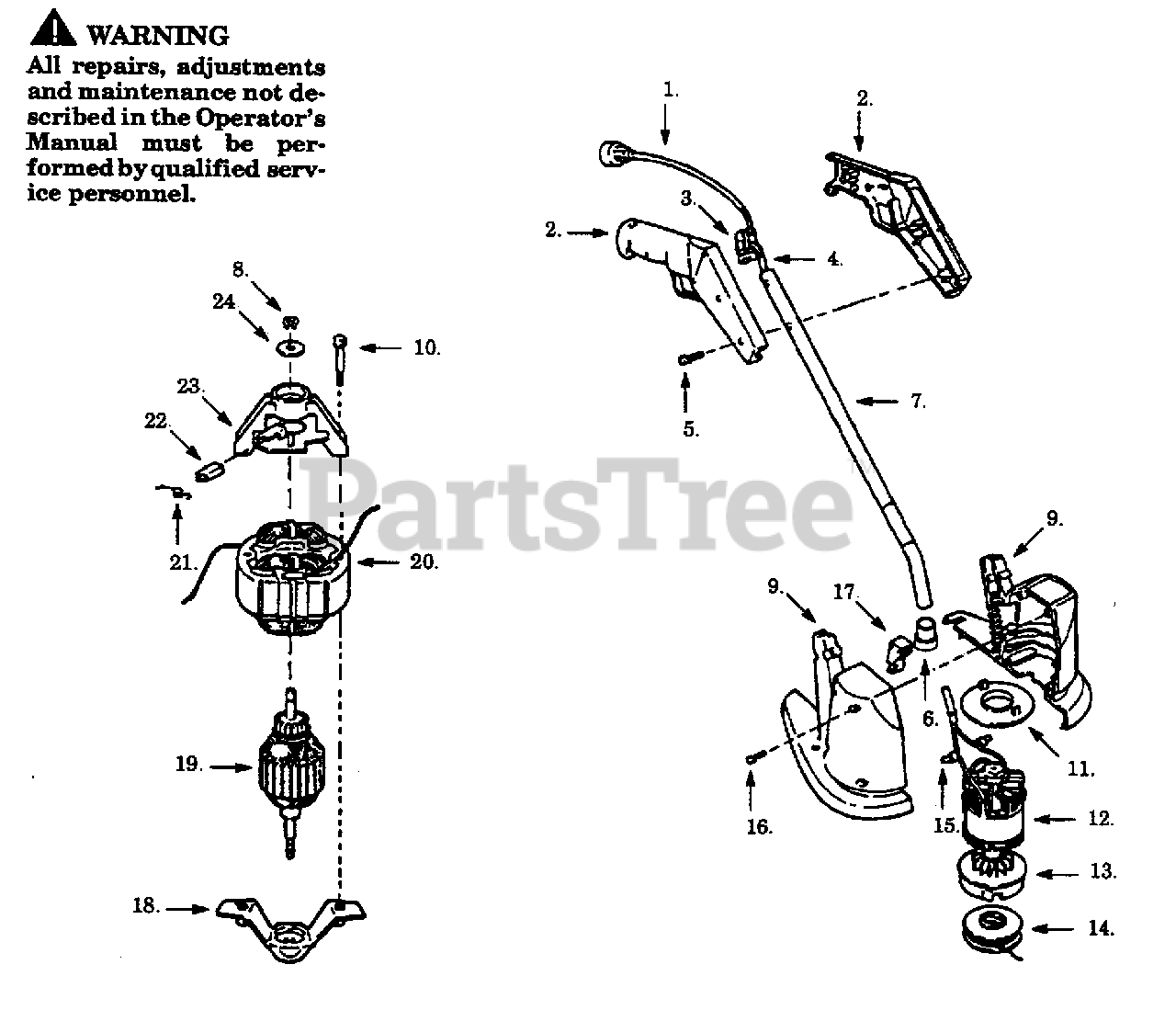

TRIMMER ASSEMBLY Parts Diagram

  • Title

1

Poulan 534234501

Power Cord

$

$

Not available

2

Poulan 534356742

Handle Set

$

$

Not available

3

Poulan 534193001

Trigger Switch

$

$

Not available

4

Poulan 534162323

Harness

$

$

Not available

5

Poulan 534193700

Screw

$

$

Not available

6

Poulan 534299725

Rain Guard

$

$

Not available

7

Poulan 534386404

Tube

$

$

Not available

8

Poulan 534605011

Retaining Ring

$2.49

$

Usually ships in 3-10 days

0

9

Poulan 534273572

Housing Set

$

$

Not available

10

Poulan 534619037

Screw

$

$

Not available

11

Poulan 534455305

Air Baffle

$

$

Not available

12

Poulan 534517300

Motor Ass'y.

$

$

Not available

13

Poulan 534264935

Rotating Head

$

$

Not available

14

Poulan 952710513

Spool & Line

$

$

Not available

15

Poulan 534561000

Terminal Cap

$

$

Not available

16

Poulan 534193800

Screw

$

$

Not available

17

Poulan 534525205

Blade Retainer Ass'y.

$3.99

$

Usually ships in 3-10 days

0

18

Poulan 534872701

Endbell Ass'y. (Drive)

$

$

Not available

19

Poulan 534517400

Armature Ass'y.

$

$

Not available

20

Poulan 534521010

Field Ass'y.

$

$

Not available

21

Poulan 534601015

Brush Spring

$

$

Not available

22

Poulan 534600042

Carbon Brush

$2.49

$

Usually ships in 3-10 days

0

23

Poulan 534522012

Bracket/Plate Ass'y.

$

$

Not available

24

Poulan 534608056

Washer

$

$

Not available
