SK 165-00 - Paramount Trimmer, Electric TRIMMER/BRUSHCUTTER ASSEMBLY Parts Diagram

Trimmer, Electric

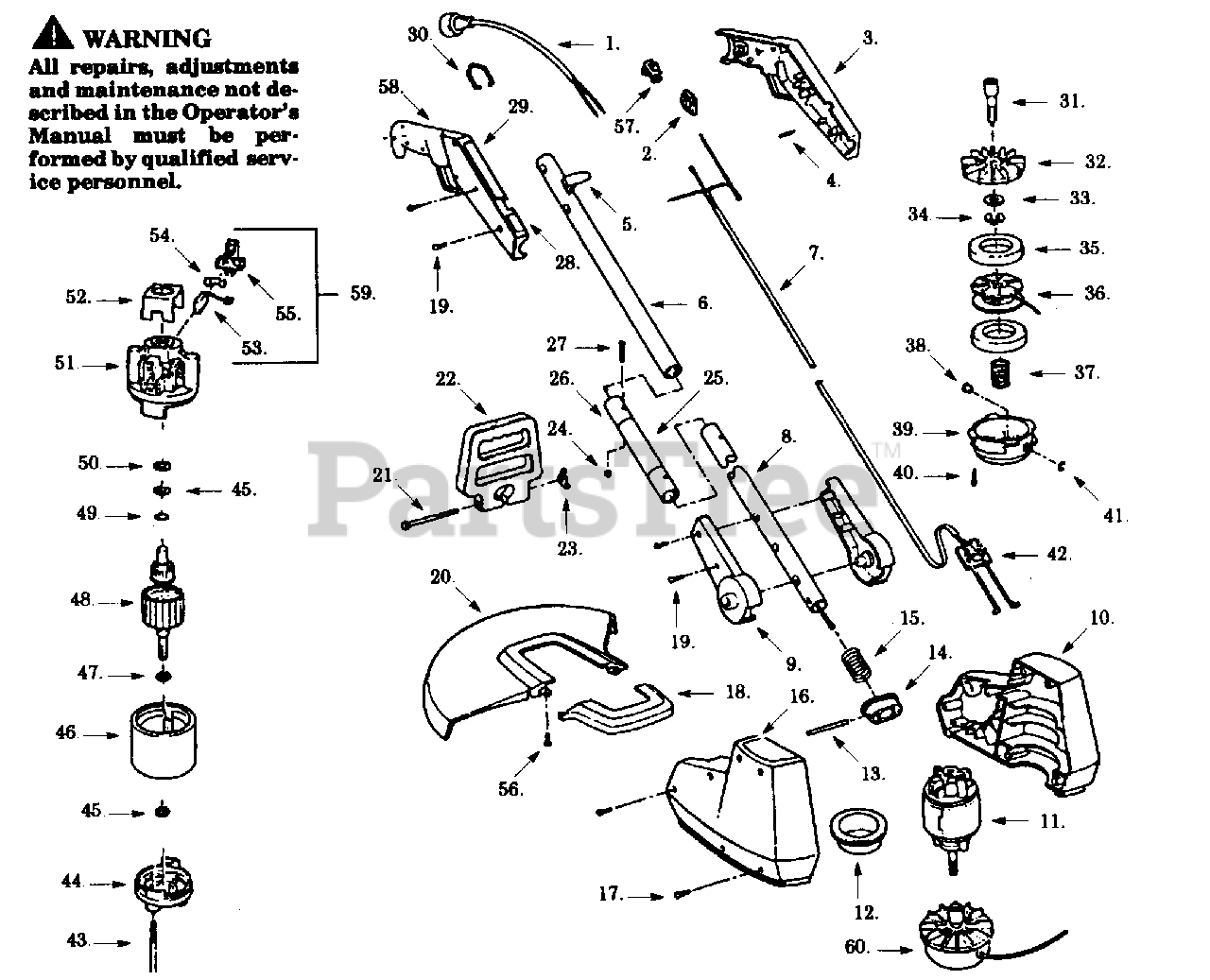

TRIMMER/BRUSHCUTTER ASSEMBLY Parts Diagram

  • Title

1

Poulan 534234500

Power Cord

$

$

Not available

2

Poulan 534193001

Trigger Switch

$

$

Not available

3

Poulan 534697014

R.H./L.H. Handle

$

$

Not available

4

Poulan 534327202

Hinge Pin

$

$

Not available

5

Poulan 534685801

Cable & Lever Ass'y.

$6.49

$

Usually ships in 3-10 days

0

6

Poulan 534696200

Upper Tube

$7.49

$

Usually ships in 3-10 days

0

7

Poulan 534316003

Harness

$

$

Not available

8

Poulan 534682800

Lower Tube

$12.99

$

Usually ships in 3-10 days

0

9

Poulan 534677704

R.H./L.H. Pivot

$

$

Not available

10

Poulan 534677024

R.H./L.H. Housing

$

$

Not available

11

Poulan 534225020

Motor

$91.99

$

Usually ships in 3-10 days

0

12

Poulan 534487255

Air Baffle

$

$

Not available

13

Poulan 534679100

Sleeve Pin

$2.49

$

Usually ships in 3-10 days

0

14

Poulan 534677905

Sleeve

$

$

Not available

15

Poulan 534679200

Sleeve Spring

$

$

Not available

16

Poulan 534672700

Hsg. Top Label

$

$

Not available

17

Poulan 534222400

Screw

$2.49

$

Usually ships in 3-10 days

0

18

Poulan 534677204

Front Guard

$3.99

$

Usually ships in 3-10 days

0

19

Poulan 534193700

Screw

$

$

Not available

20

Poulan 534685124

Guard & Blade Ass'y.

$12.99

$

Usually ships in 3-10 days

0

21

Poulan 534218100

Bolt

$2.49

$

Usually ships in 3-10 days

0

22

Poulan 534282705

Assist Handle

$

$

Not available

23

Poulan 534437000

Wing Nut

$

$

Not available

24

Poulan 534235901

Stop Nut
(Superseded to 530403094)

$3.99

$

Usually ships in 3-10 days

0

25

Poulan 534688600

Warning Label (Not a serviceable part)

$

$

Not available

26

Poulan 534696300

Outer Tube

$

$

Not available

27

Poulan 534174502

Screw

$1.49

$

Usually ships in 3-10 days

0

28

Poulan 534672201

Inch Cut Label (Not a serviceable part)

$

$

Not available

29

Poulan 534672300

Handle Label (Not a serviceable part)

$

$

Not available

30

Poulan 534270100

Hanger

$2.49

$

Usually ships in 3-10 days

0

31

Poulan 534589900

Drive Adapter

$30.99

$

Usually ships in 3-10 days

0

32

Poulan 534487115

Rear Plate

$

$

Not available

33

Poulan 534220146

Washer

$

$

Not available

34

Poulan 534246703

Retaining Ring

$

$

Not available

35

Poulan 534158602

Foam Pad

$

$

Not available

36

Poulan 534486815

Spool & Line

$

$

Not available

37

Poulan 534157401

Spring

$

$

Not available

38

Poulan 534157600

Eyelet

$3.49

$

Usually ships in 3-10 days

0

39

Poulan 534486465

Hub Ass'y.

$

$

Not available

40

Poulan 534270301

Cotter pin

$2.49

$

Usually ships in 3-10 days

0

41

Poulan 534157600

Wire Ring

$3.49

$

Usually ships in 3-10 days

0

42

Poulan 534327000

P.C. Bridge

$

$

Not available

43

Poulan 534228700

Screw

$

$

Not available

44

Poulan 534207101

Endbell Ass'y. (Drive)

$

$

Not available

45

Poulan 534228800

Washer

$2.49

$

Usually ships in 3-10 days

0

46

Poulan 534227001

Field Ass'y.

$30.99

$

Usually ships in 3-10 days

0

47

Poulan 534747002

Retaining Ring

$2.49

$

Usually ships in 3-10 days

0

48

Poulan 534225120

Armature Ass'y.

$46.99

$

Usually ships in 3-10 days

0

49

Poulan 534246700

Retaining Ring

$1.49

$

Usually ships in 3-10 days

0

50

Poulan 534238903

Washer

$

$

Not available

51

Poulan 534227501

Endbell Ass'y. (Brush)

$

$

Not available

52

Poulan 534226000

Insulator

$

$

Not available

53

Poulan 534227800

Brush

$

$

Not available

54

Poulan 534228000

Brush Spring

$

$

Not available

55

Poulan 534227700

Brush Holder

$

$

Not available

56

Poulan 534184704

Screw

$1.49

$

Usually ships in 3-10 days

0

57

Poulan 534332500

Power Switch

$

$

Not available

58

Poulan 534672800

Torque Booster Label (Not a serviceable part)

$

$

Not available

59

Poulan 534450400

Brush Kit (Incl. 53,54,55)

$

$

Not available

60

Poulan 534722625

Cutting Head Ass'y.

$

$

Not available

61

Poulan 534885450

Operator Manual

Note: Not Shown.

$

$

Not available
