Silver Tip 72 - Dixon 72" Silver Tip Zero-Turn Mower (2005) CONTROLS & TANKS Parts Diagram

72" Silver Tip Zero-Turn Mower

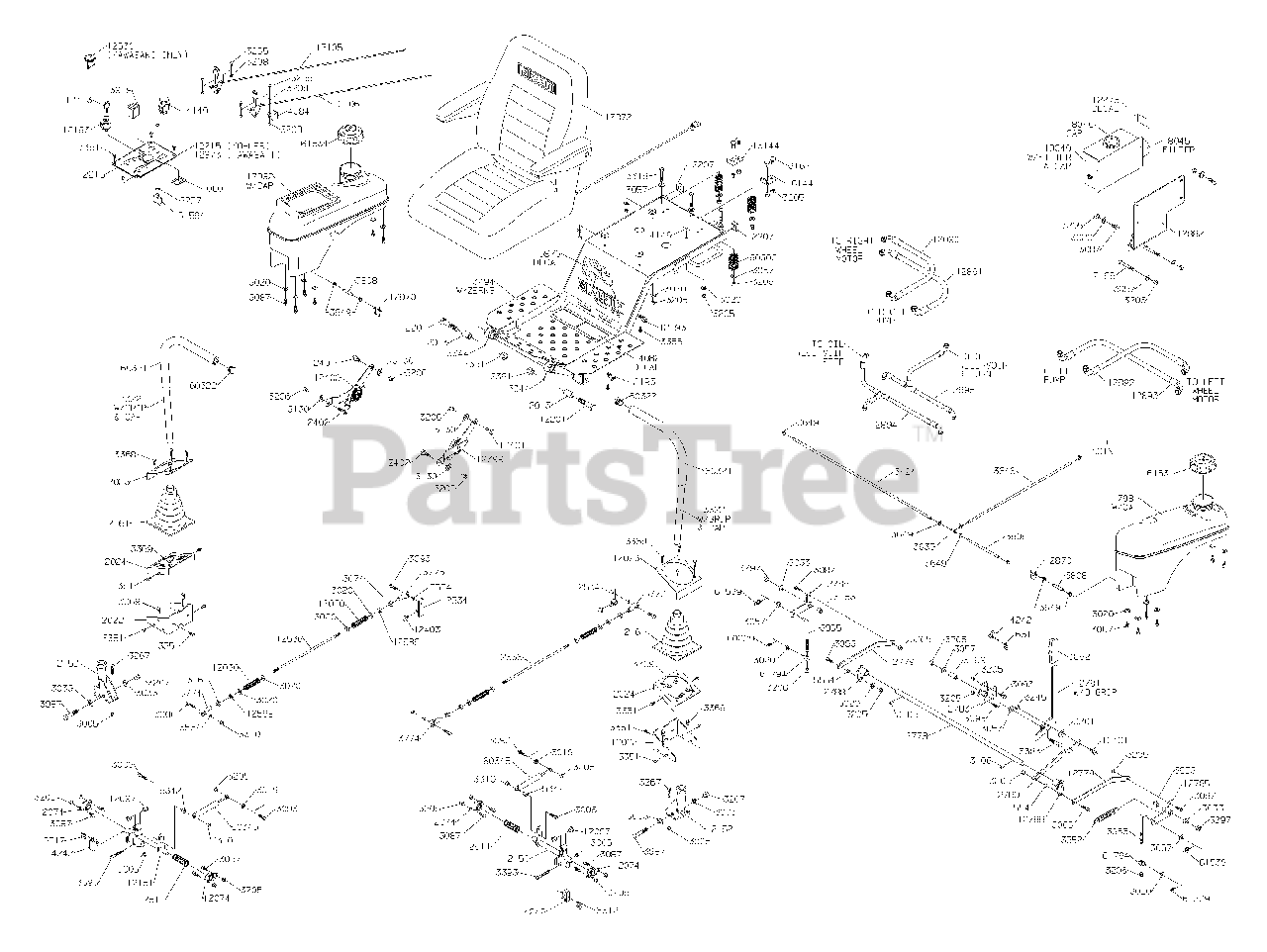

CONTROLS & TANKS Parts Diagram

  • Title

1060

1060

$

$

Not available

2361

2361

5/8-11 HEX NUT W/NYLOCK

$

$

Not available

2511

2511

SPRING

$

$

Not available

3005

3005

5/16-18UNC HX NUT

$

$

Not available

3006

3006

5/16-18X1-1/4HHB GR5

$

$

Not available

3019

3019

5/16HELICAL L-WASHER

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3033

3033

1/2 FLATWASH NARROW

$

$

Not available

3057

3057

WASHER, 3/8 STD FLAT

$

$

Not available

3074

3074

NUT 5/16-24 UNF HEX JAM

$

$

Not available

3087

3087

5/16-18X3/4 HHB GR5

$

$

Not available

3093

3093

5/16-18X1 HHB GR5

$

$

Not available

3106

3106

R/B 3106 1/4 X 1 SPIROL PIN

$

$

Not available

3130

3130

CONTACT BELLSPR 1/2

$

$

Not available

3161

Dixon 3161

5/16 24UNF NUT LH TH

$

$

Not available

3167

3167

RHSNB 5/16-18 X 3/4 GR 5 ZD.

$

$

Not available

3201

3201

WASHER-.533IDX1.37OD

$

$

Not available

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3206

3206

3/8-16UNC HEX L-NUT

$

$

Not available

3207

3207

NUT, HEX 1/2-13 W/NY

$

$

Not available

3208

Dixon 3208

#10-24 HEX NUT W/NY

$

$

Not available

3245

3245

3/8-16 THIN PROF NY

$

$

Not available

3257

3257

7/16 INT TOOTH LWASH

$

$

Not available

3265

3265

10-24X3/4TRUSS HD PH

$

$

Not available

3267

3267

5/16-18X1-1/2 HHB G5

$

$

Not available

3297

Dixon 3297

R/B 3297 1/2-13UNC H JAML-NUT

$

$

Not available

3310

3310

5/16-18 THIN PROF NY

$

$

Not available

3318

3318

3/8-16X2-1/4 HHB GR8

$

$

Not available

3344

3344

ZERK, 3/16, DRIVE IN

$

$

Not available

3351

3351

1/4-20X1/2HWH FORM SCR H

$

$

Not available

3356

3356

SCREW, TAP & DR #12-14 X 3/4

$

$

Not available

3368

3368

1/4-20X 1 HWH TAP SC

$

$

Not available

3369

3369

1/4-20 U NUT

$

$

Not available

3383

3383

3/8-16X2-1/4 CAR BLT

$

$

Not available

3393

3393

5/16-18X2-1/2 HHB GD5

$

$

Not available

3424

3424

HOSE 1/4 X 44

$

$

Not available

3635

3635

FUEL LINE TEE

$

$

Not available

3646

Dixon 3646

R/B 3646 HOSE 1/4 X 18

$

$

Not available

3649

Dixon 3649

FUEL LINE CLAMP

$

$

Not available

3773

Dixon 3773

LH ROD END

$

$

Not available

3774

3774

RH ROD END

$

$

Not available

3808

3808

HOSE 1/4 X 5.5

$

$

Not available

3852

3852

SPRING

$

$

Not available

3882

Dixon 3882

HAND GRIP-NOTCHED

$

$

Not available

3919

Dixon 3919

HOUR METER

$

$

Not available

3953

3953

NYLON BUSHING

$

$

Not available

3965

3965

L-ROD 6.0

$

$

Not available

3987

Dixon 3987

1/2-13X2-1/2 HHB GR5

$

$

Not available

4082

4082

SWITCH BRACKET BODY

$

$

Not available

4146

4146

WASHER NYLON

$

$

Not available

4242

4242

DECK SWITCH

$

$

Not available

4384

4384

RELAY

$

$

Not available

5189

5189

BUSHING

$

$

Not available

5342

5342

SPACER

$

$

Not available

5554

Dixon 5554

SPACER

$

$

Not available

6512

6512

#10-32X1/2` HHTRS

$

$

Not available

12013

12013

BUSHING

$

$

Not available

12022

12022

PLATE COVER

$

$

Not available

12023

Dixon 12023

PLATE TOP COVER

$

$

Not available

12024

12024

PLATE SIDE COVER

$

$

Not available

12030

12030

SPRING

$

$

Not available

12074

12074

FLANGED BEARING

$

$

Not available

12097

12097

BEARING (GARLOCK)

$

$

Not available

12105

12105

CABLE CHOKE

$

$

Not available

12106

12106

CABLE THROTTLE

$

$

Not available

12150

12150

CONTROL WLDT. LOWER-LH

$

$

Not available

12151

12151

CONTROL WLDT. LOWER-RH

$

$

Not available

12152

12152

CONTROL WLDT.-UPPER

$

$

Not available

12161

12161

BELLOW

$

$

Not available

12163

12163

IGNITION SWITCH

$

$

Not available

12193

12193

INSULATED STRAP (MED.)

$

$

Not available

12198

12198

3/8-16 X 3` HHB

$

$

Not available

12201

12201

5/8-11 X 3` HHB

$

$

Not available

12207

12207

PLUG SQUARE

$

$

Not available

12215

12215

CONTROL PANEL

$

$

Not available

12275

12275

DECAL HYDRO TANK

$

$

Not available

12399

12399

SPRING DRILLED-LH

$

$

Not available

12400

12400

SPRING DRILLED-RH

$

$

Not available

12401

12401

SHOULDER BOLT 3/8-16 X 1/2

$

$

Not available

12402

12402

3/8-16 SHOUL.BOLT X 5/8

$

$

Not available

12403

12403

SCREW, SET 3/8-16 W/HEX HD

$

$

Not available

12413

12413

KEY MOLDED

$

$

Not available

12530

12530

GAUGE WATER TEMP.

$

$

Not available

12534

12534

CONTROL ARM WLDT.

$

$

Not available

12536

12536

ROD CONTROL

$

$

Not available

12589

12589

LOCKING COLLAR

$

$

Not available

12778

12778

BRAKE SHAFT(PLATED)

$

$

Not available

12779

12779

BRAKE LINK

$

$

Not available

12780

12780

BRAKE HANDLE LINK

$

$

Not available

12781

12781

HANDLE

$

$

Not available

12783

12783

HANDLE BASE WLDT.

$

$

Not available

12785

12785

BELLCRANK WLDT.

$

$

Not available

12788

12788

SHAFT CAM WLDT.

$

$

Not available

12870

12870

SHUT OFF VALVE

$

$

Not available

12872

12872

SEAT

$

$

Not available

12873

12873

CONTROL PANEL

$

$

Not available

12882

12882

WLDT.-TANK BRKT.

$

$

Not available

12890

12890

HYDRAULIC HOSE

$

$

Not available

12891

12891

HYDRAULIC HOSE

$

$

Not available

12892

12892

HYDRAULIC HOSE

$

$

Not available

12893

12893

HYDRAULIC HOSE

$

$

Not available

12895

12895

HYDRAULIC HOSE

$

$

Not available

13322

13322

LEVER W/GRIP & CAP

$

$

Not available

13494

13494

SEAT FRAME ASM.

$

$

Not available

13976

13976

DECAL, SILVER TIP

$

$

Not available

14149

14149

CLUTCH SWITCH

$

$

Not available

16144

16144

SEAT STOP

$

$

Not available

17981

17981

LH FUEL TANK W/CAP

$

$

Not available

17982

17982

RH FUEL TANK W/CAP

$

$

Not available

18045

18045

25 MICRON FILTER

$

$

Not available

18046

18046

HYDRO TANK CAP-KELCH

$

$

Not available

18049

18049

TANK ASM W/FILTER & CAP

$

$

Not available

60229

60229

COTTER RUE RING 5/16-3/

$

$

Not available

60303

60303

SEAT SPRING

$

$

Not available

60321

60321

GRIP, FOAM (GROUND) 15

$

$

Not available

60322

60322

END PLUG 15/16` (BLACK)

$

$

Not available

60345

60345

DAMPNER DUAL ACITON #326

$

$

Not available

61534

61534

GASOLINE CAP

$

$

Not available

61539

61539

R/B 61539 RUE RING 1/2`PIN

$

$

Not available

61594

61594

CIRCUIT BREAKER 30 AMP

$

$

Not available

61794

61794

SWIVEL

$

$

Not available
