Silver Tip 72 - Dixon 72" Silver Tip Zero-Turn Mower (2005) CHASSIS (KAWASAKI) Parts Diagram

72" Silver Tip Zero-Turn Mower

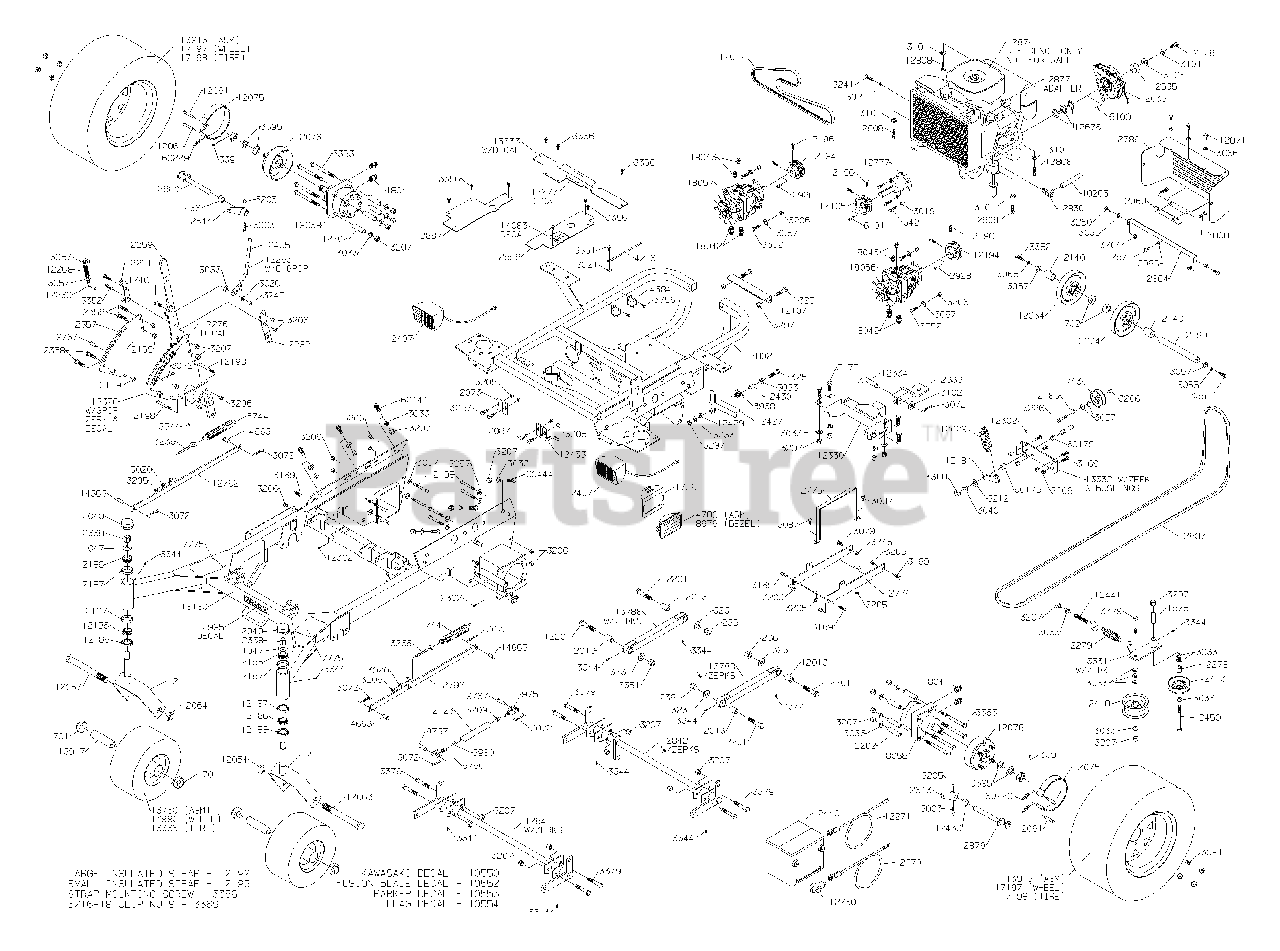

CHASSIS (KAWASAKI) Parts Diagram

  • Title

1701

1701

BEARING-ECC LOCK

$

$

Not available

1702

1702

LOCK COLLAR - ECC

$

$

Not available

1743

1743

1743-IDLER FLAT 3`

$

$

Not available

1875

1875

BUSHING

$

$

Not available

2159

2159

TUBE .51 I.D. X .75 O.D.

$

$

Not available

2361

2361

5/8-11 HEX NUT W/NYLOCK

$

$

Not available

12407

12407

HEADLIGHT ASM.

$

$

Not available

2413

2413

V-IDLER PULLEY

$

$

Not available

2808

2808

DECK ASM 36 R/B 539115417

$

$

Not available

2928

2928

KEY-3/16 DIA X 1

$

$

Not available

2995

2995

COMMERCIAL DECAL

$

$

Not available

3003

3003

5/16X18X1-1/2HHB GR5

$

$

Not available

3019

3019

5/16HELICAL L-WASHER

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3021

3021

5/16INT EX L-WASHER

$

$

Not available

3033

3033

1/2 FLATWASH NARROW

$

$

Not available

3040

3040

5/8 HELICAL L-WASHER

$

$

Not available

3057

3057

WASHER, 3/8 STD FLAT

$

$

Not available

3065

3065

3/8HELICAL L-WASHER

$

$

Not available

3066

3066

WASHER, 3/16 STD FLAT

$

$

Not available

3072

3072

$

$

Not available

3079

3079

3/8-16UNC X3/4HH BLT

$

$

Not available

3087

3087

5/16-18X3/4 HHB GR5

$

$

Not available

3091

3091

1/2-20UNF HEX LUGNUT

$

$

Not available

3101

3101

7/16 HELICAL L-WASH

$

$

Not available

3102

3102

5/8 STD FLATWASHER

$

$

Not available

3169

3169

R/B HCS 3/8-16 X 1 GR 5 ZD

$

$

Not available

3175

3175

$

$

Not available

3193

Dixon 3193

WASHER .408IDX1.37OD
(Superseded to 539115546)

$4.99

$

In Stock, only 3 left!

0

3204

3204

1/4-20 HEX NUT W/NY

$

$

Not available

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3206

3206

3/8-16UNC HEX L-NUT

$

$

Not available

3207

3207

NUT, HEX 1/2-13 W/NY

$

$

Not available

3209

3209

1/2-20 HEX JAM NUT

$

$

Not available

3212

3212

5/8 FLAT WASH-NARROW

$

$

Not available

3226

3226

3/8-16X1-3/4 HHB GR5

$

$

Not available

3231

3231

9/16 STD FLAT WASHER

$

$

Not available

3236

3236

EYE BOLT 5/16 X 3.50

$

$

Not available

3241

3241

M8X1.25X25 HHB GR8.8

$

$

Not available

3245

3245

3/8-16 THIN PROF NY

$

$

Not available

3251

3251

BOLT 1/2-13 X 2 HH

$

$

Not available

3260

3260

1/4-20X1/2 HHB GR5

$

$

Not available

3297

Dixon 3297

R/B 3297 1/2-13UNC H JAML-NUT

$

$

Not available

3344

3344

ZERK, 3/16, DRIVE IN

$

$

Not available

3351

3351

1/4-20X1/2HWH FORM SCR H

$

$

Not available

3352

3352

HCS 3/8C X 1 1/4

$

$

Not available

3356

3356

SCREW, TAP & DR #12-14 X 3/4

$

$

Not available

3363

3363

1/2-13X5-1/2 HHBGR5

$

$

Not available

3369

3369

1/4-20 U NUT

$

$

Not available

3379

3379

1/2-13X3 HHB GR5

$

$

Not available

3388

3388

R/B 3388 5/8 X 11UNC HEX NUT

$

$

Not available

3391

3391

1/8DIAX1-1/2 COT PIN

$

$

Not available

3395

Dixon 3395

R/B 3395 WASHER-1.033X1.5X.06

$

$

Not available

3421

3421

COTTER HP .08DIAX1.19

$

$

Not available

3938

3938

DEFLECTOR SPRING

$

$

Not available

3980

Dixon 3980

1/2-20 LH HEX JAM NUT

$

$

Not available

4216

Dixon 4216

R/B 4216 BATT TO GROUND CABLE

$

$

Not available

4384

4384

RELAY

$

$

Not available

4789

4789

HEADLIGHT

$

$

Not available

6100

6100

OUTER SHAFT KEY

$

$

Not available

6101

6101

CENTER SHAFT KEY

$

$

Not available

6744

6744

SPRING

$

$

Not available

7775

7775

REAR FLOOR PAD-LH

$

$

Not available

8979

8979

HEADLIGHT BEZEL

$

$

Not available

9750

9750

LH CLEVIS

$

$

Not available

9751

9751

RH CLEVIS

$

$

Not available

9767

9767

CLEVIS PIN

$

$

Not available

10205

10205

OIL DRAIN HOSE

$

$

Not available

10550

10550

DECAL, KAWASAKI

$

$

Not available

10552

10552

DECAL, FUSION

$

$

Not available

10553

10553

DECAL, PARKER

$

$

Not available

10554

10554

DECAL, FLAG

$

$

Not available

11047

11047

WASHER, 3/4 SAE

$

$

Not available

12012

12012

BELT-POLY RIB

$

$

Not available

12013

12013

BUSHING

$

$

Not available

12029

12029

SPRING

$

$

Not available

12034

Dixon 12034

PULLEY (MD)

$

$

Not available

12035

12035

ELECTRIC CLUTCH

$

$

Not available

12040

12040

DUST CAP

$

$

Not available

12061

12061

CLEVIS PIN 3/8 X 2`

$

$

Not available

12063

12063

HHB 1-8 X 9

$

$

Not available

12064

12064

1-8 NYLOK HEX NUT

$

$

Not available

12068

Dixon 12068

PLATE CLUTCH ANCHOR

$

$

Not available

12073

Dixon 12073

PLATE GUIDE

$

$

Not available

12075

12075

BRAKE BAND

$

$

Not available

12076

12076

BRAKE DRUM

$

$

Not available

12107

12107

COVER REAR

$

$

Not available

12111

12111

CASTER WLDT.

$

$

Not available

12123

12123

LINK

$

$

Not available

12140

12140

SPACER

$

$

Not available

12183

12183

IDLER ARM WLDT.

$

$

Not available

12184

12184

ARM IDLER

$

$

Not available

12186

12186

CONE (BEARING)

$

$

Not available

12187

12187

CUP (RACE)

$

$

Not available

12188

12188

OIL SEAL

$

$

Not available

12192

12192

INSULATED STRAP (LARGE)

$

$

Not available

12193

12193

INSULATED STRAP (MED.)

$

$

Not available

12194

12194

PULLEY (PUMP)

$

$

Not available

12195

12195

PULLEY (ENGINE)

$

$

Not available

12196

12196

5/16-18 X 1`SQ.HD.SETSCR

$

$

Not available

12198

12198

3/8-16 X 3` HHB

$

$

Not available

12199

12199

SHAFT-TAPPED

$

$

Not available

12201

12201

5/8-11 X 3` HHB

$

$

Not available

12202

12202

BUSHING

$

$

Not available

12230

12230

LIFT HANDLE CONTROL

$

$

Not available

12259

12259

GRIP .25 X 1 1/4 X 4 IL BLACK

$

$

Not available

12260

12260

TERMINAL COVER

$

$

Not available

12268

12268

SPRING

$

$

Not available

12270

12270

BATTERY CABLE 35`

$

$

Not available

12271

12271

BATTERY GROUND CABLE 30`

$

$

Not available

12276

12276

DECAL, LIFT

$

$

Not available

12277

12277

DECAL BELT ROUTING

$

$

Not available

12278

12278

SPACER

$

$

Not available

12279

12279

SPRING

$

$

Not available

12281

12281

GUIDE (PLATED)

$

$

Not available

12282

12282

GUIDE (PLATED)

$

$

Not available

12283

12283

TRIGGER (PLATED)

$

$

Not available

12302

12302

GREASE ZERK-1/4"

$

$

Not available

12330

12330

HITCH MT. WLDT.

$

$

Not available

12333

12333

HITCH WLDT.

$

$

Not available

12334

12334

HITCH PIN

$

$

Not available

12338

12338

NUT 3/4-10 HEX W/NYLOK

$

$

Not available

12357

12357

QUADRANT GUIDE(PLATED)

$

$

Not available

12358

12358

1/2-13X1-3/4 HHB GR. 5

$

$

Not available

12401

12401

SHOULDER BOLT 3/8-16 X 1/2

$

$

Not available

12405

12405

GRIP

$

$

Not available

12407

12407

HEADLIGHT ASM.

$

$

Not available

12418

12418

IDLER PULLEY

$

$

Not available

12427

12427

LATCH

$

$

Not available

12429

12429

SPACER

$

$

Not available

12430

12430

SPACER

$

$

Not available

12433

12433

PLATE GUIDE

$

$

Not available

12436

12436

SPACER

$

$

Not available

12440

12440

$

$

Not available

12441

12441

EYE BOLT

$

$

Not available

12450

12450

1/2-13 X 5` HHB

$

$

Not available

12535

12535

BUSHING

$

$

Not available

12643

12643

BRAKE ARM LH

$

$

Not available

12644

12644

BRAKE ARM RH

$

$

Not available

12676

12676

BUSHING

$

$

Not available

12774

12774

PLATE BATTERY

$

$

Not available

12775

12775

BATTERY HOLD DOWN

$

$

Not available

12777

12777

STUB SHAFT

$

$

Not available

12789

12789

MUFFLER SHIELD

$

$

Not available

12792

12792

TIE BAR WLDT.

$

$

Not available

12802

12802

$

$

Not available

12807

12807

V-BELT

$

$

Not available

12808

12808

M10X1.5X25MM HHB GR8.8

$

$

Not available

12830

12830

ADAPTER OIL DRAIN

$

$

Not available

12841

12841

LIFT SHAFT W/ZERKS

$

$

Not available

12842

12842

LIFT SHAFT W/ZERKS

$

$

Not available

12864

12864

BRACE

$

$

Not available

12871

12871

6MM-1.0X12 HHB GR 8.8

$

$

Not available

12874

12874

$

$

Not available

12877

12877

ADAPTER 1/2NPT-M16X1.5

$

$

Not available

12879

12879

LH BRAKE WLDT.

$

$

Not available

12880

12880

RH BRAKE WLDT.

$

$

Not available

12887

12887

PLATE RH COVER

$

$

Not available

12889

12889

PLATE LH COVER

$

$

Not available

13326

13326

LIFT QUADRANT ASM.

$

$

Not available

13331

13331

IDLER ARM ASM.

$

$

Not available

13332

13332

BRACKET ASM.

$

$

Not available

13333

13333

PLATE W/DECAL

$

$

Not available

13336

13336

FRONT TIRE

$

$

Not available

13750

13750

WHEEL & TIRE ASM.

$

$

Not available

13788

13788

TRAILER ARM ASM.

$

$

Not available

13913

13913

REAR WHEEL AND TIRE ASM.

$

$

Not available

13917

13917

SPACER

$

$

Not available

13990

13990

FRONT WHEEL

$

$

Not available

14083

14083

DECAL, DRIVE LEVERS

$

$

Not available

14663

14663

CLEVIS PIN

$

$

Not available

17197

17197

REAR WHEEL

$

$

Not available

17198

17198

REAR TIRE

$

$

Not available

17391

17391

BRACKET HEADLIGHT.

$

$

Not available

18041

18041

FITTING HYDRAULIC

$

$

Not available

18042

18042

FITTING HYDRAULIC

$

$

Not available

18043

18043

FITTING HYDRAULIC

$

$

Not available

18052

18052

WHEEL MOTOR

$

$

Not available

18056

18056

PUMP PARKER LH

$

$

Not available

18057

18057

PUMP PARKER RH.

$

$

Not available

18058

18058

MOTOR PARKER

$

$

Not available

18180

18180

$

$

Not available

60179

60179

BUSHING DX. 5/8X3/4X3/4

$

$

Not available

60229

60229

COTTER RUE RING 5/16-3/

$

$

Not available

60444

60444

HH CAPSCREW 1/2-13X1-1/4

$

$

Not available
