Silver Tip 60 - Dixon 60" Silver Tip Zero-Turn Mower (2005) MOWER DECK Parts Diagram

60" Silver Tip Zero-Turn Mower

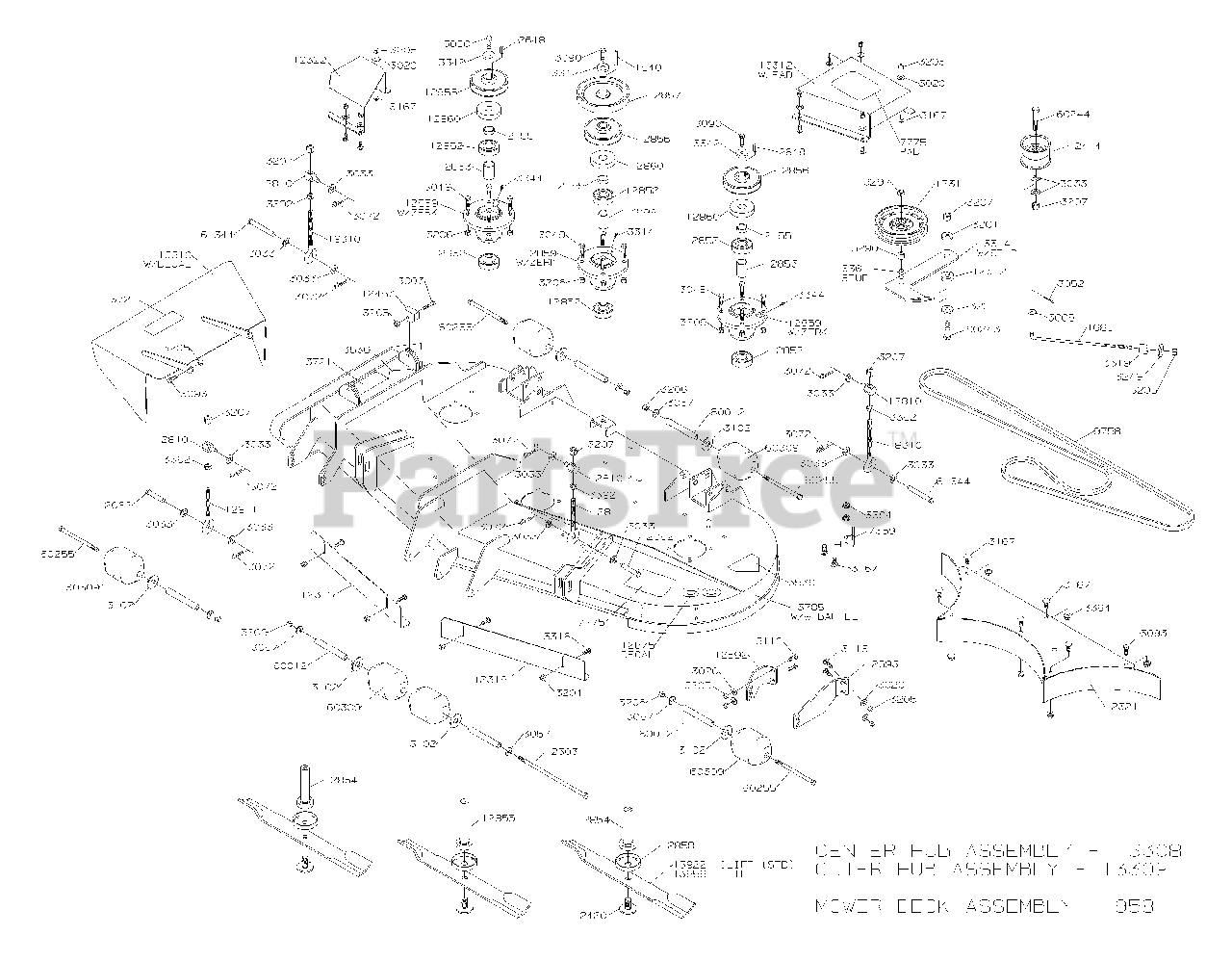

MOWER DECK Parts Diagram

  • Title

1685

1685

L-ROD

$

$

Not available

2155

2155

HUB BEARING SPACER

$

$

Not available

12592

12592

ROLLER BRACKET

$

$

Not available

2648

2648

KEY - 1/4 X .88

$

$

Not available

3003

3003

5/16X18X1-1/2HHB GR5

$

$

Not available

3008

3008

1/4IDX3/4OD FLT WSHR

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3033

3033

1/2 FLATWASH NARROW

$

$

Not available

3048

3048

3/8-16UNCX1 1/2HH BLT

$

$

Not available

3052

3052

PIN, COTTER 3/32 DIA X 1

$

$

Not available

3057

3057

WASHER, 3/8 STD FLAT

$

$

Not available

3072

3072

$

$

Not available

3090

3090

1/2-20UNFX1 1/4HHBLT

$

$

Not available

3093

3093

5/16-18X1 HHB GR5

$

$

Not available

3102

3102

5/8 STD FLATWASHER

$

$

Not available

3116

3116

RHSNB 5/16-18 X 1 GR 5 ZD

$

$

Not available

3167

3167

RHSNB 5/16-18 X 3/4 GR 5 ZD.

$

$

Not available

3201

3201

WASHER-.533IDX1.37OD

$

$

Not available

3202

3202

7/16-20 HHB GR5

$

$

Not available

3204

3204

1/4-20 HEX NUT W/NY

$

$

Not available

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3206

3206

3/8-16UNC HEX L-NUT

$

$

Not available

3207

3207

NUT, HEX 1/2-13 W/NY

$

$

Not available

3248

3248

5/16IDX1/8THK WASHER

$

$

Not available

3297

Dixon 3297

R/B 3297 1/2-13UNC H JAML-NUT

$

$

Not available

3316

3316

1/4-20X3/4 CARR BLT

$

$

Not available

3319

3319

IDLER SHOCK MOUNT

$

$

Not available

3342

3342

WASHER.525X1.375X.25

$

$

Not available

3344

3344

ZERK, 3/16, DRIVE IN

$

$

Not available

3361

3361

STUD 1/2-13 X 2

$

$

Not available

3392

3392

NUT, HEX JAM 1/2-13

$

$

Not available

3394

3394

5/16-18 FLANGED L-NUT

$

$

Not available

3536

3536

R/B 3536 DECK CAUTION DECAL

$

$

Not available

3721

3721

R/B 3721 CAUTION DECAL DEF/GC

$

$

Not available

3785

Dixon 3785

MODEL DECAL 429

$

$

Not available

5290

5290

BUSHING

$

$

Not available

7359

7359

ROD MOUNT

$

$

Not available

7775

7775

REAR FLOOR PAD-LH

$

$

Not available

9758

9758

V-BELT

$

$

Not available

12062

12062

CLEVIS PIN 2-1/2

$

$

Not available

12303

12303

3/8-16X12 HHB G5

$

$

Not available

12311

12311

IDLER PULLEY

$

$

Not available

12312

12312

$

$

Not available

12316

12316

BLOW-BY BAFFLE

$

$

Not available

12321

12321

W-BAFFLE WLDT.

$

$

Not available

12322

12322

PULLEY GUARD-RH

$

$

Not available

12414

12414

IDLER PULLEY

$

$

Not available

12420

12420

BLADE BOLT/WASHER

$

$

Not available

12453

12453

BRKT DEF. STOP

$

$

Not available

12593

12593

ROLLER BRACKET

$

$

Not available

12810

12810

SWIVEL

$

$

Not available

12811

12811

$

$

Not available

12852

12852

BEARING - 6305 - 2RS

$

$

Not available

12853

12853

SPACER

$

$

Not available

12854

12854

SHAFT SHORT

$

$

Not available

12855

12855

SHAFT LONG

$

$

Not available

12856

12856

PULLEY

$

$

Not available

12858

12858

TRASH GUARD

$

$

Not available

12859

12859

HUB W/ZERK

$

$

Not available

12860

12860

TRASH GUARD

$

$

Not available

12875

12875

DECAL, 60 SILVER

$

$

Not available

13310

13310

DEFLECTOR 60"

$

$

Not available

13312

13312

60 PULLEY GUARD ASM.

$

$

Not available

13314

13314

IDLER ARM W/STUD

$

$

Not available

13922

13922

BLD 60" HI LIFT FUSION

$

$

Not available

13958

13958

BLD 60" STD LIFT FUS

$

$

Not available

18310

18310

EYEBOLT(ST105493-109575)

$

$

Not available

60012

60012

BUSHING

$

$

Not available

60243

60243

CAPSCREW 1/2-13X2-1/4

$

$

Not available

60244

60244

CAPSCREW 1/2-13X2-3/4

$

$

Not available

60255

60255

3/8-16X6-1/2HHB GR8

$

$

Not available

60309

60309

ROLLER 3-3/4 DIA. X 4-1

$

$

Not available

61344

61344

CLEVIS PIN 1/2X1-3/4LG

$

$

Not available

13308

13308

CENTER HUB ASM.

$

$

Not available

13309

13309

OUTER HUB ASM.

$

$

Not available

958

958

$

$
