SHR-210 - Echo Power Sprayer Engine, Crankcase, Cylinder Cover, Ignition, Starter Parts Diagram

Power Sprayer

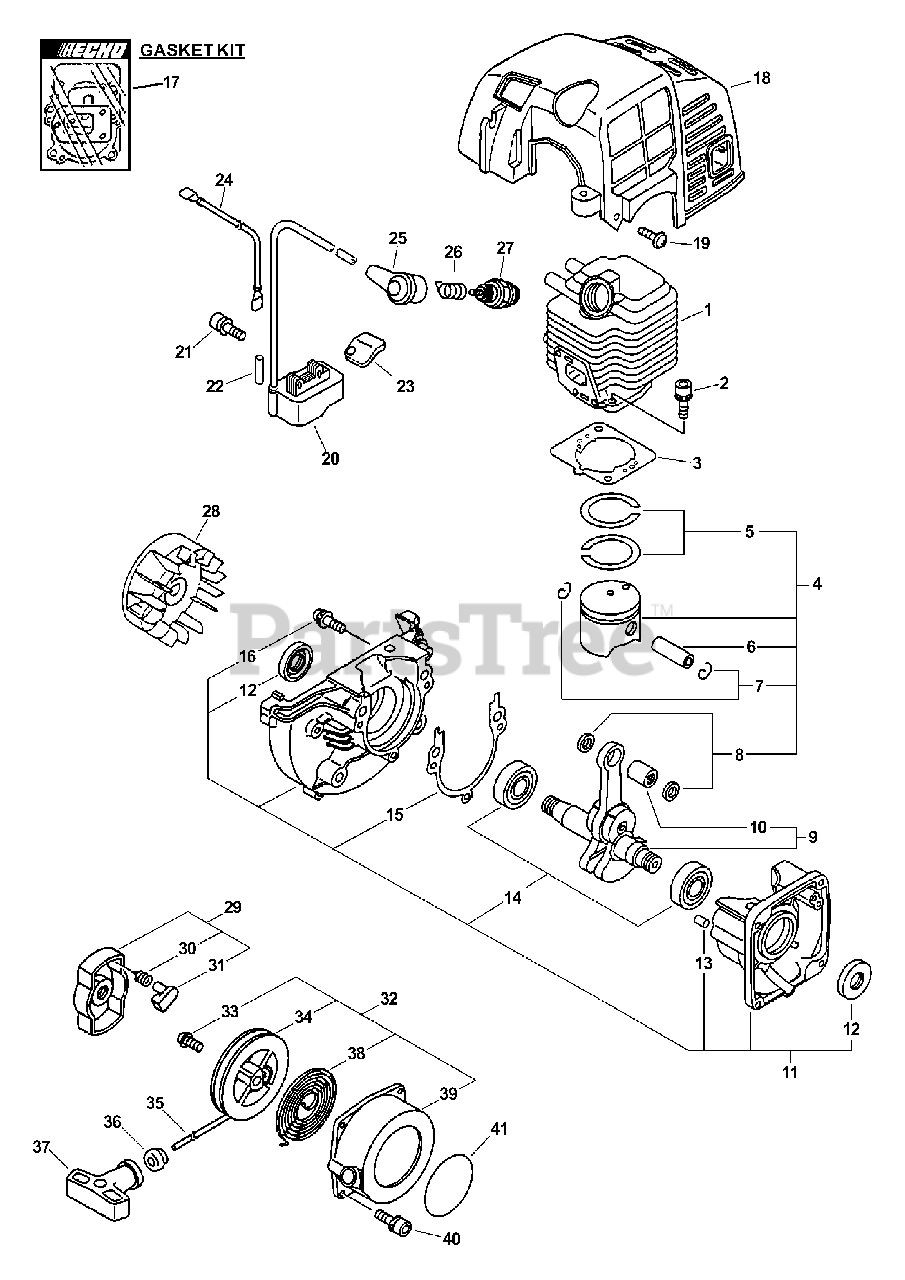

Engine, Crankcase, Cylinder Cover, Ignition, Starter Parts Diagram

  • Title

1

Echo A130000430

CYLINDER

$120.99

$

Usually ships in 2-4 days

0

2

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 20+

0

3

Echo V100000080

GASKET, CYLINDER

$5.99

$

In Stock, only 1 left!

0

4

Echo P021001101

PISTON KIT
(Superseded to P021001102)

Note: INCLUDES ITEMS 5-8

$77.99

$

In Stock, Qty 5

0

5

Echo A101000000

RING, PISTON

$8.49

$

In Stock, only 3 left!

0

6

Echo 10001311520

PIN, PISTON

$7.49

$

In Stock, only 1 left!

0

7

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 9

0

8

Echo 10001411520

SPACER, PISTON

$3.49

$

In Stock, only 3 left!

0

9

Echo A011000101

CRANKSHAFT ASSY
(Superseded to A011001410)

Note: Includes ITEM 10

$155.99

$

In Stock, only 1 left!

0

10

Echo V553000010

BEARING, NEEDLE - 8

$9.99

$

In Stock, only 2 left!

0

11

Echo 10020452132

CRANKCASE KIT
(Superseded to 10020452133)

Note: Includes ITEMS 12-16

$140.99

$

Usually ships in 2-4 days

0

12

Echo 10021242031

SEAL, OIL

$6.49

$

In Stock, Qty 11

0

13

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 7

0

14

Echo 9403536201

BEARING, BALL - 6201

$7.99

$

In Stock, Qty 9

0

15

Echo 10024242030

GASKET, CRANKCASE

$1.49

$

In Stock, Qty 20+

0

16

Echo 90016205028

SCREW - 5X28

$1.99

$

In Stock, Qty 20+

0

17

Echo 88900042033

GASKET KIT
(Superseded to 88900042034)

$16.99

$

In Stock, only 1 left!

0

18

Echo 10151413211

COVER, ENGINE

$28.99

$

Usually ships in 2-4 days

0

19

Echo 90025304014

SCREW - 4X14

$0.99

$

In Stock, Qty 18

0

20

Echo A411000130

COIL, IGNITION
(Superseded to A411000131)

$70.99

$

In Stock, Qty 20+

0

21

Echo 90016204020

SCREW - 4X20

$1.49

$

In Stock, Qty 20+

0

22

Echo 15611054930

TUBE, INSULATOR

$1.99

$

In Stock, Qty 20+

0

23

Echo 15011242030

COVER, DUST

$2.99

$

Usually ships in 2-4 days

0

24

Echo V485000310

LEAD - IGNITION
(Superseded to Discontinued)

$

$

Not available

25

Echo 15901201620

CAP, SPARK PLUG

$1.49

$

In Stock, Qty 20+

0

26

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.49

$

In Stock, Qty 20+

0

27

Echo 15901019830

SPARK PLUG -- BPM-8Y

$3.49

$

In Stock, Qty 20+

0

28

Echo A409000160

FLYWHEEL

$63.99

$

Usually ships in 2-4 days

0

29

Echo 17720244331

STARTER PAWL ASSY
(Superseded to 17720212220)

Note: INCLUDES ITEMS 30-31

$16.99

$

In Stock, Qty 18

0

30

Echo 17723412220

SPRING, RETURN

$3.99

$

In Stock, Qty 10

0

31

Echo 17721844330

PAWL, STARTER - BLACK

$3.49

$

In Stock, Qty 20+

0

32

Echo 17720042033

STARTER ASSY

Note: INCLUDES ITEMS 33-39

$49.99

$

In Stock, Qty 20+

0

33

Echo 17723644330

SCREW

$3.49

$

In Stock, only 2 left!

0

34

Echo 17721544430

REEL, ROPE

$8.99

$

In Stock, Qty 16

0

35

Echo 17722610120

ROPE, STARTER - 3X1000

Note: RePower BULK OPTION: 99944440000

$5.99

$

In Stock, Qty 6

0

36

Echo 17722742030

GUIDE, ROPE

$2.49

$

In Stock, Qty 14

0

37

Echo 17722806530

GRIP, STARTER

$4.99

$

In Stock, Qty 20+

0

38

Echo 17722042030

SPRING, REWIND
(Superseded to P022019680)

$9.99

$

In Stock, Qty 10

0

39

Echo 17723242032

CASE, STARTER

$20.99

$

In Stock, only 2 left!

0

40

Echo 90023804016

SCREW - 4X16
(Superseded to Discontinued)

$

$

Not available

41

Echo 89011849130

LABEL - ECHO
(Superseded to X502000190)

$0.99

$

In Stock, Qty 20+

0
