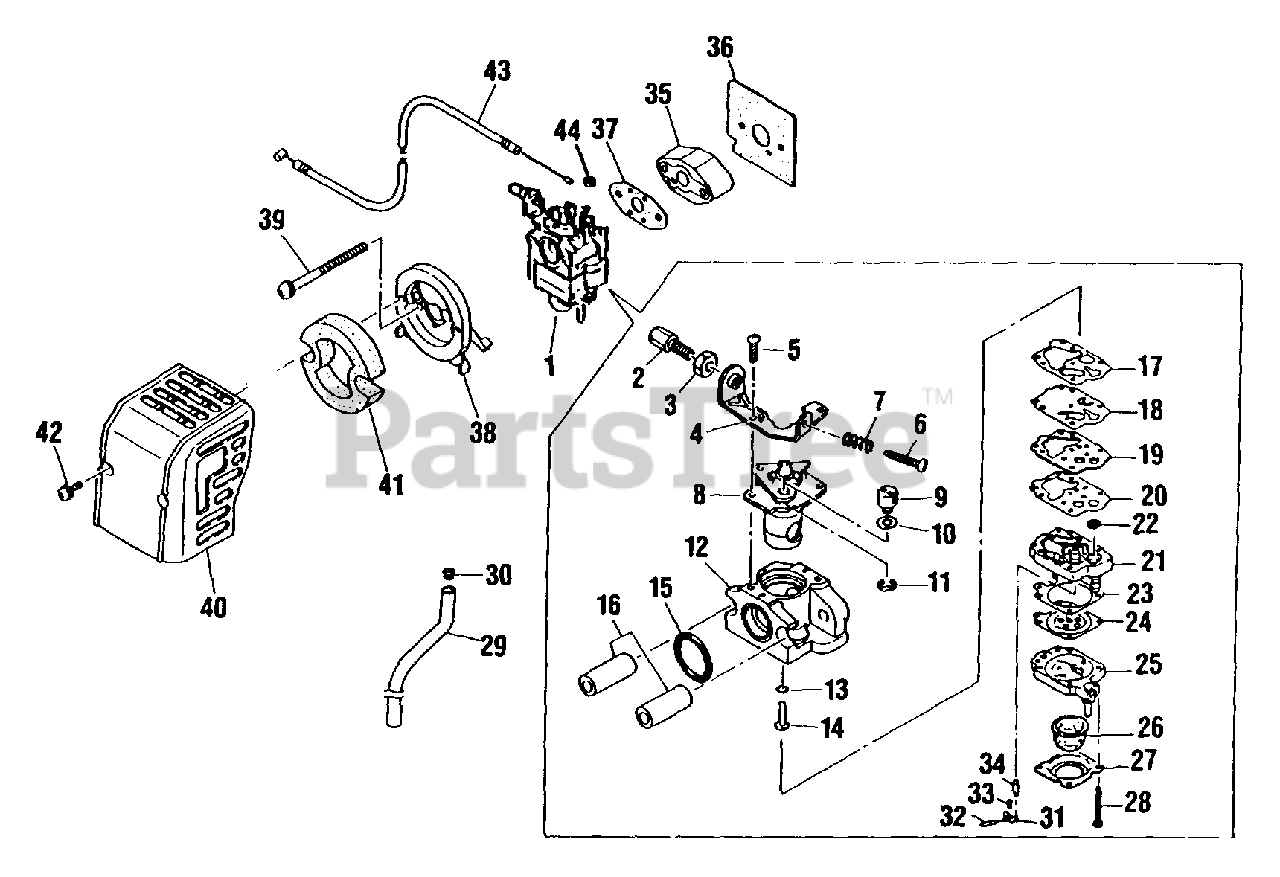

SHR-200 E - Echo Power Sprayer Carburetor Parts Diagram

Power Sprayer

Carburetor Parts Diagram

  • Title

Echo 12000010512

CARBURETOR
(Superseded to Discontinued)

Note: INCLUDES THE FOLLOWING ITEMS

$

$

Not available

1

Echo 70097-81002

CARBURETOR
(Superseded to Discontinued)

$

$

Not available

2

Echo 12011104730

NUT
(Superseded to Discontinued)

$

$

Not available

2

Echo 20036-81110

NUT, CABLE ADJUST

$5.49

$

Usually ships in 2-4 days

0

3

Echo 12011310211

COVER - TOP

$15.99

$

In Stock, only 1 left!

0

3

Echo 20036-81120

NUT
(Superseded to 12315356430)

$1.49

$

In Stock, only 3 left!

0

4

Echo 12011401820

SPRING, THROTTLE
(Superseded to Discontinued)

$

$

Not available

4

Echo 70097-81130

BRACKET
(Superseded to Discontinued)

$

$

Not available

5

Echo 12011508020

PLATE, NEEDLE CLIP
(Superseded to Discontinued)

$

$

Not available

5

Echo 70097-81290

SCREW
(Superseded to 12311440630)

$2.49

$

In Stock, only 3 left!

0

6

Echo 12011610211

RING, RETAINING
(Superseded to Discontinued)

$

$

Not available

6

Echo 20036-81310

SCREW, IDLE ADJUST

$1.49

$

Usually ships in 2-4 days

0

7

Echo 12010308021

NEEDLE JET KIT

$12.99

$

Usually ships in 2-4 days

0

7

Echo 20036-81320

SPRING

$0.99

$

Usually ships in 2-4 days

0

8

Echo 12011805731

VALVE, THROTTLE

$20.99

$

Usually ships in 2-4 days

0

8

Echo 70097-81181

VALVE ASSY
(Superseded to Discontinued)

$

$

Not available

9

Echo 12015904731

SCREW, IDLE ADJUST
(Superseded to Discontinued)

$

$

Not available

9

Echo 70029-81450

SWIVEL
(Superseded to 12317226030)

$1.99

$

Usually ships in 2-4 days

0

10

Echo 12016001321

SPRING, IDLE ADJUST
(Superseded to Discontinued)

$

$

Not available

10

Echo 20036-81185

WASHER
(Superseded to 12314926030)

$0.99

$

In Stock, only 1 left!

0

11

Echo 12014905730

O-RING
(Superseded to Discontinued)

$

$

Not available

11

Echo 20036-81195

RING, RETAINING
(Superseded to 12317307930)

$1.49

$

In Stock, only 1 left!

0

12

Echo 12015110210

NUT
(Superseded to Discontinued)

$

$

Not available

12

------------------

BODY

Note: Order 70097-81002

$

$

Not available

13

Echo 12014610210

CLAMP
(Superseded to Discontinued)

$

$

Not available

13

Echo 70097-81220

O-RING
(Superseded to 12318340630)

$1.99

$

In Stock, Qty 5

0

14

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

14

Echo 70097-81231

JET, MAIN

$2.49

$

Usually ships in 2-4 days

0

15

Echo 12014708020

BOLT
(Superseded to Discontinued)

$

$

Not available

15

Echo 70097-81250

SEAL

$8.99

$

Usually ships in 2-4 days

0

16

Echo 12013010210

GASKET
(Superseded to Discontinued)

$

$

Not available

16

Echo 70097-81260

SLEEVE
(Superseded to Discontinued)

$

$

Not available

17

Echo 12013100120

BOLT, BANJO
(Superseded to Discontinued)

$

$

Not available

17

Echo 70097-81310

GASKET, PUMP
(Superseded to 12312540630)

$4.99

$

In Stock, only 1 left!

0

18

Echo 12012310210

O-RING
(Superseded to Discontinued)

$

$

Not available

18

Echo 70097-81320

DIAPHRAGM, PUMP
(Superseded to 12311240630)

$12.99

$

In Stock, only 1 left!

0

19

Echo 12012208020

JET
(Superseded to Discontinued)

$

$

Not available

19

Echo 70097-81330

PLATE, PUMP

$2.99

$

Usually ships in 2-4 days

0

20

Echo 12013305730

FLOAT
(Superseded to Discontinued)

$

$

Not available

20

Echo 70097-81340

GASKET

$1.49

$

In Stock, only 1 left!

0

21

Echo 12010205731

VALVE, INLET NEEDLE

$29.99

$

Usually ships in 2-4 days

0

21

Echo 70097-81412

PUMP BODY ASSY

$13.99

$

Usually ships in 2-4 days

0

22

Echo 12012110210

LEVER, METERING
(Superseded to Discontinued)

$

$

Not available

22

Echo 22100-81380

SCREEN, SPARK ARRESTOR
(Superseded to 12312610631)

$1.49

$

In Stock, Qty 19

0

23

Echo 12013210211

PIN, METERING LEVER
(Superseded to Discontinued)

$

$

Not available

23

Echo 22135-81290

GASKET, METERING

$2.99

$

Usually ships in 2-4 days

0

24

Echo 90022004006

SCREW - 4X6

$0.99

$

In Stock, Qty 9

0

24

Echo 22100-81260

DIAPHRAGM, METERING
(Superseded to 12314103930)

$13.99

$

In Stock, Qty 6

0

25

Echo 12017703311

SHAFT, LINK
(Superseded to Discontinued)

$

$

Not available

25

Echo 70097-81420

BASE, PURGE

$8.99

$

Usually ships in 2-4 days

0

26

Echo 12017803311

O-RING
(Superseded to Discontinued)

$

$

Not available

26

Echo 70029-81480

BULB, PURGE
(Superseded to 20036-81670)

$5.49

$

In Stock, Qty 20+

0

27

Echo 12012403311

CHAMBER, FLOAT
(Superseded to Discontinued)

$

$

Not available

27

Echo 22135-81510

RETAINER, PURGE BULB

$3.49

$

Usually ships in 2-4 days

0

28

Echo 90024204012

SCREW - 4X12

$0.99

$

In Stock, Qty 20+

0

28

Echo 70097-81141

SCREW
(Superseded to 12311040630)

$0.99

$

In Stock, Qty 6

0

29

Echo 12017928930

SPRING

$3.49

$

Usually ships in 2-4 days

0

29

Echo 70097-83310

DRAIN TUBE
(Superseded to Discontinued)

$

$

Not available

30

Echo 12018003311

COLLAR

$4.99

$

Usually ships in 2-4 days

0

30

Echo 20020-85540

RING, RETAINING - 6
(Superseded to V490000500)

$0.99

$

In Stock, Qty 19

0

31

Echo 12018103312

CLIP

$2.49

$

Usually ships in 2-4 days

0

31

Echo 22100-81230

LEVER, METERING
(Superseded to 12312338330)

$6.49

$

In Stock, only 1 left!

0

32

Echo 22100-81250

PIN, METERING LEVER
(Superseded to 12313803930)

$5.99

$

In Stock, only 4 left!

0

33

Echo 22100-81270

SPRING, METERING LEVER
(Superseded to 12312203930)

$

$

Not available

34

Echo 20036-81440

VALVE, INLET NEEDLE
(Superseded to 12313719830)

$18.99

$

Usually ships in 2-4 days

0

35

Echo 70097-81510

INSULATOR
(Superseded to Discontinued)

$

$

Not available

36

Echo 70097-81521

GASKET
(Superseded to Discontinued)

$

$

Not available

37

Echo 70097-81530

GASKET, INTAKE
(Superseded to Discontinued)

$

$

Not available

Echo 70097-82000

AIR FILTER CASE ASSY
(Superseded to Discontinued)

$

$

Not available

38

Echo 70097-82101

CHOKE ASSY

$10.99

$

Usually ships in 2-4 days

0

39

Echo 11206-05650

SCREW - 5X65
(Superseded to Discontinued)

$

$

Not available

40

Echo 70097-82311

COVER, AIR FILTER

$5.99

$

Usually ships in 2-4 days

0

41

Echo 70097-82320

FILTER
(Superseded to Discontinued)

Note: Order 70097-81002

$

$

Not available

42

Echo 11207-04160

SCREW - 4X16
(Superseded to 9157704016)

$0.99

$

Usually ships in 2-4 days

0

43

Echo 70097-83110

CABLE, THROTTLE
(Superseded to Discontinued)

$

$

Not available

44

Echo 20000-85350

RING, RETAINING
(Superseded to V490000610)

$0.99

$

In Stock, Qty 12

0

Echo 99909-134

REPAIR KIT

$6.99

$

Usually ships in 2-4 days

0

34

------------------

VALVE, INLET NEEDLE

$

$

Not available

31

LEVER, METERING

Note: Part considered to be consumable or equivalent. Example: Filter

$

$

Not available

32

PIN

$

$

Not available

33

LEVER, SPRING

$

$

Not available

22

STRAINER

$

$

Not available

Echo 99909-98

DIAPHRAGM/GASKET KIT

$

$

Currently unavailable

23

GASKET

$

$

Not available

17

GASKET, PUMP

$

$

Not available

20

GASKET

$

$

Not available

24

------------------

DIAPHRAGM

$

$

Not available

18

------------------

DIAPHRAGM

$

$

Not available
