SHP-800 EUSTD - Echo Power Sprayer (SN: 000600000001 - 000600999999) Starter Parts Diagram

Power Sprayer

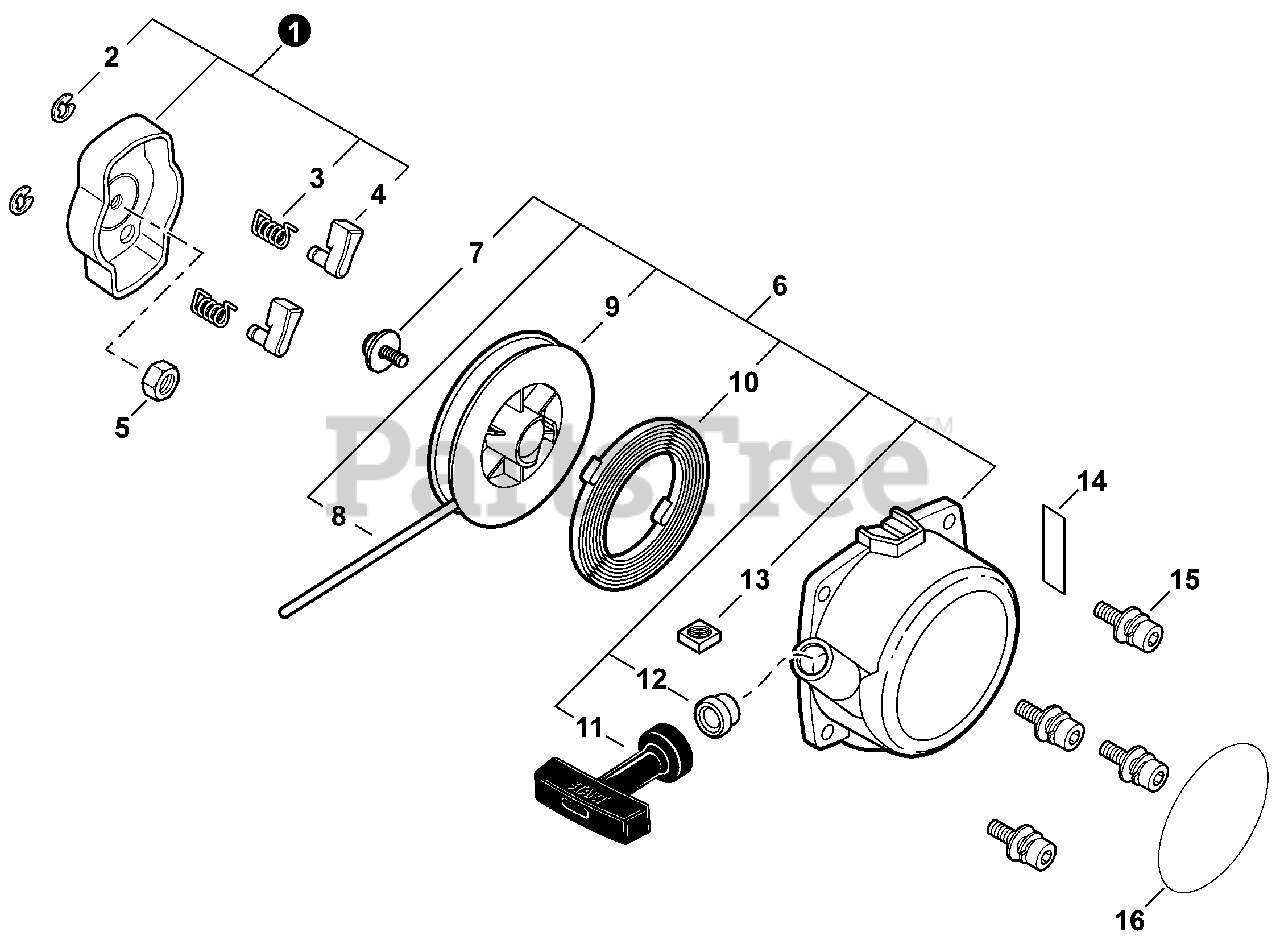

Starter Parts Diagram

  • Title
1

Echo A052000030

PAWL ASSY, STARTER

Note: Includes ITEMS 2-4

$12.99

$

In Stock, Qty 20+

0

2

Echo 90070000004

E-RING 4

$0.99

$

In Stock, Qty 20+

0

3

Echo 17723440630

SPRING, RETURN

$3.49

$

In Stock, only 2 left!

0

4

Echo A514000120

PAWL, STARTER
(Superseded to P022003120)

$3.49

$

In Stock, Qty 6

0

5

Echo 90050200008

NUT 8x1.25

$0.99

$

In Stock, only 2 left!

0

6

Echo 17720055931

STARTER ASSY, RECOIL

Note: Includes ITEMS 7-13

$40.99

$

In Stock, Qty 6

0

$3.49

$

In Stock, only 1 left!

0

8

Echo 17722603930

ROPE, STARTER 3.5x850

$5.99

$

In Stock, Qty 5

0

9

Echo 17721540630

REEL, ROPE

$9.99

$

In Stock, Qty 5

0

10

Echo 17722040630

SPRING, RECOIL

$14.99

$

In Stock, Qty 11

0

11

Echo 17722827030

GRIP, STARTER

$5.99

$

In Stock, Qty 20+

0

12

Echo 17722742030

GUIDE, ROPE

$2.49

$

In Stock, Qty 13

0

13

Echo 90056500005

NUT M5
(Superseded to 90056550005)

$0.99

$

In Stock, Qty 20+

0

14

Echo X505002310

LABEL - CAUTION - HOT

$1.99

$

In Stock, Qty 20+

0

15

Echo 90023904014

SCREW 4x14

$0.99

$

Usually ships in 2-4 days

0

16

Echo 70642031090

LABEL - ECHO

$2.99

$

Usually ships in 2-4 days

0
