SHP-800 - Echo Power Sprayer (SN: H05000001001 - H05000999999) Crankcase, Cylinder, Piston Parts Diagram

Power Sprayer

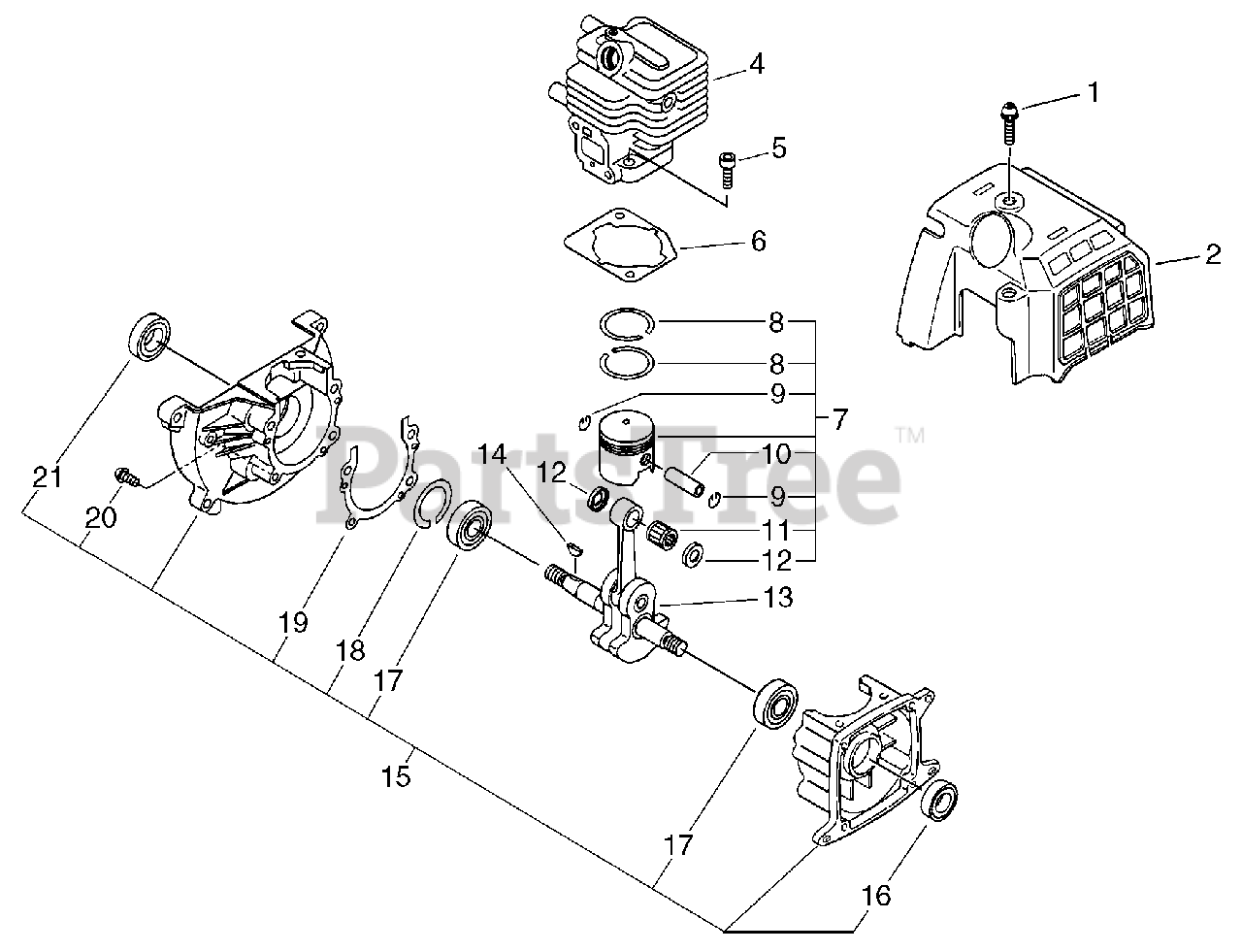

Crankcase, Cylinder, Piston Parts Diagram

  • Title

1

Echo 90024205014

SCREW - 5X14

$0.99

$

In Stock, Qty 20+

0

2

Echo A160000030

COVER, ENGINE

$24.99

$

Usually ships in 2-4 days

0

4

Echo 10101161230

CYLINDER

$161.99

$

Usually ships in 2-4 days

0

5

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 20+

0

6

Echo 10101055930

GASKET, CYLINDER

$4.99

$

Usually ships in 2-4 days

0

7

Echo 10000055932

PISTON KIT
(Superseded to P021014440)

Note: Includes ITEMS 8-13

$95.99

$

Usually ships in 2-4 days

0

8

Echo 10001105330

RING, PISTON

$8.49

$

In Stock, only 2 left!

0

9

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 7

0

10

Echo 10001322330

PIN, PISTON

$5.49

$

Usually ships in 2-4 days

0

11

Echo V553000020

BEARING, NEEDLE - 8
(Superseded to V553000140)

$10.99

$

In Stock, only 1 left!

0

12

Echo 10001455930

SPACER, PISTON

$3.49

$

Usually ships in 2-4 days

0

13

Echo 10010055930

CRANKSHAFT ASSY
(Superseded to 10010055931)

$232.99

$

Usually ships in 2-4 days

0

14

Echo 10014212330

KEY

$1.99

$

In Stock, Qty 14

0

15

Echo 10020457031

CRANKCASE KIT

Note: Includes ITEMS 16-21

$174.99

$

Usually ships in 2-4 days

0

16

Echo 10021305530

SEAL, OIL

$6.49

$

In Stock, Qty 10

0

17

Echo 90080036001

BEARING, BALL - 6001C3

$9.49

$

In Stock, only 3 left!

0

18

Echo 90070200028

RING, RETAINING - 28

$1.49

$

In Stock, Qty 13

0

19

Echo 10024255930

GASKET, CRANKCASE

$3.49

$

In Stock, only 1 left!

0

20

Echo 90024205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

21

Echo 10021228230

SEAL, OIL - 12

$4.49

$

In Stock, only 2 left!

0
