SHP-800 - Echo Power Sprayer (SN: 500005065 - 500999999) Starter, Ignition Parts Diagram

Power Sprayer

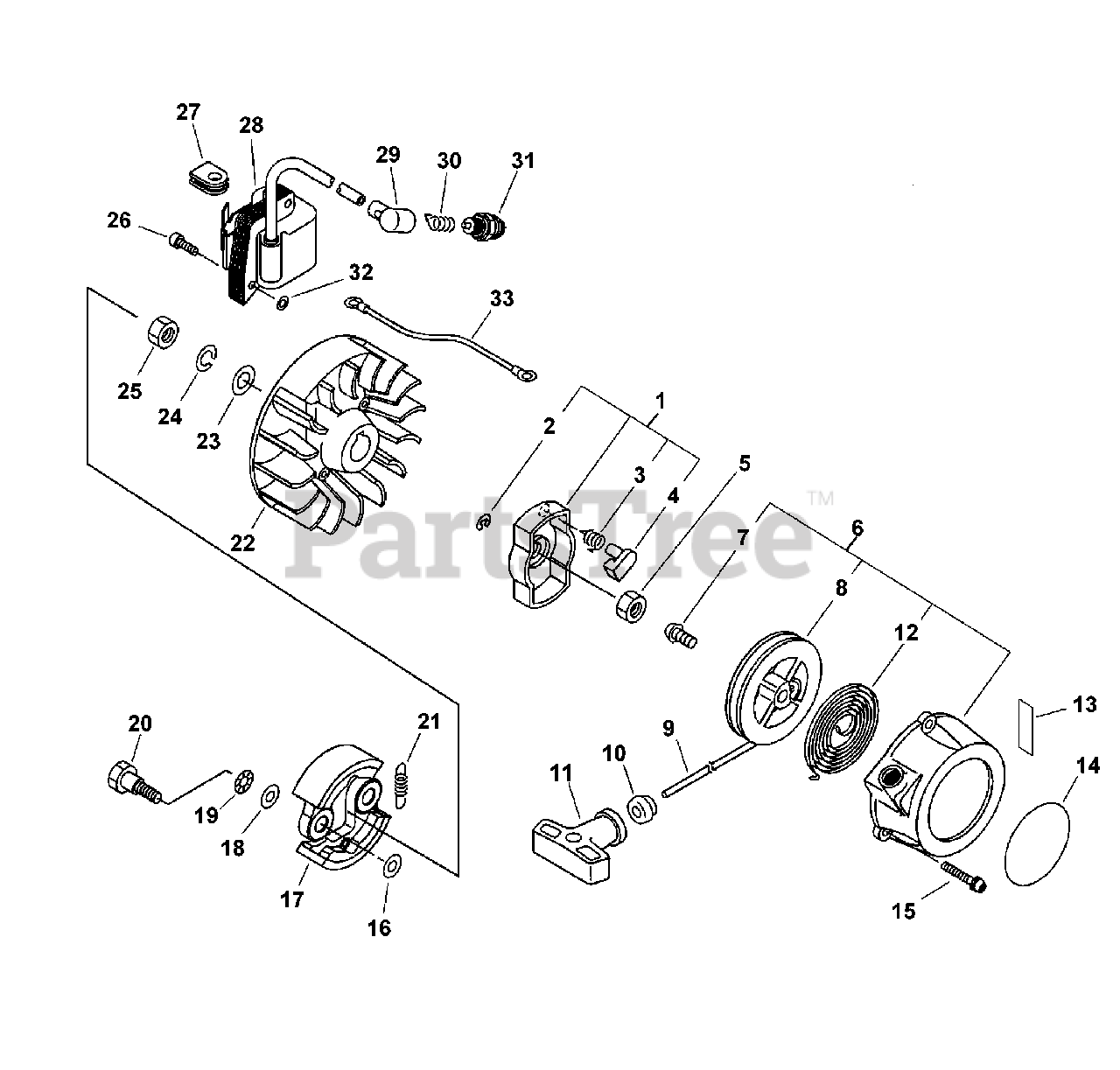

Starter, Ignition Parts Diagram

  • Title

1

Echo 17720240630

PAWL ASSY, STARTER
(Superseded to A052000030)

Note: Includes Items 2-4

$12.99

$

In Stock, Qty 20+

0

2

Echo 90070000004

E-RING 4

$0.99

$

In Stock, Qty 20+

0

3

Echo 17723440630

SPRING, RETURN

$3.49

$

In Stock, only 2 left!

0

4

Echo 17721840630

PAWL, STARTER
(Superseded to A514000120)

$3.49

$

In Stock, Qty 8

0

5

Echo 90050200008

NUT 8×1.25

$0.99

$

In Stock, only 2 left!

0

6

Echo 17720055931

STARTER ASSY, RECOIL

Note: Includes Items 7-12

$40.99

$

In Stock, Qty 7

0

7

Echo 17723644330

SCREW

$3.49

$

In Stock, only 2 left!

0

8

Echo 17721540630

REEL, ROPE

$9.99

$

In Stock, Qty 5

0

9

Echo 17722603930

ROPE, STARTER 3.5×850

$5.99

$

In Stock, Qty 7

0

10

Echo 17722742030

GUIDE, ROPE

$2.49

$

In Stock, Qty 14

0

11

Echo 17722827030

GRIP, STARTER

$5.99

$

In Stock, Qty 20+

0

12

Echo 17722040630

SPRING, RECOIL

$14.99

$

In Stock, Qty 12

0

13

Echo X505002310

LABEL, CAUTION - HOT

$1.99

$

In Stock, Qty 20+

0

14

Echo 70642031090

LABEL, ECHO

$2.99

$

Usually ships in 2-4 days

0

15

Echo 90023904014

SCREW 4×14

$0.99

$

Usually ships in 2-4 days

0

16

Echo V304000010

WASHER 6

$2.99

$

Usually ships in 2-4 days

0

17

Echo 17500955931

SHOE, CLUTCH

$21.99

$

In Stock, only 2 left!

0

18

Echo V306000020

WASHER 8

$1.99

$

Usually ships in 2-4 days

0

19

Echo 17504956030

WASHER 8.5×16×0.5

$1.49

$

In Stock, Qty 20+

0

20

Echo 17504656030

BOLT, CLUTCH 8×7.9×M6

$4.99

$

In Stock, Qty 11

0

21

Echo V451000040

SPRING, TENSION

$4.99

$

Usually ships in 2-4 days

0

22

Echo 15280156530

FLYWHEEL

$93.99

$

Usually ships in 2-4 days

0

23

Echo 90060000008

WASHER 8.5×16×1.2

$0.99

$

In Stock, Qty 7

0

24

Echo 90060500008

WASHER, SPRING 8

$0.99

$

In Stock, Qty 20+

0

25

Echo 90050200008

NUT 8×1.25

$0.99

$

In Stock, only 2 left!

0

26

Echo 9112804022

BOLT 4×22

$1.49

$

Usually ships in 2-4 days

0

27

Echo 15611240630

GROMMET

$1.49

$

In Stock, only 3 left!

0

28

Echo 15262655932

COIL, IGNITION

$92.99

$

Usually ships in 2-4 days

0

29

Echo 15901203433

CAP, SPARK PLUG

$6.99

$

In Stock, Qty 8

0

30

Echo 15901103432

TERMINAL, SPARK PLUG

$1.49

$

In Stock, Qty 20+

0

31

Echo 15901019630

SPARK PLUG - BPM7Y
(Superseded to 99944500071)

$3.49

$

In Stock, only 2 left!

0

32

Echo 15011709130

WASHER

$1.49

$

In Stock, only 1 left!

0

33

Echo 16201055430

LEAD

$4.99

$

Usually ships in 2-4 days

0
