SHP-800 - Echo Power Sprayer (SN: 500005065 - 500999999) Air Cleaner Parts Diagram

Power Sprayer

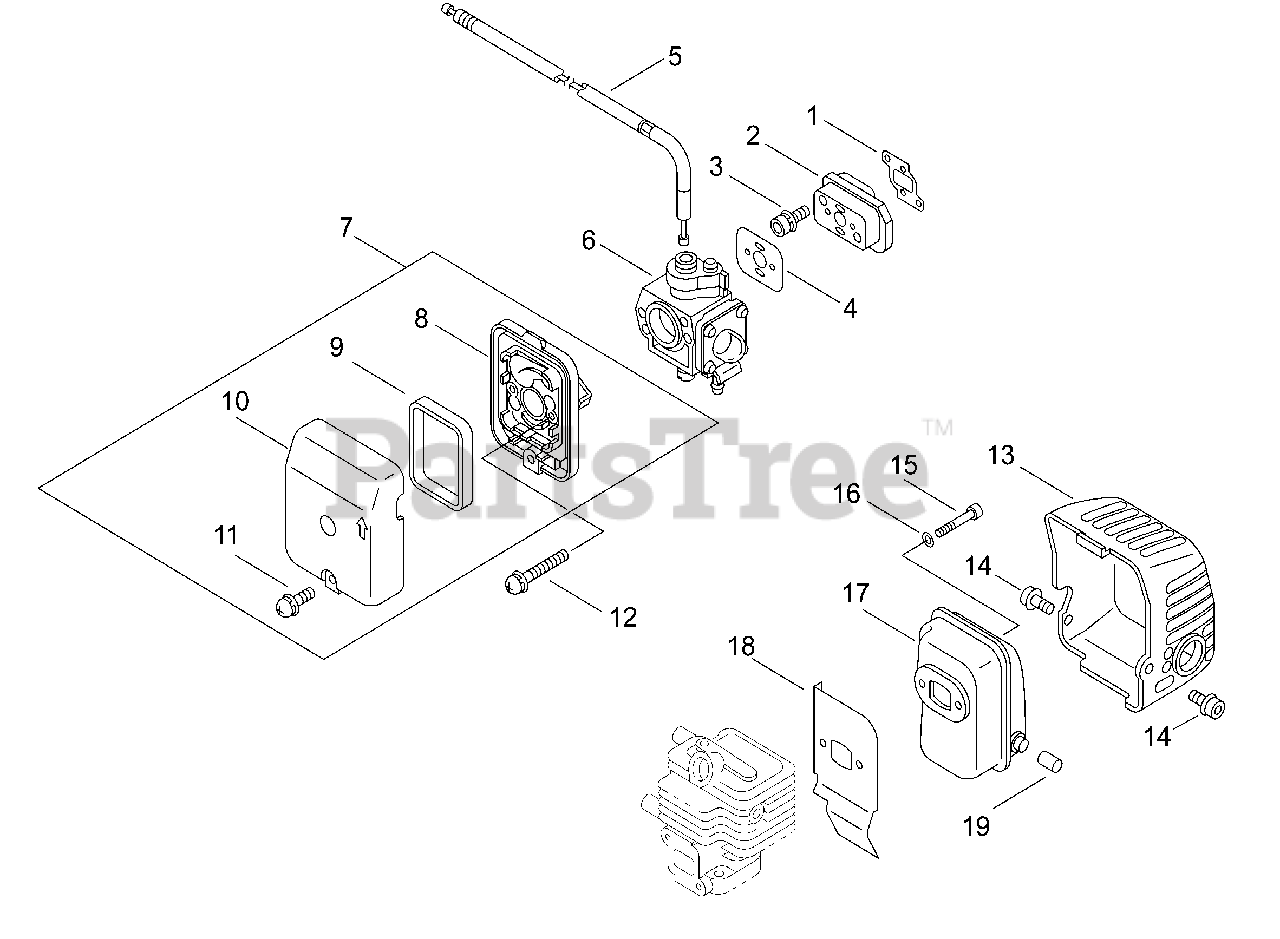

Air Cleaner Parts Diagram

  • Title

1

Echo 13001055930

GASKET, INTAKE

$1.49

$

In Stock, Qty 17

0

2

Echo 13001756431

INSULATOR, INTAKE

$12.99

$

In Stock, only 1 left!

0

3

Echo 90016205025

BOLT 5×25

$0.99

$

In Stock, Qty 20+

0

4

Echo 13001056330

GASKET, INTAKE

$2.49

$

Usually ships in 2-4 days

0

5

Echo 70613005230

CABLE, THROTTLE

$12.99

$

Usually ships in 2-4 days

0

6

Echo 12420013220

CARBURETOR

$149.99

$

Usually ships in 2-4 days

0

7

Echo 13030013411

FILTER ASSY, AIR

Note: Includes Items 8-12

$21.99

$

Usually ships in 2-4 days

0

8

Echo 13030713410

CASE, AIR FILTER

$12.99

$

Usually ships in 2-4 days

0

9

Echo 13031013410

FILTER, AIR

$4.99

$

Usually ships in 2-4 days

0

10

Echo 13030813410

COVER, AIR FILTER

$8.49

$

Usually ships in 2-4 days

0

11

Echo 90023805016

SCREW 5×16

$0.99

$

In Stock, Qty 20+

0

12

Echo 90024205050

SCREW 5×50

$0.99

$

Usually ships in 2-4 days

0

13

Echo 14562156530

COVER, MUFFLER

$48.99

$

Usually ships in 2-4 days

0

14

Echo 90010605008

BOLT 5×8

$0.99

$

In Stock, Qty 20+

0

15

Echo 90010505055

BOLT 5×55

$1.49

$

In Stock, Qty 14

0

16

Echo 90060000005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

17

Echo 14561062630

MUFFLER

$97.99

$

Usually ships in 2-4 days

0

18

Echo 14551055932

HEAT SHIELD, EXHAUST

$7.49

$

In Stock, only 1 left!

0

19

Echo G231000021

PIPE, EXHAUST

$3.99

$

Usually ships in 2-4 days

0
