SHC-266 - Echo Shaft Hedge Trimmer (SN: T47414001001 - T47414999999) Intake Parts Diagram

Shaft Hedge Trimmer

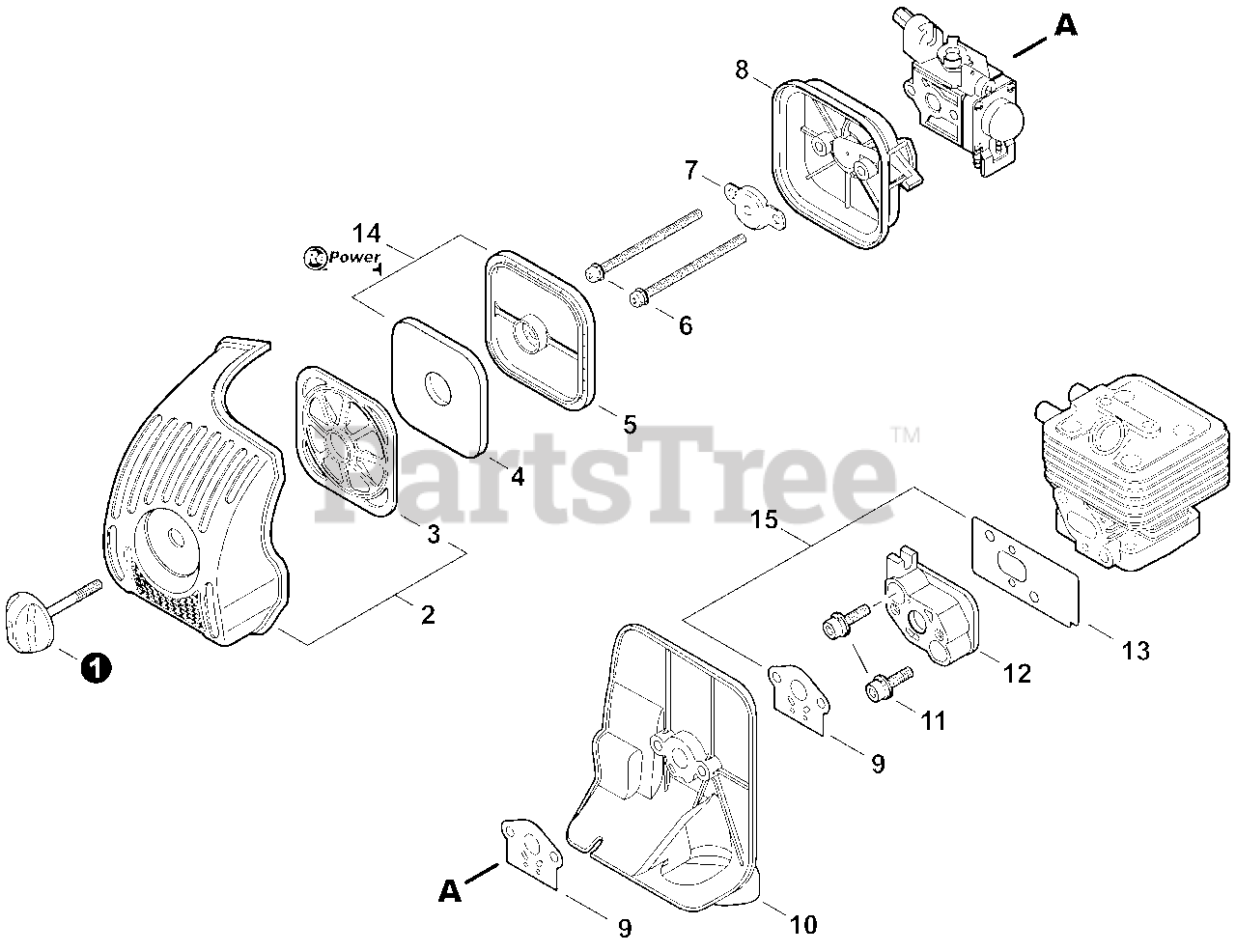

Intake Parts Diagram

  • Title

1

Echo V299000250

THUMBSCREW

$3.99

$

In Stock, Qty 20+

0

2

Echo P021042071

COVER KIT, AIR FILTER

Note: Includes Item 3

$18.99

$

In Stock, Qty 17

0

3

Echo A227000001

RETAINER, PRE-FILTER

$1.99

$

In Stock, Qty 20+

0

4

Echo A226000371

PRE-FILTER, FOAM

$5.99

$

In Stock, Qty 20+

0

5

Echo A226000472

FILTER, AIR - DOUBLE LAYER
(Superseded to A226000473)

$7.99

$

In Stock, Qty 20+

0

6

Echo 9157905070

SCREW 5×70

$0.99

$

In Stock, Qty 20+

0

7

Echo A244000070

PLATE, PREVENT

$4.99

$

In Stock, Qty 20+

0

8

Echo P021013820

CASE, AIR FILTER

$9.99

$

In Stock, Qty 10

0

9

Echo V103000270

GASKET, INTAKE

$0.99

$

In Stock, Qty 20+

0

10

Echo A209000710

PLATE, INSULATOR

$8.99

$

In Stock, only 1 left!

0

11

Echo 90016205025

BOLT 5×25

$0.99

$

In Stock, Qty 20+

0

12

Echo A200000200

INSULATOR, INTAKE

$13.99

$

In Stock, Qty 5

0

13

Echo V103000210

HEAT SHIELD, INTAKE

$1.49

$

In Stock, Qty 20+

0

14

Echo 90125

TUNE-UP KIT - REPOWER
(Superseded to 90125Y)

$21.99

$

Usually ships in 2-4 days

0

15

Echo P021011000

GASKET KIT

$24.99

$

In Stock, Qty 5

0
