SHC-2620 S - Echo Shaft Hedge Trimmer (SN: U28515001001 - U28515999999) Intake Parts Diagram

Shaft Hedge Trimmer

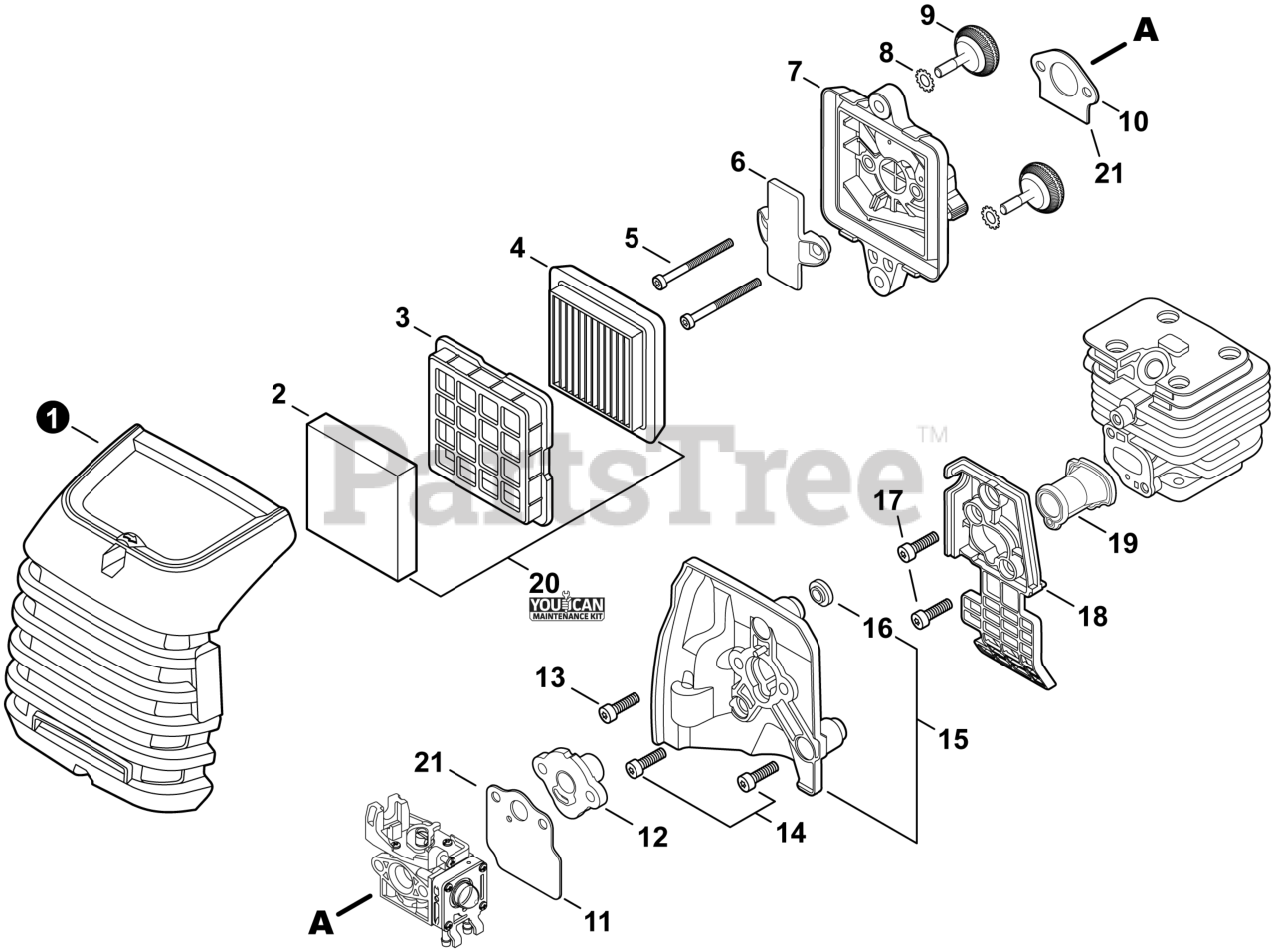

Intake Parts Diagram

  • Title

1

Echo A232001890

COVER, AIR FILTER
(Superseded to A232001891)

$11.99

$

In Stock, Qty 20+

0

2

Echo A226002040

PRE-FILTER, FOAM

Note: Included in Tune-up Kit

$2.99

$

In Stock, Qty 20+

0

3

Echo A227000050

RETAINER, PRE-FILTER

$2.99

$

In Stock, Qty 20+

0

4

Echo A226002030

FILTER, AIR

Note: Included in Tune-up Kit

$14.99

$

In Stock, Qty 9

0

5

Echo V805000340

BOLT, TORX 5×60

$1.49

$

In Stock, Qty 19

0

6

Echo A244000370

PLATE, PREVENT

$16.99

$

In Stock, only 2 left!

0

7

Echo P021050880

CASE, AIR FILTER

$8.99

$

In Stock, Qty 11

0

8

Echo V340000210

WASHER, LOCK

$0.99

$

In Stock, Qty 20+

0

9

Echo V299000640

THUMBSCREW

$2.99

$

In Stock, Qty 20+

0

10

Echo V103001900

GASKET, INTAKE

Note: Included in Gasket Kit

$1.99

$

In Stock, only 1 left!

0

11

Echo V103001890

HEAT SHIELD, INTAKE

Note: Included in Gasket Kit

$1.49

$

In Stock, Qty 20+

0

12

Echo A209001000

BOOT, INSULATOR PLATE

$1.99

$

In Stock, Qty 7

0

13

Echo V855000000

BOLT, TORX 5×20

$1.99

$

In Stock, only 4 left!

0

14

Echo V805000150

BOLT, TORX 5×16

$0.99

$

In Stock, Qty 20+

0

15

Echo A209001010

PLATE, INSULATOR

Note: Includes ITEM 15

$15.99

$

Usually ships in 2-4 days

0

16

Echo V353000020

COLLAR 5

$1.49

$

In Stock, Qty 20+

0

17

Echo V253001020

SCREW 5×16

$1.49

$

In Stock, Qty 20+

0

18

Echo A206000040

HOLDER, BELLOWS

$5.99

$

Usually ships in 2-4 days

0

19

Echo A202000300

BELLOWS, INTAKE

$14.99

$

In Stock, Qty 15

0

20

Echo 90181Y

TUNE-UP KIT - YOUCANT

Note: See Maintenance Kits

$41.99

$

In Stock, only 2 left!

0

21

Echo P021051540

GASKET KIT: ENGINE, INTAKE, EXHAUST

Note: See Maintenance Kits

$16.99

$

In Stock, Qty 19

0
