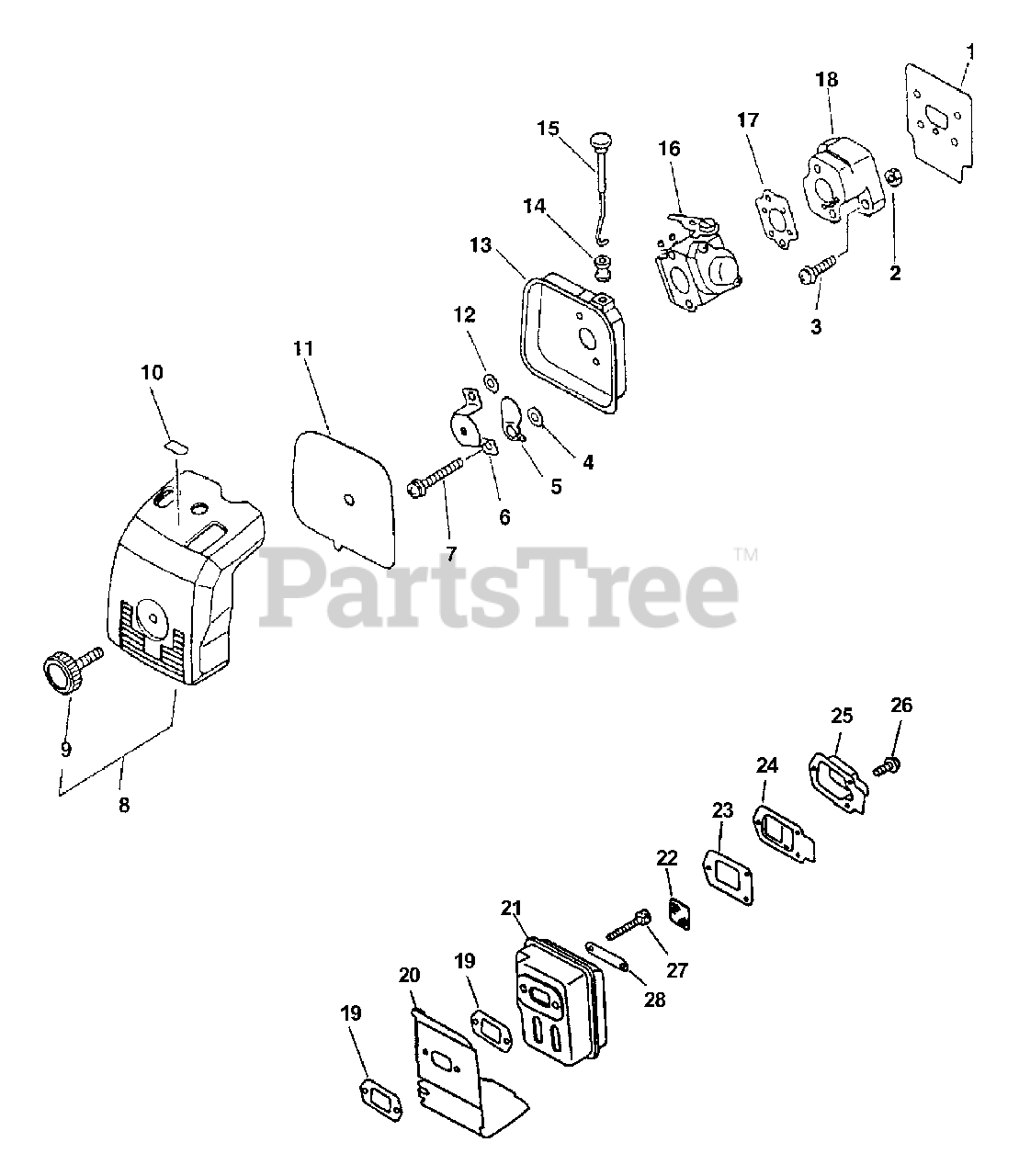

SHC-2401 - Echo Shaft Hedge Trimmer (Type 1E) Intake, Air Cleaner, Exhaust Parts Diagram

Shaft Hedge Trimmer (Type 1E)

Intake, Air Cleaner, Exhaust Parts Diagram

  • Title

1

Echo V103000490

SHIELD, INTAKE
(Superseded to V103001360)

Note: USE GASKET KIT P/N 88900021460

$2.49

$

In Stock, Qty 16

0

2

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

3

Echo 90023805020

SCREW - 5X20

$0.99

$

In Stock, Qty 5

0

4

Echo 17851600830

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

5

Echo 17851505060

SHUTTER, CHOKE

$2.99

$

In Stock, Qty 5

0

6

Echo 12901152130

PLATE, PREVENT
(Superseded to 12901152131)

$5.49

$

In Stock, only 3 left!

0

7

Echo 90024205057

SCREW - 5X57

$0.99

$

In Stock, Qty 5

0

8

Echo 13030252130

AIR FILTER COVER ASSY
(Superseded to 13030252131)

Note: Includes ITEM 9

$15.99

$

In Stock, Qty 6

0

9

Echo 13040652131

THUMBSCREW

$5.49

$

In Stock, Qty 20+

0

10

Echo 89012152130

LABEL - CHOKE
(Superseded to Discontinued)

$

$

Not available

10

Echo 89012112330

LABEL - CHOKE

$0.99

$

Usually ships in 2-4 days

0

11

Echo 13031051830

FILTER, AIR - HEAVY DUTY

$7.49

$

In Stock, Qty 20+

0

12

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

13

Echo 13031451730

CASE, AIR FILTER
(Superseded to Discontinued)

$

$

Not available

14

Echo 17881005230

GROMMET

$1.99

$

In Stock, Qty 8

0

15

Echo 17851051730

ROD, CHOKE

$4.99

$

In Stock, only 1 left!

0

16

Echo 12300052133

CARBURETOR WT-424C

$94.99

$

In Stock, only 1 left!

0

17

Echo 13001005960

GASKET, INTAKE

Note: USE GASKET KIT P/N 88900021460

$1.99

$

In Stock, only 2 left!

0

18

Echo 13001742031

INSULATOR, INTAKE

$9.49

$

In Stock, only 1 left!

0

19

Echo V104000160

GASKET, EXHAUST

Note: USE GASKET KIT P/N 88900021460

$0.99

$

In Stock, Qty 16

0

20

Echo 14563142030

COVER, MUFFLER
(Superseded to A320000250)

$4.99

$

In Stock, Qty 14

0

21

Echo 14580642030

MUFFLER

$46.99

$

In Stock, only 1 left!

0

22

Echo 14586240630

SCREEN, SPARK ARRESTOR

$1.99

$

In Stock, Qty 20+

0

23

Echo 14586642031

GASKET, EXHAUST

Note: USE GASKET KIT P/N 88900021460

$2.49

$

In Stock, Qty 6

0

24

Echo 14587642030

GASKET, EXHAUST - INNER

$3.99

$

In Stock, Qty 6

0

25

Echo 14581852130

GUIDE, EXHAUST - OUTER

$7.49

$

Usually ships in 2-4 days

0

26

Echo 90024204010

SCREW - 4X10

$0.99

$

In Stock, Qty 17

0

27

Echo 90010505055

SCREW - 5X55

$1.49

$

In Stock, Qty 18

0

28

Echo 14564204930

WASHER

$1.49

$

In Stock, Qty 5

0

Echo 88900021460

GASKET KIT

$

$

Not available
