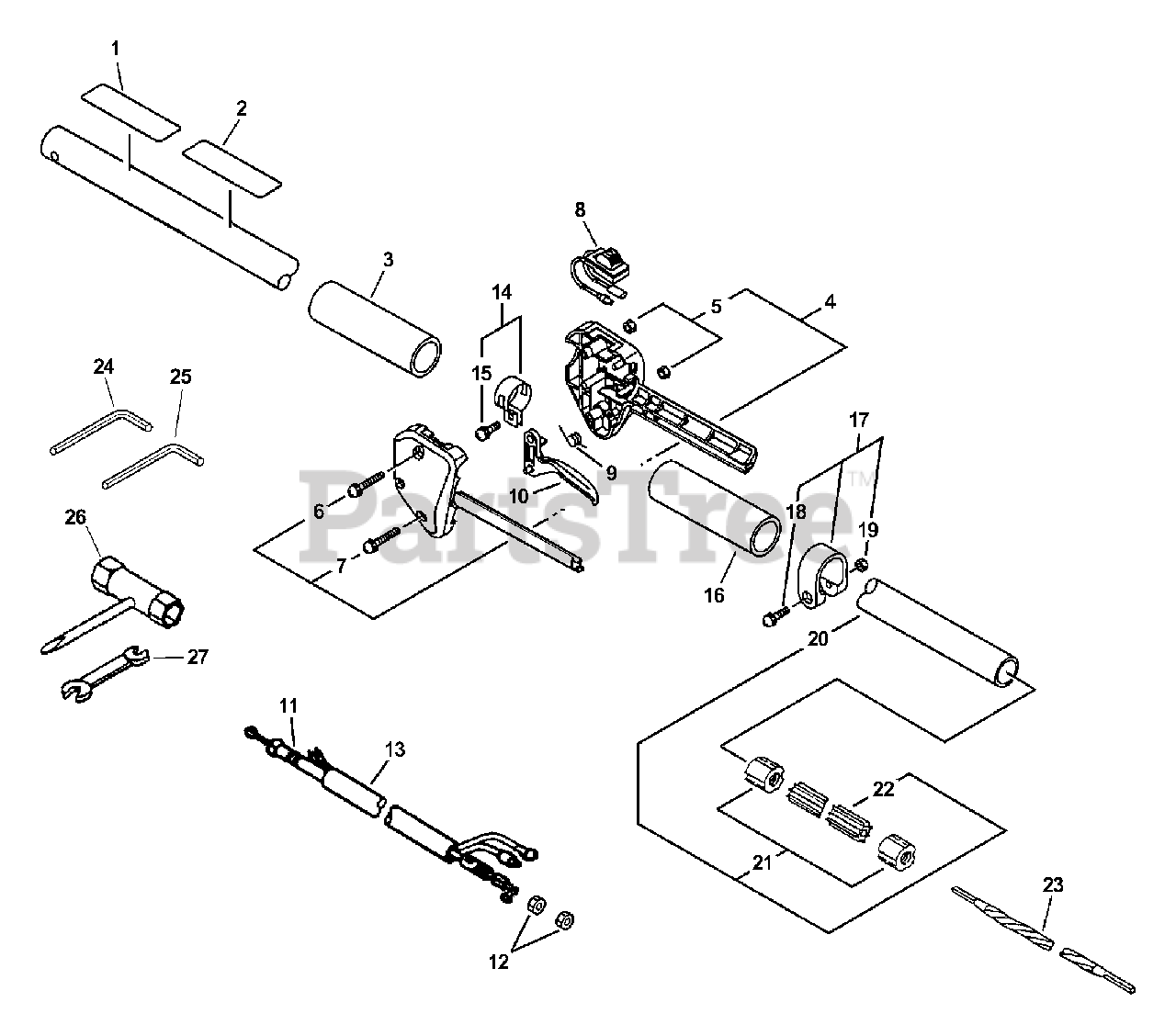

SHC-2400 - Echo Shaft Hedge Trimmer (Type 1E) Main Pipe, Handle, Switch, Throttle Cable, Driveshaft, Tools Parts Diagram

Shaft Hedge Trimmer (Type 1E)

Main Pipe, Handle, Switch, Throttle Cable, Driveshaft, Tools Parts Diagram

  • Title
1

Echo 89016021560

LABEL - CAUTION -- SPANISH
(Superseded to Discontinued)

$

$

Not available

2

Echo 89017854331

LABEL - CAUTION

$1.99

$

Usually ships in 2-4 days

0

3

Echo 35101254330

GRIP, HANDLE

$36.99

$

In Stock, only 3 left!

0

4

Echo 17800352130

CONTROL HANDLE KIT

Note: INCLUDES ITEMS 5-7

$4.99

$

In Stock, only 1 left!

0

5

$0.99

$

In Stock, Qty 20+

0

6

Echo 90024205035

SCREW - 5X35

$0.99

$

In Stock, Qty 20+

0

7

Echo 90024205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

8

Echo 16340155631

IGNITION SWITCH ASSY

$8.99

$

In Stock, Qty 7

0

9

Echo 17804342230

SPRING, TRIGGER

$0.99

$

In Stock, Qty 20+

0

10

Echo 17801052130

TRIGGER, THROTTLE

$3.49

$

In Stock, Qty 20+

0

11

Echo 17800144430

CABLE, THROTTLE

$10.99

$

In Stock, only 1 left!

0

12

$0.99

$

In Stock, only 1 left!

0

13

Echo 17812752130

TUBE
(Superseded to 17812750330)

$1.49

$

In Stock, Qty 5

0

14

Echo 30120029430

CLAMP KIT
(Superseded to 30120029431)

Note: Includes ITEM 15

$9.49

$

In Stock, only 1 left!

0

15

Echo 90024205012

SCREW - 5X12

$0.99

$

In Stock, Qty 20+

0

16

Echo 35121352130

GRIP, HANDLE

$9.49

$

In Stock, only 2 left!

0

17

Echo 61027252130

CLAMP KIT

Note: INCLUDES ITEMS 18-19

$9.99

$

In Stock, only 1 left!

0

18

Echo 90024205028

SCREW - 5X28

$0.99

$

In Stock, Qty 7

0

19

$0.99

$

In Stock, Qty 20+

0

20

Echo 61020612360

MAIN PIPE ASSY
(Superseded to Discontinued)

Note: INCLUDES ITEMS 21-22

$

$

Not available

21

$1.49

$

In Stock, Qty 20+

0

22

Echo 61021712360

LINER - FLEXIBLE
(Superseded to C507000220)

$14.99

$

In Stock, only 1 left!

0

23

Echo 61001312360

DRIVESHAFT - FLEXIBLE
(Superseded to C506000360)

$14.99

$

Usually ships in 2-4 days

0

24

Echo A605000100

HEX KEY - 4mm

$

$

Currently unavailable

25

Echo 89561203430

HEX KEY - 3mm
(Superseded to X605000090)

$0.99

$

In Stock, only 3 left!

0

26

Echo X602000020

T-WRENCH - 17X19mm

$3.49

$

In Stock, Qty 20+

0

27

Echo 89511200330

SPANNER - 8X10mm

$0.99

$

In Stock, only 3 left!

0
