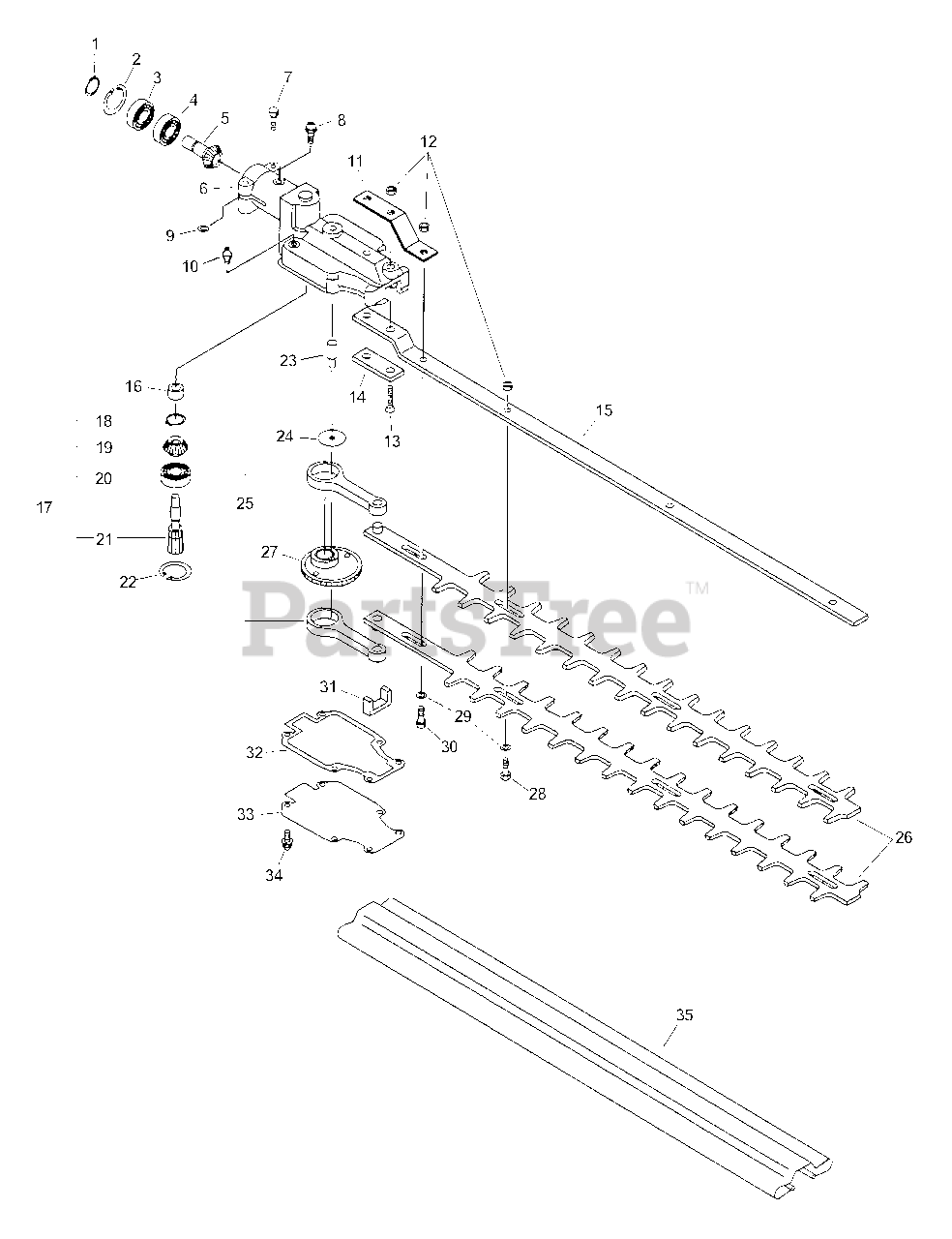

SHC-2400 - Echo Shaft Hedge Trimmer (Type 1) Gear Case, Blades CANADA S/N: 003108 - 999999 Parts Diagram

Shaft Hedge Trimmer (Type 1)

Gear Case, Blades CANADA S/N: 003108 - 999999 Parts Diagram

  • Title
1

Echo 90070600012

RING, RETAINING - 12

$1.49

$

In Stock, Qty 10

0

2

Echo 61033521460

RING, RETAINING - 24

$1.49

$

In Stock, Qty 8

0

3

Echo 90085806901

BEARING, BALL - 6901Z
(Superseded to 9405206901)

$15.99

$

In Stock, only 1 left!

0

4

Echo 90085506901

BEARING, BALL - 6901

$15.99

$

In Stock, only 1 left!

0

5

Echo V651000050

GEAR
(Superseded to P021009430)

$37.99

$

Usually ships in 2-4 days

0

6

Echo 61041021560

CASE, GEAR
(Superseded to P021000110)

$

$

Not available

7

Echo 90016205028

SCREW - 5X28

$1.99

$

In Stock, Qty 20+

0

8

Echo 90016205012

SCREW - 5X12

$0.99

$

In Stock, Qty 20+

0

$0.99

$

In Stock, Qty 10

0

10

Echo 88011054230

FITTING, GREASE

$5.49

$

In Stock, only 3 left!

0

11

Echo 69912021560

BRACKET
(Superseded to 69912021561)

$5.99

$

In Stock, only 1 left!

0

12

Echo 43302206460

LOCKNUT - 6

$1.49

$

In Stock, Qty 20+

0

13

Echo 90021206035

SCREW - 6X35

$0.99

$

In Stock, Qty 8

0

14

$2.49

$

In Stock, Qty 7

0

15

Echo 69911007260

SUPPORT, BLADE - 20" (50cm)
(Superseded to X425000060)

$28.99

$

Usually ships in 2-4 days

0

16

Echo 60422121460

BEARING, NEEDLE

$9.49

$

Usually ships in 2-4 days

0

17

Echo V060000000

SPUR GEAR ASSY
(Superseded to P021009440)

Note: INCLUDES ITEMS 18-21

$75.99

$

Usually ships in 2-4 days

0

18

Echo 61033521560

RING, RETAINING

$0.99

$

In Stock, only 2 left!

0

19

Echo V651000060

GEAR - BEVEL -- DRIVEN
(Superseded to P021009430)

$37.99

$

Usually ships in 2-4 days

0

20

Echo 90085506901

BEARING, BALL - 6901

$15.99

$

In Stock, only 1 left!

0

21

Echo 61031221460

GEAR - SHAFT

$30.99

$

Usually ships in 2-4 days

0

22

Echo 61033521460

RING, RETAINING - 24

$1.49

$

In Stock, Qty 8

0

23

Echo 61031004560

DRIVESHAFT

$7.99

$

Usually ships in 2-4 days

0

24

$1.49

$

In Stock, only 4 left!

0

25

Echo 61033004560

ROD, CONNECTING
(Superseded to 61033004561)

$23.99

$

In Stock, only 3 left!

0

26

Echo 69701006960

BLADE - 20" (50cm)
(Superseded to X411000050)

$57.99

$

In Stock, only 4 left!

0

27

Echo 61031204560

GEAR - DRIVE

$76.99

$

In Stock, only 3 left!

0

$2.49

$

In Stock, Qty 14

0

29

Echo 69911804560

WASHER - 6

$0.99

$

In Stock, Qty 20+

0

30

$4.49

$

In Stock, Qty 20+

0

31

Echo 61042504560

SEAL, FELT

$1.49

$

In Stock, Qty 20+

0

32

Echo 61041421460

GASKET, GEAR CASE

$1.49

$

In Stock, Qty 14

0

33

Echo 61041121460

LID, GEAR CASE

$6.99

$

Usually ships in 2-4 days

0

34

Echo 90016204012

SCREW - 4X12

$1.49

$

In Stock, Qty 7

0

35

Echo 89852306560

COVER, BLADE
(Superseded to X495000040)

$8.99

$

In Stock, only 1 left!

0
