SHC-225 S - Echo Shaft Hedge Trimmer (SN: S86012001001 - S86012999999) Gear Case, Blades S/N: S86012006190-S86012999999 Parts Diagram

Shaft Hedge Trimmer

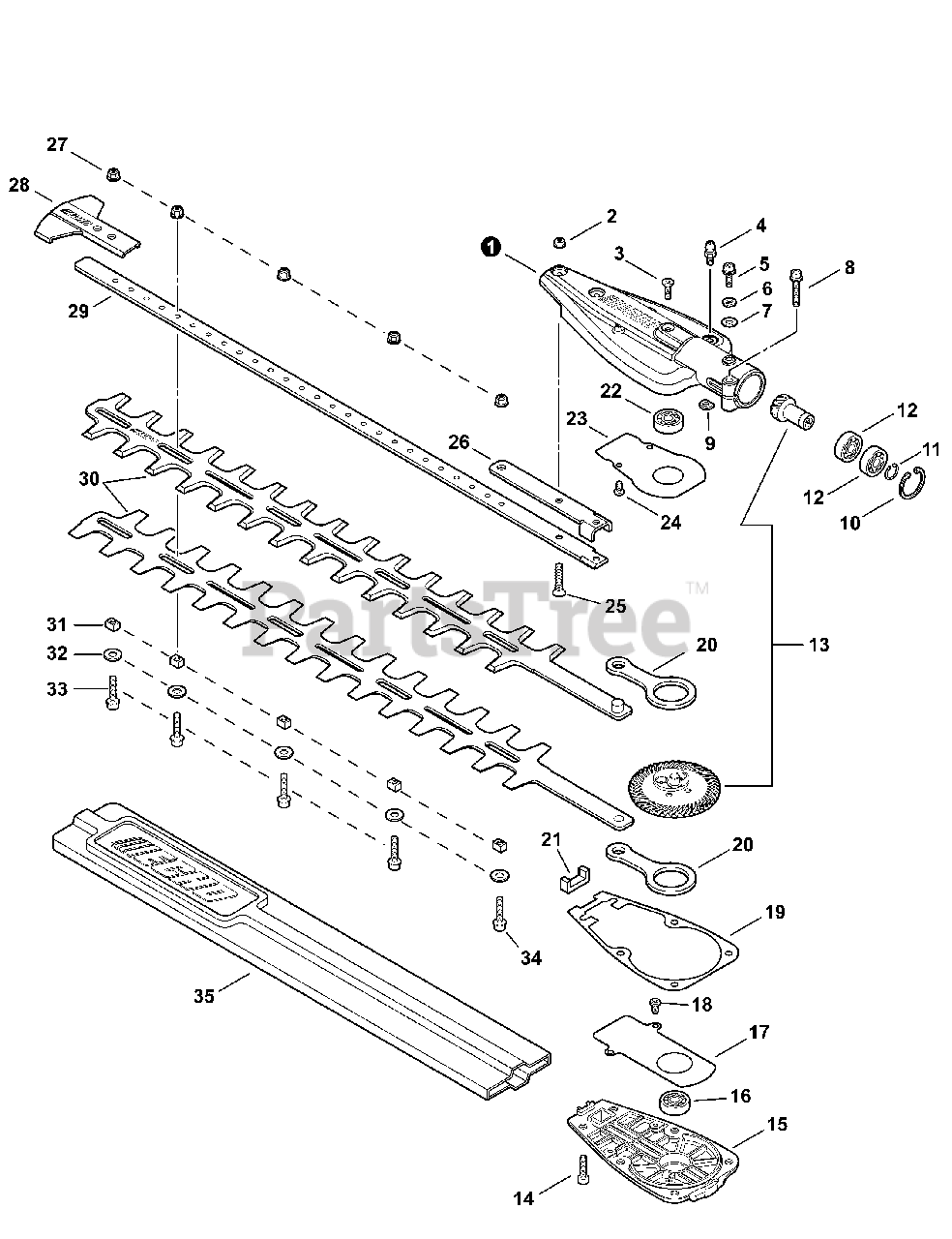

Gear Case, Blades S/N: S86012006190-S86012999999 Parts Diagram

  • Title

1

Echo C531000410

CASE, GEAR
(Superseded to C531000411)

$37.99

$

In Stock, Qty 5

0

2

Echo 9210805000

NUT - FLANGE

$0.99

$

In Stock, Qty 20+

0

3

Echo V253000160

SCREW - 5×8

$0.99

$

In Stock, only 3 left!

0

4

Echo 88011054230

FITTING, GREASE

$5.49

$

In Stock, only 3 left!

0

5

Echo V805000140

SCREW - 5×12

$0.99

$

In Stock, Qty 20+

0

6

Echo 60060500005

WASHER, SPRING 5

$

$

Currently unavailable

7

Echo 60060000005

WASHER, FLAT 5.5×10×0.8

$

$

Currently unavailable

8

Echo V805000170

SCREW - 5×25

$0.99

$

Usually ships in 2-4 days

0

9

Echo 61023904130

WASHER, SHIM

$0.99

$

In Stock, Qty 10

0

10

Echo 61033521460

RING, RETAINING - 24

$1.49

$

In Stock, Qty 8

0

11

Echo 90070600012

RING, RETAINING - 12

$1.49

$

In Stock, Qty 10

0

12

Echo 9405206901

BEARING, BALL - 6901

$15.99

$

In Stock, only 1 left!

0

13

Echo P021045380

GEAR SET
(Superseded to P021045310)

$125.99

$

In Stock, only 2 left!

0

14

Echo 90010505012

SCREW - 5×12

$1.49

$

In Stock, Qty 20+

0

15

Echo C531000420

LID, GEAR CASE

$39.99

$

In Stock, Qty 10

0

16

Echo 90081400628

BEARING, BALL - 628ZZ

$8.99

$

In Stock, Qty 6

0

17

Echo V110000070

GASKET, GEAR CASE

$1.49

$

In Stock, Qty 20+

0

18

Echo 9133004005

SCREW - 4×5

$0.99

$

Usually ships in 2-4 days

0

19

Echo K123000010

PLATE, WEAR

$1.99

$

In Stock, Qty 17

0

20

Echo C532000180

ROD, CONNECTING
(Superseded to C532000181)

$15.99

$

In Stock, only 2 left!

0

21

Echo V541000130

SEAL

$1.49

$

In Stock, Qty 20+

0

22

Echo 90080400608

BEARING, BALL - 608ZZ

$12.99

$

In Stock, only 1 left!

0

23

Echo K123000020

PLATE, WEAR

$1.99

$

In Stock, Qty 8

0

24

Echo 9133004005

SCREW - 4×5

$0.99

$

Usually ships in 2-4 days

0

25

Echo 90021205018

SCREW - 5×18

$0.99

$

In Stock, Qty 20+

0

26

Echo V150001860

SUPPORT, BLADE

$3.49

$

In Stock, Qty 7

0

27

Echo 9210805000

LOCKNUT - 5

$0.99

$

In Stock, Qty 20+

0

28

Echo E278000211

GUARD, TIP
(Superseded to 99988802000)

$9.99

$

Usually ships in 2-4 days

0

29

Echo X425000410

SUPPORT, BLADE

$40.99

$

In Stock, only 1 left!

0

30

Echo X411000720

BLADE, TRIMMER

$53.99

$

In Stock, Qty 14

0

31

Echo V353000250

GUIDE, BLADE

$5.49

$

In Stock, Qty 20+

0

32

Echo 17721421860

WASHER - 6

$2.49

$

In Stock, Qty 20+

0

33

Echo 90010605020

SCREW - 5×20

$1.49

$

In Stock, Qty 20+

0

34

Echo 9110705022

SCREW - 5×22

$0.99

$

In Stock, Qty 20+

0

35

Echo X495000470

COVER, BLADE

$8.99

$

Usually ships in 2-4 days

0
