SHC-211 - Echo Shaft Hedge Trimmer (SN: 02001001 - 02999999) Handle, Ignition Switch, Throttle Cable Parts Diagram

Shaft Hedge Trimmer

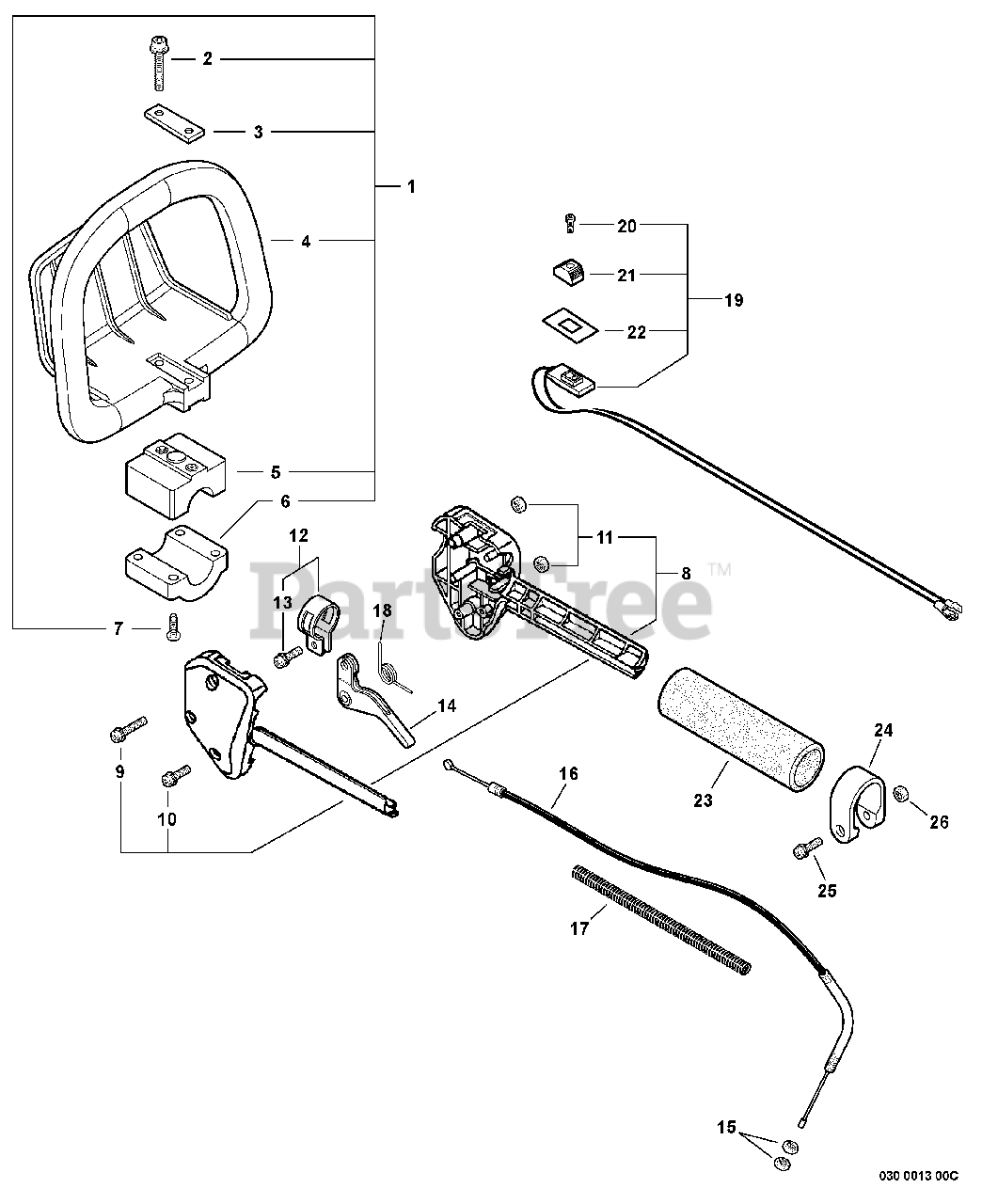

Handle, Ignition Switch, Throttle Cable Parts Diagram

  • Title

1

Echo 35120121560

HANDLE ASSY - FRONT

Note: INCLUDES ITEMS 2-7

$25.99

$

Usually ships in 2-4 days

0

2

Echo 90016205030

SCREW - 5X30

$0.99

$

In Stock, only 3 left!

0

3

Echo 35161105360

PLATE

$7.49

$

In Stock, only 1 left!

0

4

Echo 35161005360

HANDLE - FRONT

$40.99

$

Usually ships in 2-4 days

0

5

Echo 35141521460

BRACKET, HANDLE - UPPER

$4.49

$

Usually ships in 2-4 days

0

6

Echo 35164321460

BRACKET, HANDLE - LOWER

$2.49

$

Usually ships in 2-4 days

0

7

Echo 88995021560

SCREW - 5

$0.99

$

In Stock, only 2 left!

0

8

Echo 17800352731

CONTROL HANDLE ASSY

Note: INCLUDES ITEMS 9-11

$10.99

$

Usually ships in 2-4 days

0

9

Echo 90024205035

SCREW - 5X35

$0.99

$

In Stock, Qty 20+

0

10

Echo 90024205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

11

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

12

Echo 30120152730

CLAMP KIT

Note: Includes ITEM 13

$9.49

$

Usually ships in 2-4 days

0

13

Echo 90024205014

SCREW - 5X14

$0.99

$

In Stock, Qty 20+

0

14

Echo 17801052130

TRIGGER, THROTTLE

$3.49

$

In Stock, Qty 20+

0

15

Echo 90050200006

NUT - 6

$0.99

$

In Stock, only 3 left!

0

16

Echo 17800156730

CABLE, THROTTLE

$10.99

$

In Stock, only 2 left!

0

17

Echo 17812721360

TUBE, PROTECTIVE - CORRUGATED
(Superseded to Discontinued)

$

$

Not available

18

Echo 17804342230

SPRING, TRIGGER

$0.99

$

In Stock, Qty 20+

0

19

Echo 16340155631

IGNITION SWITCH ASSY

Note: INCLUDES ITEMS 20-22

$8.99

$

In Stock, Qty 7

0

20

Echo 9154503010

SCREW - 3X10

$0.99

$

In Stock, Qty 20+

0

21

Echo 16341049231

KNOB, SWITCH - ORANGE

$3.99

$

In Stock, Qty 20+

0

22

Echo 89015712330

COVER, SWITCH - STOP

$3.49

$

In Stock, Qty 13

0

23

Echo 35121352730

GRIP, HANDLE - REAR
(Superseded to Discontinued)

$

$

Not available

24

Echo 61027252730

CLAMP

$9.99

$

Usually ships in 2-4 days

0

25

Echo 90024205028

SCREW - 5X28

$0.99

$

In Stock, Qty 7

0

26

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0
