SHC-2100 - Echo Shaft Hedge Trimmer (Type 1E) Intake, Exhaust Parts Diagram

Shaft Hedge Trimmer (Type 1E)

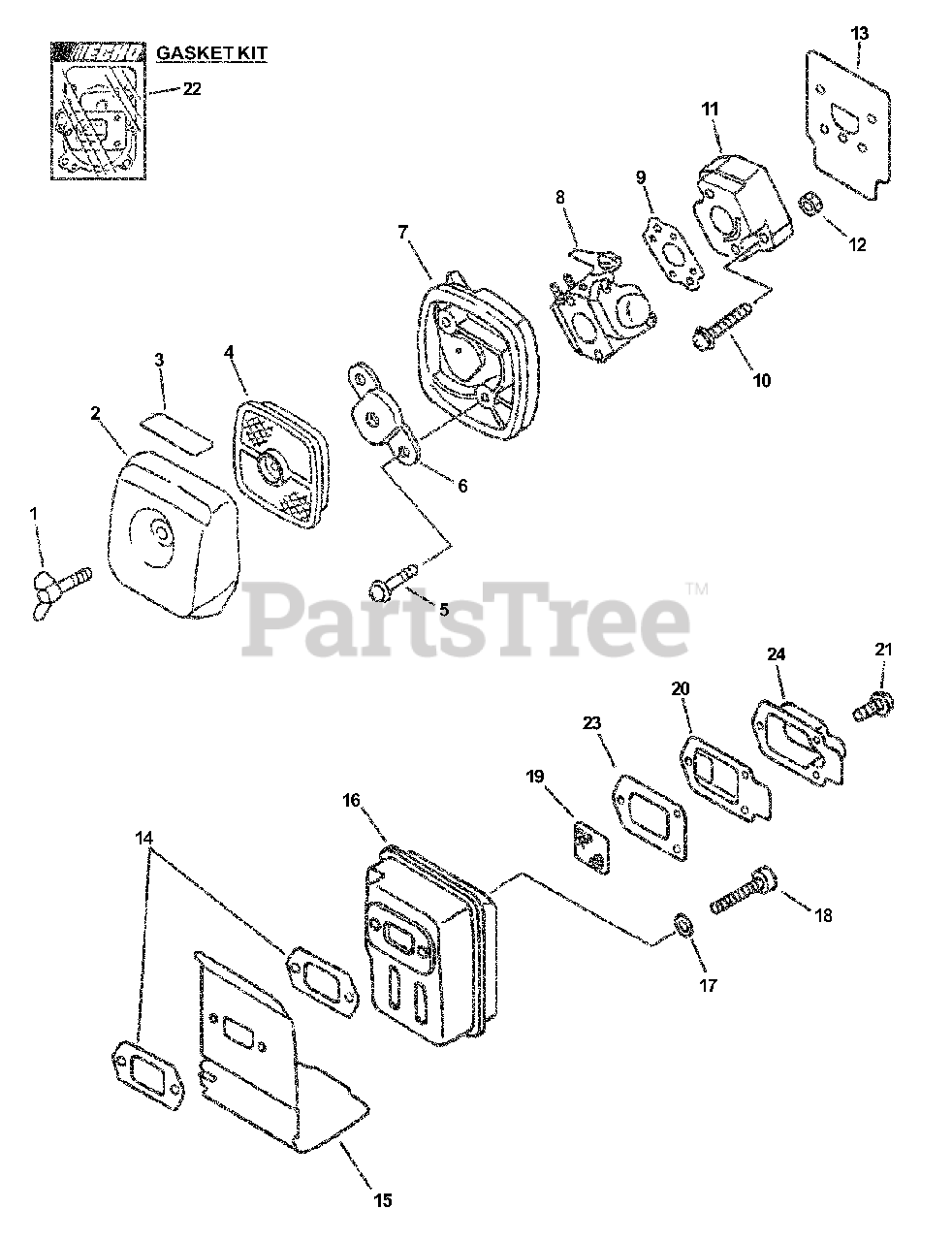

Intake, Exhaust Parts Diagram

  • Title
1

Echo 21041752730

THUMBSCREW

$1.49

$

In Stock, Qty 20+

0

2

Echo 13031306563

COVER, AIR FILTER - GRAY

$6.99

$

In Stock, Qty 20+

0

3

Echo 89012106360

LABEL - CHOKE

$1.99

$

In Stock, Qty 15

0

3

Echo 89012105360

LABEL - CHOKE

Note: CANADA S/N: 001001 & UP

$1.99

$

In Stock, Qty 15

0

4

Echo 13031054130

FILTER, AIR - SINGLE LAYER
(Superseded to A226001410)

$7.49

$

In Stock, Qty 20+

0

5

Echo 90024205065

SCREW - 5X65

$0.99

$

In Stock, only 2 left!

0

6

Echo 12901152730

PLATE, PREVENT

$3.99

$

In Stock, Qty 20+

0

7

Echo 13030706561

AIR FILTER CASE ASSY
(Superseded to P021002921)

$12.99

$

In Stock, Qty 6

0

8

Echo 12520049030

CARBURETOR C1U-K47
(Superseded to 12520013311)

$78.99

$

In Stock, Qty 20+

0

8

Echo 12520013311

CARBURETOR C1U-K52
(Superseded to 12520013312)

$78.99

$

In Stock, Qty 20+

0

9

Echo 13001642031

GASKET, INTAKE

$1.49

$

In Stock, Qty 20+

0

10

Echo 90023805020

SCREW - 5X20

$0.99

$

In Stock, only 3 left!

0

11

Echo 13001742031

INSULATOR, INTAKE

$9.49

$

In Stock, only 1 left!

0

12

$0.99

$

In Stock, Qty 20+

0

13

Echo V103000490

SHIELD, INTAKE
(Superseded to V103001360)

$2.49

$

In Stock, Qty 15

0

14

Echo V104000160

GASKET, EXHAUST

$0.99

$

In Stock, Qty 16

0

15

Echo A320000251

SHIELD, EXHAUST

$4.99

$

In Stock, Qty 14

0

16

$46.99

$

In Stock, only 1 left!

0

17

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

18

Echo 90010505055

SCREW - 5X55

$1.49

$

In Stock, Qty 7

0

19

Echo 14586240630

SCREEN, SPARK ARRESTOR

$1.99

$

In Stock, Qty 20+

0

20

Echo 14587642030

GASKET, EXHAUST - INNER

$3.99

$

In Stock, Qty 6

0

21

Echo 90023804010

SCREW - 4X10

$0.99

$

In Stock, Qty 15

0

22

Echo 88900021462

GASKET KIT
(Superseded to 88900021463)

$15.99

$

Usually ships in 2-4 days

0

23

Echo 14586642031

GASKET, EXHAUST

Note: CANADA S/N: 001001-004457; S/N: 001001-510795

$2.49

$

In Stock, Qty 5

0

24

Echo 14586354130

GUIDE, EXHAUST - OUTER

Note: CANADA S/N: 001001-004512; S/N: 001001-510795

$3.99

$

Usually ships in 2-4 days

0

23

Echo V104000003

GASKET, EXHAUST

Note: CANADA S/N: 004458 & UP; S/N: 510796 & UP

$2.99

$

In Stock, only 2 left!

0

24

Echo A313000000

GUIDE, EXHAUST - OUTER

Note: CANADA S/N: 004513 & UP; SERIAL NUMBERS: 510796 & UP

$3.99

$

Usually ships in 2-4 days

0
