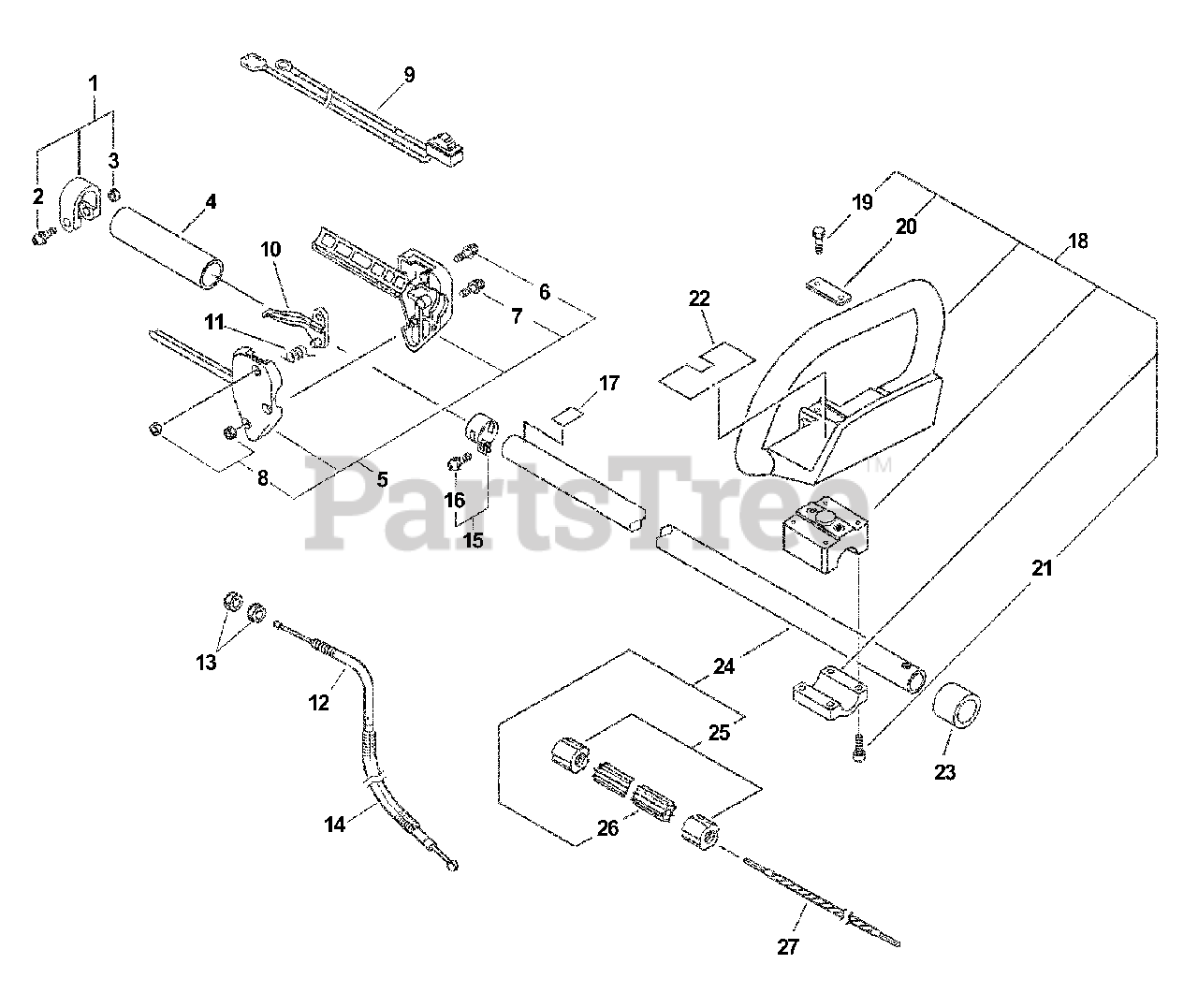

SHC-2100 - Echo Shaft Hedge Trimmer (Type 1E) Driveshaft, Ignition Switch, Throttle Cable S/N: 506456 - 999999 Parts Diagram

Shaft Hedge Trimmer (Type 1E)

Driveshaft, Ignition Switch, Throttle Cable S/N: 506456 - 999999 Parts Diagram

  • Title

1

Echo 61027252730

CLAMP

Note: INCLUDES ITEMS 2-3

$9.99

$

Usually ships in 2-4 days

0

2

Echo 90024205028

SCREW - 5X28

$0.99

$

In Stock, Qty 7

0

3

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

4

Echo 35121352730

GRIP, HANDLE - REAR
(Superseded to Discontinued)

$

$

Not available

5

Echo 17800352730

CONTROL HANDLE ASSY
(Superseded to 17800352731)

Note: Includes ITEMS 6-8

$10.99

$

Usually ships in 2-4 days

0

6

Echo 90024205035

SCREW - 5X35

$0.99

$

In Stock, Qty 20+

0

7

Echo 90024205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

8

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

9

Echo 16340155631

IGNITION SWITCH ASSY

$8.99

$

In Stock, Qty 7

0

10

Echo 17801052130

TRIGGER, THROTTLE

$3.49

$

In Stock, Qty 20+

0

11

Echo 17804342230

SPRING, TRIGGER

$0.99

$

In Stock, Qty 20+

0

12

Echo 17800144430

CABLE, THROTTLE

$10.99

$

Usually ships in 2-4 days

0

13

Echo 90050200006

NUT - 6

$0.99

$

In Stock, only 3 left!

0

14

Echo 17812721360

TUBE, PROTECTIVE - CORRUGATED
(Superseded to Discontinued)

$

$

Not available

15

Echo 30120152730

CLAMP KIT

Note: Includes ITEM 16

$9.49

$

Usually ships in 2-4 days

0

16

Echo 90024205014

SCREW - 5X14

$0.99

$

In Stock, Qty 20+

0

17

Echo 89015204930

LABEL - ALIGNMENT

$0.99

$

In Stock, Qty 9

0

18

Echo 35120121560

HANDLE ASSY - FRONT

Note: INCLUDES ITEMS 19-21

$25.99

$

Usually ships in 2-4 days

0

19

Echo 90016205030

SCREW - 5X30

$0.99

$

In Stock, only 3 left!

0

20

Echo 35161105360

PLATE

$7.49

$

In Stock, only 1 left!

0

21

Echo 88995021560

SCREW - 5

$0.99

$

In Stock, only 2 left!

0

22

Echo 89018721560

LABEL - WARNING

$2.49

$

In Stock, only 1 left!

0

23

Echo 61022555330

COLLAR
(Superseded to 61022555331)

$6.99

$

In Stock, only 1 left!

0

24

Echo 61020621560

MAIN PIPE ASSY

Note: INCLUDES ITEMS 25-26

$43.99

$

Usually ships in 2-4 days

0

25

Echo 61024655330

BUSHING

$4.49

$

In Stock, Qty 7

0

26

Echo 61021721560

LINER - FLEXIBLE

$14.99

$

Usually ships in 2-4 days

0

27

Echo 61001321560

DRIVESHAFT - FLEXIBLE
(Superseded to C506000370)

$13.99

$

In Stock, only 1 left!

0
