SHC-2100 - Echo Shaft Hedge Trimmer (Type 1E) Carburetor -- C1U-K52 Parts Diagram

Shaft Hedge Trimmer (Type 1E)

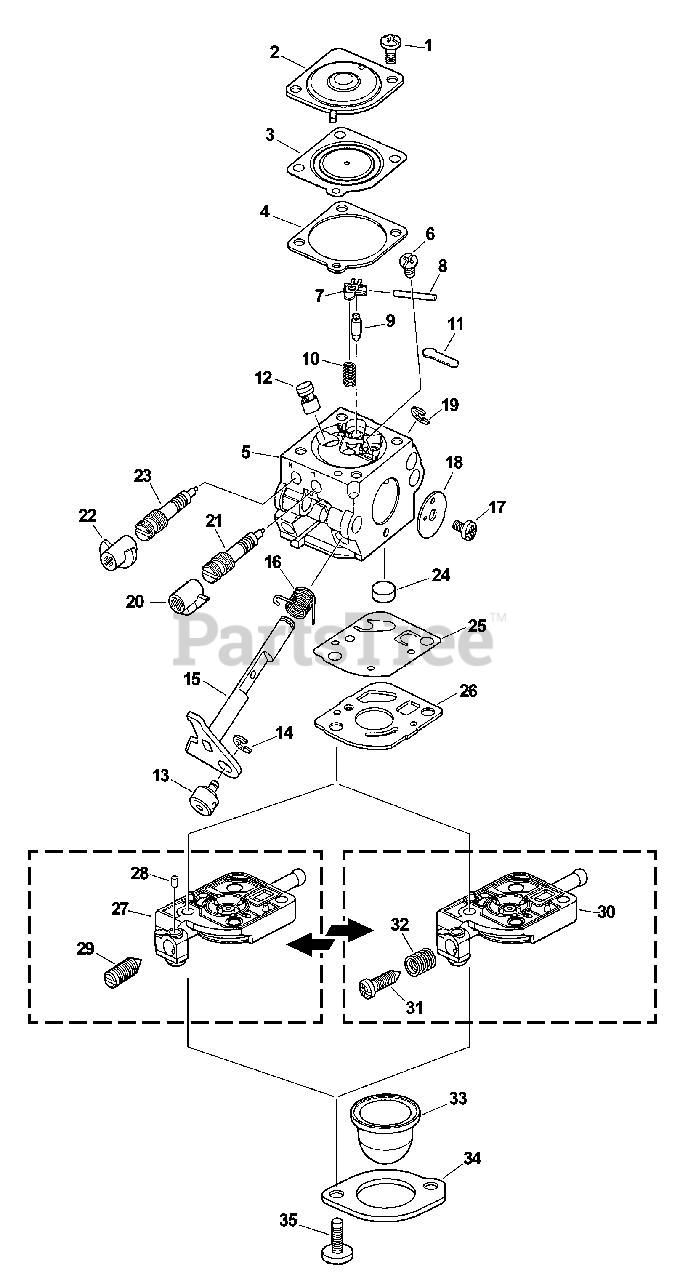

Carburetor -- C1U-K52 Parts Diagram

  • Title

Echo 12520013311

CARBURETOR C1U-K52
(Superseded to 12520013312)

Note: Includes ITEMS 1-32

$78.99

$

In Stock, Qty 20+

0

$0.99

$

In Stock, Qty 8

0

2

Echo 12534213210

COVER, METERING
(Superseded to 12534252130)

$3.99

$

Usually ships in 2-4 days

0

3

------------------

DIAPHRAGM, METERING

Note: INCLUDED IN GASKET / DIAPHRAGM KIT P/N 12530313310 & REPAIR KIT P/N 12530013310

$

$

Not available

4

------------------

GASKET, METERING

Note: INCLUDED IN GASKET / DIAPHRAGM KIT P/N 12530313310 & REPAIR KIT P/N 12530013310

$

$

Not available

5

------------------

BODY, CARBURETOR

Note: NOT AVAILABLE SEPARATELY

$

$

Not available

6

Echo 12533942030

SCREW, METERING LEVER PIN

$0.99

$

In Stock, Qty 12

0

7

------------------

LEVER, METERING

Note: INCLUDED IN REPAIR KIT P/N 12530013310

$

$

Not available

8

------------------

PIN, METERING LEVER

Note: INCLUDED IN REPAIR KIT P/N 12530013310

$

$

Not available

9

------------------

VALVE, INLET NEEDLE

Note: INCLUDED IN REPAIR KIT P/N 12530013310

$

$

Not available

10

------------------

SPRING, METERING LEVER

Note: INCLUDED IN REPAIR KIT P/N 12530013310

$

$

Not available

11

------------------

PLUG, WELCH

Note: INCLUDED IN REPAIR KIT P/N 12530013310

$

$

Not available

12

Echo 12537613120

NOZZLE, CHECK VALVE

$6.49

$

Usually ships in 2-4 days

0

13

$4.49

$

Usually ships in 2-4 days

0

14

Echo 12532713930

RING, RETAINING

$0.99

$

In Stock, Qty 9

0

15

Echo 12531749030

SHAFT, THROTTLE
(Superseded to Discontinued)

$

$

Not available

16

Echo 12531342030

SPRING, RETURN

$1.49

$

In Stock, Qty 12

0

17

$1.49

$

Usually ships in 2-4 days

0

18

Echo 12531649030

VALVE, THROTTLE

$2.49

$

Usually ships in 2-4 days

0

19

Echo 12532715130

RING, RETAINING

$0.99

$

In Stock, Qty 9

0

20

Echo 12532909860

CAP, LIMITER

$1.99

$

In Stock, Qty 13

0

21

Echo 12531813310

NEEDLE - LOW SPEED
(Superseded to 12531813120)

$4.99

$

Usually ships in 2-4 days

0

22

Echo 12532939030

CAP, LIMITER

$1.99

$

In Stock, Qty 11

0

23

Echo 12532013310

NEEDLE - HIGH SPEED

$3.99

$

Usually ships in 2-4 days

0

24

------------------

STRAINER

Note: INCLUDED IN REPAIR KIT P/N 12530013310

$

$

Not available

25

------------------

DIAPHRAGM, PURGE

Note: INCLUDED IN GASKET / DIAPHRAGM KIT P/N 12530313310 & REPAIR KIT P/N 12530013310

$

$

Not available

26

------------------

GASKET, PURGE

Note: INCLUDED IN GASKET / DIAPHRAGM KIT P/N 12530313310 & REPAIR KIT P/N 12530013310

$

$

Not available

27

Echo P005000990

BASE, PURGE

$22.99

$

In Stock, only 4 left!

0

28

Echo 12537813930

PIECE, FRICTION

$1.99

$

Usually ships in 2-4 days

0

29

Echo 12533413930

SCREW, IDLE ADJUST

$1.49

$

In Stock, only 4 left!

0

30

Echo P005000590

BASE, PURGE

$23.99

$

Usually ships in 2-4 days

0

31

Echo 12533406960

SCREW, IDLE ADJUST

$4.99

$

Usually ships in 2-4 days

0

32

Echo 12533306960

SPRING, IDLE ADJUST

$1.49

$

In Stock, Qty 10

0

33

Echo 12538108660

BULB, PURGE
(Superseded to P005003120)

$6.99

$

In Stock, Qty 20+

0

34

Echo 12536311610

RETAINER, PURGE BULB

$2.49

$

In Stock, Qty 8

0

35

Echo 12531011610

SCREW, RETAINER

$1.49

$

In Stock, Qty 13

0

Echo 12530013310

REPAIR KIT
(Superseded to P005002840)

$18.99

$

In Stock, Qty 9

0

Echo 12530313310

DIAPHRAGM/GASKET KIT

$8.99

$

Usually ships in 2-4 days

0
