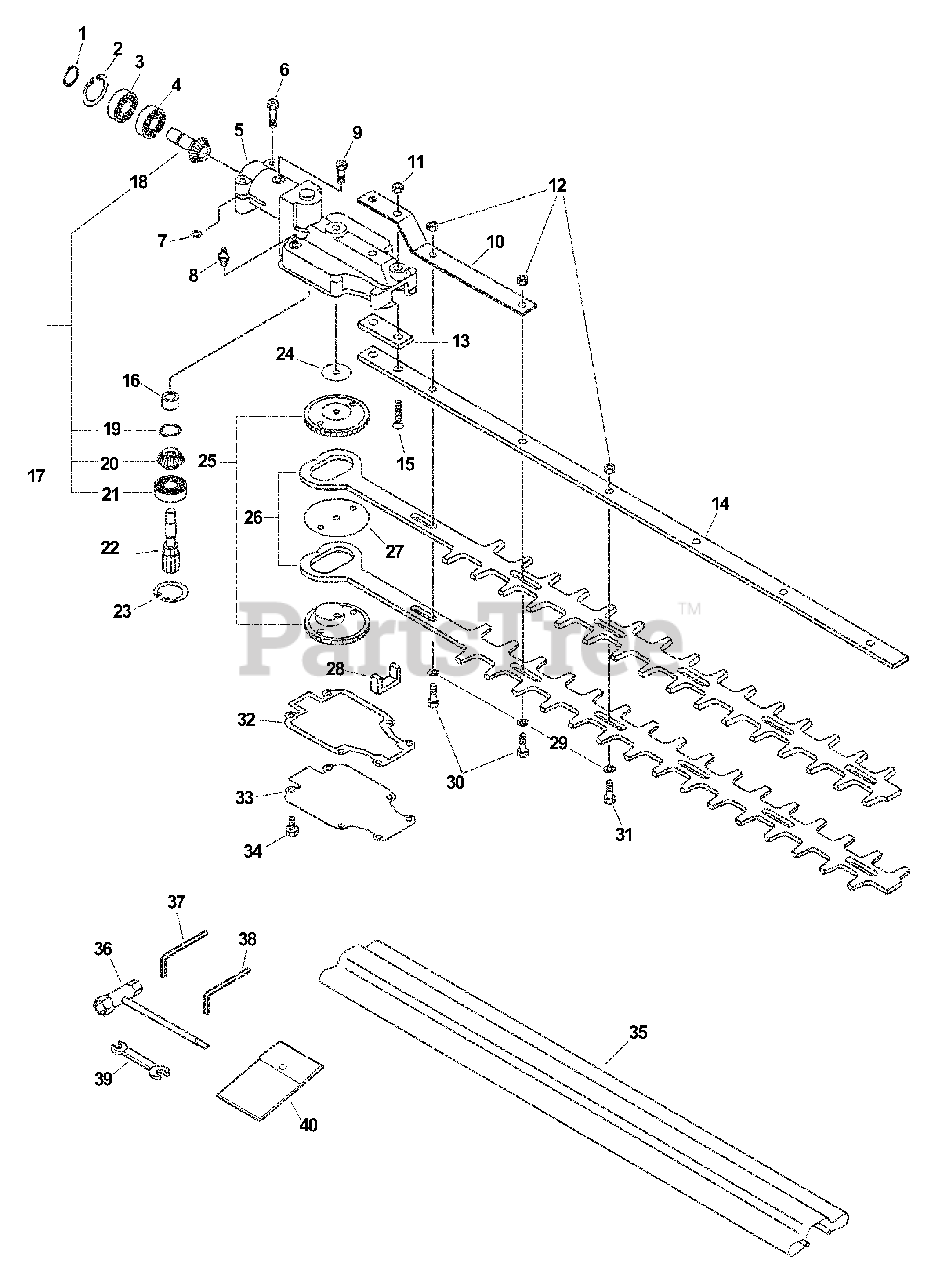

SHC-2100 - Echo Shaft Hedge Trimmer (Type 1) Gearcase, Blades, Tools S/N: 0511441 - 9999999 Parts Diagram

Shaft Hedge Trimmer (Type 1)

Gearcase, Blades, Tools S/N: 0511441 - 9999999 Parts Diagram

  • Title

1

Echo 61033521460

RING, RETAINING - 24

$1.49

$

In Stock, Qty 8

0

2

Echo 90070600012

RING, RETAINING - 12

$1.49

$

In Stock, Qty 10

0

3

Echo 90085806901

BEARING, BALL - 6901Z
(Superseded to 9405206901)

$15.99

$

In Stock, only 1 left!

0

4

Echo 90085506901

BEARING, BALL - 6901

$15.99

$

In Stock, only 1 left!

0

5

Echo 61041021460

CASE, GEAR - UPPER
(Superseded to 61041021461)

$

$

Not available

6

Echo 90016205028

SCREW - 5X28

$1.99

$

In Stock, Qty 20+

0

7

Echo 61023904130

SHIM

$0.99

$

In Stock, Qty 10

0

8

Echo 88011054230

FITTING, GREASE

$5.49

$

In Stock, only 3 left!

0

9

Echo 90016205012

SCREW - 5X12

$0.99

$

In Stock, Qty 20+

0

10

Echo 69912021461

BRACKET, BLADE

$5.99

$

In Stock, only 1 left!

0

11

Echo 90050000006

LOCKNUT - 6

$0.99

$

In Stock, Qty 20+

0

12

Echo 43302206460

LOCKNUT - 6

$1.49

$

In Stock, Qty 20+

0

13

Echo 61091421460

PLATE
(Superseded to Discontinued)

$

$

Not available

14

Echo 69911021560

SUPPORT, BLADE
(Superseded to X425000030)

$31.99

$

Usually ships in 2-4 days

0

15

Echo 90021206035

SCREW - 6X35

$0.99

$

In Stock, Qty 8

0

16

Echo 60422121460

BEARING, NEEDLE

$9.49

$

Usually ships in 2-4 days

0

17

Echo V060000000

SPUR GEAR ASSY
(Superseded to P021009440)

Note: INCLUDES ITEMS 18-21

$75.99

$

Usually ships in 2-4 days

0

18

Echo V651000060

GEAR - BEVEL -- DRIVEN
(Superseded to P021009430)

$37.99

$

Usually ships in 2-4 days

0

19

Echo 61033521560

RING, RETAINING

$0.99

$

In Stock, only 2 left!

0

20

Echo 61036121560

GEAR - BEVEL -- DRIVEN
(Superseded to Discontinued)

$

$

Not available

21

Echo 90085506901

BEARING, BALL - 6901

$15.99

$

In Stock, only 1 left!

0

22

Echo 61031221460

GEAR - SHAFT

$30.99

$

Usually ships in 2-4 days

0

23

Echo 61033521460

RING, RETAINING - 24

$1.49

$

In Stock, Qty 8

0

24

Echo 68902506560

WASHER

$1.49

$

In Stock, only 3 left!

0

25

Echo 61031206560

GEAR - SPUR
(Superseded to V650000250)

$53.99

$

In Stock, Qty 11

0

26

Echo 69701021560

BLADE, TRIMMER
(Superseded to X411000040)

$58.99

$

In Stock, Qty 5

0

27

Echo 68902505360

PLATE

$2.49

$

In Stock, Qty 5

0

28

Echo 61042621460

SEAL, FELT

$2.99

$

Usually ships in 2-4 days

0

29

Echo 69911804560

WASHER - 6

$0.99

$

In Stock, Qty 20+

0

30

Echo 69911521460

SCREW

$4.49

$

In Stock, Qty 20+

0

31

Echo 69911306560

BOLT - 6

$0.99

$

In Stock, Qty 9

0

32

Echo 61041421460

GASKET, GEAR CASE

$1.49

$

In Stock, Qty 14

0

33

Echo 61041121460

LID, GEAR CASE

$6.99

$

Usually ships in 2-4 days

0

34

Echo 90016204012

SCREW - 4X12

$1.49

$

In Stock, Qty 7

0

35

Echo 89852321560

COVER, BLADE
(Superseded to X495000040)

$8.99

$

In Stock, only 1 left!

0

36

Echo X602000020

T-WRENCH - 17X19mm

$3.49

$

In Stock, Qty 20+

0

37

Echo A605000100

HEX KEY - 4mm

$

$

Currently unavailable

38

Echo 89561203430

HEX KEY - 3mm
(Superseded to X605000090)

$0.99

$

In Stock, only 3 left!

0

39

Echo 89511200330

SPANNER - 8X10mm

$0.99

$

In Stock, only 3 left!

0

40

Echo 89851039130

BAG, TOOL

$1.99

$

In Stock, Qty 7

0
